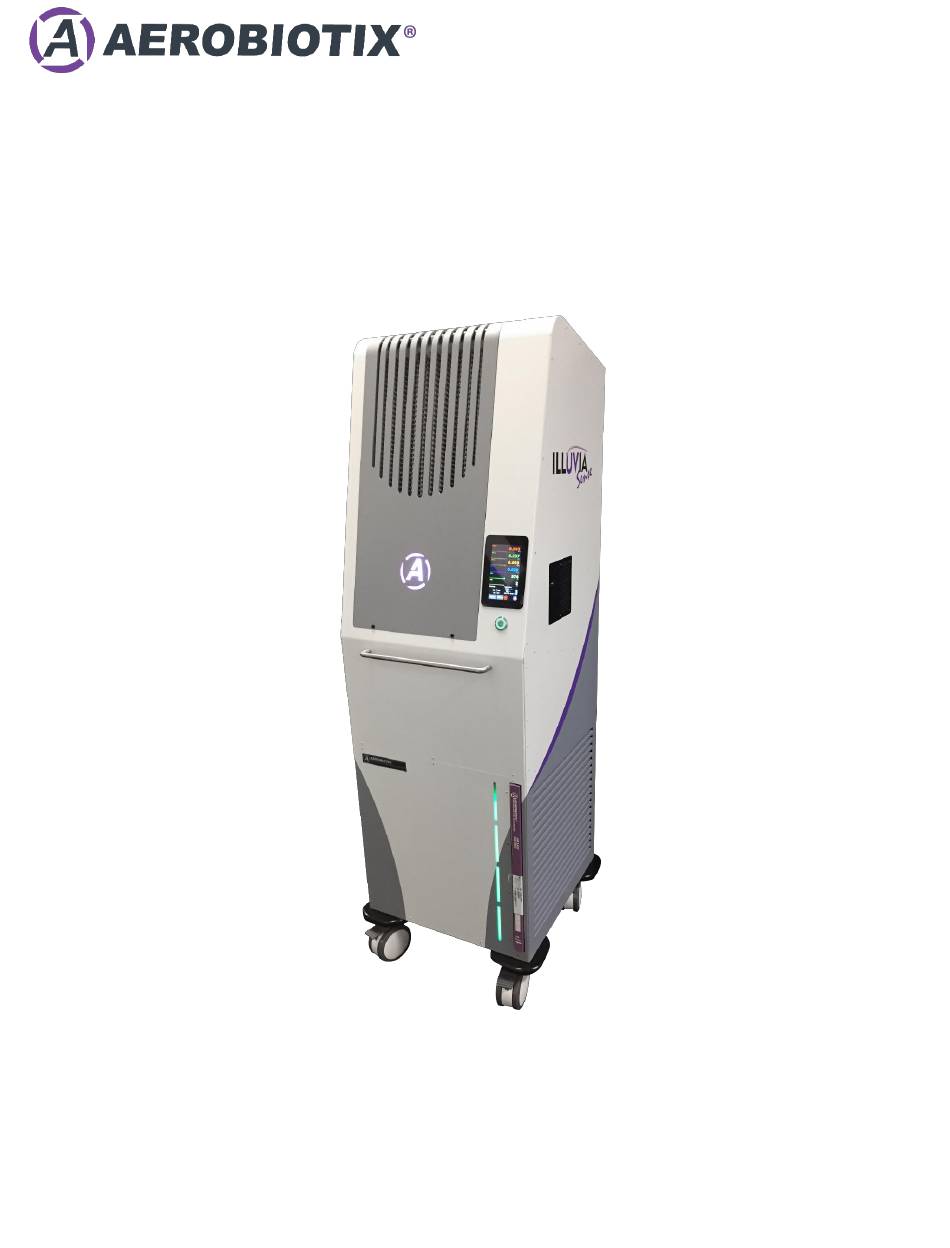

ILLUVIA
SENSE
INSTRUCTIONS FOR USE
1
IFU-IlluviaSense-01 Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILLUVIA SENSE and is the answer not in the manual?

Questions and answers

Related Manuals for Aerobiotix ILLUVIA SENSE

Summary of Contents for Aerobiotix ILLUVIA SENSE

  • Page 1 ® ILLUVIA SENSE INSTRUCTIONS FOR USE IFU-IlluviaSense-01 Rev D...

  • Page 2: Table Of Contents

    CUSTOMER SUPPORT …………………………………… 27 WARRANTY …………………………………………………... 28 Aerobiotix® reserves the right to change specifications contained in this document at any time without prior notice. If you have questions about the use of this product, contact Customer Service. Refer to the Customer Support section of this manual.

  • Page 3: Safety Information

    GENERAL AND SAFETY INFORMATION About this Instructions For Use Congratulations on your choice of this Illuvia® Sense high-performance air handling system. Please study this Instructions For Use carefully to familiarize yourself with the special features and functions of your system prior to use and keep it in a safe place for future reference. General Information The Illuvia®...
  • Page 4 WARNINGS AND CAUTIONS WARNING: NOT SUITABLE FOR USE WITH SOLID-STATE SPEED CONTROLS. AVERTISSEMENT: NE CONVIENT PAS A DES REGULATEURS DE VITESSEA SEMI CONDUCTEURS. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT EXPOSE TO WATER OR RAIN. AVERTISSEMENT: POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE NE PAS EXPOSER À L'EAU OU À...
  • Page 5 General Cautions & Electrical Safety  Always disconnect the power from this air cleaner by unplugging the power cord before servicing, adding or removing parts and before cleaning.  DO NOT use the unit in wet environments. If, for any reason, the unit gets moisture of any kind inside stop use and contact Customer Service.
  • Page 6  DO NOT position the unit in a way that is difficult to disconnect the power cord from the wall outlet.  If used in a manner not specified by Aerobiotix the protection provided by the equipment may be impaired.
  • Page 7 Débranchez toujours l 'alimentation avant de remplacer ou de réparer. Remplacez la lampe par la lampe Référence L1- 0040-1, vendue par Aerobiotix®. You may notice a soft blue glow from the grilles of unit in dark environments. This is normal, and this blue light does not contain ultraviolet rays.

  • Page 8: Overview Of Indoor Air Quality

    OVERVIEW OF INDOOR AIR QUALITY The Illuvia® Sense is designed to remove contaminants from the air using a combination of filtration and an ultraviolet decontamination system to deactivate microbes from the air. In order to get the best performance from your system, certain factors should be considered: •...

  • Page 9: Packaging, Labeling And Storage

    PACKAGING, LABELING AND STORAGE ® Illuvia Sense and accompanying cartridges are supplied clean. The unit and cartridges are boxed and individually labeled. Boxes and/or pouches should be inspected for damage that may affect the integrity of the packaging prior to use. Use care in handling and storage of the unit and cartridges. PRE-OPERATION OPERATION 1.

  • Page 10: Controls And Displays

    CONTROLS AND DISPLAYS Main Panel: POWER BUTTON IFU-IlluviaSense-01 Rev D...
  • Page 11 MAIN DISPLAY 0.5 micron particulates count 1.0 micron particulates count 2.5 micron particulates count 4.0 micron particulates count count VOC count Barometric Pressure Temperature HEPA Differential Pressure Humidity Cartridge Life Remaining Status Indicator Status Button Menu Button NOTE: Data displayed is for qualitative trend and device function monitoring only. It is not intended to provide diagnostic data for clinical decision making.
  • Page 12 MENU DISPLAY Temperature Unit Select (F/C) Open Diagnostic Page Enter Service Menu Return to Main Display DIAGNOSTIC PAGE Return to Main Display IFU-IlluviaSense-01 Rev D...
  • Page 13 ENTER SERVICE MENU Numeric Keyboard Enter Service Menu Cancel (Return to Menu Display) BASIC SERVICE MENU Open USB Download Page Open Error Log Filter Reset for HEPA Return to Main Display IFU-IlluviaSense-01 Rev D...
  • Page 14 USB DOWNLOAD MENU (No USB) Return to Service Menu USB DOWNLOAD MENU (Warning) Overwrite Warning to Continue to Download Skip and Return to Main Display Cancel and Return to Service Menu IFU-IlluviaSense-01 Rev D...
  • Page 15 USB DOWNLOAD MENU (USB Downloading) Return to Service Menu USB DOWNLOAD MENU (USB Download Success) Close (return to Main Display) IFU-IlluviaSense-01 Rev D...
  • Page 16 ERROR LOG Clear Error Log Move Page Up Move Page Down Return to Service Menu (corresponding Basic or Advanced) ADVANCED SERVICE MENU Open USB Download Open Error Log Filter Reset for HEPA Filter Enter System Settings Return to main display IFU-IlluviaSense-01 Rev D...
  • Page 17 RESET HEPA FILTER (Basic and Advanced Menus) IFU-IlluviaSense-01 Rev D...
  • Page 18 SYSTEM SETTINGS (Advanced Service Menu Only) Display Setting Select (on with fan/always on) Enter Test Mode Page Motor Speed Scale (0 to 20) Serial Number Editor Software Update Return to Service Menu TEST MODE (Advanced Service Menu Only) Return to System Settings Start Test IFU-IlluviaSense-01 Rev D...
  • Page 19 TEST IN PROGRESS (Advanced Service Menu Only) Back (return to System Settings) Stop Test (return to Test Mode) Real Time Clock File System Version UV On/Off Toggle Motor On/Off Toggle SERIAL NUMBER EDITOR (Advanced Service Menu Only) Current Serial Number Numeric Keyboard Save Edited Serial Number Return to System Settings...
  • Page 20 SOFTWARE UPDATE SOFTWARE UPDATE (Success) IFU-IlluviaSense-01 Rev D...
  • Page 21 STATUS DISPLAY Return to Main Display IFU-IlluviaSense-01 Rev D...

  • Page 22: Cartridge Replacement

    CARTRIDGE REPLACEMENT 1. Cartridge replacement is required every 24 hours. 2. Use only Aerobiotix® cartridge P/N 852348007292. 3. To remove a used filter cartridge, first turn off the fan and ultraviolet lamps by depressing the button on the front panel. Pull outward on the loop attached to the front part of the cartridge (see arrow, below).

  • Page 23: Cleaning

    If power cord maintenance is required, contact Customer Service. 4. For service or maintenance needs, contact Customer Service. 5. No routine preventive maintenance is required for the safe operation of the Illuvia Sense. 6. User maintenance is not recommended, however if performed, wear hand and face personal...
  • Page 24 IFU-IlluviaSense-01 Rev D...

  • Page 25: Additional Information

    ADDITIONAL INFORMATION Technical Specifications Unit  Width 18 in (460 mm)  Depth 18 in (460 mm)  Height 54 in (1,375 mm)  Weight 150 lbs (68 kg)  Power 120 VAC / 60 Hz / Single Phase / 8.74 Amps ...
  • Page 26  UV-C is contained within the unit and does not create exposure to staff and patients in the room (ASHRAE Airborne Microorganism Testing & UL 61010-1 Testing)  4 UV-C lamps for a total 64 W Input/Output Connections There are two input/output connections on the Sense Unit, one USB port and one micro SD port.

  • Page 27: Customer Support

    CUSTOMER SUPPORT Call Aerobiotix® Monday through Friday 9AM to 5 PM ET at 888-978-7087. If your call is made after business hours or on weekends, please leave your name, telephone number, and a brief description of the problem.

  • Page 28: Warranty

    If this product is defective in materials, manufacture or design during this warranty period, Aerobiotix® will, at its option, repair or replace the product. Repair parts and /or replacement products may be either new or reconditioned at the discretion of Aerobiotix®. This limited...
