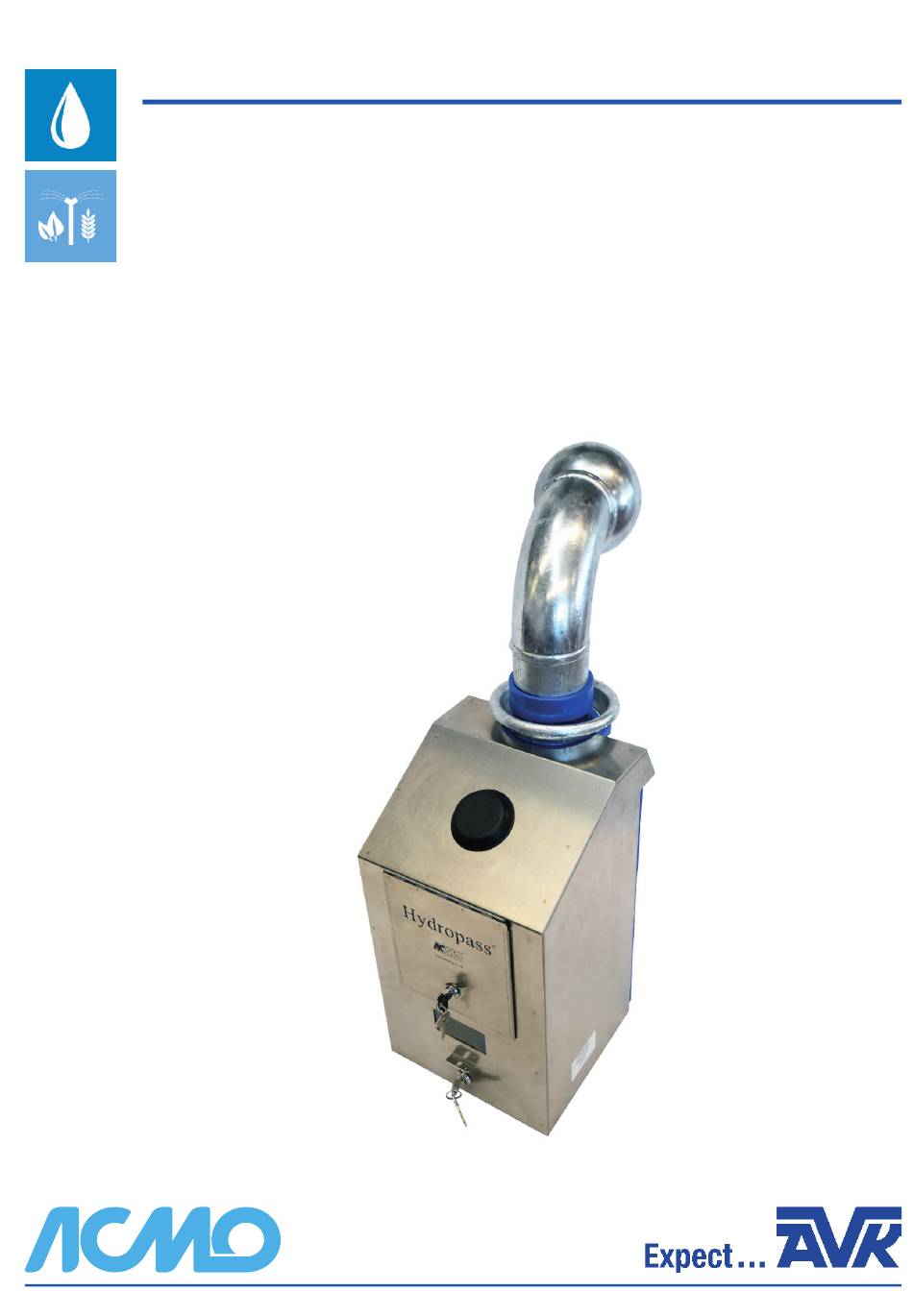

- Page 1 INSTALLATION, OPERATION & MAINTENANCE MANUAL ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS Rev. 03 - 20240430 COPYRIGHT©AVKGROUP - ACMO - www.acmosrl.com ACMO-AVK_IOM_HNSM_2021_EN...
-
Page 3: Table Of Contents
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS Index Manufacturer identification General health and safety measures Receiving and storage 3.1 Product identification 3.2 Packing 3.3 Transport and storing Testing valves Warranty Disposal and recycling Hydropass HNSM features 7.1 Description... -
Page 4: Manufacturer Identification
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS Thank you for purchasing our product. We kindly invite you to read carefully the operating instructions and safety rules in this manual, which is part of the product. -
Page 5: Receiving And Storage
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS 3. Receiving and storage 3.1 Product identification • The Hydropass hydrometer is labeled on the body with model identification number of the hydrometer. • The carter is labeled with the identification of the Water Authority and the hydrometer code that characterizes the delivery group order. -
Page 6: Testing Valves
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS 4. Testing valves All AC.MO S.r.l. Hydropass hydrometer, before being sent to the customer, are tested and controlled according to an internal control plan. The test report is available on request. -
Page 7: Components
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS 7.2 Components RUBBER MODULANT WASHER METALLIC STIFF RING ITEM DESCRIPTION FEATURES & MATERIALS HYDRAULIC VALVE BODY DUCTILE IRON EN GJS-500-7 HYDRAULIC VALVE CAP DUCTILE IRON EN GJS-500-7 STATIC ULTRASONIC WATER METER... -
Page 8: Dimensions
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS 7.3 Dimensions WEIGHT* [kg] [mm] [mm] [mm] [mm] [mm] 25.5 461.5 24.5 461.5 461.5 Indicative values * Only body weight (without circuit, outlet and carter) Flange drilling in according to EN 1092-2 The designs, materials and specifications shown are subject to change without notice. -
Page 9: Installation
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS 8. Installation PLEASE NOTE. The described instructions (which refer to the installation and to the ordinary use) must be strictly observed in order to guarantee a full functionality and safety installation. -
Page 10: Manual Commissioning Of Hydraulic Component
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS 9. Manual commissioning of hydraulic component Disconnect the connection cable between the electronics (installed on the carter) and the reed contact (of the meter), to avoid blocking the electronics. -
Page 11: Troubleshooting (Hydraulic Part)
ACMO-AVK | IOM Manuals ACMO-AVK HYDROPASS HNSM ULTRASONIC HYDROPASS WITH ELECTRONIC CARDS 12. Troubleshooting (hydraulic part) PROBLEM CAUSE SOLUTION THE VALVE Circuit strainer 5 is clogged. Clean the strainer 5. DOES NOT CLOSE Ball valve 1 is closed. Open ball valve 1. - Page 12 Headquarters: Legal Office: 31056 Roncade (TV) - Italy - Via T. da Modena, 28 - Z.I. 00136 Roma - Italy - Via Franco Michelini Tocci, 93 tel +390422840220 r.a. - fax +390422840923 tel +39066628238 - fax +39066628335 info@acmospa.com inforoma@acmospa.com www.acmosrl.com...
