LIBERATION FREQUENCY FUZZ
Build Document last updated april 2024
Version 1.0 2024
The Liberation Frequency Fuzz is a analog square wave fuzz with a
tunable and tracking monophonic oscillator that can be tuned from about
one octave down to one octave up and anywhere in between. It also has
a fun warp feature that uses a PLL output to create interesting sounds to
the oscillator even when it's "out of tune".
This pedal works best with high output pickups. It is a gated fuzz. If you are
using single coils and need more sustain, try a boost or compressor in front. To
improve tracking of the oscillator, use the neck pickup on your guitar and play
single notes closer to the 12
th
fret.
Have fun building and playing with the Liberation Frequency Fuzz!

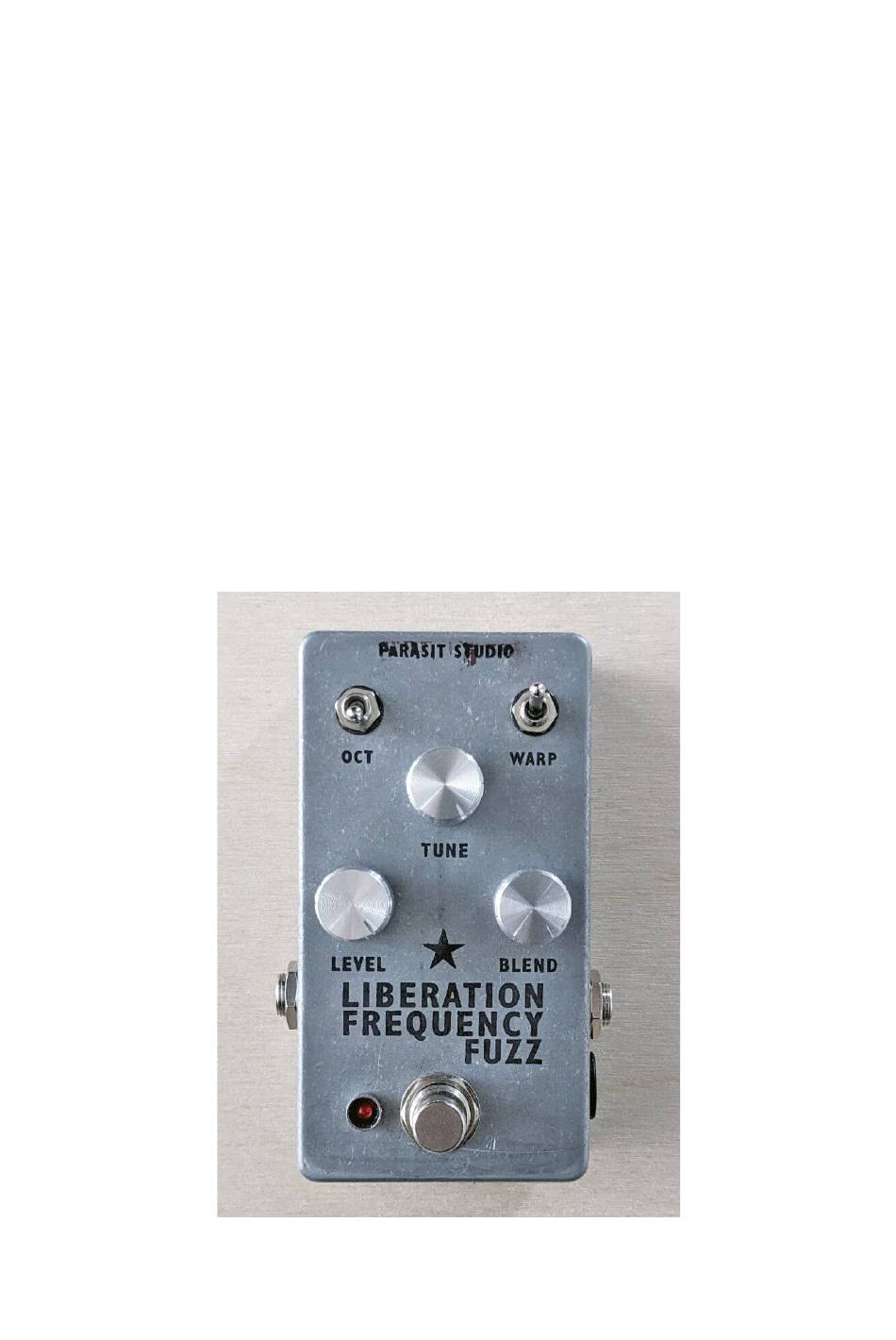

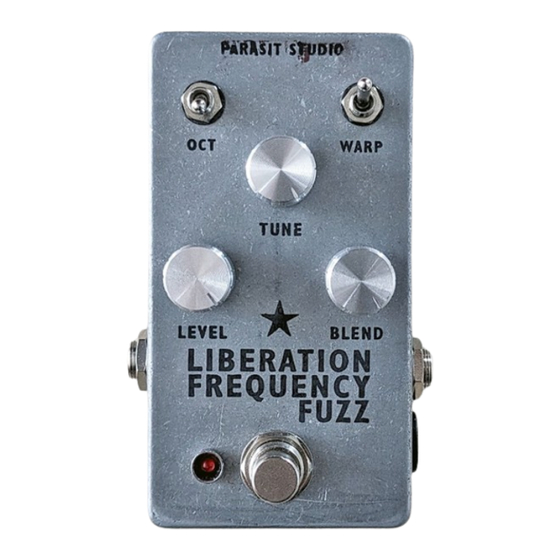

Prototype build
The Liberation Frequency Fuzz is namned after the song by the band Refused
where my brother Dennis is the singer. We want the airwaves back!

Advertisement

loading
Need help?

Need help?

Do you have a question about the LIBERATION FREQUENCY FUZZ and is the answer not in the manual?

Questions and answers

Summary of Contents for PARASIT STUDIO LIBERATION FREQUENCY FUZZ

  • Page 1 12 fret. Have fun building and playing with the Liberation Frequency Fuzz! Prototype build The Liberation Frequency Fuzz is namned after the song by the band Refused where my brother Dennis is the singer. We want the airwaves back!
  • Page 2 Power Input voltage - 9V DC Current draw - 13mA Controls Level – overall volume Blend – blends between fuzz and the oscillator Tune – tunes the oscillator Oct switch – switches range for the oscillator by one octave Warp switch –...
  • Page 3 General building tips • Just follow the Bill of Materials and solder the low profile components first. Recommended order: resistors and diodes, chip sockets, trim pot, multilayer and ceramic capacitors, film box capacitors, transistors/voltage regulators, electrolytic capacitors, pots and switches, offboard wiring (jacks). Bend the legs of the components alittle bit to prevent them from falling out, or use tape to hold them in place while soldering.
  • Page 4 Liberation Frequency Fuzz BOM (Bill of Materials) Resistors IC's 100K TL072 100K LM393 330K 100K AD5220 ** 100K CD4046(BE) 4.7K CD4040(BE) Capacitors Transistors ect. 100nF 78L05 100nF 47nF Potentiometers 470K 100pF LEVEL A100K 470K BLEND B50K 2.2nF TUNE B100K 47uF...
  • Page 5 Drill Template (1590B) • Use at your own risk! This template is approximate. • Make sure your printer isn't doing any scaling (100% print size). • Jacks are measured from the edge at the front/top of the enclosure (as they were drilled on the prototype), but you can drill the positions for the footswitch, DC jack and input/output jacks to your own preference.
  • Page 6 Off Board Wiring The top row of connections on the 3DPT daughterboard connects directly across to the main PCB as shown. → Input jack sleeve ”S” IN pad the lug that connects with the inner ring of the jack → Input jack tip ”T”...
  • Page 7: Troubleshooting

    Take your time and don't rush. Take a break now and then. Use good solder, and it helps to have a decent soldering station insted of a cheap iron. If you are still having trouble, please visit the madbean forum Parasit Studio subforum section and ask for help there. http://www.madbeanpedals.com/forum/index.php?board=84.0 If you have bought the Musikding kit and have recieved a faulty or missing component, please contact musikding directly.
