- Page 1 ABB-10 USER’S MANUAL ABB-10T / 230V INDUCTION HOB July 15 .2015...
- Page 2 ABB-10 USE AND CARE INSTRUCTIONS – IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE OPERATION 1. Use an individual 230 volt electrical socket. 2. Use individual socket for individual induction cookers. 3. DO NOT block the air-intake panel, blocking it may cause overheating of the unit. 4.
- Page 3 ABB-10 22. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by person responsible for their safety.
- Page 4 ABB-10 SUITABLE USTENSILS-FOR INDUCTION HEATING PLATES, SUITABLE POTS, 1. Iron Cast iron Stainless steel 4. Enamelware All pots and pans must have a magnetic bottom. All pots and pans must have a flat bottom. All pots and pans should have a diameter between 14 and 24 CM. UNSUITABLE POTS, 1.
- Page 5 ABB-10 HOW DOES YOUR INDUCTION HOB WORK? A high frequency (20-35KHz) induction coil underneath the surface ceramic top plate heats the cooking utensil by magnetic friction. The heat is produced directly within the pan. It is controlled by electronic circuit to offer superior performance and functions. During cooking, no energy is lost between the hob and the food.
- Page 6 ABB-10 OPERATION INSTRUCTION 1. Plug power cord into 230volt power socket. 2. Turn on power by using the rotary control knob, power level display led will light on. Turn power control knob clockwise, the power level led will display from step.1 to step.9.
-
Page 7: Features & Description

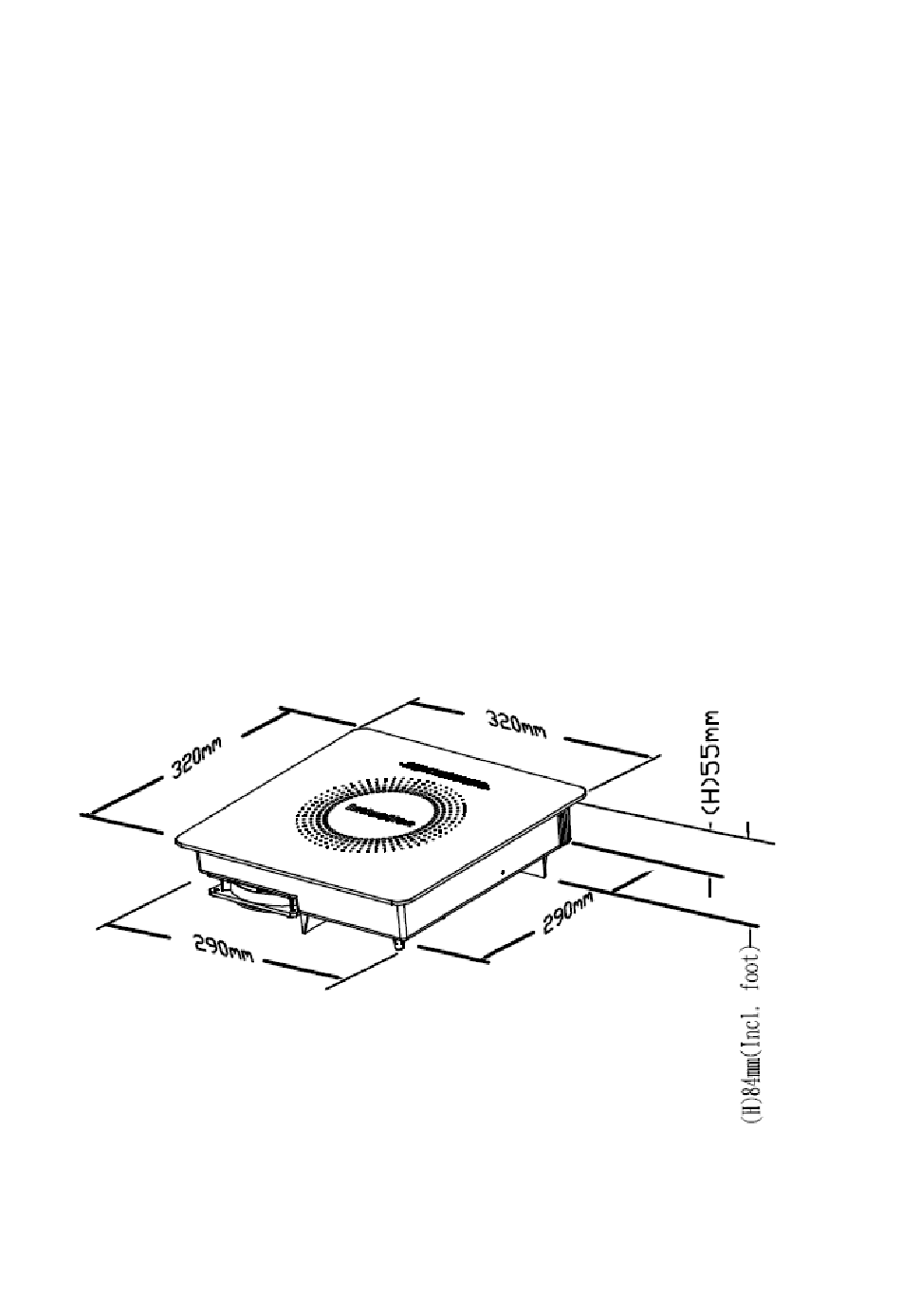

ABB-10 FEATURES & DESCRIPTION: Table cut off size: 298 mm x 295mm Air In-Take Hole: 55(H) x 160 (W) mm Air Out-Take Hole: 55(H) x 160 (W) mm Remarks: Keep good air intake and outlet space is very important for good quality and function for this induction cooking device. -
Page 8: Specification
ABB-10 SPECIFICATION: Model No. ABB-10T Induction Hob Voltage 230 V ~ 50Hz Ceramic Top Plate Approx. 320mm x 320mm Electrical Power Max. 1000w Consumption Safety Device Over Time Protector (2Hrs.) Automatic Safety Shut-Off (1minutes), Material Compatibility Detector ... -
Page 9: Error Code
ABB-10 ERROR CODE, Error Code by beeper by display short-beep for not pan / pot for 60seconds 60seconds available over-time protection : 2hours 1long "E2" temperature sensor is failed, 1long 2short "E3" or not connected over-heat protection: 19short 1long "E4" heating an empty pot/pan over-voltage protection 1long 4short...
