Summary of Contents for Mediaedge QDVS-1100

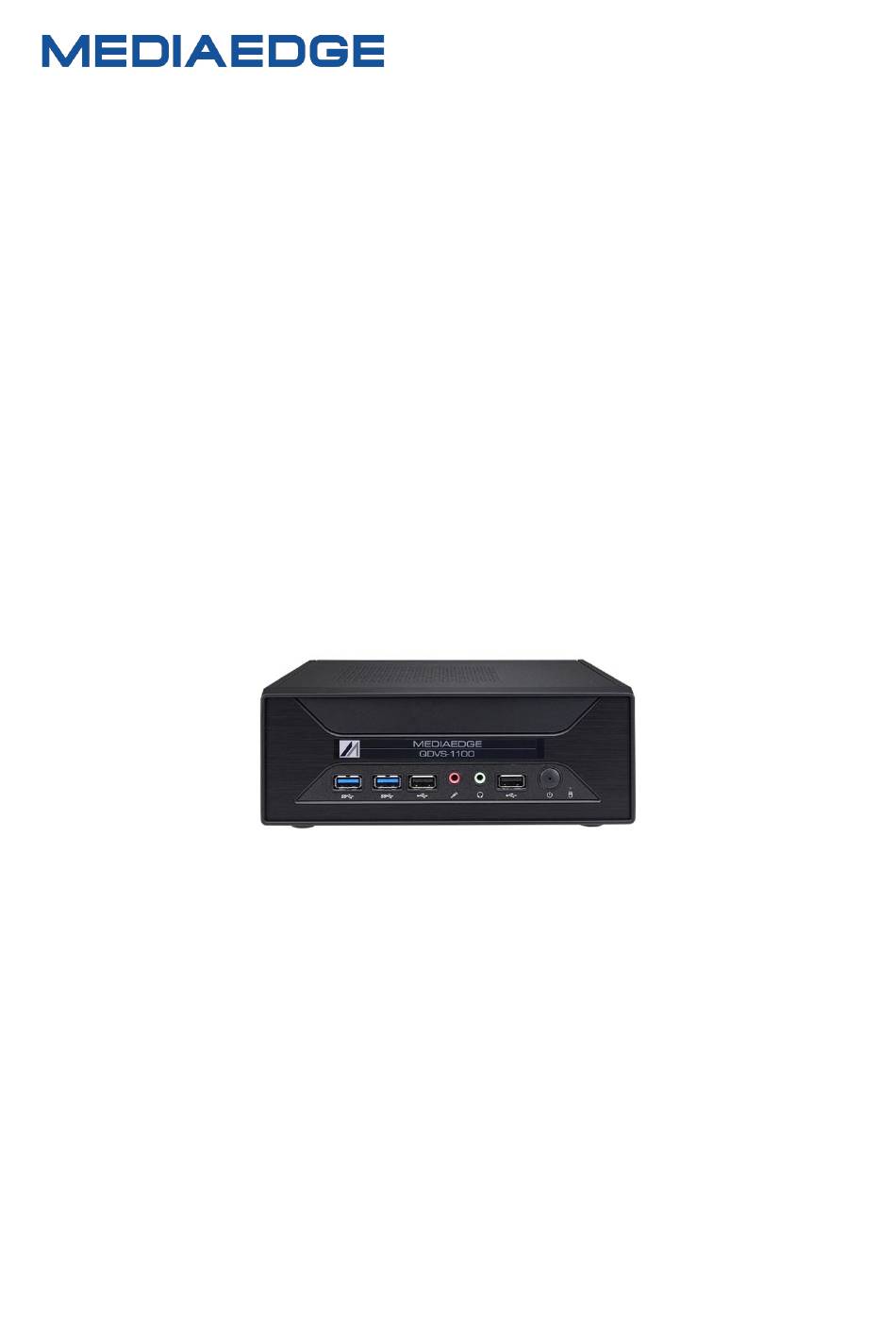

- Page 1 QDVS-1100 Quick Manual Model number：ME-QDVS-1100 October 27, 2023 Copyright (C) 2023 MEDIAEDGE Corporation All rights reserved.
- Page 2 I-1. Before Use ■ Checking Package Contents Please verify that the following items are included in your QDVS-1100 package. Although we have taken great care in packaging the product, if any items are missing, please contact the retailer where you made the purchase or reach out to our customer support using the details provided below.
- Page 3 ① USB2.0 Ports Connect USB peripherals such as keyboard and mouse. USB3.2 Gen1 ② Connect USB memory or USB external disk. Ports ③ Power switch Power ON / OFF switch. Microphone ④ Do not use. input jack ⑤ Headphone jack Do not use.
- Page 4 ■ I-2-2. Rear View HDMI output ① HDMI port to output QDVS setting screen and playback video. Port ② DisplayPort Do not use. Gigabit Ethernet port for connecting the QDVS-1000 to the network. ③ LAN port It is used to save the recorded video to the NAS. USB3.2 Gen1 ④...
- Page 5 ■ I-3-1. Device Connection Please refer to the following example connections and connect the QDCAM device and QDVS-1100 according to your operational needs. 1. Operations where recorded data is saved to a USB memory stick or USB storage device connected to the main unit.
- Page 6 ■ I-3-2. Regarding SDI Cable Connection Connect terminals with the same symbols to each other (A-A, B-B, C-C, D-D)
- Page 7 ■ I-3-3. Booting Up Connect the power cable to the main unit and press the power button located on the front. The system will start up and the settings screen will be displayed. After configuring the settings to match your operation, press the Start button located at the bottom right of the screen. You will have two options: "Start without saving"...
- Page 8 ■ I-3-5. About operation Flow The operation flow after power on is as follows. Transition of operating mode...
- Page 9 I-4. Operating Instractions ■ I-4-1. Settings Screen Upon startup, the settings screen will automatically appear. Configure the settings according to your operational needs. The settings screen is divided into five categories: Playback, Encode, Sync, Overlay, and System. Select the tab corresponding to the desired setting option. ①...
- Page 10 Stop on first frame captured ： Stops at the first frame captured. Play continuous until stop is pressed： Starts playback automatically. Dsiplay status on Enables or disables the status display on the On-Screen Display ④ (OSD). The player will start automatically in subsequent launches, bypassing ⑤...
- Page 11 Check this if you want to obtain an IPv4 DHCP ① address automatically from DHCP. Displays the current IPv4 address and address ② １ ※ subnet mask in CIDR notation. gateway Displays the current IPv4 gateway. ③ Check this if you want to manually set the Manual IPv4 ④...
- Page 12 This option prioritizes image quality. Compared to the "Speed is Valued" setting, the file size will be closer to the specified bitrate, the encoding time will be slightly longer, and the image quality will be improved. ⑨ Encode Bitrate Specifies the bitrate for encoding the file (only applicable for H.264). ⑩...
- Page 13 Replay time 5[sec], Trigger offset +2[sec]: The recorded file will include video from 7 seconds before up to 2 seconds before the trigger reception timing. 4.Overlay Overlay Setting screen ① Live Enables overlay of still images on the live video feed. Note: The still images must be in JPEG or PNG format.
- Page 14 stretched to fit. Still image update interval[sec]： If multiple still images are included, this sets the time interval to switch between them. The still images will be displayed in ascending order based on their filenames. ⑥ Replay Enables the overlay of still images on slow-motion video playback. Note: The still images must be in either JPEG or PNG format.
- Page 15 System setting screen Date & &Time setting Configures the date, time, and time zone settings. ① Version Displays the current version of the application. ② Network Setting Button: Nertwork setting ③ Opens the network settings dialog, where you can modify your network configurations.
- Page 16 ■ I-4-2. Recording, Live, and Playback Screen １. After setting your preferences in the settings menu, press the Start button. The playback screen will be displayed according to your settings. Example:During playback, the screen will display what it looks like when encoding is being saved. (The playback screen will always be displayed in full-screen mode.) 2.
- Page 17 Jumps to the stored In-point. In Recording/Live Display Mode: Switches to playback mode. In Playback Mode: Sets the current frame as the ending point (Out-point) for encoding. Resets In and Out points while in Stop state in Playback mode. Toggles the delay time setting on and off while in Recording/Live Display Mode (used for camera corrections, etc.) Starts encoding in Playback Mode.
- Page 18 ２. You can also operate the system using the specially designed mini-keyboard that comes with the package. Description of Key Functions: ① Initiates encoding. ② REC/PLAY Toggles between recording and playback modes. ③ IN、OUT Sets the IN and OUT points. ④...
- Page 19 I-5. Dimensions Note： Please ensure to leave a space of at least 50mm on both the top and the rear side of the unit when installing it.
- Page 20 I-6. General Specifications ■Hardware Specification Size Dimensions(mm) 200(W) × 250(D) × 78.5(H) mm ※protrusions(s) not included. Weight 1.91kg Rating INPUT:AC 100V～240V(50Hz/60Hz) 2.5A(max) AC adapter Power OUTPUT:DC 19.5V 9.23A requirements Body INPUT:DC 19.5V 9.23A Power consumption Normal operation: 60W RoHS Compliant Network 1000Base-TX ×1 Format...
