Summary of Contents for MediaTech audio resolution HA-8 VCA
- Page 1 HA-8 VCA Modular, 8 stereo channel studio headphone amplifier Owner’s manual...
- Page 2 Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following: WARNING Power supply/Power cord Water warning •...
- Page 3 • Do not expose the device to excessive dust or vibrations, or extreme cold or heat (such • Do not insert your fingers or hands in any gaps or openings on the device. as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of •...

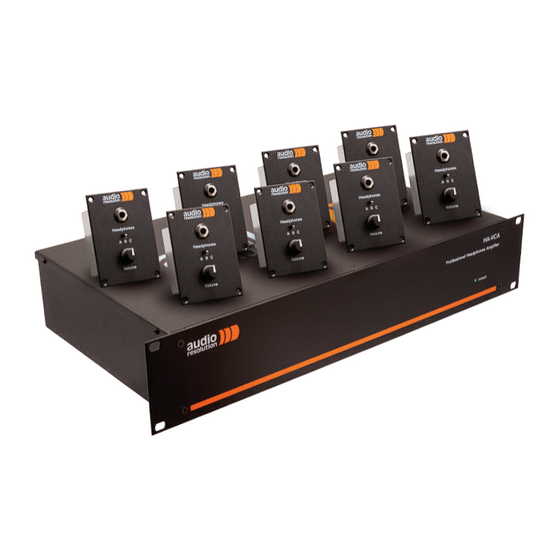

- Page 4 Dear customer, Thank you for purchasing AudioResolution HA-8 VCA. Professional analog, modular, High-Fidelity, 8-channel stereo, studio headphone amplifier with remote voltage volume control (VCA), which guarantees perfect balance between Left and Right channels. Signal path is fully analog with high dynamic headroom and low noise and distortion. Features three balanced stereo audio inputs, 8 stereo headphone outputs, 8 remote volume control units with input routing switch and headphone output.
- Page 5 HA-8 VCA - Front panel (Input section) HA-VCA Remote-control panel HA-8 VCA - Rear panel (Output section) MAIN DEVICE B – Phones out – analog headphones output on 3-pin 7) Volume knob Phoenix connector Volume potentiometer for regulating headphones 1) Power LED C –...
-
Page 6: Operation
Operation HA-8 VCA is an 8-channel studio headphone amplifier designed for use with central unit placed If you really need more that 25m long cable please use CAT cable for connecting the remote- in the rack and remote-control panels with headphones outputs placed on different places control panel and separate cable (etc. -
Page 7: Specifications
Specifications AudioResolution HA-8 VCA Input section Number of inputs 3x stereo Input connector 6-pin Phoenix Input sensitivity Line level Nominal input level 0dBu Input type Analog Output section Number of outputs 8x stereo Output connector 3-pin Phoenix (unit) JACK 6,3 stereo (remote) Remote connector RJ45 Output noise level... - Page 8 Power Power supply 24V DC /5A Measurements and weight Central unit Height in RU Dimmensions HxWxL: 88x480x255 mm Weight 5 kg Remote control panel Dimmensions HxWxL 95x70x50 mm Weight 0,2 kg...
-
Page 9: Block Diagram
Block diagram... - Page 10 | web: www.audioresolution.com MediaTech Central Europe, a.s., Drienova 34, 821 02 Bratislava, Slovak Republic (EU) Tel: +421 2 20 999 700...
