Sunricher SR-ZG9011A-DS Manual

Zigbee Door/Window Sensor
Important: Read All Instructions Prior to Installation

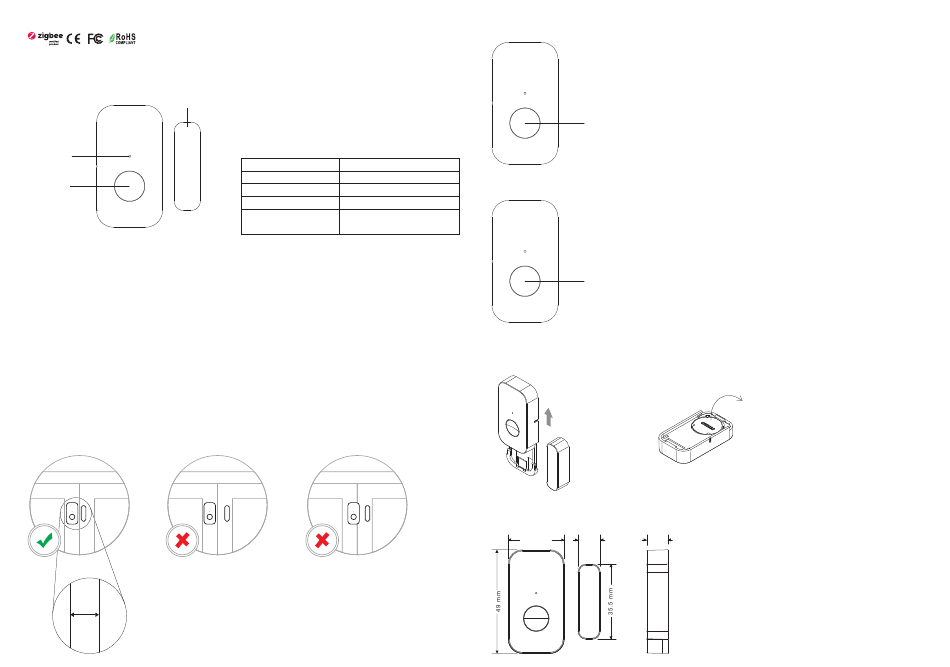

Function introduction
Magnet
LED indicator
Prog. button,
For network pairing
or reset.
Safety & Warnings
• This device contains button lithium batteries that shall be stored and disposed properly
• DO NOT expose the device to moisture.
Product Description
The Zigbee Door Window sensor is a wireless, battery powered contact sensor, compatible with the Zigbee 3.0 standard.
The device can be operated intelligently via working with a Zigbee gateway to communicate with other devices. It is a
zigbee low-energy wireless door/window sensor that makes you know the opening/closing status of door and window by
separating the magnet from the transmitter. Connect it with the gateway which supports automation function and you can
create a smart scene to trigger other devices.
Physical Installation
1.Peel off the protective layer from the sticker on the sensor.
2.Stick the sensor onto the door/window frame.
3.Peel off the protective layer from the sticker on the magnet.
4.Stick the magnet onto the moving part of the door/window, no further than 10mm from the sensor.
Positioning of the Sensor and the magnet:
Max The distance between the the transmitter and the magnet
10mm should<10mm.
Product Data
Radio Frequency 2.4GHz
Power Supply 3VDC (CR2032 Batteries)
Operating temperature 0 to 40°C
Relative humidity 8% to 80%
Dimensions Transmitter: 49x26.5x10mm,
Magnet: 35.5x10.5x10mm
Operations
1. Added the device to a Zigbee gateway
Step 1: From your ZigBee gateway or hub interface, choose to add
device and enter Pairing mode as instructed by the gateway.
Step 2: Press and hold the Prog. button on the device for 5s until the
LED indicator flashes three times, which means the device has
entered the pairing mode, then the indicator will flash rapidly to
indicate successful pairing.
2. Factory reset the device
Press and hold the Prog. button on the device for 5s
until the LED indicator flashes three times, which
means the device is reset to factory default and then
enter network pairing mode.
How to replace a battery
1. Pull up the main part of the 2. Replace the battery and then insert
transmitter the transmitter back into the bracket
Product Size
26.5 mm 10.5 mm 10 mm
