Summary of Contents for omi omiReflex Mobile V3

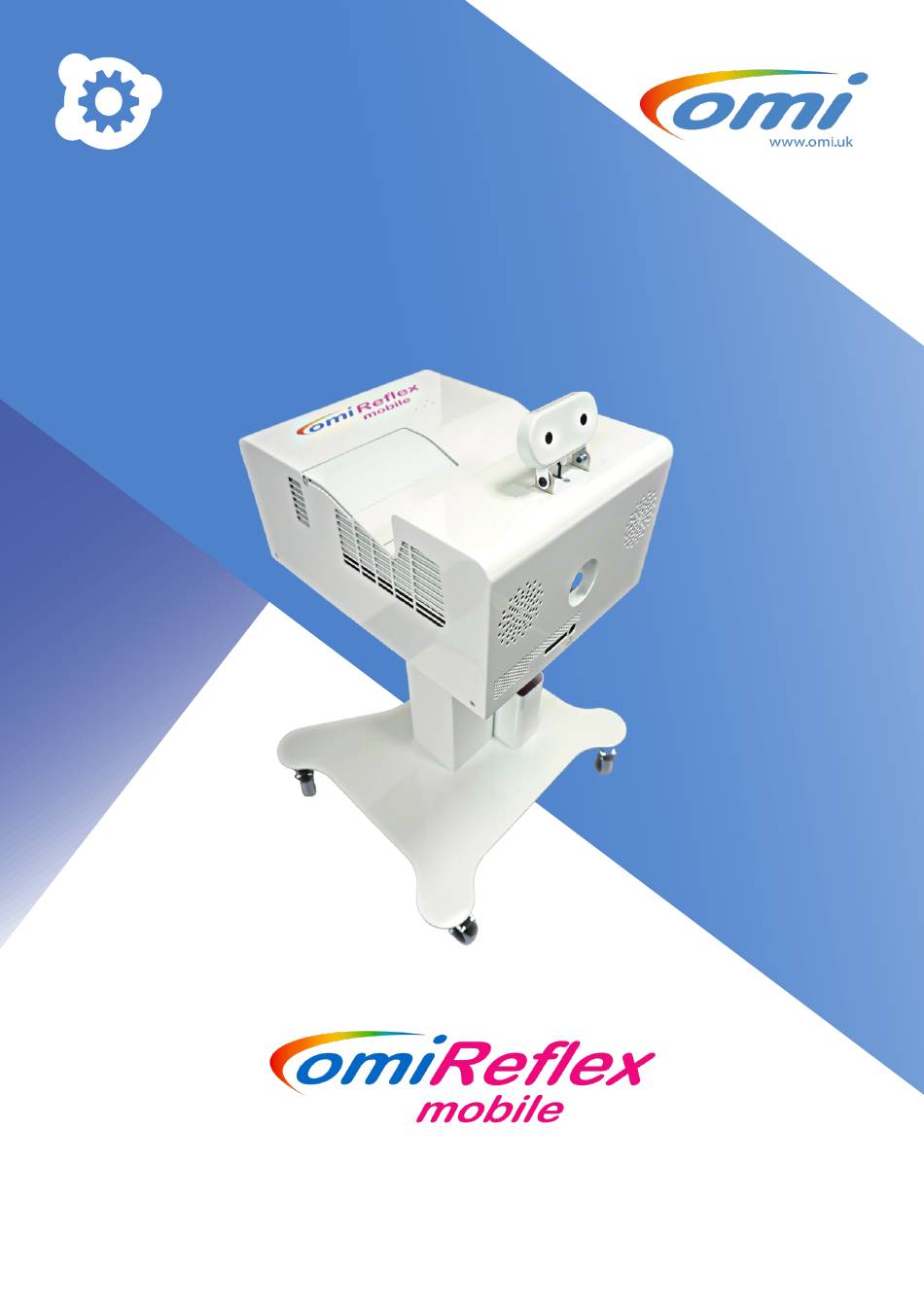

- Page 1 Product Manual omiReflex Mobile V3 Installation, setup, maintanance and support Thank you for purchasing this OM Interactive LTD product. Before operating this system, please read these instructions carefully and retain for future reference.
-
Page 2: Table Of Contents
Contents Read this first ........................3 Safety information ......................3 Important safety instruction main unit ................3 Unpacking your new omiReflex Mobile................5 Product overview........................7 Included with the system ....................7 Getting familiar with the omiReflex Mobile’s controls ............8 Projector status lights ....................8 System control ........................9 Wireless remote control ....................9 Wireless keyboard ......................9... -
Page 3: Read This First
Read this first Safety information Class B emissions limits This Class B digital projector inside this unit meets all requirements of the Canadian Interfer- ence-Causing Equipment Regulations. Important safety instruction main unit 1. No user serviceable parts inside. 2. Do not disassemble or attempt to service this unit refer to qualified, trained personnel, your local Distributer / Reseller or OM Interactive Ltd only. 3. - Page 4 11. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to): - Unit has been dropped. - Power supply cord or plug has been damaged. - Liquid has been spilled on to the appliance. - Appliance has been exposed to rain or moisture.
-
Page 5: Unpacking Your New Omireflex Mobile
Unpacking your new omiReflex Mobile Page 5 Doc:OMi001/014 Rev1.3 08.08.23 ©OM Interactive... - Page 6 Page 6...
-
Page 7: Product Overview

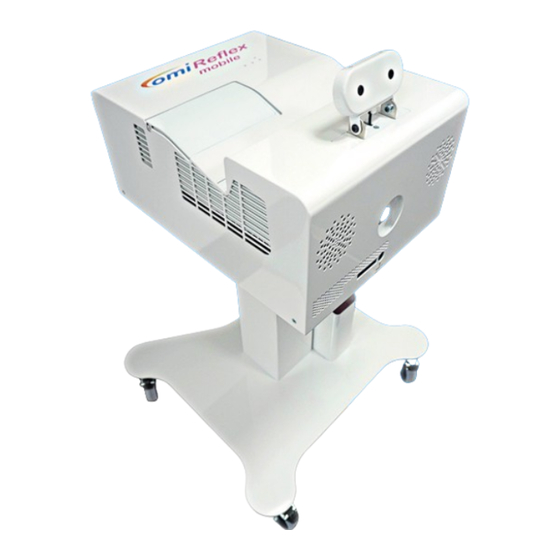

Product Overview The omiVista Reflex Mobile unit is portable and has been designed to provide interactive projection onto a wall that should be light in colour. Please refer to the user manual provided for more details of how on use the unit in your setting or scenario. The finish on the unit exterior has an anti-bacterial coating. Camera Projector Startup / shutdown power button USB connection Power connection... -
Page 8: Getting Familiar With The Omireflex Mobile's Controls
ON or OFF or change the projector settings in any way. Emergency projector power button. (DO NOT USE UNLESS INTRUCTED BY OMi SUPPORT) Temp indicaton Power Flasing Red: Over temp RED: In standby state Flashing Blue: Warming up and cooling down. -
Page 9: System Control
System Control To turn the system On use the two buttons located on the top of the remote control. Press and hold the left button, and then press the right button while still hold- Wireless remote control ing the left button down. Let go of both buttons. . Use UP, DOWN, LEFT and RIGHT arrows on the wireless remote control to navigate the main menu and the ok button to select... -
Page 10: Getting Started
Getting Started Startup Ensure unit is adjacent to a clear wall surface and the casters have been locked, then plug in the IEC power cable. To turn the system ON - Either press once breifly the Start-up / Shutdown button located on the front panel of the unit. - Or press and hold the left button and press the right button on the wireless remote con- trol. -
Page 11: Application
Activities Your system will come complete with either some sample activities or a complete suite de- pending on the version of content suite it was ordered with. Additionally, there will be a “User Manual” that will give you more information about the content, how to use it, and how to edit it if you have an editable or “+”... -
Page 12: Camera Adjustment
Enable Autoplay: This feature, when enabled, will add the Autoplay icon to the top of the main screen and will then allow you to Autoplay all the activities within the folder you are currently in. To use this feature simply navigate to the icon with your remote control and click “OK”... -
Page 13: License Information
Apply New License: All systems will be delivered already licensed, and there should be no need for you to use this feature unless otherwise directed by OMi. This button allows you to apply a new license that will have been sent to you by OMi. If you have been emailed a new license, you should transfer the file to a USB memory stick which will need to plugged into the USB ports on the side of your omiVista Mobii unit. -
Page 14: Maintenance
Please contact your local reseller or OMi to have the lamp replaced as soon as possible. Replace lamp as follows: 2. Lift up Lamp cover 1. -
Page 15: Projector Lamp Counter Reset
Projector filter cleaning The projector in the omiReflex mobile unit is fitted with 2 dust filters, which will require clean- ing every 1000 hours if you are using the system in a dusty environment. When the filters require maintenance, you will see the following message appear on the screen: To clean or replace the filters you will need to contact your nominated OMi representative in your territory or OMi directly. We would recommend this be done as part of an annual system service. Page 15 Doc:OMi001/014 Rev1.3 08.08.23 ©OM Interactive... -
Page 16: Specification
The omiReflex mobile product is designed and manufactured by OM Interactive in England OM Interactive LTD 17, Avebury Court, Mark Road, Hemel Hempstead Hertfordshire HP2 7TA England. Technical Support: UK Customers Tel: 01442 215555 or email support@omi.uk International Customers contact your regional supplier Page 16...
