- Page 1 HDMI over IP H.264/H.265 PoE Receiver,4K60 User Manual 500762-RX-V2 © MuxLab Inc. 2024 94-001017-A/SE-001017-A...
-
Page 2: Table Of Contents
HDMI over IP H.264/H.265 PoE Receiver, 4K60 Table of Contents 1. Safety Precautions..............................3 2. Introduction................................4 3. Features..................................4 4. Package Contents..............................4 5. Specifications................................5 6. Installation..................................6 7. Web Interface................................7 8. Troubleshooting................................11 9. Application Example.............................12 © MuxLab Inc. 2024 94-001017-A/SE-001017-A... -
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice. -
Page 4: Introduction

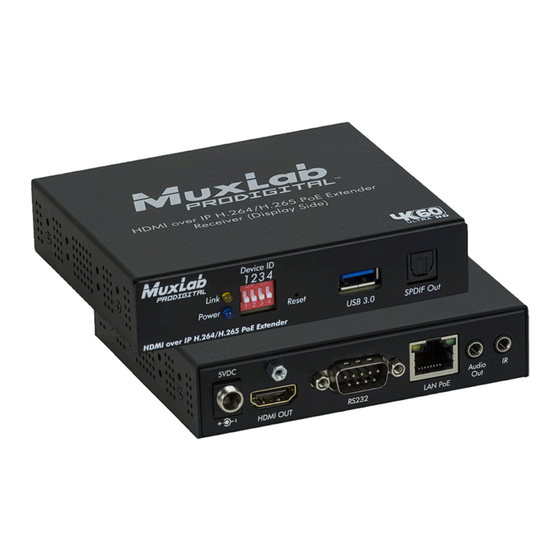

HDMI over IP H.264/H.265 PoE Receiver, 4K60 2. Introduction The HDMI over IP H.264/H.265 PoE Receiver, 4K60 (model: 500762-RX-V2) in combination with a 500762-TX, 500763-TX or 500764-TX transmitter allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K/60Hz resolution via... -
Page 5: Specifications
0.9lbs (0.4kg) Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0 Warranty 2 years 500762-RX-V2 HDMI over IP H.264/H.265 PoE Receiver, 4K60 Order Information (UPC: 627699817629) 500920 16-Port Rackmount Transceiver Chassis Accessories 500917 Wall Mount Transceiver Bracket Kit (These items are sold... -
Page 6: Installation
Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the above front and rear product views for further details. 2. Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab specifications (see Specifications table for further details). -
Page 7: Web Interface
Network Controller (500812) or via Muximus Network Controller (500813), reference the 500812 and 500813 Manuals. Access to the 500762-RX-V2 web interface is possible via a web browser. The unit comes by default with DHCP enabled. Identify the IP address of the 500762-RX-V2 device you want to manage by using network utility software tools such as Bonjour, or similar. - Page 8 HDMI over IP H.264/H.265 PoE Receiver, 4K60 There are several screens to navigate in order to manage the 500762-RX-V2. The first screen shown after entering the device IP address in the browser is the login screen. Login To login to the 500762-RX-V2 web interface, type in the Username and Password, and then click on “Login”.
- Page 9 HDMI over IP H.264/H.265 PoE Receiver, 4K60 Click on the “Info” tab to get information on the 500762-RX-V2, such as the output and input video resolution, and the URL addresses for the supported & configured communication protocols, including TS, HLS, FLV, RTSP, RTMP, and Multicast.
- Page 10 “Upload”, (c) reset the unit to factory defaults, by clicking on the “Reset” button, and (d) reboot the unit, by clicking on the “Reboot” button. Log Out Tab Click on the “Log Out” tab to log out of the device web interface. © MuxLab Inc. 2024 94-001017-A/SE-001017-A...
-
Page 11: Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions in regard to the installation of the HDMI over IP H.264/H.265 PoE Transmitter and Receiver: If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International). -
Page 12: Application Example
HDMI over IP H.264/H.265 PoE Receiver, 4K60 9. Application Example 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: HDMI over IP H.264/H.265 PoE Receiver, 4K60 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500762-RX-V2 salesteam@muxlab.com | www.muxlab.com Follow us:...
