Installation Instructions
SHK[X]4/GPS[X]D[X]4[X]-7-49[-X] Series - Reef Sharkee®
SW3-1107- v1
1. Introduction

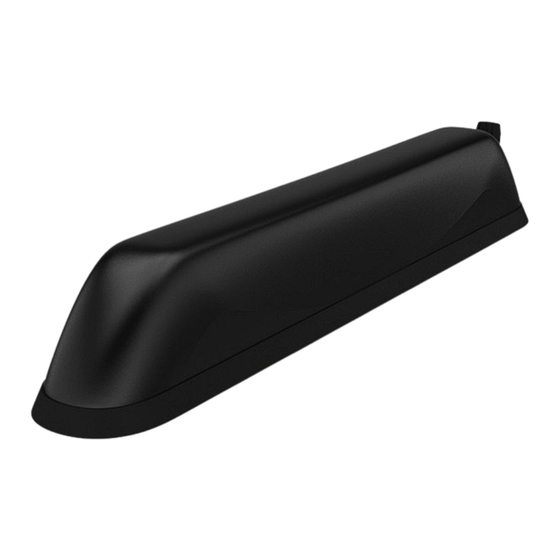

The SHK[X]4/GPS[X]D[X]4[X]-7-49 series is a multi-function sharkfin style antenna with 4x4 MiMo for 4G/5G.The SHK[X]G[X]4 and GPS[X]D[X]4[X] ver-
sions incorporate up to two L1 or L1/L5 GPS/GNSS antennas.The GPS[X]D[X]4[X] type features an M6 mounting stud for an optional comms whip. Note:
The SHK[X]4 type does not have this feature. Versions are available which can include up to 4x4 MiMo dual band WiFi 6e function. The antenna is suitable
for fitment to vehicle panels up to 4mm (0.15") thick. An extended mounting kit for thicker panels is available as an accessory.
Electrical Safety Note
The standard GPS[X]D4/SHK[X]G4 contain single or multiple active L1 band GPS/GNSS antennas. Rated voltage: 3-5VDC Rated current (each antenna):
20mA maximum.
The GPS[X]D54/SHK[X]G54 contain single or multiple active L1/L5 band GPS/GNSS antennas. Rated voltage: 3-5VDC Rated current (each antenna):
37mA maximum.
The supply to these devices must be provided with over current protection of 1A maximum.
2. Mounting requirements and selecting location
For optimum performance, it is recommended that all versions of the antenna are fitted on a conductive (metal) panel, although it is possible to mount the
antenna on a non-conductive panel with acceptable performance for all the internal antenna function.For GPS[X]D[X]4 type, when a whip is to be used, the
antenna must be fitted on a conductive ground plane - recommended minimum size is 1⁄2 wave length diameter at the lowest frequency of whip operation.
To calculate this size, use formula below:
When fitting on a non-metallic panel, a ground plane plate of suitable size should be fabricated and fitted under the mounting panel. In all cases, the
earthing washer must make low resistance electrical contact with the ground plane (<0.2Ω).
Select a mounting location, checking for roof curvature to ensure that the antenna base will have a flat mounting surface if possible. The antenna should
be located as far as possible from surrounding roof mounted items (e.g. light bar, air con unit). Ensure that there is adequate under panel clearance and
that there is no double skin panel or cross brace present. Measure to check for central position if applicable.
If mounting the antenna on a vehicle with a ribbed roof where the peak of the ribs are more than 70mm (2.75") wide the antenna should be mounted on the
peak of a rib rather than in the trough.
Important Note Regarding Sealing
To ensure that the antenna base is effectively sealed against the mounting surface, care must be taken regarding curvature of the mounting panel.
It is highly recommended that the antenna is installed on a clean, flat and level surface. After installation the compression of the rubber boot against
the mounting panel should be checked and if necessary, a small bead of neutral cure silicone sealant can be applied around the edge of the
mounting boot. It is important that the periphery of the antenna is sealed and that no moisture is allowed to penetrate under the antenna boot.
3. Prepare and drill hole
Up to 13 cables fitted with standard (SMA/FME) connectors, or 12 cables fitted with FAKRA type connectors can pass through a 19mm (3/4") clearance
hole. If other connector types are fitted or the number of feeds exceeds these limits, you may need to consider drilling a larger mounting hole.
150 / frequency in MHz = 1⁄2 wavelength (m)
Example: 150MHz =100cm (39.4"); 400MHz = 38cm (15"); 900MHz =16cms (6.3").
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Reef Sharkee SHK 4/GPS D 4 7-49 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Panorama Antennas Reef Sharkee SHK 4/GPS D 4 7-49 Series

Summary of Contents for Panorama Antennas Reef Sharkee SHK 4/GPS D 4 7-49 Series

  • Page 1 Installation Instructions SHK[X]4/GPS[X]D[X]4[X]-7-49[-X] Series - Reef Sharkee® SW3-1107- v1 1. Introduction The SHK[X]4/GPS[X]D[X]4[X]-7-49 series is a multi-function sharkfin style antenna with 4x4 MiMo for 4G/5G.The SHK[X]G[X]4 and GPS[X]D[X]4[X] ver- sions incorporate up to two L1 or L1/L5 GPS/GNSS antennas.The GPS[X]D[X]4[X] type features an M6 mounting stud for an optional comms whip. Note: The SHK[X]4 type does not have this feature.

  • Page 2: Fitting The Antenna

    Mask panel area around hole position to protect paintwork and headliner. Drill a pilot hole, and then increase to 19mm Hole (3/4”), ensuring that drill/cutter bit does not contact headliner. Clean area around the hole, carefully removing any burrs and swarf. Remove paint and primer from under panel surface to ensure low resistance contact by washer and nut. Apply some petroleum jelly or paint around the hole to prevent corrosion.
  • Page 3 6. Commission and test Check GPS/GNSS cable (where applicable): • Check the GPS/GNSS cable(s) with DC to measure high resistance. • Connect the GPS / GNSS cable(s) to the GPS/ GNSS receiver(s) and check for satellite acquisition. Check comms cable(s): •...
  • Page 4 Instructions d’installation FR SHK[X]4/GPS[X]D[X]4[X]-7-49[-X] Series - Reef Sharkee® SW3-1107- v1 1. Introduction La série SHK[X]4/GPS[X]D[X]4[X]-7-49 est une antenne multifonction de style sharkfin avec 4x4 MiMo pour 4G/5G. Le SHK[X]G[X]4 et les versions GPS[X]D[X]4[X] intègrent jusqu’à deux antennes GPS/GNSS L1 ou L1/L5. Le type GPS[X]D[X]4[X] est doté d’un goujon de montage M6 pour un fouet de communication.
  • Page 5 trou Masquez la zone du panneau autour de la position du trou pour protéger la peinture et la garniture de toit. Percez un avant-trou, puis augmentez jusqu’à 19 mm (3/4 po), en vous assurant que le foret/fraise n’entre pas en contact avec la garniture de pavillon.
  • Page 6 6. Mise en service et essai Vérifiez le câble GPS/GNSS (le cas échéant) : • Vérifiez le(s) câble(s) GPS/GNSS avec DC pour mesurer la résistance élevée. • Connectez le(s) câble(s) GPS/GNSS au(x) récepteur(s) GPS/GNSS et vérifiez l’acquisition satellite. Vérifiez le(s) câble(s) de communication : •...
  • Page 7 Instrucciones de instalación ES SHK[X]4/GPS[X]D[X]4[X]-7-49[-X] Series - Reef Sharkee® SW3-1107- v1 1. Introducción La serie SHK[X]4/GPS[X]D[X]4[X]-7-49 es una antena multifunción estilo aleta de tiburón con MiMo 4x4 para 4G/5G. La serie SHK[X]G[X]4 y las versiones GPS[X]D[X]4[X] incorporan hasta dos antenas GPS/GNSS L1 o L1/L5. El tipo GPS[X]D[X]4[X] cuenta con un perno de montaje M6 para una antenna tipo varilla.
  • Page 8 agujero Cubra el área del panel alrededor de la posición del orificio para proteger la pintura y el techo interior. Taladre un orificio piloto y luego aumente a 19 mm (3/4”), asegurándose de que la broca/cortadora no entre en contacto con el revestimiento del techo.
  • Page 9 6. Comisión y prueba Verifique el cable GPS/GNSS (cuando corresponda): • Verifique los cables GPS/GNSS con CC para medir la alta resistencia. • Conecte los cables GPS/GNSS a los receptores GPS/GNSS y verifique la adquisición de satélites. Verifique los cables de comunicaciones: •...
  • Page 10 Installationsanleitung SHK[X]4/GPS[X]D[X]4[X]-7-49[-X] Series - Reef Sharkee® SW3-1107- v1 1. Einführung Die SHK[X]4/GPS[X]D[X]4[X]-7-49-Serie ist eine Multifunktionsantenne im Haifischflossenstil mit 4x4 MiMo für 4G/5G. Die SHK[X]G[X]4 und GPS[X] D[X]4[X]-Versionen enthalten bis zu zwei L1- oder L1/L5-GPS/GNSS-Antennen. Der GPS[X]D[X]4[X]-Typ verfügt über einen M6-Montagebolzen für eine optionale Funkantennenstrahler.

  • Page 11: Montage Der Antenne

    Loch Den Blechbereich um die Lochposition herum abkleben, um Lack und Dachhimmel zu schützen. Bohren Sie ein Pilotloch und erhöhen Sie es dann auf 19 mm (3/4 Zoll). Stellen Sie dabei sicher, dass der Bohrer/Fräser den Dachhimmel nicht berührt. Reinigen Sie den Bereich um das Loch herum und entfernen Sie sorgfältig alle Grate und Späne.
  • Page 12 6. Inbetriebnahme und Test Überprüfen Sie das GPS/GNSS-Kabel (falls zutreffend): • Überprüfen Sie das/die GPS/GNSS-Kabel mit Gleichstrom, um einen hohen Widerstand zu messen. • Schließen Sie das/die GPS/GNSS-Kabel an den/die GPS/GNSS-Empfänger an und prüfen Sie die Satellitenerfassung. Kommunikationskabel prüfen: • Führen Sie eine VSWR-Prüfung durch. Der Wert sollte <2,5:1 im Sendeband betragen (je nach Antennentyp). •...
  • Page 13 Istruzioni per l’installazione IT SHK[X]4/GPS[X]D[X]4[X]-7-49[-X] Series - Reef Sharkee® SW3-1107- v1 1. introduzione La serie SHK[X]4/GPS[X]D[X]4[X]-7-49 è un’antenna multifunzione in stile pinna di squalo con MiMo 4x4 per 4G/5G. La serie SHK[X]G[X]4 e le versioni GPS[X]D[X]4[X] incorporano fino a due antenne GPS/GNSS L1 o L1/L5. Il tipo GPS[X]D[X]4[X] è dotato di un perno di montaggio M6 per un frusta di comunicazione opzionale.

  • Page 14: Montaggio Dell'antenna

    buco Area del pannello di mascheratura attorno alla posizione del foro per proteggere la vernice e il rivestimento del tetto. Praticare un foro pilota, quindi aumentarlo fino a 19 mm (3/4”), assicurandosi che la punta del trapano/fresa non venga a contatto con il rivestimento del tetto. Pulire l’area attorno al foro, rimuovendo con attenzione eventuali bave e trucioli. Rimuovere la vernice e il primer dalla superficie inferiore del pannello per garantire un contatto a bassa resistenza tra rondella e dado.
  • Page 15 6. Commissione e prova Controllare il cavo GPS/GNSS (ove applicabile): • Controllare i cavi GPS/GNSS con CC per misurare un’elevata resistenza. • Collegare i cavi GPS/GNSS ai ricevitori GPS/GNSS e verificare l’acquisizione del satellite. Controllare i cavi di comunicazione: • Effettuare il controllo VSWR, dovrebbe misurare <2,5:1 nella banda di trasmissione (a seconda del tipo di antenna). •...
