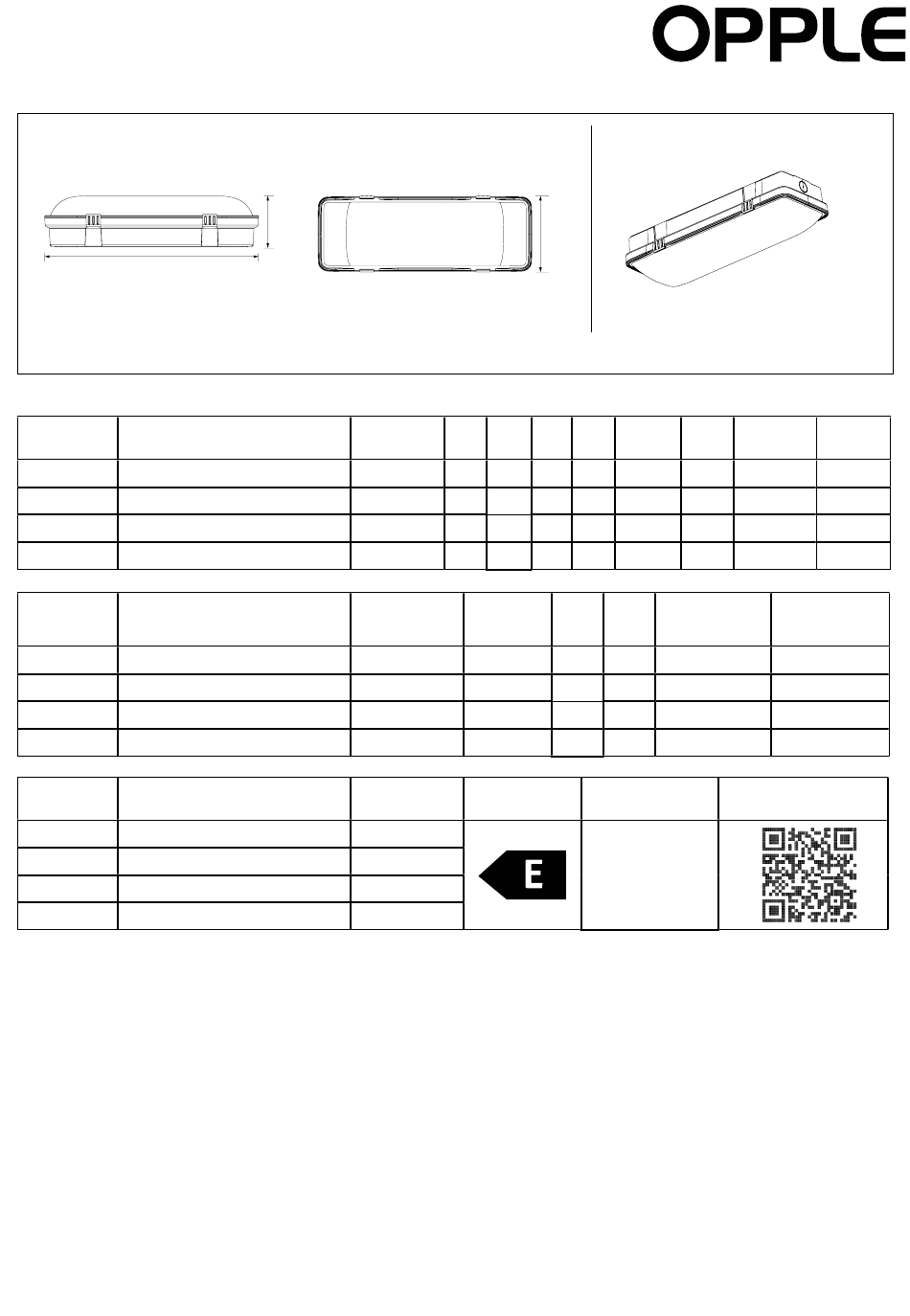

Porchlight Ecomax G2
345mm
Item Code
531000019500 LED PO-E2 RE120-3/5W
531000019600 LED PO-E2 RE120-3/5W-MD
531000019700 LED PO-E2 RE120-3/5W-EM3
531000019800 LED PO-E2 RE120-3/5W-MD-EM3
Item Code
531000019500 LED PO-E2 RE120-3/5W
531000019600 LED PO-E2 RE120-3/5W-MD
531000019700 LED PO-E2 RE120-3/5W-EM3
531000019800 LED PO-E2 RE120-3/5W-MD-EM3
Item Code
531000019500 LED PO-E2 RE120-3/5W
531000019600 LED PO-E2 RE120-3/5W-MD
531000019700 LED PO-E2 RE120-3/5W-EM3
531000019800 LED PO-E2 RE120-3/5W-MD-EM3
82.5mm
Model Name
3000K/4000K 0.628
3000K/4000K 0.702
3000K/4000K 0.799
3000K/4000K 0.873
Model Name
Model Name
123mm
L
W
CCT
(KG)
(mm)
(mm)
345
123
345
123
345
123
345
123
Lumen
Efficacy
Total (lm)
(lm/W)
360/600
120
360/600
120
360/600
120
360/600
120
N
Energy Label
1
1
1
1
Version date 06-12-2023
www.opple.com
H
(V~)
(Hz)
(mm)
82.5
220-240
50/60 0.014/0.023
82.5
220-240
50/60 0.014/0.023
82.5
220-240
50/60 0.014/0.023
82.5
220-240
50/60 0.014/0.023
Storage
IP
IK
Environmen
Grade
Grade
(°C)
IP65
IK10
-30~60
IP65
IK10
-30~60
IP65
IK10
-20~40
IP65
IK10
-20~40
Light source code
LS101000532
Rated
Current (A)
Power(W)
3/5
3/5
3/5
3/5
Application
Temperature
(°C)
-30~50
-30~50
0~40
0~40
QR Code
Advertisement
Table of Contents
Summary of Contents for OPPLE Porchlight Ecomax G2
- Page 1 Porchlight Ecomax G2 Version date 06-12-2023 www.opple.com 82.5mm 123mm 345mm Rated Item Code Model Name (KG) (V~) (Hz) Current (A) (mm) (mm) (mm) Power(W) 531000019500 LED PO-E2 RE120-3/5W 3000K/4000K 0.628 82.5 220-240 50/60 0.014/0.023 531000019600 LED PO-E2 RE120-3/5W-MD 3000K/4000K 0.702 82.5...
-
Page 2: Optional Output
Min.18mm Min.45mm L’ L’ LOUT LOUT 0-10V 0-10V 0-10V 0-10V LED PO-E2 RE120- LED PO-E2 RE120- LED PO-E2 RE120- LED PO-E2 RE120- 3/5W 3/5W-MD 3/5W-EM3 3/5W-MD-EM3 Optional output 4000K 3000K... - Page 3 Master/Slave function Sensor Sensor Sensor Sensor Max 9pcs LED PO-E2 LED PO-E2 LED PO-E2 LED PO-E2 RE120-3/5W-MD RE120-3/5W RE120-3/5W RE120-3/5W 3 2 1 N 3 2 1 N 3 2 1 N 3 2 1 N LED PO-E2 LED PO-E2 LED PO-E2 LED PO-E2 RE120-3/5W-MD-...
-
Page 4: Detection Area
Microwave Sensor-Description 1 2 3 4 5 6 7 8 9 10 11 12 Detection area In this area,movement will be detected and able to trigger the sensor. 100% detection area is also known as the strong sensitvity. 100% ● ●... -
Page 5: Detection Coverage
Detection coverage Ceiling Mounted Wall Mounted This figure indicates the maximum distance at the highest mounting height with 100% sensitivity. Mounting height Typical installation height Mounting 2.5-6m height Well covered Covered 1. Automatic ON/OFF function: Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase. Hold time With sufficient daylight, With insufficient daylight,... - Page 6 LED Emergency Driver Application Technical Date • For LED module with a forward voltage of 20-60/40- Rated supply voltage 220-240VAC 90/50-180Vdc Mains frequency 50/60Hz • Plug-in Lithium Iron Phosphate battery Mains input current, min 13mA • 5 years guarantee electronic •...
-
Page 7: Wiring Diagram
Battery • High-temperature grade battery cells • 3.2V LiFeP04 battery • Male/female socket for simple connection LiFeP04 Battery Case temperature range to ensure 5 years design life 0℃ to +60℃ Battery voltage 3.2V per cell Capacity 18650/26650 1500mAh/2000mAh/3000mAh Notice: Storage condition •... -
Page 8: Application Environment
Zur Verwendung in Umgebungen, in denen mit normaler nichtleitender/leitender Staubansammlung zu rechnen ist, nicht zur Verwendung in Umgebungen mit zu erwartender hoher/ungewöhnlicher Staubansammlung. Data subject to change OPPLE Lighting Co., Ltd. Opple Lighting B.V.Meerenakkerweg 1-07 Les données sont sujettes à modifications Room 411, Building 1 No. 6111,Longdong...
