DeWalt DXMF06BV Instruction Manual

JS PRODUCTS | 6445 MONTESSOURI STREET, LAS VEGAS, NV 89113
(MAR 13) Part No. 41646, 41647, 41648
Copyright © 2023 D
D WALT and the D WALT Logo are trademarks of the D
®
E E
and are used under license. The yellow/black color scheme is a trademark for D
power tools & accessories.
Definitions: Safety Guidelines
WARNING: Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injur y which, if not avoided,
may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D
CALL US TOLL FREE AT: 1-844-377-8451
WARNING! Read and understand all instructions.
important safety and operating instructions.
before assembling this vise and save it for reference.
SAVE THESE INSTRUCTIONS
TECHNICAL SPECIFICATIONS
6"
Technical Specifications
Throat Depth
3.75" (95.25 mm)
Jaw Width 6" (152.4 mm)
Jaw Opening
6" (152.4 mm)
Weight 49.15 lbs. (21.29 kg)
Clamping Force 4,400 lbs. (1995.80 kg)
WARNING:
• Do not weld vise base to any metal object.
• Do not place pressurized containers or combustible materials in vise.
• Do not use hammer, extension pipe or cheater bar to turn spindle handle of the vise.
• Do not use hammer, extension pipe or cheater bar to tighten lockdown handles.
• Do not apply extreme or prolonged heat to the vise.
• Always make sure the selected mounting surface/bench top is secure.
• Use proper nuts, bolts and lock washers in all mounting holes.
• Use vise of proper size/capacity to hold the work piece.
• Wear appropriate eye, face and ear protection when striking or using power tools with the vise.
• Wear a dust mask or respirator when working with wood, metal or chemicals.
• Do not wear loose clothing or jewelry. Wear a protective hair covering and anti-slip shoes.
• Inspect vise for stress fatigue or damage before using.
• Practice proper maintenance. Keep the vise clean and dry. Keep the main screw lightly lubricated for
better performance.
DXMF06BV, DXMF08BV, DXMF10BV
WALT.
E
WALT Industrial Tool Co., or an affiliate thereof
E
WALT
E
WALT TOOL,
E
This manual contains
Please read this manual carefully
10"
8"
3.75" (95.25 mm) 3.75" (95.25 mm)
8" (203.2 mm) 10" (254.0 mm)
8" (203.2 mm) 10" (254.0 mm)
55.76 lbs (25.29 kg) 60.52 lbs (27.45 kg)
4,400 lbs. (1995.80 kg) 4,400 lbs. (1995.80 kg)
• Maintain safe working conditions:
• Operator should be of sufficient age to use this vise.
• Keep work area well lit, dry, clean and unobstructed.
• Workbench should be properly secured to the floor or wall
• Workbench should be rated to sufficiently and safely handle the vise and workload.

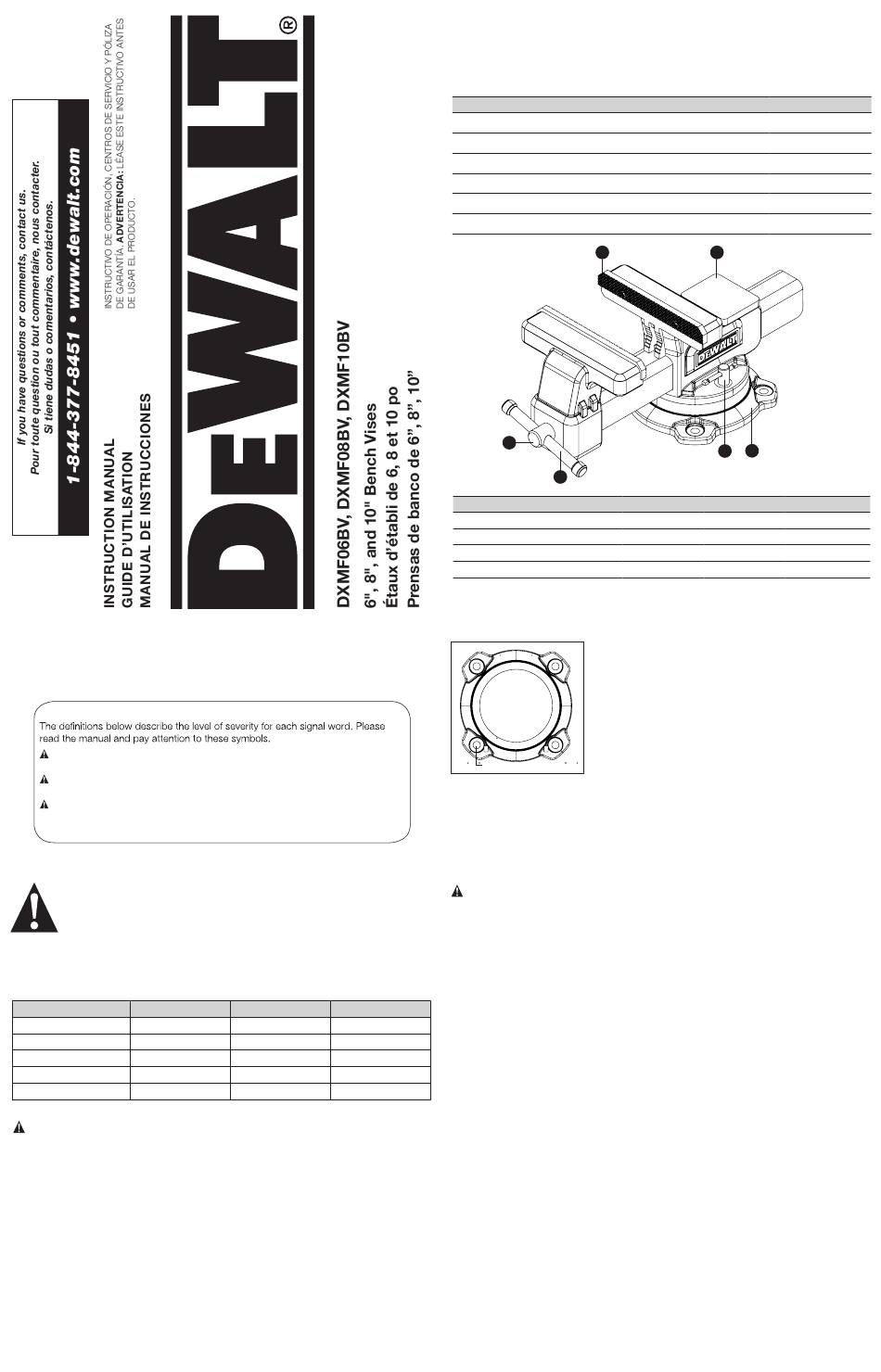

PARTS LIST
No.

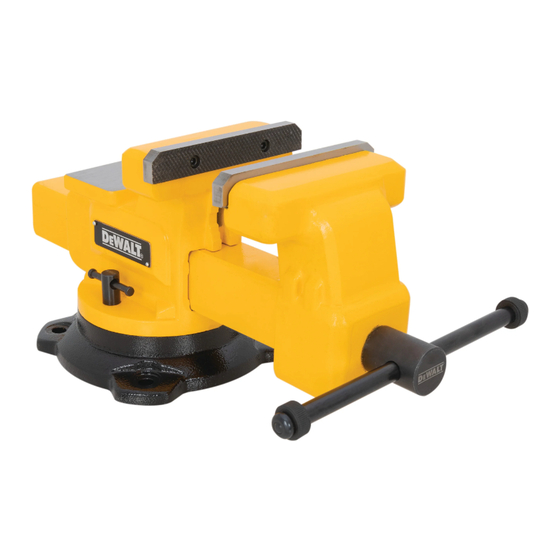

1 360 ° Swivel Base
2 Machined Anvil
3 Replaceable Serrated Jaws
4 Vise Handle
5 Swivel Lockdowns
6 Spindle Cap
3
6
4
Replacement Parts
Serrated Jaws (Pair)
Vise Handle
Acme screw assembly
Swivel base lockdowns (2)
MOUNTING
1. Place vise on workbench and locate the mounting holes.
FIG. 1
MOUNTING HOLE
2. Mark the location of the mounting holes and drill through the workbench.
3. Install the appropriate length and diameter bolts (not included) into the swivel base of the vise.
Manufacturer recommends that the bolt should extend about 1" below the underside of the workbench.
Use a flat washer, locking washer and locking nut onto each bolt. Securely tighten. Periodically check
and re-tighten the nuts.
OPERATION
WARNING:
Ensure that the vise is securely mounted and that the swivel base lockdowns are secure.
1. Turn vise handle counter-clockwise to open the jaws.
2. Place the work piece between the jaws.
3. Turn vise handle clockwise to close the jaws until the item is secure. Make sure you cannot move the
clamped item, being careful not to over-tighten as you may damage the work piece or the vise.
4. When the work is complete, turn vise handle counter-clockwise to release the work piece.
SWIVEL BASE
1. After the work piece is secure, loosen the swivel lockdowns on either side of the vise. Loosen only
enough to be able to rotate the base on the swivel plate, do not remove completely.
2. Swivel the vise until desired position is reached.
3. Tighten lockdowns to clamp the vise to the base.
HANDLE ASSEMBLY
1. Unscrew cap from one side of handle.
2. Insert handle through the spindle cap on the front of the vise.
3. Attach the screw cap.
Limited Lifetime Warranty
This Bench Vise is backed by a Limited Lifetime Warranty (please be sure to keep your receipt). This
warranty covers manufacturer defects and workmanship. The warranty does not cover part failure
due to normal wear or abuse. This warranty does not apply to accessories or damage caused where
repairs have been made or attempted. For further detail of warranty coverage, call 1-844-377-8451.
In addition to the warranty, D WALT vises are covered by our:
E
90 Day Money Back Guarantee
If you are not completely satisfied with the performance of your D
you can return it within 90 days from the date of purchase with a receipt for a full refund – no
questions asked.
Latin America
This warranty does not apply to products sold in Latin America. For products sold in Latin America,
see country specific warranty information contained in the packaging, call the local company or see
website for warranty information.
Description
2
1
5
6" (41646) 8" (41647)
41646-01 41647-01
41646-47-48-02 41646-47-48-02 41646-47-48-02
41646-03 41647-03
41646-47-48-04 41646-47-48-04 41646-47-48-04
WALT Bench Vise for any reason,
E
Qty.
1
1
2
1
2
1
10" (41648)
41648-01
41648-03
