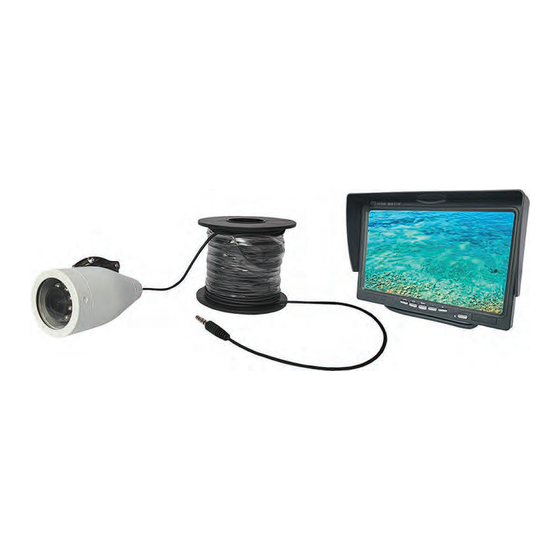

7'' Portable LCD Monitor Underwater Fishing Camera
1000TVL Camera with 12pcs Infrared Lights,
With DVR Recording Function

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLMRCDV72BK and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLMRCDV72BK

Summary of Contents for Pyle PLMRCDV72BK

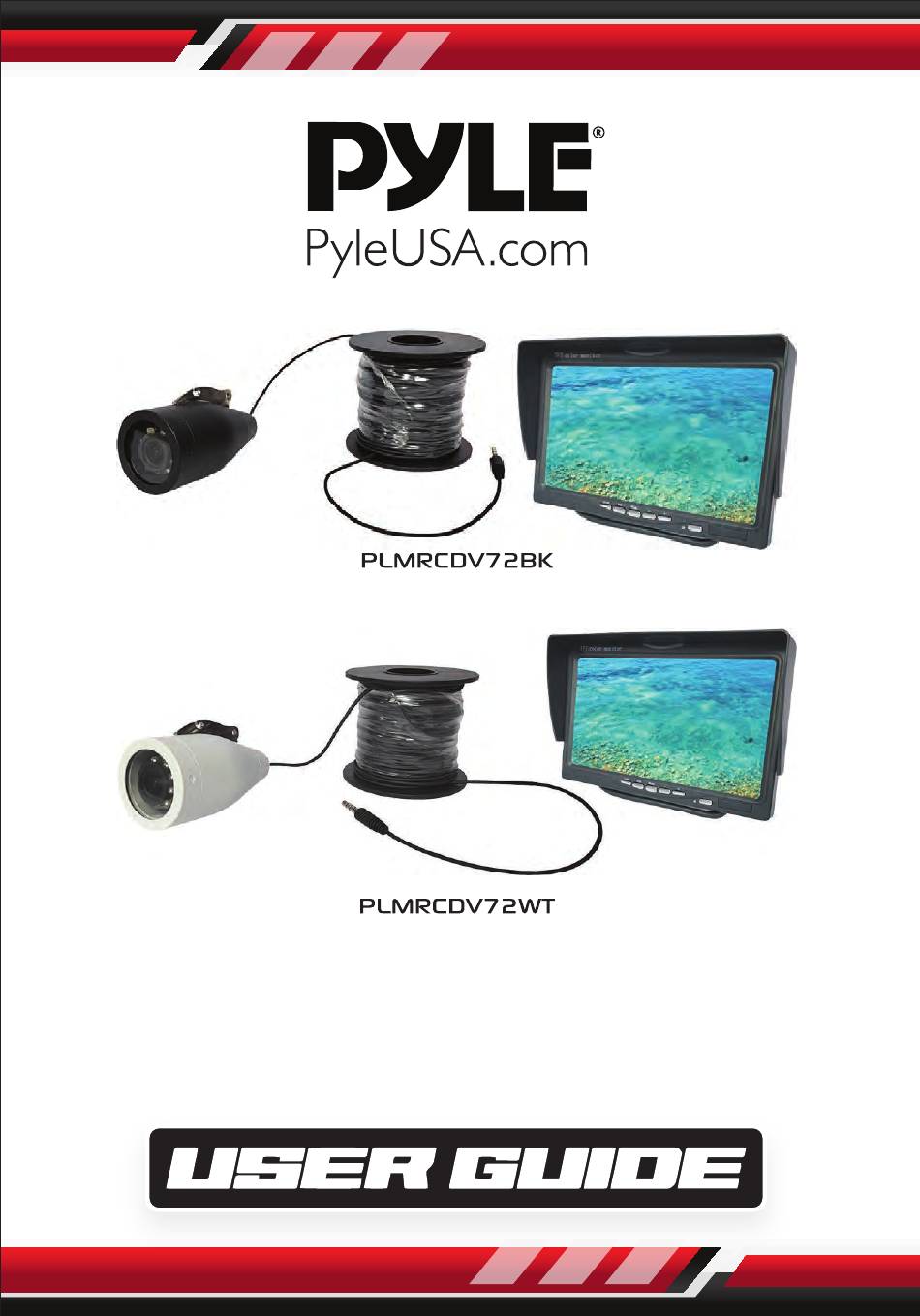

  • Page 1 7'' Portable LCD Monitor Underwater Fishing Camera 1000TVL Camera with 12pcs Infrared Lights, With DVR Recording Function...

  • Page 2: Table Of Contents

    READ THIS MANUAL CAREFULLY BEFORE OPERATION. It is recommended that the battery be brought up to full charge before using. Contents Precaution Range of Application Features and Technical Specs Display Operation Interface Description Operating Instructions Product Features Machine Connections and Charge and discharge Matters Accessory Common faults and handling Precaution...

  • Page 3: Features And Technical Specs

    Features and Technical Specs Features: • IP68 Water-Resistant • 12 Pieces Infrared LED • Fish Finder Waterproof Underwater • 7" TFT Color LCD Monitor • With IR Lights C • Removable Sun-visor Ideal for Bright Environment • Application: Ice/Ocean/Lake Fishing; Monitoring Aquaculture; Underwater Exploration;...

  • Page 4: Display Operation Interface Description

    Display Operation Interface Description 1. LED: Cycle switching between white light, infrared light and turn o light 2. OK: Con rmation of each settings 3. MENU: MENU/EXIT : When entering the Menu, option up/left, le preview up : When entering the Menu, option down/right, le preview down 6.

  • Page 5: Product Features

    2.4. Setting: After pressing OK button enter clock setting, card format, work mode (select recording mode or photo mode). Press OK button to save, press MENU button to exit 3. Video or Photo (Press OK button to start recording or taking a photo) When loading a new card or a card problem, please format the card in the system setting.

  • Page 6: Machine Connections And Charge And Discharge Matters

    Machine Connections and Charge and discharge Matters 1. Video 2. LED 3. Display A. Charge When battery is low, it need to be charged, the charging method is as follows: 1. Remove the battery and charger from the case. 2. The charger DC male plug is inserted into battery charging hole. 3. The charger is connected to an ac between 110-240V, Indicator shows red, charging.

  • Page 7: Accessory

    Accessory Camera 1. Cable 2. Winding wheel 3. Camera connector 4. LED 5. Lens 6. Stainless steel n Camera Host 1. Cable 2. Camera 3. Display 4. Aluminum case 5. Battery 6. Charger 7. Plastic clip 8. Float Common Faults and Handling Faults Phenomenon Causes and Treatment 1.

This manual is also suitable for:

Plmrcdv72wt
