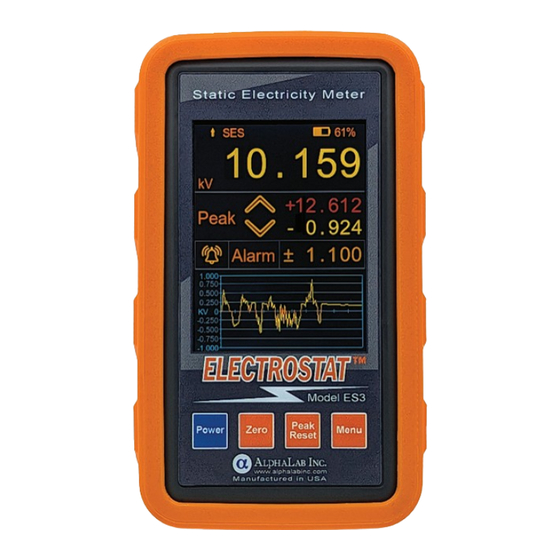

AlphaLab ELECTROSTAT ES3 Instruction Manual

Static electricity meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
™
ELECTROSTAT
Model ES3
Instruction Manual v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELECTROSTAT ES3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AlphaLab ELECTROSTAT ES3

Summary of Contents for AlphaLab ELECTROSTAT ES3

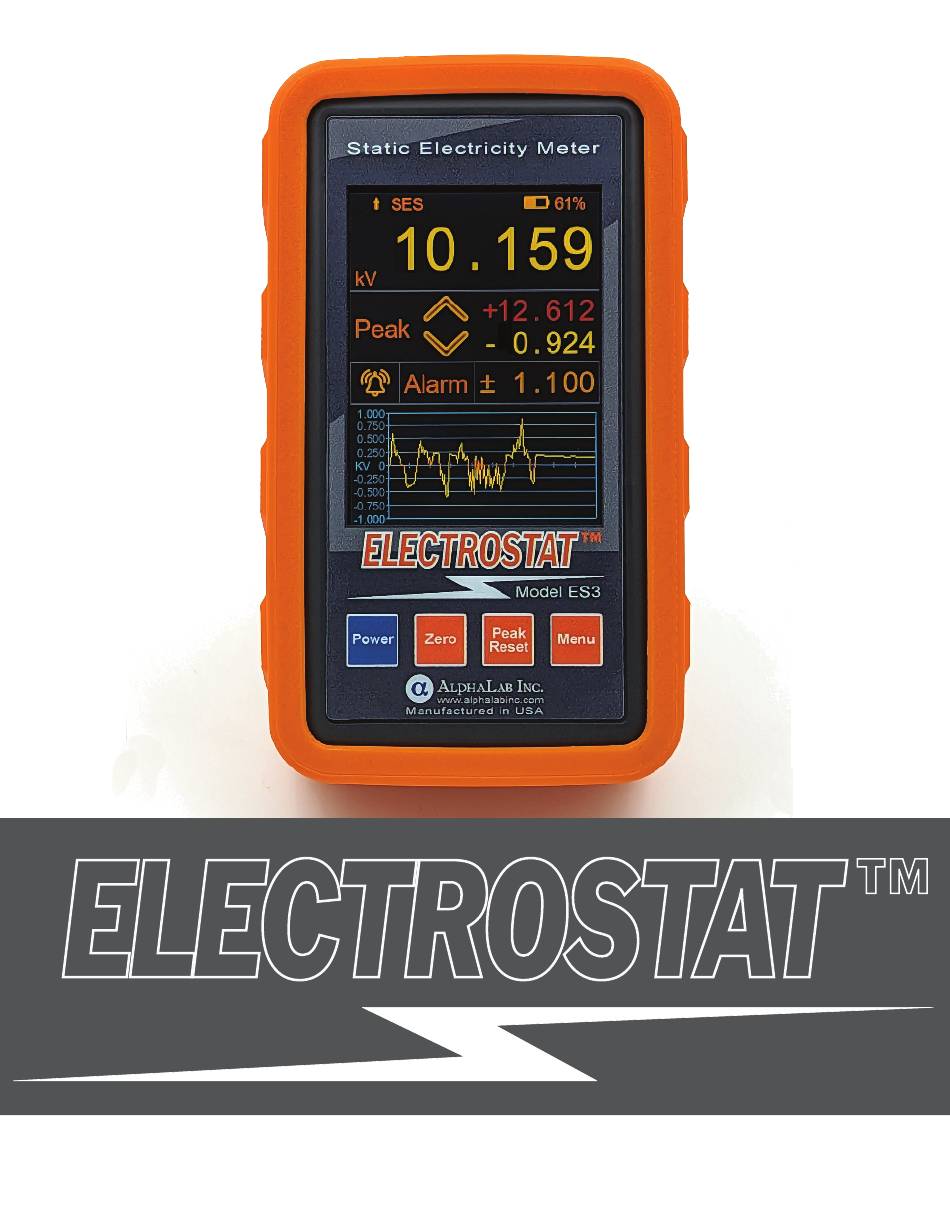

  • Page 1 ™ ELECTROSTAT Model ES3 Instruction Manual v1.1...

  • Page 2: Safety Warning

    Features • Color Touch-screen Display with settings for visibility in a dark room to full sunlight. • USB-C Port supports charging the internal battery from any USB host device or USB charger. • Updatable Device Firmware through the PC application (as updates become available).

  • Page 3: Operation

    Operation Reading and Using the IPS Touch Screen Probe Type Probe Detected Battery Percentage Realtime Number Voltage Mode: kV kiloVolts (kV) or nanocoulombs (nC) ( Charge Mode shows as nC ) Peak Hold +/ - Peak Number Values +/ - Alarm Mode &...

  • Page 4: Protective Boot

    Operation (con’t) Protective Boot The ES3 comes with an orange, Thermoplastic Polyurethane (TPU) boot to provide a comfortable grip and to protect the unit from damage. This rubber boot also has a fold-out kickstand to enable hands-free use on a desktop. To use it, pull the base of the kickstand out as shown here.

  • Page 5: Voltage Mode

    Operation (con’t) Voltage Mode For greatest accuracy, voltage should be measured one inch away from the surface that is being scanned. A one-inch white rod with a magnet at the end is included. It will stick to the front of the gray handle-grip on the probe to make spacing easy.

  • Page 6: Charge Mode

    Operation (con’t) Charge Mode In addition to surface voltage measurements, electric charge can also be measured by chang- ing the ES3 measurement mode from kilovolts (kV) to nanocoulombs (nC). This is done by pressing the "Menu" button, then touching "Mode: Voltage (kV)", so that it reads "Mode: Charge (nC)", and then touching "Exit".

  • Page 7: System Settings

    System Settings Main Menu Pressing Mode toggles between Voltage in kiloVolts (kV) and Charge in Press for Alarm Settings nanocoulombs (nC). Use Voltage (kV) for non-con- Press for Graph Settings tact measurment of static elds. Press for System Settings Use nanoCoulombs (nC) for measurement of the static ES3 Specific Information charge of small objects, and...

  • Page 8: Warranty

    Warranty All AlphaLab, Inc. meters come with a one-year limited warranty from the date of purchase under normal use and service. This warranty is valid to the original purchaser only and is non-transfer- able. The consumer forfeits the benefits of this warranty if the product’s main assembly is opened or tampered with by anyone other than an authorized AlphaLab, Inc.

  • Page 9: Speci Cations

    160 g; 5.5 oz The ElectroStat™ Surface Electricity Meter Model ES3 is Made in the USA by: 3005 South 300 West, Salt Lake City, Utah 84115 Phone: 801-487-9492 Email: mail@trifield.com v1.1 © 2024 AlphaLab, Inc. ElectroStat™ is a trademark of All rights reserved.
