Veris Industries TD Series Installation Manual

Installation Guide
Temperature
TG
TD
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classi ed locations.
• Read and understand the instructions before installing this product.
• Turn o all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
If this product is used in a manner not speci ed by the manufacturer, the protection
provided by the product may be impaired. No responsibility is assumed by the
manufacturer for any consequences arising out of the use of this material.
Z205467-0F Page 1 of 2
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Find Quality Products Online at:

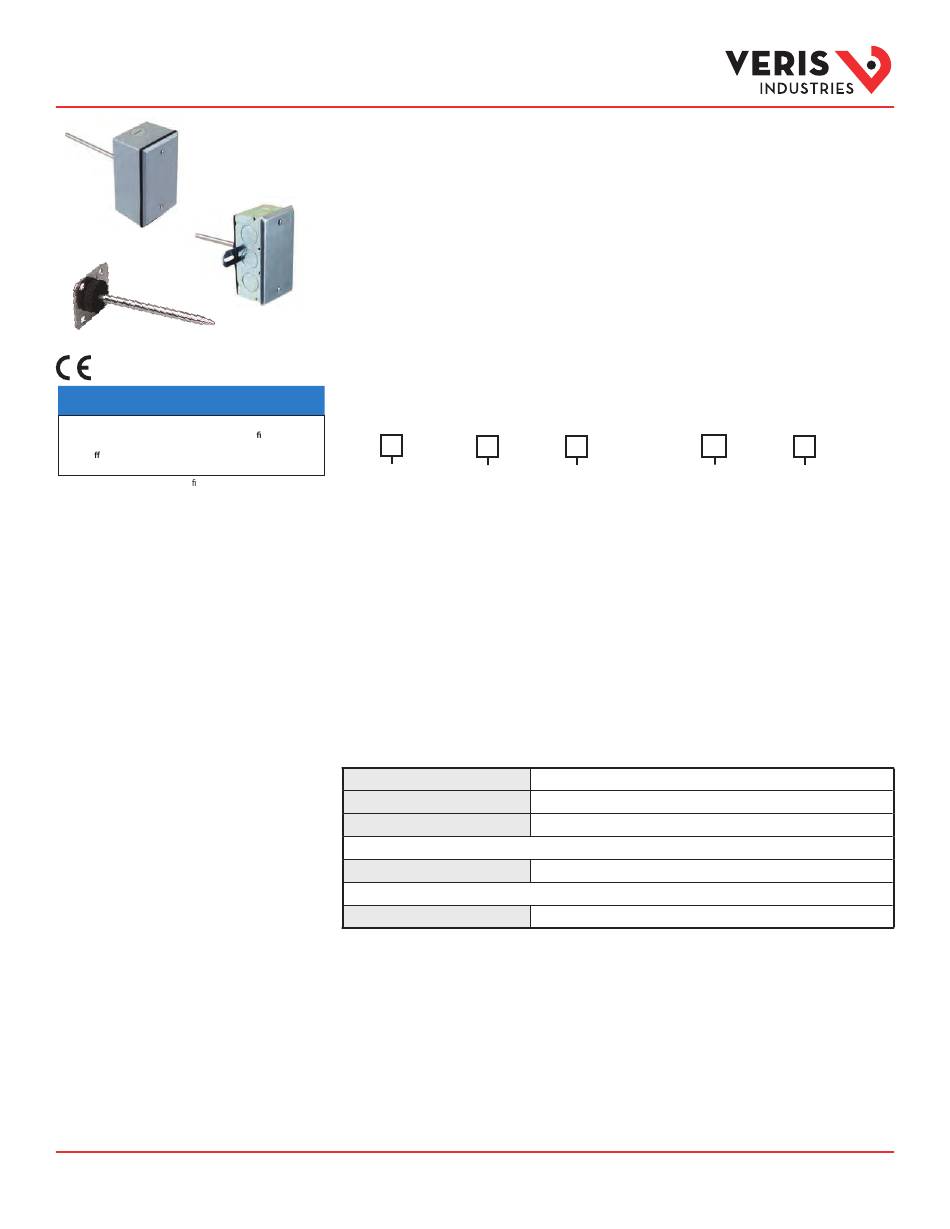

TD/TF/TG Series
Duct Mounted Temperature Sensors
TF
Product Overview
TD, TF, and TG temperature sensors monitor the temperature of the air inside a duct. The probe is available in
multiple lengths to suit multiple applications. All models have standard resistive outputs compatible with building
control systems, and all models are warranted for a period of five years.
Product Identification
Enclosure Probe Length
T
D = Duct B = 4" (102 mm)
F = Duct w/ C = 6" (152 mm)
mounting box D = 8" (203 mm)
G = Duct w/ water E = 12" (305 mm)
resistant housing F = 18" (457 mm)
K = 36" (914 mm)
Specifications
Wiring 22 AWG; 2-wire RTD/Thermistor
Housing Stainless Steel
Mounting Location Not suitable for wet locations. For indoor use only.
Limited Warranty 5 years
Agency Approvals CE
GlobalTestSupply
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
www.
Sensor Type Output
RØ
= Resistive
B = 100R platinum, RTD
C = 1k platinum, RTD
D = 10k T2, Thermistor
E = 2.2k, Thermistor
F = 3k, Thermistor
H = 10k T3, Thermistor
I = 1k Balco (Nickel-iron) RTD
J = 10k Dale, Thermistor
K = 10k w/11k shunt, Thermistor
M = 20k NTC, Thermistor
N = 1800 ohm, Thermistor
T = 100k, Thermistor
W = 10k T2 high accuracy, Thermistor
Y = 10k T3 high accuracy, Thermistor
WARRANTY
COMPLIANCE INFORMATION
.com
sales@GlobalTestSupply.com
TM
Cal Certificate
0 = None
2 = 3-point NIST calibration
