BTR BCR Series Assembly, Installation And Commissioning Instructions

Wind and rain sensor set

Advertisement

Quick Links

I
nstallatIon and

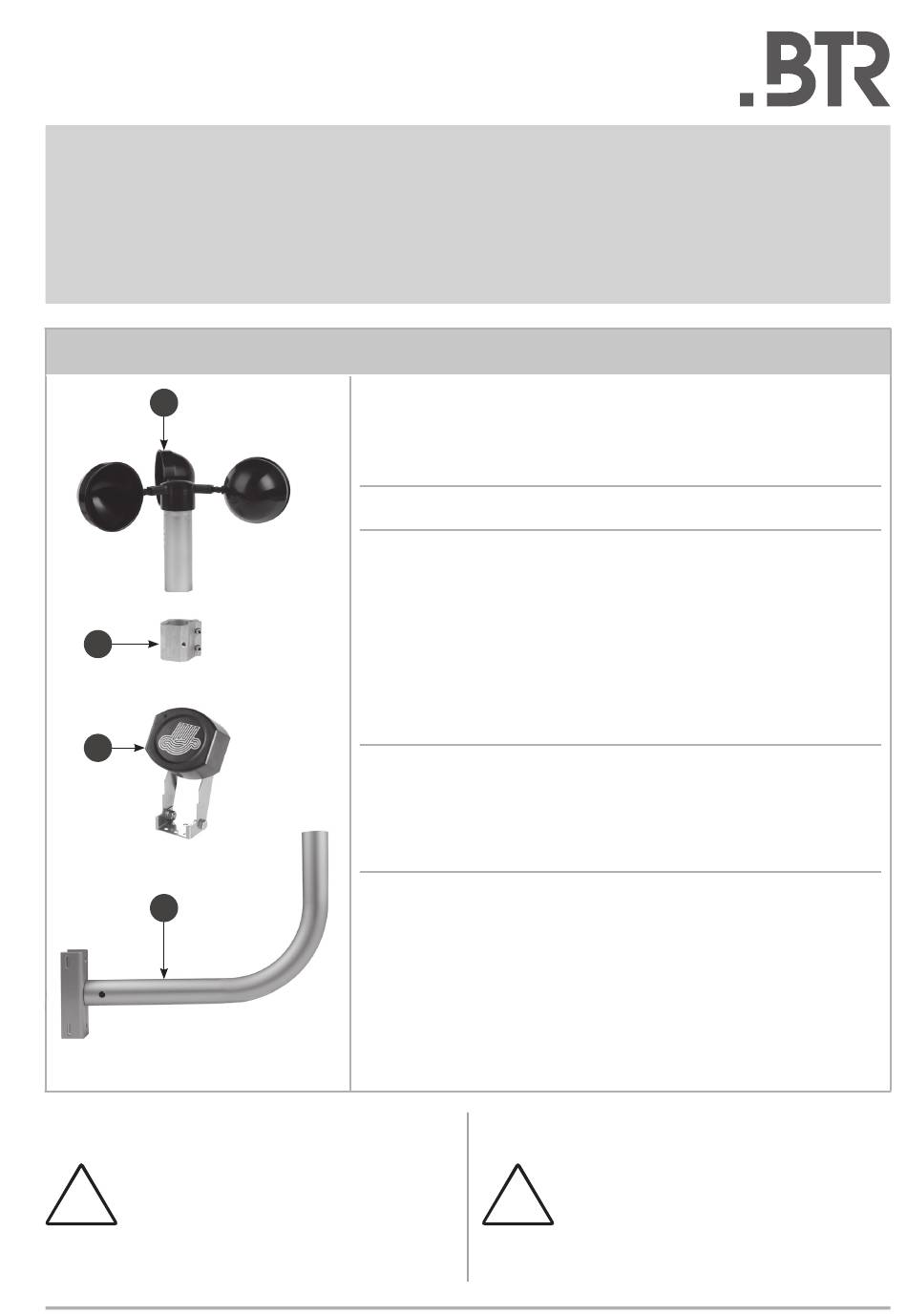

WR-Set Type BCR (Wind and Rain Sensor Set)
1
3
2
4
Warranty claims require proper and profes-
sional assembly, installation and maintenan-
ce in accordance with national regulations
!
and manufacturer's instructions of the RWA
Control Unit.
The safety instructions in the supplied pro-
duct documentation are to be observed.
C
ommIssIonIng
WR-Set Type BCR
Wind and Rain Sensor Set
60.303
Part.-No.:
Application:
Sensors for wind and rain to work directly with a RWA
Control Unit, for closing and blocking the natural venti-
lation under bad weather conditions.
Rated voltage:
Rain sensor:
Contact:
Current consumption:
Housing:
Dimensions (WxHxD):
Connection cable:
Volt free contact:
Wind sensor:
Measuring principle:
Dimensions:
Connection cable:
Set including:
!
I
nstruCtIon
24 V DC (+/- 20%)
heated sensor surface,
switch-off delay approx. 5 min.
1x change-over switch, max. 48 V / 5A
<150 mA
surface mounting,
ABS black with stainless steel bracket
100 x 85 x 172 mm
non-halogen cable, approx. 4 m
1x change-over switch, max. 48 V / 5A
anemometer
with 3 impact resistant wind cups (PA6)
pulse generator
250 x 250 x 80 mm
non-halogen cable, approx. 4 m
Wind sensor
Rain sensor
Clamp ring
Aluminium bracket for pole or wall mounting
without mounting screws
Strictly observe the information given in
this and in the instructions for instal-
lation of the RWA Control Unit, when
mounting the WR-Set Type BCR (Wind
and Rain Sensor Set). Details can be found on
our website www.btr-hamburg.de
Keep this instruction over the lifetime of the
product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BCR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BTR BCR Series

  • Page 1 RWA and Rain Sensor Set). Details can be found on Control Unit. our website www.btr-hamburg.de The safety instructions in the supplied pro- Keep this instruction over the lifetime of the duct documentation are to be observed.
  • Page 2 ssembly nstallatIon step nstallatIon step ount ind cups to the ensor ount bracket   „ Insert the Wind cups into the holder of the „ Fix the bracket to the wall or pole.  revolving head - until both retaining clips ...
  • Page 3 ssembly nstallatIon step ount nstallatIon step ensor and bracket to the laMping ring ounting With site supplied tube   „ Plug the housing tube - of the Wind Sensor „ Alternative: When using a site-supplied tube   25 mm deep in the clamping ring - instead of the bracket - it´s diameter has to be in ...
  • Page 4 - by an authorized specialist company. Ground all metal parts electrically. www.btr-hamburg.de ♦ BTR GmbH ♦ ♦ Gemeindewald 11 ♦ D-86672 Thierhaupten ♦ ♦ Telefon: +49 8271 811 92-0 ♦ Fax: +49 8271 811 92-55 ♦ 9000023851 - V0.1 - KW46.2021...
