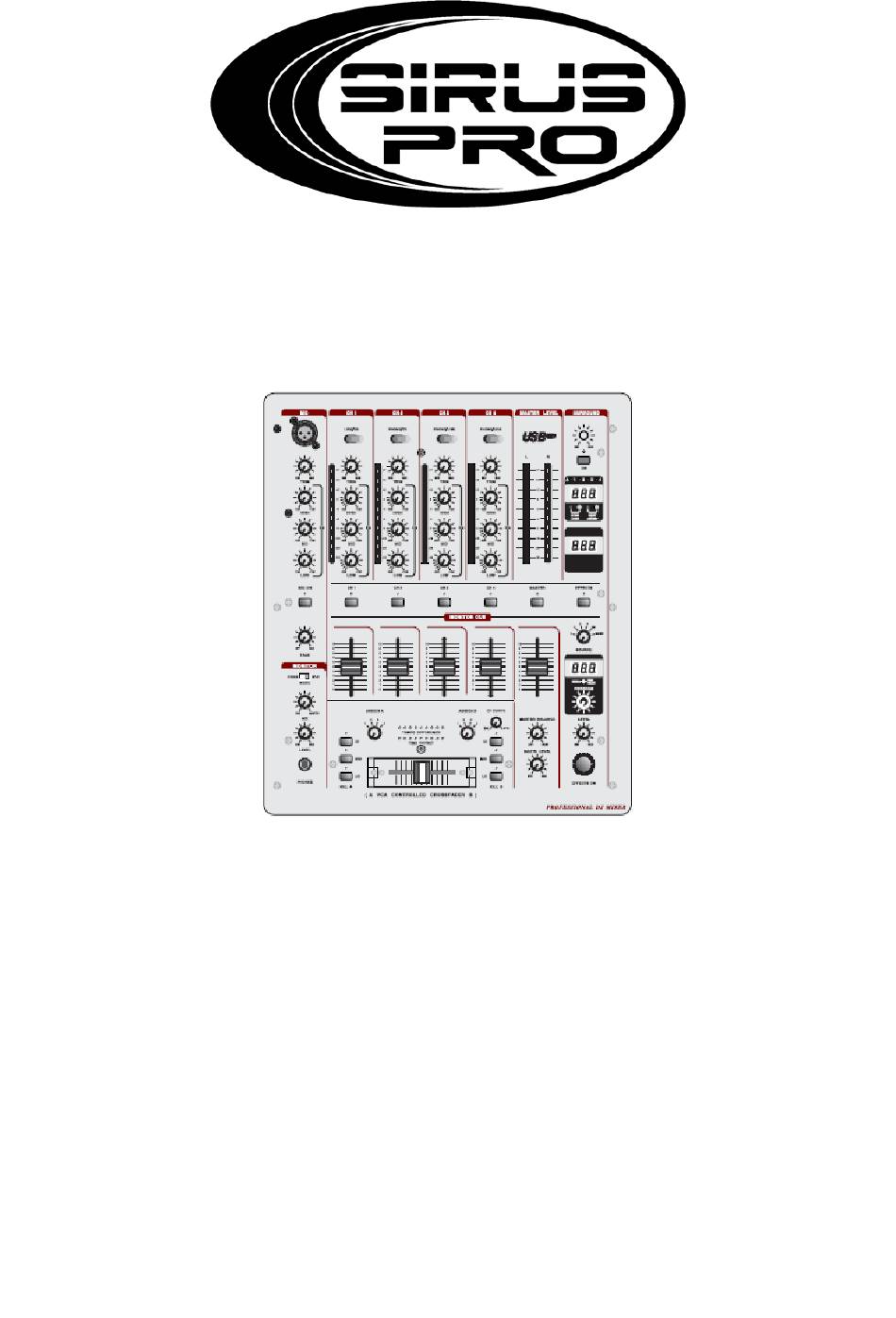

- Page 1 User’s manual Sirus Pro MXA 6000...
-
Page 2: Table Of Contents
Table of content Safety instructions........................... 3 Control Elements ..........................5 2.1. Microphone channels ......................5 2.2. Microphone channel....................... 6 2.3. Monitor Section ........................6 2.4. Master Section ........................7 2.5. Crossfader Section......................... 7 2.6. 3D Sourround Effect....................... 8 2.7. Auto BPM Counter ......................... 8 2.8. -
Page 3: Safety Instructions
1. Safety instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperatureAvoid exposing it to direct rays of the sun or near a heating appliance. Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C. Keep away from humidity, water and dust Do not place the set in a location with high humidity or lots of dust. - Page 4 (1) Read these instructions. (2) Keep these instructions. (4) Follow all instructions. (5) Do not use this device near water. (6) Clean only with a dry cloth. (7) Do not block any ventilation openings. Install in accordance with the manufacturer s instructions. (8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 5: Control Elements
2. Control Elements 2.1. Microphone channels (1) Use the LINE/CD switch to select the input signal for channel 1. Unlike other channels, channel 1 features two line inputs (2) You determine the input signals for the channels 2 to 4 with the PHONO/CD i.e. PHONO/LINE switch (channels 3 and 4). -
Page 6: Microphone Channel
(3) The TRIM control in the CHANNEL section is used to adjust the level of the input signal. The level meter (5) reads the input level (4) Each of the input channels features a 3-band equalizer (HI, MID and LOW) with kill characteristic. Thus, the signal can be attenuated to a much greater extent (-32 dB) than it can be raised (+12 dB). -
Page 7: Master Section
(13) When in Stereo mode, the MIX control lets you determine which signal can be heard via the headphones. When the control is turned to its left-most position (CUE), you hear the headphone signal only; when the control is turned to its right-most position, you hear the MASTER signal only. -
Page 8: Sourround Effect
(25) A 3-band kill switch is available for use with both the left and the right side of the crossfader (KILL A and KILL B respectively). Kill switches are used to lower three separate frequency ranges (LOW, MID and HIGH) up to -32 dB. When using the kill switch, the equalizer of ordinary DJ mixers usually loses its functionality. -
Page 9: Internal Effect Processor
are not synchronised. The TEMPO DIFFERENCE and TIME OFFSET displays are only active if the tempi of both channels have been fixed in one of the ways described. When no signal is present (or when the signal level is too low), the BPM display shows only dashes. -
Page 10: Connections
3. Connections (38) These are the LINE i.e. CD inputs to connect a tape deck, CD or MD player etc. Unlike other channels, channel 1 features two line inputs. (39) The PHONO input for channels 2 to 4 are for connecting a turntable (40) The GND connectors ground the turntables. - Page 11 (45) The BOOTH output gives you an additional option of connecting an amplifier in order to, for example, feed the signal into your monitors or to bring sound to an extra area. The BOOTH output level is regulated by using the BOOTH LEVEL control (20) of the MASTER section (46) Using the TAPE output you can record your music by connecting devices such as tape decks, DAT recorders etc.
-
Page 12: Installation
4. Installation 4.1. Audio connections For various applications, you will need a number of different cables. The following illustrations show how these cables are to be connected. Always make sure to use high-grade cables. mixer are performed only by qualified personnel. During as well as after installation, sufficient grounding of both your equipment and persons handling it must be assured. -
Page 13: Specifications
5. Specifications 13 / 14... -
Page 14: Importeur
Importeur: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 14 / 14...
