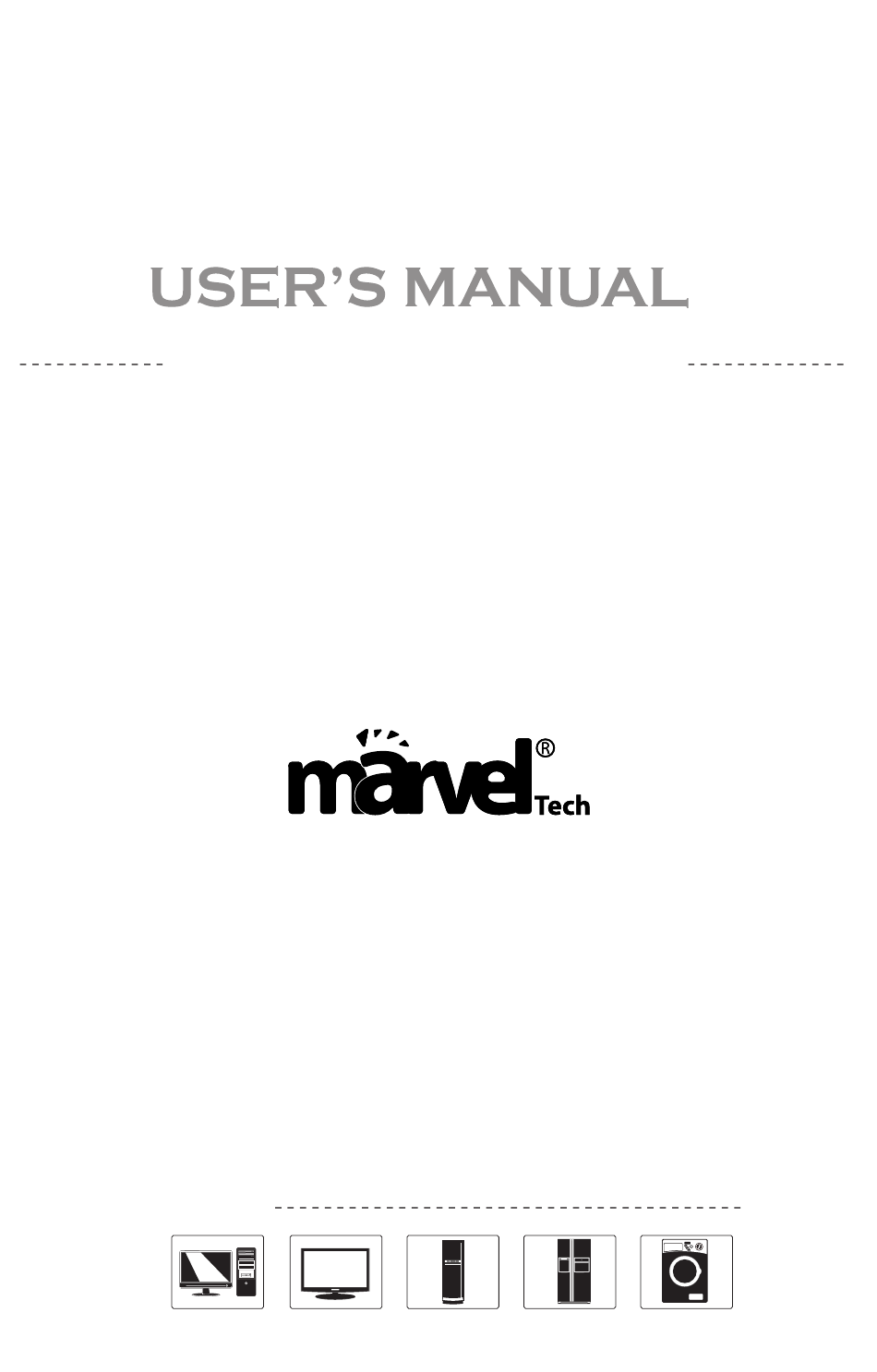

- Page 1 SOLAR INVERTER 1012/1024/1512/1524/2012/2024/3012/3024 3048/4024/4048/5024/5048/6024/6048 Appliances Air- Washing Fridge conditioning machine...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Precautions.....................1 Personnel Precautions..................1 Introduction.......................2 ......................2 Features ..................2 LCD Panel Description ................ 3 AC terminal panel printing description Installation......................3 ..................3 Unpacking and inspection ...................... 3 Preparation ....................4 Mounting the Unit ....................4 DC Wiring Suggestion .................. -
Page 3: General Precautions
WARNING! This manual contains important instructions for all Inverter/Charger models that shall be followed during installation and maintenance of the inverter. The following cases are not within the scope of warranty 1. Out of warranty. 2. Series number was changed or lost. 3. -
Page 4: Introduction
Introduction It is series is very economical pure sine wave inverter, AC charger inbuilt, from 20A to 60A; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current too lower, in this way system charge is optimazed best. it enables inverter to operate with all kinds of home appliances. -
Page 5: Ac Terminal Panel Printing Description
AC terminal panel printing description. Battery Voltage REMOTE PORT 12VDC 24VDC 48VDC Battery Negative Battery Positive OUTPUT - + N L INPUT INPUT OUTPUT 1 . BAT - 8. GND 2. BAT + 9. AC input 3. USB 10. -
Page 6: Mounting The Unit
Mounting the Unit Consider the following points before selecting where to install: ·Do not mount the inverter on flammable construction materials. ·Mount on a solid surface. ·Install this inverter at eye level in order to read the LCD display clearly. ·For proper air circulation to dissipate heat, require a clearance about 50 cm to the side and 80 cm above and below the unit. -
Page 7: Ac Input/Output Connection
t t e l t a g t t e i t i WARNING: Shock Hazard Installation with special care is required due to high battery pack voltage. CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring terminal. Otherwise, overheating may occur. - Page 8 Please follow below steps to implement Load/Grid connection: · Before making Load/Grid connection, be sure to open DC protector or disconnector first. · Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3mm. · Insert grid wires according to polarities indicated on terminal block and tighten the terminal screws.
-
Page 9: Pv Connection
PV Connection Please follow below steps tp implement PV module connection: 1. Remove insulation sleeve 10 mm for positive and negative conductors. 2. Check correct polarity of connection cable from PV module and PV input conductors. Then connect positive pole (+) of connection cable to positive pole (+) of PV input connector. -
Page 10: Setting Key Instructions
Setting key instructions: Function key Function description MENU Utility priority(default) If choice UTI, the inverter work in AC model until AC cut off or over the AC range. Battery/AC priority setting Battery priority The inverter work in AC model if battery less 20set value. -
Page 11: Lcd Display
LCD ON The LCD back light on. LCD back light settings LCD OFF(default) Press any button to light up continue 1min. Buzzer OFF Buzzer ON(default) Buzzer switch settings Save mode enable inverter is set to detect the load every 5/30 seconds Save mode switch settings Sdi(default) -
Page 12: Ags Function
AC Charger Current and Charger Voltage. BAT and Inverter Temperature 28.2 PV Current and PV Power PV Voltage 14.9 Load W Display Load VA Display AGS function AGS function information The AGS function is that the inverter will start the generator automatically via the dry contact when the battery is low voltage. -
Page 13: Dry Contact Operating Voltage
Dry contact operating voltage Set Low Shutdown Voltage Operation Voltage Restoring Voltage 10V/20V/40V DC<10.5V/21V/42V DC>13.5V/27V/54V 10.5V/21V/42V DC<11V/22V/44V DC>13.5V/27V/54V 11V/22V/44V DC<11.5V/23V/46V DC>13.5V/27V/54V That is when the dry contact is engaged at DC<set low shutdown point + 0.5V (battery low voltage warning point), at DC>13.5V. -
Page 14: Specifications
communication Open the PowerMonitor,turn on the machine. PowerMonitor seach Data AppParamters Themes Help Ports Scan for Device Local searching << The SolarPowerMonitor will auto scan communication port. Ep3000 Data Primary AppParamters Themes Ports Ep3000 primary setting Info COM7:Notworking Grid voltage Battery voltage 13.2 V COM3:ReadWrite... -
Page 15: Ac Mode Specification
Surge rating 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 15000VA Capable of starting 1.5P 1.5P electric motor Battery voltage 12VDC/24VDC 24VDC/48VDC (low voltage fault code04) 10/10.5/11V for 12V model Low battery cut off 20/21/22V for 24V model 40/42/44V for 48v model Add 0.5V/battery: (low battery alarm one second one time) (10/10.5/11V) +0.5Vdc for 12V model Low battery alarm... -
Page 16: Charge Mode Specifications
Charge Mode Specifications Max charge current: (±5A) model 1.5K Min charge current 10A. change by every 5A. Charge mode AC range: Setting Low voltage Charge mode recover Charge mode Stop charge Charge recover AC>135V AC<130V 120V AC wide range Stop charge Charge recover AC<75V AC>80V... -
Page 17: Fault Mode
Charge mode: Charge current adjustable Charge cureent adjustable: 10A~max (adjust by every 5A) Battery voltage 10-14.5Vdc/20-29Vdc/40-58Vdc Short circuit protection breaker ≥ Over charge protection Bat V charge voltage+1V/battery,1s 1 time for 30s then alarm 03 rule Boost CC Boost CV Boost FV Charge Stage Transition Boost CC Stage: If A/C input is applied, the charger will run at full current in CC... -
Page 18: Trouble Shootiong
LCD display instruction When inverter alarm, even it back to recovery mode. We must restart inverter to clear fault. Fault instruction Fault code Fault Fan stop run Fan fault BTS over temperture: >65 C 1s 1 time for 1min then fault alarm 02; T <60 C recovery battery battery... -
Page 19: Mppt Controller Warning
-17-... - Page 20 SOLAR INVERTER Pleasedownloadthesoftware “ SolarPowerMonitor2.2.81” . Download link::https://bit.ly/2PyyLg6 4200-030001-02A4...
