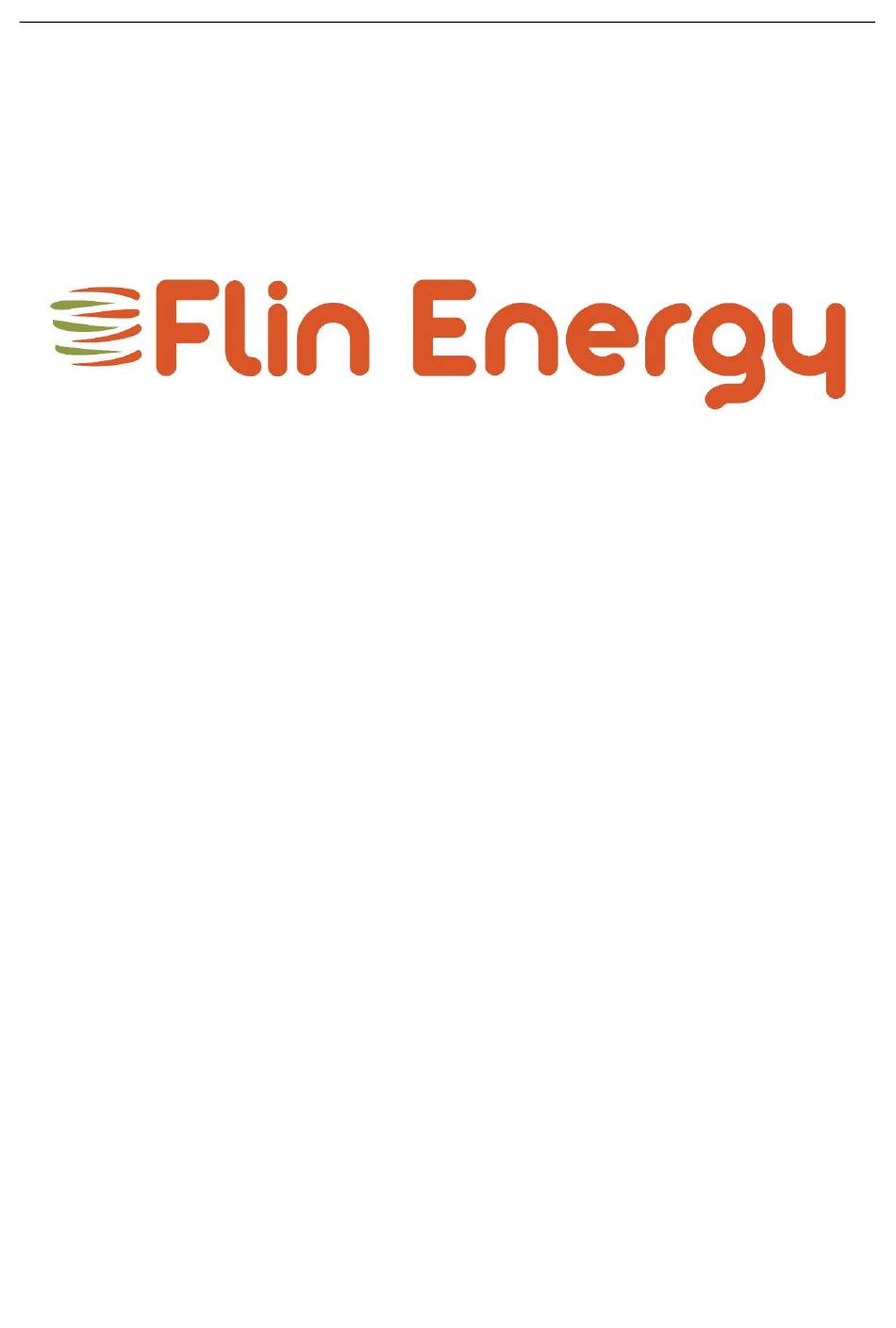

- Page 1 FlinAmp 150 LiFePO4 Battery FlinAmp 150 5kWh-48V LiFePO4 Battery USER MANUAL...
-
Page 2: Table Of Contents
FlinAmp 150 LiFePO4 Battery Table Of Contents Product information………………………………………………………………………..…………..….1 Battery Panel Functions…..………………………………………………..………………………….…..1 III. Installation tools…………………………………………………………..………………………...……..6 Installation steps………………………………………………………..…………………………...……..6 Troubleshooting…………………………………………………………….……………………………..7 Emergency measures……………………………………………………..………………………….……8... -
Page 3: Product Information
FlinAmp 150 5kWh LiFePO4 Battery is not just a power storage solution; it is a smart, reliable, no-maintenance, and safe choice for those seeking advanced energy storage technology with seamless integration capabilities. - Page 4 FlinAmp 150 LiFePO4 Battery Run light: Green LED flashing to show the battery running status. Alarm Alarm light: The red LED blinks to indicate that the battery is alarming, and the red LED blinks to indicate that the battery is protected, as shown in the following table.
- Page 5 FlinAmp 150 LiFePO4 Battery LED Flash Description State Light Flash 1 0.25S 3.75S Flash 2 0.5S 0.5S Flash 3 0.5S 1.5S During battery installation or maintenance, you can determine the battery status based on the RUN and ALM displays. Reset This reset has the functions of manual wake up and start, manual shutdown and sleep, and reset.
- Page 6 FlinAmp 150 LiFePO4 Battery RS 485 RS485 terminal: (RJ45 port) the RS485 terminal outputs battery information. The default baud rate is 9600 bps. When batteries are deployed in parallel, you need to set the address of each battery using a dip switch.
- Page 7 FlinAmp 150 LiFePO4 Battery Display Screen Main page When the battery management interface is displayed: Pack V lot: Total battery pressure Im: Current SOC: State Of Charge ENTER /Press the ENTER to enter the home page. (You can select items up and down, then press the ENTER button to enter, long press the confirmation button to...
-
Page 8: Installation Tools
FlinAmp 150 LiFePO4 Battery III. Installation Tools Please note before installation a. Insulated tools should be used to prevent short circuit during installation. b. Power terminal installation must be checked for tightness, whether there is rust, corrosion, or other foreign bodies. If there is any wipe clean and tighten the bolt. This is important, if the terminal bolt contact is improper, there will be a voltage drop at the bolt, which may lead to temperature rise and can consequently lead to damage of the battery terminals. -
Page 9: Troubleshooting
FlinAmp 150 LiFePO4 Battery b. Place the batteries to be installed into the rack one by one and install the screws that secure the batteries to the rack c. Connect the negative wires: After the battery is fixed, connect all the negative terminals of the battery together, and finally connect the negative terminal of the inverter DC input to the negative terminal of the battery. -
Page 10: Emergency Measures
FlinAmp 150 LiFePO4 Battery ➢ Current: If current is greater than 110A, battery protection will turn on. ➢ Solution: Check whether current is too high or not, if it is, change settings on power supply side. ➢ High Voltage: If charging voltage above 57.6V, battery protection will turn on.
