Advance Technologies; Automate the World.
This datasheet has been downloaded from
TM-150/170
Industrial Touchscreen Monitor
User's Manual
Manual Rev.:
Revision Date:
Part No:
0.10 Preliminary
April 30, 2014
50-1Z164-1000
http://www.digchip.com
at this
page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADLINK Technology TM-150

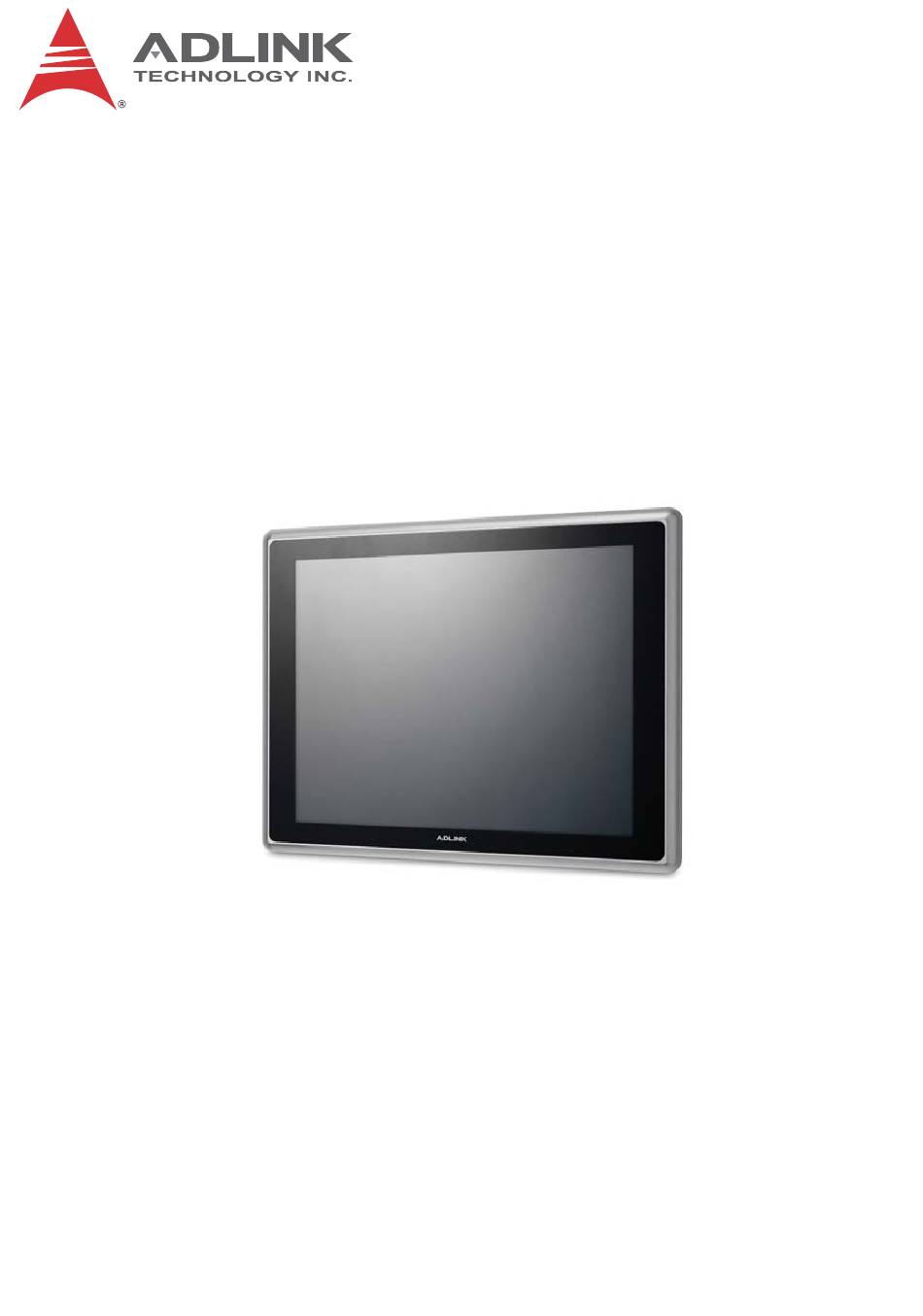

  • Page 1 TM-150/170 Industrial Touchscreen Monitor User’s Manual Manual Rev.: 0.10 Preliminary Revision Date: April 30, 2014 Part No: 50-1Z164-1000 Advance Technologies; Automate the World. This datasheet has been downloaded from http://www.digchip.com at this page...
  • Page 2 Revision History Revision Release Date Description of Change(s) 0.10 30/04/2014 Preliminary release Revision History...

  • Page 3: Preface

    TM-150/170 Preface Copyright 2014 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Using this Manual Audience and Scope The TM-150/170 User’s Manual is intended for hardware technicians and systems operators with knowledge of installing, configuring and operating industrial grade computers. Manual Organization This manual is organized as follows: Preface: Presents copyright notifications, disclaimers, trade- marks, and associated information on the proper usage of this document and its associated product(s).
  • Page 5 TM-150/170 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
  • Page 6 This page intentionally left blank. Preface...

  • Page 7: Table Of Contents

    TM-150/170 Table of Contents Revision History..............ii Preface ..................iii List of Figures ................ ix List of Tables................xi 1 Introduction ................ 1 Overview................1 Features................1 Model List ................1 Package Contents ............... 2 Optional Accessories ............2 Mechanical Dimensions............3 2 Specifications ..............
  • Page 8 OSD Control Function List ..........26 Color Adjustment ............... 28 Image Settings ..............29 OSD Settings Menu ............30 Signal Source..............31 Important Safety Instructions..........33 Getting Service ..............35 viii Table of Contents...

  • Page 9: List Of Figures

    List of Figures Figure 1-1: TM-150 Board Dimensions ..........3 Figure 1-2: TM-170 Board Dimensions ..........4 Figure 2-1: TM-150/170 Rear I/O Layout ........... 7 Figure 3-1: TM-150 Panel Mount Cut-out ........11 Figure 3-2: TM-170 Panel Mount Cut-out ........12 Figure 3-3: Panel Mount Bracket Installation ........
  • Page 10 This page intentionally left blank. List of Figures...

  • Page 11: List Of Tables

    TM-150/170 List of Tables Table 2-1: LCD Panel Specifications ..........5 Table 2-2: TM Series Timing Table........... 6 Table 5-1: OSD Control Buttons List..........25 Table 5-2: OSD Menu Structure ............. 27 List of Tables...
  • Page 12 This page intentionally left blank. List of Tables...

  • Page 13: Introduction

    Built-in 5-wire resistive touch sensor (optional projective capacitive sensor) Supports panel and wall mounting (VESA 75/100 mm) IP65 compliant front panel Wide range 12~24 VDC power input 1.3 Model List TM-150: 15” Touchscreen Monitor TM-170: 17” Touchscreen Monitor 12~24VDC Model Name Touchscreen Type Size...

  • Page 14: Package Contents

    1.4 Package Contents Please check that your package contains the items below. If you discover damaged or missing items, please contact your vendor. TM-150/170 Series Monitor 60W power adapter x1 AC power cable x1 VGA cable x1 Touchscreen USB cable x1...

  • Page 15: Mechanical Dimensions

    TM-150/170 1.6 Mechanical Dimensions Dimensions in mm Figure 1-1: TM-150 Board Dimensions Introduction...

  • Page 16: Figure 1-2: Tm-170 Board Dimensions

    Dimensions in mm Figure 1-2: TM-170 Board Dimensions Introduction...

  • Page 17: Specifications

    TM-150/170 Specifications 2.1 LCD Panel Specifications Model TM-150 TM-170 Display Display Size 15" 17" Resolution 1024x768 1280x1024 250 nits 250 nits Brightness (w/o touchscreen) (w/o touchscreen) Contrast Ratio 700:1 1000:1 View Angle (H/V) 170°/160° 170°/160° 5-wire resistive touch sensor (R models)

  • Page 18: Signal Specifications

    2.2 Signal Specifications Supports vertical refresh rate up to 75Hz for VGA~SXGA+ (1400x1050) and 60Hz for higher resolutions of VESA Stan- dard Timing Supports Video Graphics Array (VGA) analog standard input signal Automatic detection of separate synchronize and composite synchronize of VGA Supports Digital Visual Interface (DVI) signal input Supports High-Definition Multimedia Interface (HDMI) input Mode...

  • Page 19: Connector Layout

    TM-150/170 2.3 Connector Layout Figure 2-1: TM-150/170 Rear I/O Layout DC power input connector HDMI connector DVI connector VGA connector Touchscreen USB connector Specifications...

  • Page 20: Pin Definitions

    2.4 Pin Definitions VGA Connector. Signal Name Pin # Pin # Signal Name Green Blue VCC pull-up VCC pull-up DDC2B DATA HSYNC VSYNC DDC2B CLK DVI-D Connector Pin # Signal Pin # Signal DVI_TDC2-N DVI_HTPLG DVI_TDC2-P DVI_TDC0-N DVI_TDC0-P DDCCLK_5V DDCDAT_5V DVI_TLC-P DVI_TDC1-N DVI_TLC-N...
  • Page 21 TM-150/170 HDMI Connector Pin # Signal Pin # Signal TMDS Data2+ TMDS Data2 Shield TMDS Data2– TMDS Data1+ TMDS Data1 Shield TMDS Data1– TMDS Data0+ TMDS Data0 Shield TMDS Data0– TMDS Clock+ TMDS Clock Shield TMDS Clock– Reserved DDC/CEC Ground...
  • Page 22 This page intentionally left blank. Specifications...

  • Page 23: Installation

    The TM-150/170 can be panel mounted, or wall/tabletop mounted using a VESA 75/100 mm bracket. 3.1 Panel Mounting A panel mount kit is available for the TM-150/170. Please contact your ADLINK representative (model no.: TM-PM1). Make sure there is adequate space behind the panel for ventila- tion, and that the panel material and thickness can support the weight of the monitor.

  • Page 24: Figure 3-2: Tm-170 Panel Mount Cut-Out

    TM-170 Panel Cutout Dimensions in mm Figure 3-2: TM-170 Panel Mount Cut-out 2. Attach cables to the monitor before installing into the panel if rear access to the monitor will be limited after installation (see “Connector Layout” on page 7.). 3.

  • Page 25: Figure 3-3: Panel Mount Bracket Installation

    TM-150/170 Panel Mount Bracket Installation Dimensions in mm Figure 3-3: Panel Mount Bracket Installation Installation...

  • Page 26: Vesa Mounting

    3.2 VESA Mounting A VESA mount kit is available for the TM-150/170. Please contact your ADLINK representative (model no.: TM-WM1). 1. Place the monitor onto the VESA 75/100mm bracket. Insert the four screws supplied with the TM-WM1 VESA mount kit into the VESA mounting holes in the back of the monitor (see Figure 3-4 below, VESA 100mm mount- ing holes shown).

  • Page 27: Touchscreen Controller

    TM-150/170 Touchscreen Controller The TM-150/170 touchscreen controller drivers can be down- loaded from the ADLINK website (http://www.adlinktech.com). Instructions for installing the Windows 7 drivers are given below. 4.1 Resistive Touchscreen Controller Driver Installation 1. Use the USB cable included with the touchscreen monitor to connect the USB connector on the monitor to a USB port on your system (see “Connector Layout”...
  • Page 28 3. Click “I Agree” on the license agreement page to pro- ceed with the driver installation. 4. Browse to the desired installation location or use the default location. Click “Install” to continue. Touchscreen Controller...
  • Page 29 TM-150/170 5. Driver installation will begin. 6. To use the touchscreen as a mouse device, click “Yes”. Touchscreen Controller...
  • Page 30 7. The resistive touchscreen driver is now installed on your system. Touchscreen Controller...

  • Page 31: Projective Capacitive Touchscreen Controller

    TM-150/170 4.2 Projective Capacitive Touchscreen Controller Driver Installation 1. Use the USB cable included with the touchscreen monitor to connect the USB connector on the monitor to a USB port on your system (see “Connector Layout” on page 7.) 2. Install the capacitive touchscreen controller driver by extracting the contents of the archive eGalaxTouch_ 5.12.0.12204-Release131204-ForPCAP.zip and run-...
  • Page 32 3. Select the “I accept the terms of the license agreement” radio button and click “Next” to continue. 4. Leave the box to install the RS-232 interface driver unchecked. Click “Next” to continue. Touchscreen Controller...
  • Page 33 TM-150/170 5. No calibration is required. Select the “None” radio button and click “Next” to continue. 6. Make sure the touchscreen monitor is connected to a USB port on your system (see “Connector Layout” on page 7.). If you are connecting it now, close the “Found New Hardware Wizard”...
  • Page 34 7. Tick the box next to “Support Multi-Monitor System” if you have more than one display in your system. 8. Browse to the desired installation location or use the default location. Click “Next” to continue. Touchscreen Controller...
  • Page 35 TM-150/170 9. Choose a name for the program folder or use the default setting. Click “Next” to continue. 10.Tick the box to create a touchscreen utility shortcut on the desktop. Click “Next” to continue. Touchscreen Controller...
  • Page 36 11. Tick the box to create a touchscreen utility shortcut in the Start Menu. Click “Next” to continue. 12.Projective capacitive touchscreen controller driver instal- lation will now complete. Touchscreen Controller...

  • Page 37: On-Screen Display Buttons

    TM-150/170 On-Screen Display Buttons 5.1 OSD Control Buttons Figure 5-1 shows the locations of the OSD controls for the TM Series monitor. Figure 5-1: OSD Control Buttons Icon Control Key Function Power Power On/Off Menu Menu/Enter Select Increase the value of the...

  • Page 38: Osd Control Function List

    5.2 OSD Control Function List Press the “Menu/Enter” button to bring up the main OSD menu (Figure 5-2). Press “Up” or “Down” to choose the item you wish to set, then press “Menu” to select the item. Use “Up” or “Down” to select the item you wish to set in the submenu, then press "Menu”...

  • Page 39: Table 5-2: Osd Menu Structure

    TM-150/170 Table 5.3 shows the structure of OSD menus for the TM Series. Level 1 Level 2 Values Contrast 0 ~ 100 Brightness 0 ~ 100 Color Color Adjust Red, Green, Blue Color Temp 9300, 6500, 5800, User Auto Color...

  • Page 40: Color Adjustment

    5.3 Color Adjustment Table 5-3 shows the Color Adjustment menu. Figure 5-3: Color Adjustment Menu Contrast: Adjust the contrast values from 0 to 100 Brightness: Adjust the brightness values from 0 to 100 Color Adjust: Adjust the Color for Red, Green and Blue Color Temp: Select 9300, 6500, 5800 or User mode for color temperature Auto Color: Auto adjust the color...

  • Page 41: Image Settings

    TM-150/170 5.4 Image Settings Figure 5-4 shows the Image Settings menu. Figure 5-4: Image Setting Menu Clock: Adjust the Clock values from 0~100 Phase: Adjust the Phase values from 0~100 Sharpness: Adjusts the Sharpeness value from 0 to 4 H-Position: Move the screen to right or left from 0~100...

  • Page 42: Osd Settings Menu

    5.5 OSD Settings Menu Figure 5-5 shows the OSD Settings menu. Figure 5-5: OSD Settings Menu OSD H.Pos: Adjust the OSD horizontal position on the screen OSD V.Pos: Adjust the OSD vertical position on the screen OSD Timer: Adjust the time the OSD menu is displayed (0~30 sec.) Language: Change the OSD language.

  • Page 43: Signal Source

    TM-150/170 5.6 Signal Source Figure 5-7 shows the Signal Source menu. Figure 5-7: Signal Source Menu D-SUB (VGA) HDMI Auto Search On-Screen Display Buttons...
  • Page 44 This page intentionally left blank. On-Screen Display Buttons...

  • Page 45: Important Safety Instructions

    TM-150/170 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference.
  • Page 46 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. Equipment must be serviced by authorized technicians when: The power cord or plug is damaged; Liquid has penetrated the equipment; It has been exposed to high humidity/moisture; It is not functioning or does not function according to the user’s manual;...

  • Page 47: Getting Service

    San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
  • Page 48 84 Genting Lane #07-02A, Cityneon Design Centre Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: #50-56, First Floor, Spearhead Towers Margosa Main Road (between 16th/17th Cross) Malleswaram, Bangalore - 560 055, India Tel: +91-80-65605817, +91-80-42246107 Fax:...
