Summary of Contents for JSR 406 D

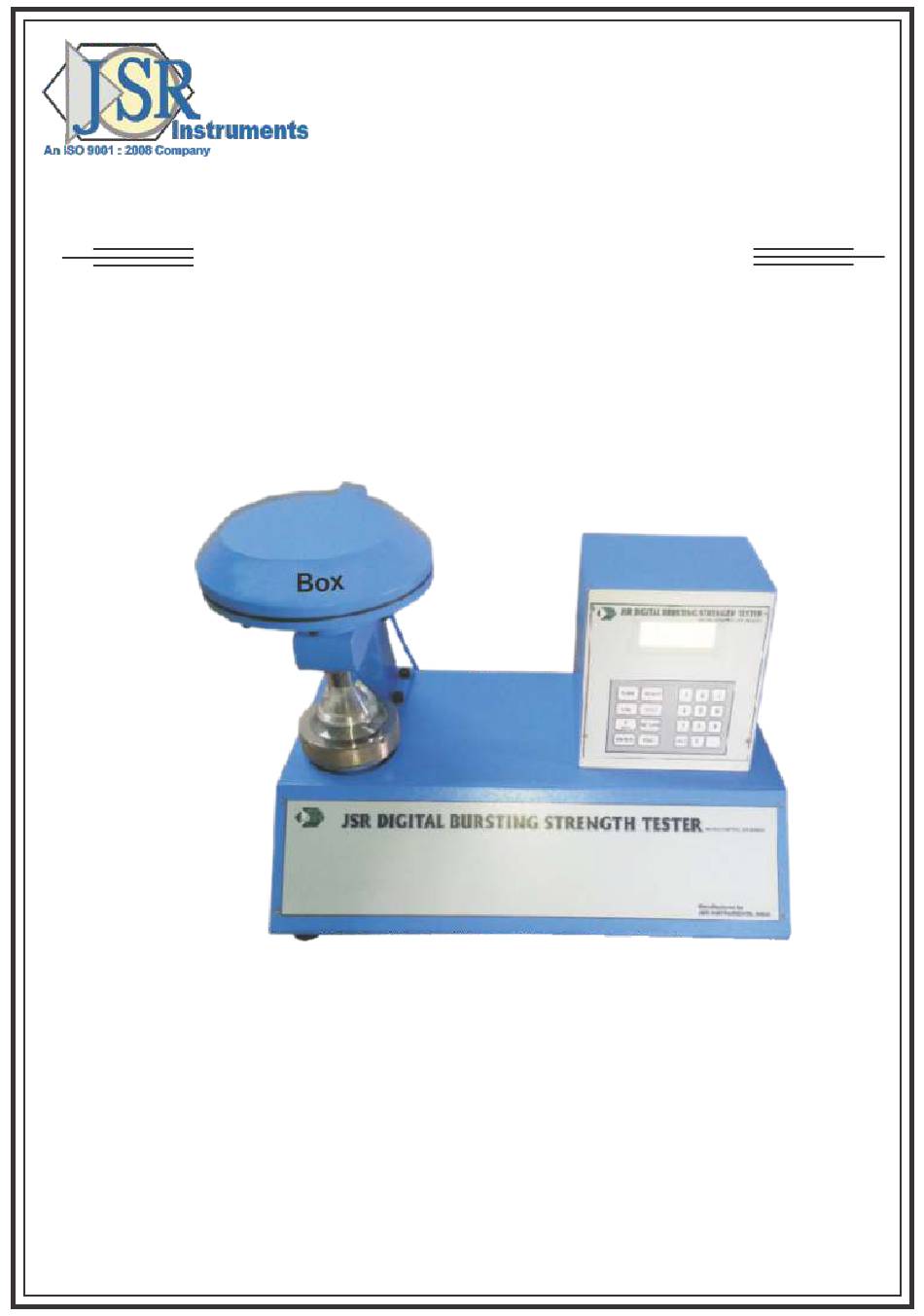

- Page 1 (USER MANUAL) JSR DIGITAL BURSTING STRENGTH TESTER (Micro Controller Based) JSR 406 D JSR DIGITAL BURSTING STRENGTH TESTER (USER MANUAL)
- Page 2 Meanwhile, new documents come with the improved products. Do not rebuild any of JSR 406 D. Otherwise it is out of our service range. We promise: our products are nished when customer gets it all of the accessories are enclosed.
- Page 3 ！ NOTICE Please read this user's manual before use JSR 406 D Digital Bursting Strength Tester. Do not use it if you found the instrument was damaged or any other abnormal when ...
-
Page 4: Salient Features
(USER MANUAL) JSR DIGITAL BURSTING STRENGTH TESTER (Micro Controller Based) JSR 406 D DIGITAL BURSTING STRENGTH TESTER (Pneumatic Model) is specially designed to perform the bursting strength testing of boxes with pneumatic control. It can also be used for woven, non woven, leather, Paper &... -
Page 5: Technical Details
(USER MANUAL) JSR DIGITAL BURSTING STRENGTH TESTER (Micro Controller Based) JSR 406 D DIGITAL BURSTING (Pneumatic) is supplied complete with below accessories. Main Unit : 01 No. Air Compressor Unit (Optional, cost extra) : 01 No. Synthetic Rubber Diaphragms : 01 Nos. - Page 6 (USER MANUAL) JSR DIGITAL BURSTING STRENGTH TESTER (Micro Controller Based) JSR 406 D Testing User connect power with machine 230 volts. Power On the machine, rst message display on lcd module. Use tare button to tare the initial offset value.
- Page 7 (USER MANUAL) JSR DIGITAL BURSTING STRENGTH TESTER (Micro Controller Based) JSR 406 D Fig. 7 Fig. 8 Above gure shows box sample ready Place the sample and press start key. for bursting test. Fig. 9 Fig. 10 As soon as box burst, machine motor Above gure indicates the results on...
- Page 8 (USER MANUAL) JSR DIGITAL BURSTING STRENGTH TESTER (Micro Controller Based) JSR 406 D Calibration: Fig. 13 Fig. 14 For checking the calibration of the machine, Press cal button & note down the cal factor. press enter for saving the cal factor, kindly do not change the cal factor without any assistance.
- Page 9 (USER MANUAL) JSR DIGITAL BURSTING STRENGTH TESTER (Micro Controller Based) JSR 406 D Chapter 8 Calibration & Maintenance:- 8.1 The pressure indicating device (Pressure Sensor) calibrated by means of a dead-weight tester of the piston type in our factory premises.
