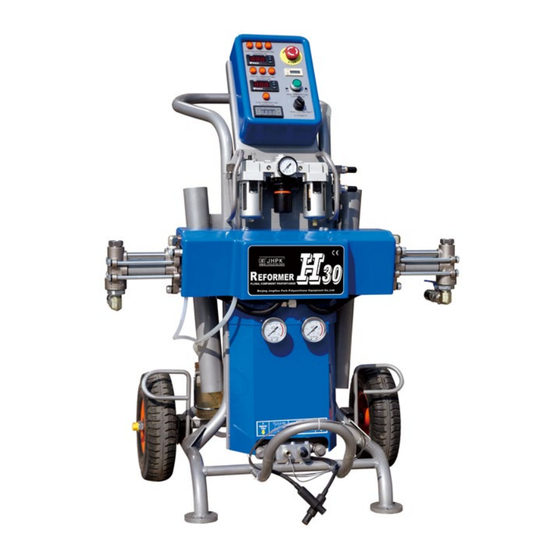

JHPK H30 Owner's Manual

Polyurethane foaming equipment

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

H30 – Owners Manual

Polyurethane foaming equipment

Table of Contents

Need help?

Do you have a question about the H30 and is the answer not in the manual?

Questions and answers

Darrell Lowe

May 21, 2025

B side will not build pressure at the pump

1 comments:

Mr. Anderson

May 24, 2025

The B side may not be building pressure at the pump for the JHPK H30 due to a restriction in the B side hose or issues with the booster pump. A restriction can block material flow, and if the booster pump shaft is not properly lubricated or if crystallization occurs, it can damage seals and affect pressure build-up.

This answer is automatically generated

Tom Fields

March 23, 2025

I bought new hose for my h30 and it has purple wire 3prong but my machine has a 2 prong plug

Summary of Contents for JHPK H30

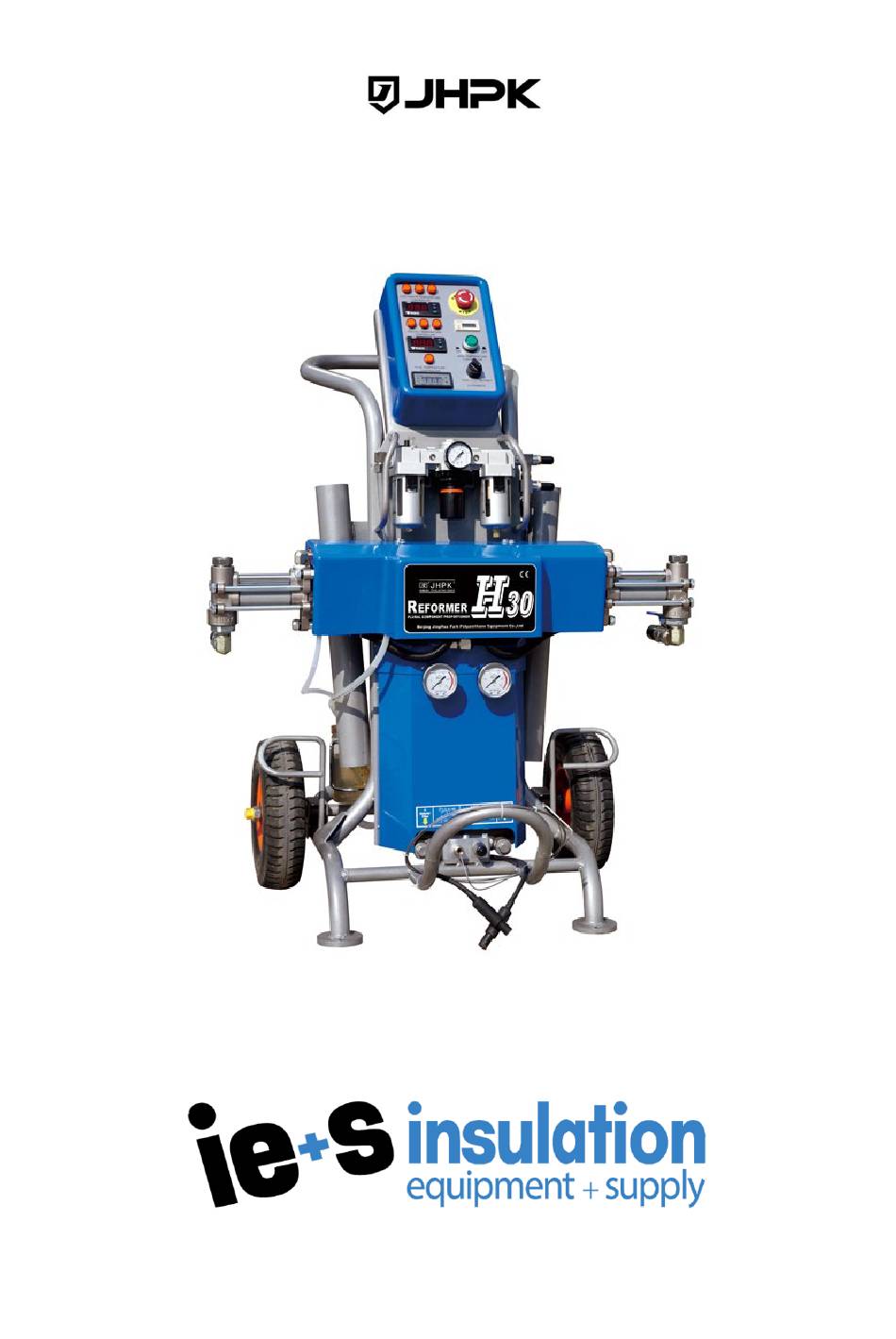

Page 1 H30 – Owners Manual Polyurethane foaming equipment...
Page 2: Table Of Contents
4.1. The installation of raw material pipe system ............ 7 4.2Air source connection and requirements: ............11 4.3 Power connection and requirements: .............. 11 4.4 JHPK-H30 Control instrument panel:(Figure 5) ..........11 4.6 Emergency stop button ..................13 Self-lock start-up button for heater: ............13 Temperature setting for temperature controller: ........
Page 3: Warning
Warning Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 4: I.jhpk-H30 Raw Material Flow Chart
I.JHPK-H30 raw material flow chart Raw Material Raw Material Feed Pump Feed Pump Feed Hose Feed Hose Pressurize Air Motor Main Air Source （A Pump）Pressurize Pump （B Pump） Raw Material Heater Raw Material Heater Heat Tracing and Insulation Pipe Heat Tracing and Insulation Pipe...
Page 5: Technical Data Of The System
II Technical data of the system Raw material ratio： 1:1 standard fixed ratio (changeable ratio can be selected) Viscosity range of raw material： 200-1000CPS (under operation temperature) Output quantity of raw material: 2-7.8kg/min Heating temperature range: 0-70℃ Cleaning style of the gun: Air purge Power: Three phase four wire 380V 50HZ 14Ax3+16A...
Page 6: Operating And Requirements Of Air-Powered Frl Combination
III operating and requirements of air-powered FRL combination Note: If the air source is not clean, the seal system of air-powered components such as air pressure regulating valve, cylinder, reversing valve and so on can be damaged easily. 3.1 Air-powered FRL combination Air-powered FRL combination is an important and indispensable component which consists of air filter, pressure reducing valve and oil atomizer (as shown in Figure 1) its roles as follows: Figure 1...
Page 7: System Installation
IV. System installation 4.1. The installation of raw material pipe system Lead Isocyanate (black) and polyhydric alcohol (white, POLY) to the pump body inlet of the host from material barrels by the feed pump, and connect the raw materials and air pipes to the polyurethane spray gun as following steps.
Page 8 Figure 2 Step 2 , connect the feed pump conveying hose to the discharge hole filtered by the feed pump and the inlet of pump body of the host respectively. See Figure 3. (2) Installation of the discharging system: Firstly, remove the plastic insulation sleeve that outside of the temperature sensor wholly, feed the temperature sensor (armored extra-long thermocouple) at the exit of the main machine exit slowly into the black material pipe through the black material joint of the heat preservation hose group (the hose end is protruding).
Page 9 Table1 Connecting Position Voltage of the transformer tap lead Pipe length Figure 4 Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 10 Figure 3 Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 11: Air Source Connection And Requirements
Avoid unnecessary personal injury and death. The flexible wire is the ground protection cable, must be earthed. 4.4JHPK-H30 Control instrument panel:(Figure 5) Figure 5 Insulation Equipment + Supply...
Page 12 4.5 Run/Retract Switch Figure 6 Figure 7 Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 13: Emergency Stop Button
Operation steps: When the equipment is fed with air source, put the Run/Retract switch to operation position, then the booster pump begins to work normally. If short-period stop of booster pump is desirable, put the Run/Retract switch to the reset position. For long-period shut down, first turn the Run/Retract switch to the reset position, then pull the lock bolt to release material (pressure release) while keeping the booster pump working.
Page 14: Temperature Setting For Temperature Controller
Figure(8) Figure(9) Temperature setting for temperature controller: JHPK-H30 version equipment control instrument has three temperature controllers, used to set and control temperature for the black material (component A) heater, the white material (component B) heater, and pipeline heater. The black and the white materials are controlled by C16H controller, the control panel of which is shown in Figure (9).
Page 15: Master Power Switch
Note: The electrical cabinet shall be operated by an electrician or a trained person. 4.11 Over-temperature protection: The main machine heater, JHPK-H30 equipment, and the heated pipeline are equipped with over- temperature protection circuit. When the actual temperature exceeds 55℃, the heating power will be switched off automatically.
Page 16: About Pneumatic Reversal System
4.14 About large volume and portability of the equipment heat preservation pipe set Figure (12) shows the winding up of heat preservation hose set by JHPK-H30 main machine. On the left part, the protruding part of the horizontal booster pump and the protruding tube of the main machine stand form a spatial support, on which the heat preservation hose set may be wound.
Page 17 The general layout of the equipment has given due consideration to spatial usage. Even if more sets of heat preservation hose are received, the designed space for movement and maneuverability can be guaranteed and one operator is able to move the equipment alone. The large volume and the portability of the heat preservation hose sets increase the suitability of the equipment, provide great convenience to the operator, and save labor force while improve the efficiency.
Page 18: System Operation
V.System operation 5.1. Pre-operational inspection: 5.1.1 If the anti-solidification lubricant reservoir contains DOP (dioctyl o-phthalate) of no less than 4/5 of the reservoir volume. 5.1.2 .Check that all joints are securely tight 5.1.3. Check that power line is connected correctly. And the protective grounding wire is connected safely and reliably.
Page 19: Daily Shutdown Steps
Note: Due to expansion of the combined polyhydric alcohol when heated, the main air source pressure of the JHPK-H30 spray system can’t be set at working pressure before operating to avoid damage of the pressure gauge even pipe burst caused by the heating of the raw materials in the pipeline.
Page 20: Daily Maintenance
Shutdown steps: Step1, Push the main temperature controller knob and make it on a high status. Then the heating system will stop heating. Step 2, check the sprinkler gun. Take the next step after be sure that the sprinkler gun is trouble-free and can operate properly next time.
Page 21: Preparation For A Long-Time Shut-Down
Figure(14)  The top pipe for lubricant is connected to the upper joint of the delivery end block while the return pipe is connected to the lower joint.  Waste liquid shall be disposed properly to avoid environment distress. 5.4.2 Apply evenly a coat of grease on the cylinder shaft on a regular basis.
Page 22 Step 4: Shut down the machine as if in a routine shut-down operation. Note: If performed once every 15 days, this procedure is effective in preventing black material (isocyanate) crystallization in the hose. 5.5.2 Method II: This method is for an excessive period of nonuse of the equipment; for example, shut-down for winter or for an indefinite period of time.
Page 23: Inspection Of Abnormal Display Of Raw Material Pressure Gauge
VI. Inspections of flow system and equipment problems As a qualified operator you need to know the following: 1. What is the normal material? 2. How to operate the equipment? 3. What is the normal operation situation of the equipment? 4.
Page 24: Overhaul The Host Failure To Operation
(E) Check the filter of the feed pump. (F) It is best to determine the problems of main body of the feed pump after all other parts have been determined don’t have any problem, and pay particular attention to item (B) of subsection (2) to B in step 3. 4.
Page 25 always submerged in the lubricant, completely isolated from the air. This prevents the feed material from crystallizing on the pump shaft and avoids damage or destruction of the sealing parts caused by crystals. The in-series layout of the functional parts of booster pump, the proper structure of shafting couplers, and the utilization of anti-solidification lubricant assembly at the black material end improve effectively the working condition of seal parts, reduce their wearing and replacement frequency, and reduce significantly the feed material pressure fluctuation when the booster pump reverses the direction.
Page 26 6.3.1 Disassembling the black and the white material booster pumps The power between the black and the white booster pumps and the cylinder shaft is transmitted by coupler assembly, which has a construction as shown in Figure (16). Figure (16) Two half-cylinders with internal recess may engage tightly with the shaft end boss.
Page 27 6.3.2 Tightening the seal clamping cap A seal clamping cap is installed on the delivery end block of both the black and the white material booster pumps. It is provided to fix and secure the seal cup (part No. JAPS-305Y) installed on the delivery end block. The clamping cap force is adjustable.
Page 28 The springs help restore the balls. Table 2 Part No. Part designation Part No. Part designation H30-01-02 Sealing gasket of the H30-01-03 Material inlet at the pump bottom ball cup bottom H30-01-38...
Page 29 Figure. (19) 6.3.4 Seal parts of anti-solidification lubrication portion and pneumatic portion Anti-solidification lubrication portion contains only two types of sealing parts: Y-ring (part No. H30-01-42) and anti-solidification liquid cylinder O-ring (JY13867-43). Under normal operation, the two sealing parts are not wearable.
Page 30: Assembling And Exploded View And List Of Parts For Booster Pump
VII. Assembling and exploded view and list of parts for booster pump For easiest parts selection, visit InsulationEquipmentSupply.com to view our interactive parts selectors. Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 31: List Of Booster Pump Parts
List of Booster Pump Parts Part No. Part designation Part No. Part designation H30-01-01 Inlet end block H30-01-38 Big ball valve plate H30-01-02 Sealing gasket of the H30-01-39 O-ring, Φ118x2.65 bottom ball cup H30-01-03 Material inlet at the H30-01-40 O-ring, Φ115x5.3...
Page 32 H30-01-22 Left end cap of J16943-00 Restoring spring of cylinder hydraulic lock bolt H30-01-23 Cylinder barrel JFS-110 Booster pump lifting cup support H30-01-24 Right end cap of Non-metal insert hex lock nut M12 cylinder H30-01-25 Cylinder shaft Shaft retainer ring 16...
Page 33: Jhpk-H30 Schematic Circuit Diagram
VIII. JHPK-H30 Schematic Circuit Diagram Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 34: Jhpk-H30 Control Panel Wiring Diagram
IX JHPK-H30 Control Panel Wiring Diagram Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 35: Jhpk-H30 Electrical Cabinet Wiring Diagram
JHPK-H30 Electrical Cabinet Wiring Diagram Insulation Equipment + Supply InsulationEquipmentSupply.com...
Page 36 JHPK has obtained the British Royal UKAS in design. Item standard : Q/DXHPK001-20 THANKS FOR PURCHASE OUR PRODUCTS Insulation Equipment + Supply InsulationEquipmentSupply.com...
