General Description
The Model RD107 Commercial Flat Concealed Sprinklers are automatic
sprinklers of the compressed fusible solder type. These are decorative and fast
response. The frame of the sprinkler hides the deflector, gasket, etc., which is in turn
concealed above the ceiling by the cover plate assembly. The cover plate has a flat
profile, and its diameter is extremely small. The push-on/thread-on, thread-off design
of the concealed cover plate assembly allows easy installation of the cover plate.
Therefore, the Model RD107 should be your first choice when aesthetics is
the major consideration for ultimate appeal and unbeatable performance is desired.
They are to be used in wet pipe sprinkler systems per EN12845 or as required by
the Authority having jurisdiction.
The Model RD107 has a 80(5.6) K-factor. For extended installation flexibility, the Model RD107
provides 9.0mm (3/8 inch) vertical adjustment. This adjustment in installation decreases the need for precise cutting of
the pipe that drops to the sprinkler and allows for a perfect fit with a range of pipe lengths. The heat sensitivity and water
distribution design of Model RD107 allows for an increased chance of occupants' escape or evacuation in case
of fire. However, fire sprinkler systems are not a substitute for fire safety awareness or fire safety construction required
by building codes.
Warnings
The Model RD107 must be installed and maintained in accordance with the rules stated herein as well as in
compliance with the applicable standards of the National Fire Protection Association regulations and the standards of
any other authorities having jurisdiction.
In the event of this condition, consult the Authorities Having Jurisdiction for guidance and approval.
Failure to do so may impair the integrity of these devices.
It is the responsibility of the installing contractor to provide a copy of this document to the owner or his representative,
and in turn, it is the obligation of the owner to provide a copy of this document to a succeeding owner. The owner is
responsible for maintaining their fire protection system and devices in proper operating condition. The installing
contractor or sprinkler manufacturer should be contacted with any related questions.
Technical Data
Approvals: LPCB; CE Marked
Sprinkler Identification Number (SIN): RD107
Maximum Working Pressure:
Discharge Coefficient (Nominal K-Factor):
K=
Temperature Rating:
72°C/162°F/Sprinkler with 60°C/140°F Cover Plate
Vertical Adjustment:
Cover Plate Finishes:
White Painted - Standard is RAL9010
Nickel Chrome Plated
Other colours available on request
Physical Characteristics: Ref. Figure 1
Rometec srl - www.rometec.it - Rometec srl - www.rometec.it - Rometec srl - www.rometec.it Rometec srl - www.rometec.it - Rometec srl - www.rometec.it - Rometec srl - www.rometec.it
© 2011 Rapidrop
Rapidrop® is a registered trade mark.
Rapidrop Global Limited
Registered in England No. 5503278
Commercial Flat Concealed Sprinkler, Pendent
12 bar (175psi)
1/2
80.6 LPM/bar (5.6 GPM/psi
( )
9 . 0 mm 3/8 inch
Rutland Business Park, Newark Road, Peterborough, PE1 5WA, United Kingdom
Tel: +44 (0) 1733 847 510 Fax: +44 (0) 1733 553 958
e-mail: rapidrop@rapidrop.com web: www.rapidrop.com
Quick Response, Standard Coverage
Model: RD107 (RD-CN-QR EU) K=80
4
1
3
1/2
2
)
5
6
7

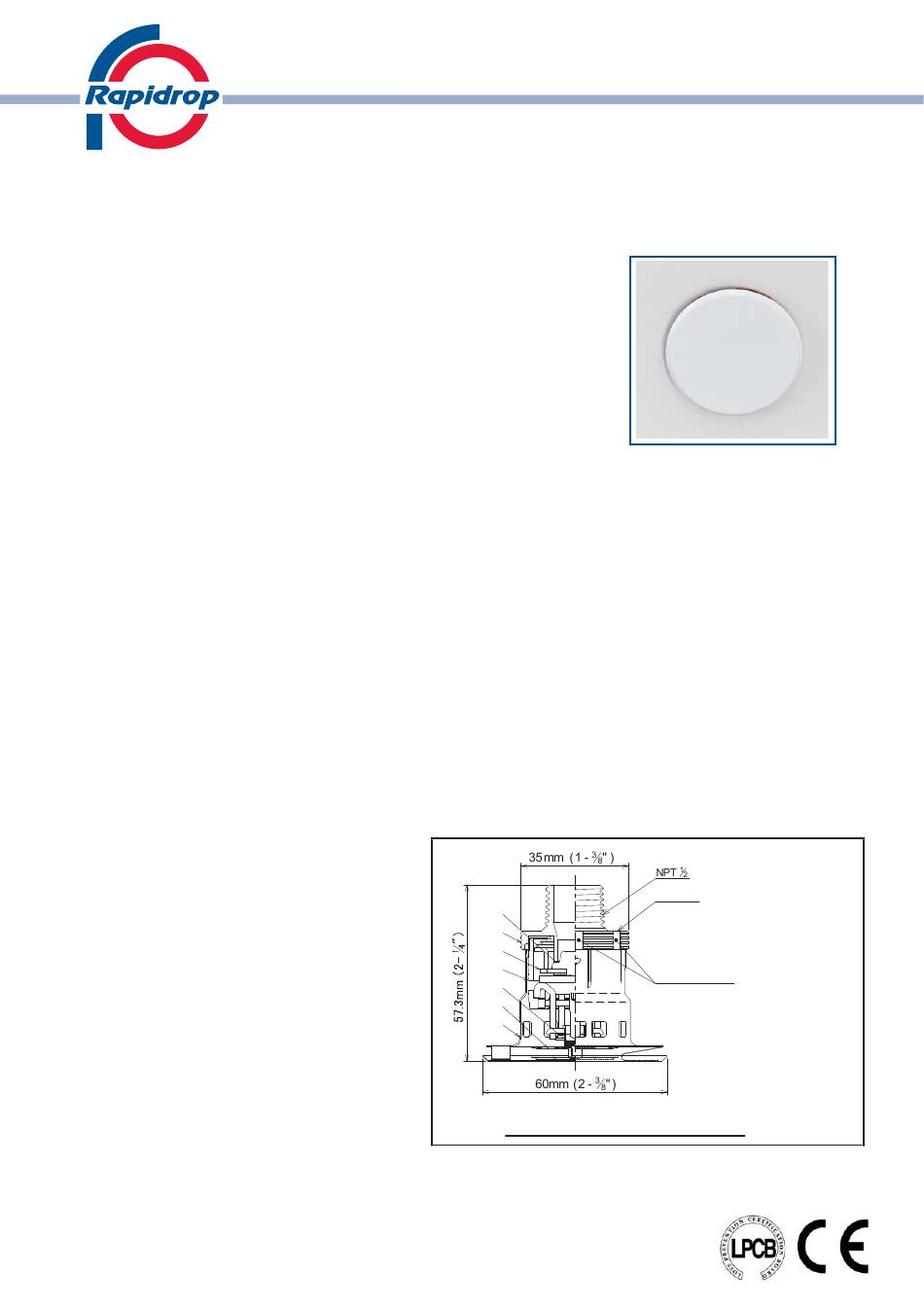

FIGURE 1. Model RD107 -K=80
Rapidrop Global
Data Sheet 4.20
Marking
Temperature Rating
Listing Mark
ID Number (SIN)
Country Origin
6 Wrench Slots
COMPONENTS (MATERIALS) :
1- Body (Copper Alloy)
2- Frame (Bronze)
3- Deflector (Phosphorus Bronze)
4- Gasket (PTFE)
5- Fusible Metal (Solder)
6- Heat Collector (Copper)
7- Cover Plate Assembly
Continued Overleaf
Page 1 of 6
Ref No. 566/f
Issue A
