S.R.Smith keloXL KLED-C-XL-80 Installation Instructions Manual

Led light
Hide thumbs

Advertisement

Table of Contents

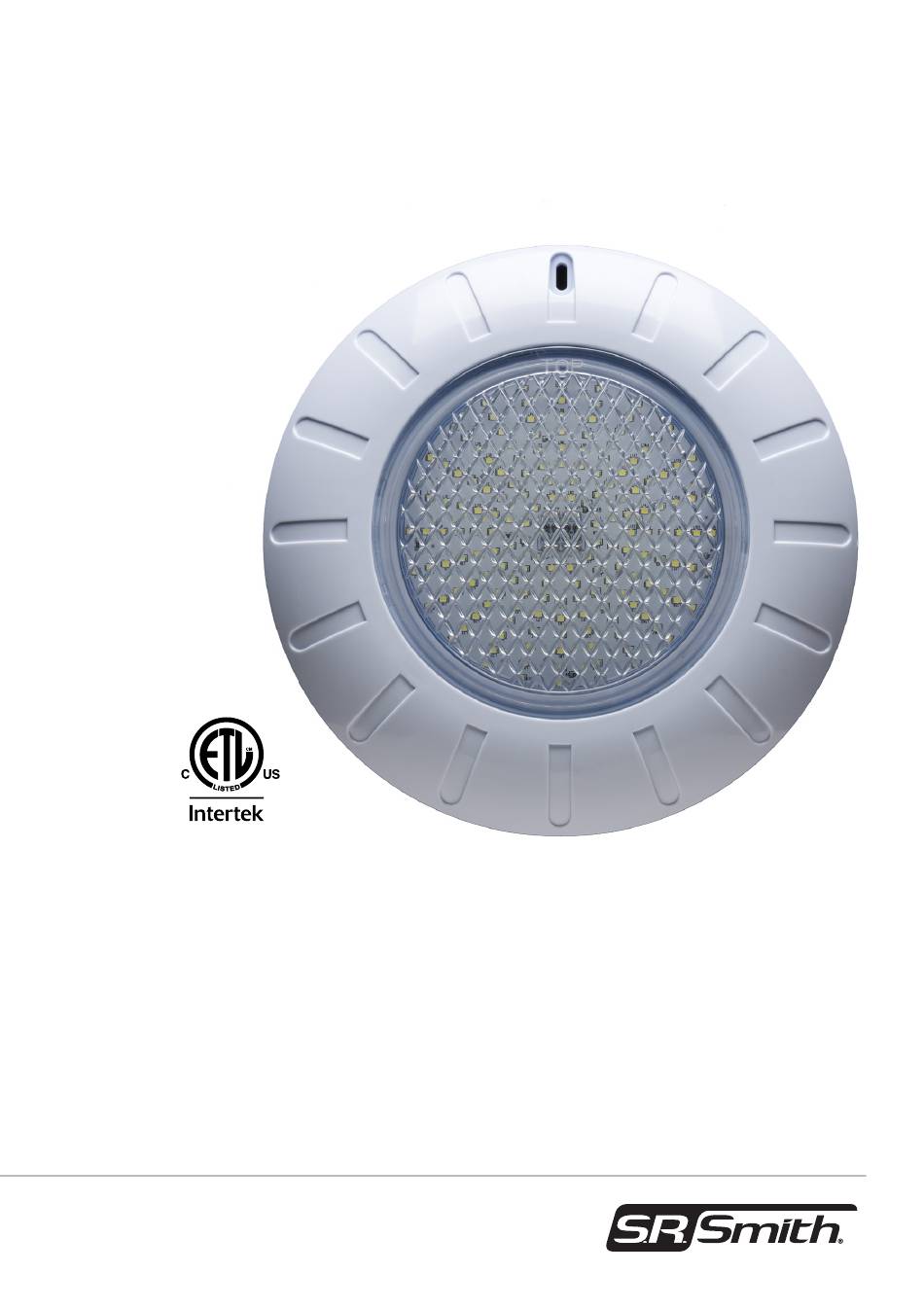

kēloXL LED Light
4005496
ETL LISTED
Conforms to UL STD 676
Certified to CSA STD C22.2 #89
Installation Instructions
Read all instructions before attempting to perform installation work
Installation information applies to both RGB and White Light only models
79-15283-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the keloXL KLED-C-XL-80 and is the answer not in the manual?

Questions and answers

Related Manuals for S.R.Smith keloXL KLED-C-XL-80

Summary of Contents for S.R.Smith keloXL KLED-C-XL-80

  • Page 1 kēloXL LED Light 4005496 ETL LISTED Conforms to UL STD 676 Certified to CSA STD C22.2 #89 Installation Instructions Read all instructions before attempting to perform installation work Installation information applies to both RGB and White Light only models 79-15283-00...

  • Page 2: Table Of Contents

    Contents OVERALL DIMENSIONS..........3 FCC DECLARATION OF CONFORMITY .

  • Page 3: Overall Dimensions

    80' 12VAC Color control through power PLX-PW,PL 60W or 100W toggle triggers only. up to 150' 13VAC LV power unit - assumes 120VAC input line voltage) Not compatible with S.R.Smith 150' + 3rd party unit 14-15VAC PLX-PRM Controller...

  • Page 4: Fcc Declaration Of Conformity

    FCC DECLARATION OF CONFORMITY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Installation Instructions

    As the operation is Low Voltage AC power, there is no polarity requirement. 11. The kēloXL is now ready for use and will operate similar to most of the other S.R.Smith LED lights. See the next section for operation of your new kēloXL.
  • Page 6 Fig A. Water depth illustration - kēloXL profile Luminaire is listed and identified for use at 4” or more below the normal water level of the pool.

  • Page 7: Basic Operation

    WHITE ONLY LAMPS ARE SIMPLY ON OR OFF When connected to an approved, 12VAC, Class 2 power supply - The S.R.Smith kēloXL LED color changing light uses simple ‘off / on’ power switching to control the basic, pre-defined color modes with memory function.

  • Page 8: Thermal Protection

    Swimming Pools may or may not be drained completely. If not drained completely, the water level should be lowered below the S.R.Smith kēloXL / niche location and make sure that all water is drained from the niche and conduit if applicable. The kēloXL may be disengaged from the niche and brought up to the deck and secured under a sturdy covering for the winter period.
