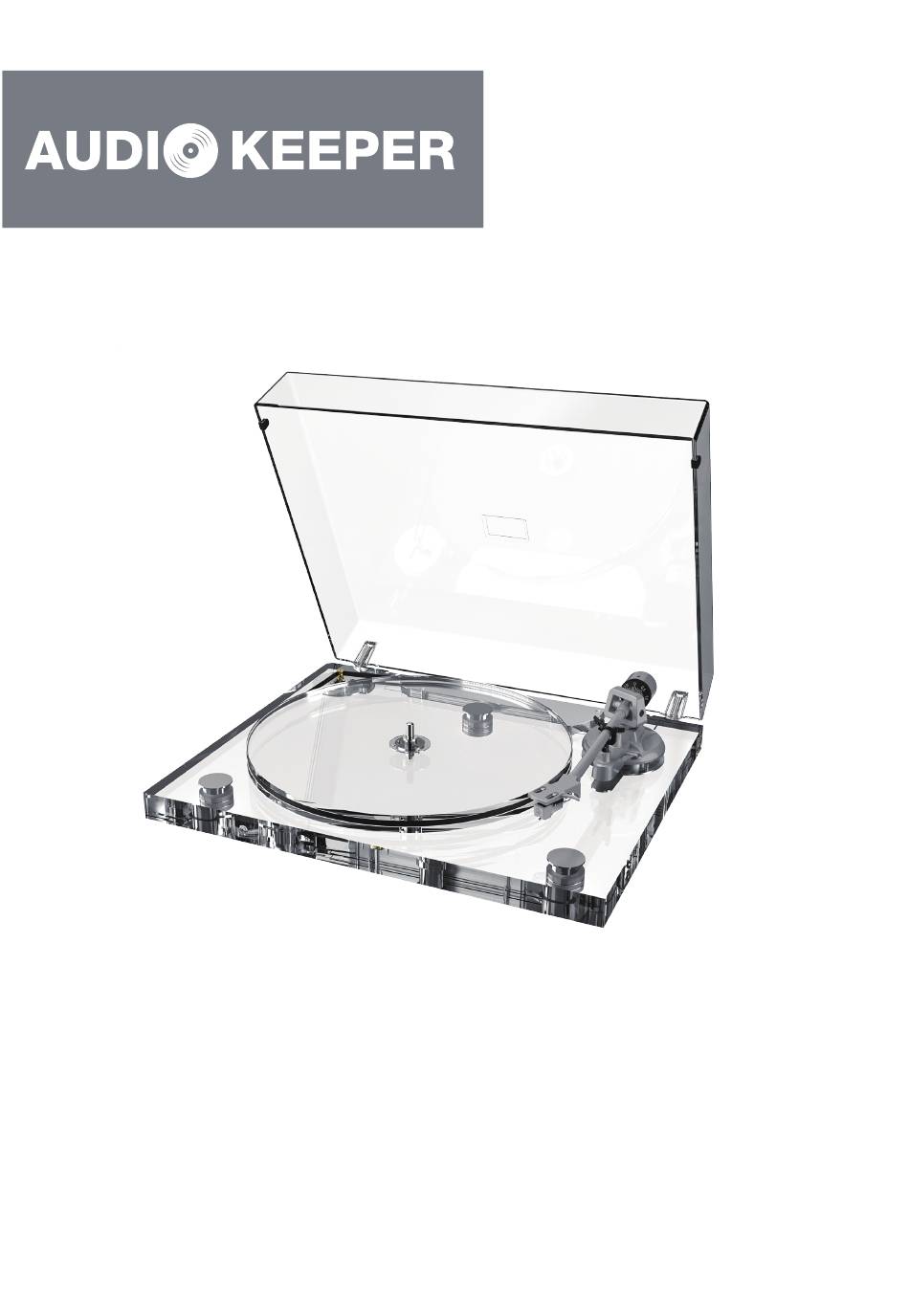

- Page 1 ICE1 Fully Manual Belt-Drive Turntable USER MANUAL Customer Service Support: support@theaudiokeeper.com www.theaudiokeeper.com...
-
Page 2: Package Content
INSTRUCTION Thank you for purchasing this "Audio Keeper" product. Before using this product, please read the user manual of this product thoroughly to ensure the correct use of this product. Please also keep this manual in a safe place for future reference. -
Page 3: Safety Instruction
ICE1 Fully Manual Belt-Drive Turntable USER MANUAL Customer Service Support: support@theaudiokeeper.com www.theaudiokeeper.com 45RPM adapter stylus user manual 9V/2.0A DC adapter RCA cable PC link cable After purchase, we recommend that you save all packing materials for future storage, moving or shipping. -
Page 4: Precautions For Use
4. Protect the power cord from being walked on or pinched particularly at plugs, convenient receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenient receptades as this can result in a risk of fire or electric shock. 6. -
Page 5: Package List
PRODUCT STRUCTURE AND COMPONENT 1）Motor Pulley 2）Drive Belt 3）Turntable Spindle 4）Turntable Platter 5）Lid Hinge 6）Counterweight 7）Tonearm Rest 8）Tonearm Lift Lever 9）Tonearm Clip 10）Stylus Cartridge 11）Cover 12）Ground Connector 13）Phono & Line Out Jacks 14）Phono/BT Out/Line 15）USB Port for PC Link 16）33 1/3 / 45 RPM Selector 17）Auto Stop Selector 18）Pitch 19）Power Cord Jack... -
Page 6: Turntable Set Up
TURNTABLE SIZE 95 mm 340 mm 420 mm Turntable Specifications Item model ICE1 Drive system Belt Drive Rated voltage 100-240v Speed 33 1/3, 45RPM Bluetooth Input Bluetooth Output Bluetooth effective range ≤10m Frequency response range 120Hz-16kHz Adaptor DC 9.0V, 2A... - Page 7 Lid Installation Insert the hinge pockets of the lid onto the hinge of the turntable. Turntable Platter and Belt Setup 1. Loop the belt onto the sub-platter. 2. Carefully place the main platter to the 3. Loop the belt onto the motor pulley. spindle located in the middle of the turntable.
- Page 8 Cartridge Tracking Force Adjustment The counterweight supplied is suitable for Counterweight cartridge weighing between 1.6-3.5g Tracking Force Dial Center Line 1. Gently push and turn the counterweight onto the rear of the tonearm（with the dial facing towardthe front of the turntable） 2.
- Page 9 6. Once the tonearm is correctly balanced, return the tonearm to its rest. Hold the counterweight without moving it, and gently rotate the tracking force dial until the zero is in line with black center line on the real of the tonearm.Check to make sure the tonearm is still neutrally balanced.
- Page 10 Connection to External Amplifier with RCA Audio Cable If you wish to use your amplifier or external speakers, please follow the instruction below: RCA wired connection Active Speakers Amplifier 1.1 Setting pre-amplifier selector switch This product has a built-in phono equalizer function. You can use the product even if you do not have a phono amplifier or connectable equipment with a built-in phono amplifier.
-
Page 11: Main Power Connection
With PHONO BT OUT Without PHONO BT OUT BT OUT BT OUT To outlet Connectable equipment (Amplifier, etc.) To outlet With PHONO Without PHONO PHONO Main Power Connection 1.Insert the DC plug of the AC adapter cord into the DC INPUT Jack at the back of the turntable. -
Page 12: Operation
OPERATION Play a record 1. Before playing a record 1.1 Pull the protector straight forward to remove it. Notes: Applying a downward force may cause the stylus to come off the body. Only low volume is output if the stylus has come off, or is about to come off, so refer to “Replacing the Protector stylus”... -
Page 13: Bluetooth Transmission
Switch on your external Bluetooth speaker/speaker system first. Turn on the turntable and choose BT OUT. Although the ICE1 does not have a Bluetooth indicator, you can determine whether a Bluetooth connection was successfully established by the indication on your connected Bluetooth device. - Page 14 2.2 System settings needed for Windows and Mac Windows: 1. By the system clock, right-click over the Speaker icon select Sounds then the Recording tab, and then click on the USB device in the list and click Properties . Click the Advanced tab set your required bit rate and sample rate from the Default Format dropdown (normally "...
- Page 15 2.5 Devices Use Device Toolbar to set the recording and playback devices and to set the recording channels to "2 (Stereo) Recording Channels", as in the below example on Windows 10: • The Recordi n g Device is set to the USB device (in this case the device name, but often called or incl uding the phrase "USB Audio CODEC").
-
Page 16: Turntable Body
click over the speaker icon > "Recording Devices ". Then right-click over USB Audio Codec, choose "Properties" and click the Levels tab. • Try to aim for a maximum peak of around –6 dB, which corresponds to waveform . You can always boost the level later with Effect around 0.5 on the >... -
Page 17: Replacing The Stylus
After-sales service email: support@theaudiokeeper.com Website: www.theaudiokeeper.com SHARE YOUR THOUGHTS! Your feedback is more worth to us than you know. Connect with our pages. Audio Keeper Facebook Audio Keeper Instagram Audio Keeper YouTube Audio Keeper website Contact us! We would love to help you get what you paid for!
