Summary of Contents for CEFLA ARX SEAL EVO

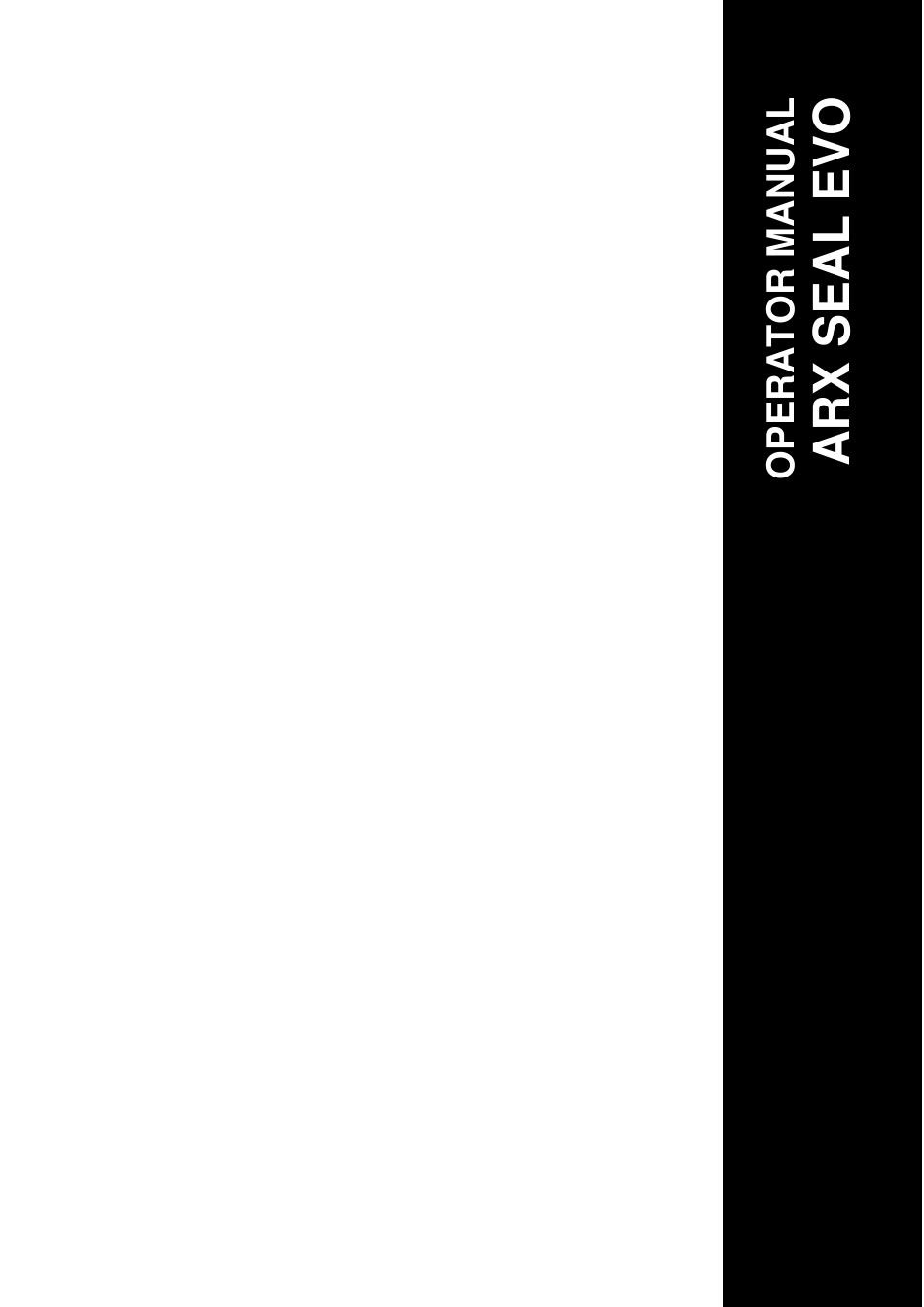

- Page 1 97055334 Rev. 02 2024-02...
-
Page 2: Table Of Contents
ARX SEAL EVO INDEX FOREWORD ........................................3 1.1. RELEVANT EUROPEAN DIRECTIVES ..............................3 1.2. INTENDED USE ......................................3 1.3. PURPOSE OF THE MANUAL ..................................4 1.4. GENERAL WARNINGS....................................4 PACKAGE CONTENT ..................................... 5 2.1. DIMENSIONS AND WEIGHT ..................................5 2.2. DESCRIPTION OF THE CONTENT ................................6 PRODUCT PRESENTATION ................................... -
Page 3: Foreword
ARX SEAL EVO FOREWORD Dear Customer, thank you for choosing this product. We hope that you will find it completely satisfactory. This manual describes all procedures for the correct use of the device and instructions for deriving the full benefit from its features. In any case, we will be available to provide explanations and to receive any suggestions you may have for improving our products or services. -
Page 4: Purpose Of The Manual
ARX SEAL EVO 1.3. PURPOSE OF THE MANUAL The purpose of this manual is to provide instructions for: • Becoming generally familiar with the product; • Correct installation; • Its safe, efficient use; • The treatment of instruments and/or materials to subject to sterilisation. -
Page 5: Package Content
ARX SEAL EVO PACKAGE CONTENT Check the integrity of the product package upon receipt. Once the package is opened, check that: • the supply matches the specifications of the order (see the delivery note); • there is no visible damage to the product. -
Page 6: Description Of The Content
ARX SEAL EVO 2.2. DESCRIPTION OF THE CONTENT No. 2 screws No. 4 centring devices Allen key Roll holder tube No. 2 roll supports Operator documentation Heat sealer Resting surface Power cable 10 No. 2 fuses 11 Bag container (see par. 4.5) 12 No. -
Page 7: Product Presentation
PRODUCT PRESENTATION ARX SEAL EVO is the innovative automatic heat sealer for the production of large volumes of bags, cut to size, at the touch of a button. With a few simple steps, this revolutionary product allows you to programme the length and number of bags, start the automatic process unattended, and finally collect the pre-sealed bags in the large, removable container provided, ready for subsequent use. -
Page 8: Views With Dimensions
ARX SEAL EVO 3.2. VIEWS WITH DIMENSIONS Signalling LEDs Paper roll for autoclave Centring device Roll holder Push-button panel Switch Power socket with fuse holder... - Page 9 ARX SEAL EVO Display Memory setting Paper feeding / Value increase Paper moving back / Value decrease Sealing and cutting Sealing Program 1 Program 2...
-
Page 10: Setting Up The Device
ARX SEAL EVO SETTING UP THE DEVICE Please read carefully the warnings mentioned in the rest of this chapter. The technical assistance service is at your disposal for further information or any doubt you may have. The electric system must be provided with ground connection. -
Page 11: Product Preparation
ARX SEAL EVO 4.3. PRODUCT PREPARATION Carefully remove the material from the packaging. Insert the roll supports (A) into the appropriate housings. Tighten the two screws (B) using the Allen key (C) supplied. Insert the roll holder tube (D) into the supports (A), checking that the holes at the end of the tube engage correctly in the pins (E) on the supports (A). - Page 12 ARX SEAL EVO Horizontal surface position: manual production of bags and finishing. 4b Raise the surface (F) by approximately 45° and turn it all the way to the right (as indicated by the arrow). Lower the surface so that the tabs shown in the figure fit into the slots;...
- Page 13 ARX SEAL EVO Connect the power cable (H). Use only the power cable provided with the unit. Connect the power cable directly to the power outlet. Do not use extensions, adapters or other accessories. Position the machine in such a way that the ends of the cable are easily accessible.
-
Page 14: Paper Roll Installation
ARX SEAL EVO 4.4. PAPER ROLL INSTALLATION • Place the paper roll on the roll holder tube; • install the roll/roll holder assembly on the arm housings (as described in the previous paragraph), aimed so that the paper tape unrolls from above and with the polypropylene film visible;... -
Page 15: Bag Holder Container Installation
ARX SEAL EVO 4.5. BAG HOLDER CONTAINER INSTALLATION Take the bag container out of the packaging bag, open it completely and assemble it following the folds (see figures). Use the 6 supplied rivets (A) to complete the assembly of the bag... - Page 16 ARX SEAL EVO Fix the bag container to the heat sealer as shown in the figure. Finally, reassemble the surface in a slanted position.
-
Page 17: Manual Operation
ARX SEAL EVO MANUAL OPERATION 5.1. PREPARATION Common to automatic operation. For manual production of bags, the surface must be set in a horizontal position (par. 4a). • Turn on the machine with the switch (A) on the rear side. -
Page 18: Sealing Of One End And Cutting
ARX SEAL EVO 5.3. SEALING OF ONE END AND CUTTING • Pull out the paper to the desired length. • press key (1) (Sealing and cutting) to seal and cut the bag; • The green LED flashes for the time required to seal and cut the bag. At the end of the operation, the front LED stops flashing and a sound indicates the end of the process. -
Page 19: Automatic Operation
ARX SEAL EVO AUTOMATIC OPERATION 6.1. MEMORY SETTING For the automatic production of bags, it is necessary to secure the previously assembled bag container (par. 4.5) to the heat sealer and then set the surface in a slanted position (par. 4b). -
Page 20: Preparation Of The Material
ARX SEAL EVO PREPARATION OF THE MATERIAL The sterilisation process can be considered as effective, reliable and repeatable on condition that the instruments and the materials in general are first properly treated and subsequently correctly positioned inside the sterilization chamber. -
Page 21: Appendix A - Technical Specifications
ARX SEAL EVO APPENDIX A - TECHNICAL SPECIFICATIONS 8.1. SUMMARY TABLE HEAT SEALER Device ARX SEAL EVO CEFLA s.c. Manufacturer Headquarters Via Selice Provinciale 23/A – 40026 Imola (BO) IT Input voltage 220-240 V~ Network frequency 50-60Hz Network fuses (5 x 20 mm) T 3.15 A - 250V... -
Page 22: Appendix B - Maintenance
ARX SEAL EVO APPENDIX B - MAINTENANCE 9.1. GENERAL INFORMATION The device does not need any special care; it is only recommended that the user clean it periodically. In all cases, strictly follow the procedures given in this manual. In case of replacement of components of the device, request and use ONLY ORIGINAL SPARE PARTS. -
Page 23: Fuses Replacement
ARX SEAL EVO 9.5. FUSES REPLACEMENT The fuses are housed in the fuse box above the power cable socket. • Remove the power cable plug; • pull out the fuse box using a screwdriver; • replace the fuse with one of the same type (see Appendix A). -
Page 24: Appendix C - Error Codes
ARX SEAL EVO 10. APPENDIX C - ERROR CODES The list of ERROR codes and the relevant messages displayed are indicated in the following table: CODE ALARM DESCRIPTION SUGGESTED SOLUTION PTC open (upon switch-on) or Sealing error (V1.4) Contact the Technical Service Network. -
Page 25: Appendix D - Troubleshooting
ARX SEAL EVO 11. APPENDIX D - TROUBLESHOOTING If your heat sealer does not work correctly, carry out the following checks before contacting the Technical Service: PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION The plug of the power supply cable is not inserted in the Plug it in.
