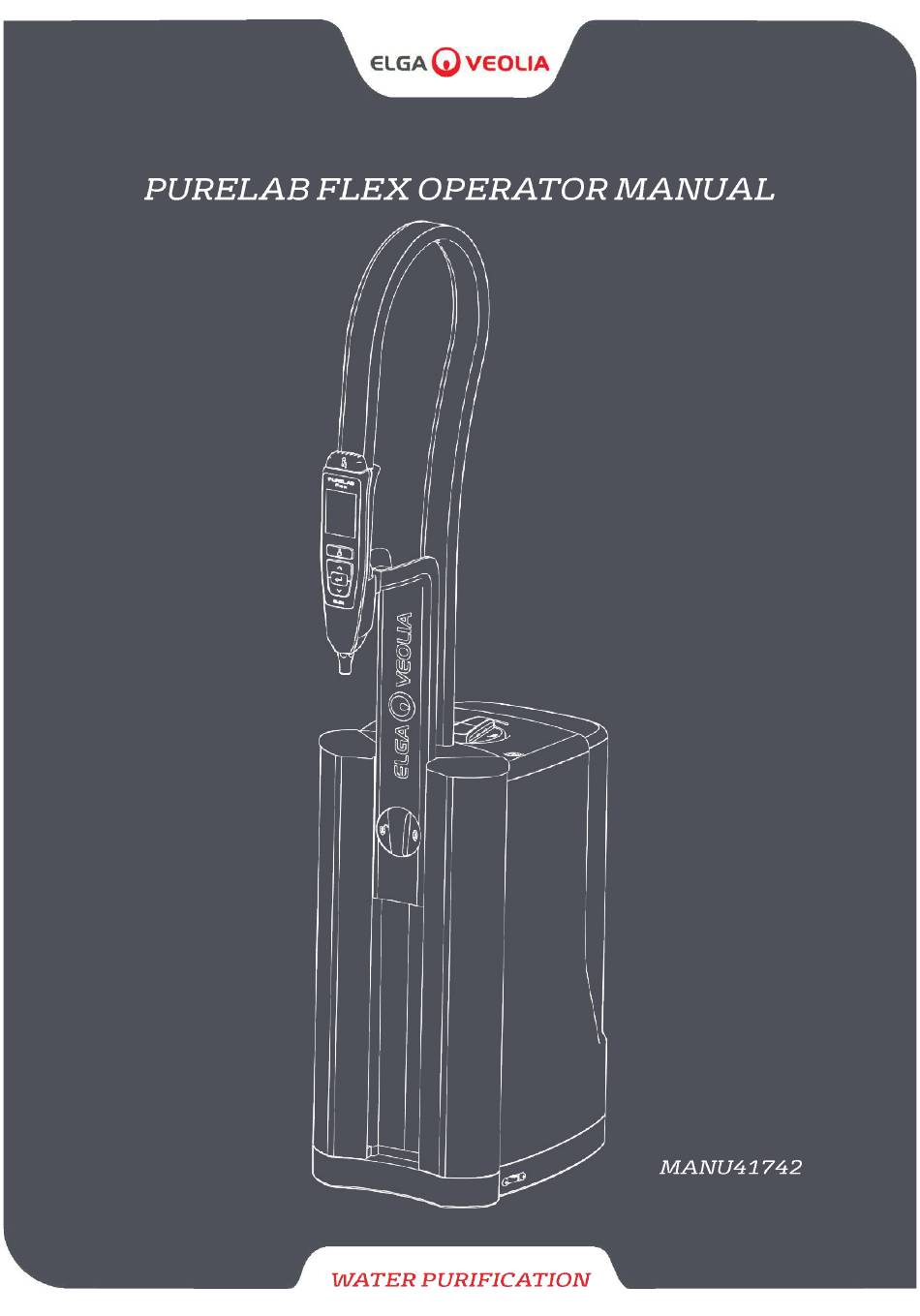

  • Page 1 Version 1...
  • Page 3 Copyright Note The information contained in this document is the property of VWS (UK) Ltd, trading as ELGA LabWater, and is supplied without liability for errors or omissions. No part of this document may be reproduced or used except as authorised by contract or other written permission from VWS (UK) Ltd.

  • Page 4: Table Of Contents

    1.6 Volumetric Accuracy ……………………………………………………………………………………………… 5 1.7 Profile Dispense Accuracy ………………………………………………………………………………………. 5 1.8 ECO Mode ………………...………………………………………………………………………………………. 5 2. YOUR GUIDE TO PURELAB FLEX 3 ……………………………………………………………………………………. 6 3. YOUR GUIDE TO PURELAB FLEX 3+ …………………………………………………………………………………... 7 4. HEALTH AND SAFETY NOTES ………………………………………………………………………………………...… 8 4.1 Environment …………………………………………………………………………………………………….…...

  • Page 5: Introduction

    ® Customer Support ● PURELAB flex 3 (Ultra Pure Water (Type I) Directly from tap water) ● PURELAB flex 3+ (Ultra Pure Water (Type I) directly from tap water) Service support and consumable items are available from your local supplier or distributor. Refer to customer service contact details shown at the end of this publication.

  • Page 6: Your Guide To Purelab Flex 3

    2. YOUR GUIDE TO PURELAB FLEX 3 ® Flexible Dispense Tube AutoVolume or Reservoir Dispense Button Volume Display Water Purity Display AutoVolume Infobar - A scrolling information bar or Initiate indicating the status of the unit Reservoir Refill Button Display Handset Display Screen Up Button Accept Button...

  • Page 7: Your Guide To Purelab Flex 3

    3. YOUR GUIDE TO PURELAB FLEX 3+ ® Flexible Dispense Tube AutoVolume or Reservoir Dispense Button Volume Display Water Purity Display AutoVolume Infobar - A scrolling information bar or Initiate indicating the status of the unit Reservoir Refill Button Display Handset Display Screen Up Button Accept Button...

  • Page 8: Health And Safety Notes

    WARNING! WARNINGS ARE GIVEN WHERE FAILING TO OBSERVE THE INSTRUCTIONS COULD RESULT IN INJURY OR FATALITY! CAUTION! Cautions are given where failure to observe the instructions could result in damage to the equipment, associated equipment and processes. WARNING! THINK BEFORE LIFTING! CONSIDER CORRECT LIFTING TECHNIQUES TO AVOID INJURY! 4.1 Environment The system should be installed on a flat, level surface, in a clean, dry environment.

  • Page 9: Installation Instructions

    5. INSTALLATION INSTRUCTIONS Fig 1 Fig 2 Slot handset into the cradle as shown above Fig 3 Fig 4 Connect the water - refer to Section 13, page 20 “Technical Specifications” for Feedwater Specifications Remove all transit plug from the the rear of the unit (Fig 1) Using the tube supplied, firmly push one end securely into the water connector (Fig 2) Using the tube supplied, firmly push one end securely into the overflow (Fig 3) and drain (Fig 4) connector Connect the other end of the drain and overflow tubes to a sink or suitable drain capable of handling at least...

  • Page 10: How To Use Your Flex 3 & 3

    6. HOW TO USE YOUR FLEX 3 & 3+ CONTINUOUS DISPENSE: MANUAL DISPENSE: To stop continuous dispense, PRESS PRESS and hold dispense PRESS and hold dispense button. button and accept button. dispense button. AUTO VOLUME: PRESS the “Auto Volume” CHOOSE the desired PRESS the dispense PRESS the “Auto button.
  • Page 11 HOW TO USE YOUR FLEX 3 & 3+ ACCESS MENU: ENSURE “Auto Volume” is OFF PRESS and hold accept button for 2 seconds DATA CAPTURE: ENSURE “Auto Volume” is OFF FOLLOW on screen instructions. Make sure USB is formatted to FAT32 PURELAB FLEX MANU41742 Ver 1 - 01/24...
  • Page 12 Profile Dispense Step 1 - Profile Dispense Initialisation ● ACCESS “Main Menu” by pressing and holding the “accept” button for approximately 2 seconds ● SCROLL using the “down” button and highlight “Set Volumetric Dispense mode”, press “Accept” ● Highlight “Profile Dispense”, press “Accept” ●...

  • Page 13: Self Help Guidelines

    7. SELF HELP GUIDELINES This section covers some of the issues that could occur with your PURELAB Flex, and provides the troubleshooting steps to help you to resolve an issue yourself. When troubleshooting doesn’t resolve your issue, please call your local ELGA LabWater representative (See “Useful Contact Details”...

  • Page 14: Consumables

    CONSUMABLES Part No. Description Typical Service Life* Max. Shelf Life LC214 Purification Pack 6 months 2 years Sanitization Pack(with LC209*** Not Applicable 2 years tablet) Sanitization Pack(without LC209-M2*** Not Applicable 2 years tablet)** LC209-US*** Sanitisation Pack(liquid) Not Applicable 2 years LC210 185/254nm UV Lamp 12-18 months...

  • Page 15: Operation

    This manual contains full details on installation, commissioning and operation of the PURENERGY 30 System. If PURELAB Flex 3 & 3+ provides high purity water typically where daily usage does not exceed 10 liters/day. this system is used contrary to the instructions in this document, then the safety of the user may be compromised.

  • Page 16: Purified Water Outlet Connection

    11. PURIFIED WATER OUTLET CONNECTION (Type II) FOR FLEX 3 AND 3+ An additional outlet connection is located at the rear of PURELAB flex for applications that may require a direct feed. CAUTION! Maximum usage should not exceed 10L/day. Maximum take off flow rate 1.8L/min with positive head. Water purity may vary depending on usage.
  • Page 17 DEDICATED PURIFIED WATER OUTLET FOR ANALYSER FEEDS FOR FLEX 3+ ONLY Note: Suitable pipework to allow connection of analysers to PURELAB 3+ units are available from analyser manufacturers and consumable suppliers. If a kit is not readily available please call your local ELGA LabWater representative.

  • Page 18: Maintenance

    12. MAINTENANCE Use of this Manual This manual contains full details on installation, commissioning and operation of the PURENERGY 30 System. If An approved supplier or distributor should carry out any maintenance work not included in this manual. this system is used contrary to the instructions in this document, then the safety of the user may be compromised. Note: Disposal of all end-of-life consumable items should be in accordance with local statutory regulations.

  • Page 19: Cleaning The Inlet Filter Assembly

    Step 3 - Replace the UV Lamp ● UNPACK new UV lamp, wipe the glass of the UV with an alcohol wipe. CAUTION! Take care not to touch the surface of the glass. Ideally wear gloves, handle with soft cloth and wipe the surface with alcohol before fitting into the housing ●...

  • Page 20: Replacing The Reverse Osmosis Module (Lc309)

    12.3 Replacing the Reverse Osmosis Module (LC309) PURELAB flex 3 and 3+ is fitted with a Reverse Osmosis (RO) module. The RO Module may need replacing if the permeate water purity or flow rate is not adequate and does not meet predicted or previous performance. For information regarding the replacement of the LC309 RO Module contact Customer Support.

  • Page 21: Technical Specifications

    13.1 FEEDWATER PURELAB flex 3 PURELAB flex 3+ Model (Ultra Pure Water (Type I) (Ultra Pure Water (Type I) directly from tap water) directly from tap water) SOURCE Potable tap water as detailed below. Potable tap water as detailed below.

  • Page 22: Dimensions And Weights

    13.5 DIMENSIONS and WEIGHTS Width 236mm, Depth 470mm, Height minimum 900mm, Height Dimensions maximum 1020mm. PURELAB flex 3 PURELAB flex 3+ Model (Ultra Pure Water (Type I) (Ultra Pure Water (Type I) Directly from tap water) Directly from tap water) Operational weight 23 kg (57.3 lb)

  • Page 23: Warranty/Conditions Of Sale

    14.1 General Limited Warranty VWS (UK) Ltd warrants the products manufactured by it against defects in materials and workmanship when used in accordance with applicable instructions for a period of one year from the date of shipment for the products. VWS (UK) LTD MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED. THERE IS NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 24 VWS (UK) Ltd hereby assigns to the purchaser any such warranty; however, VWS (UK) LTD EXPRESSLY DISCLAIMS ANY WARRANTY WHETHER EXPRESSED OR IMPLIED, THAT THE NON - VWS (UK) LTD PRODUCTS ARE MERCHANTABLE OR FIT FOR A PARTICULAR PURPOSE. NOTICE VWS (UK) Ltd is constantly striving to improve its products and services.

  • Page 25: Useful Contact Information

    15. USEFUL CONTACTS ELGA LabWater Lane End Business Park, Lane End, High Wycombe HP14 3BY Tel: +44 (0) 203 567 7300 Fax: +44 (0) 203 567 7305 E-mail: info@elgalabwater.com For any technical queries please contact techsupport@elgalabwater.com For the address of the nearest ELGA LabWater Sales and Service office visit the country list on our website. http://www.elgalabwater.com Or contact ELGA LabWater at the number above.
  • Page 26 This product is produced by ELGA Veolia® for ELGA Veolia®, a global laboratory water brand name of Veolia Water. The information contained in this document is the property of VWS (UK) LTD and is supplied without liability for errors or omissions.
