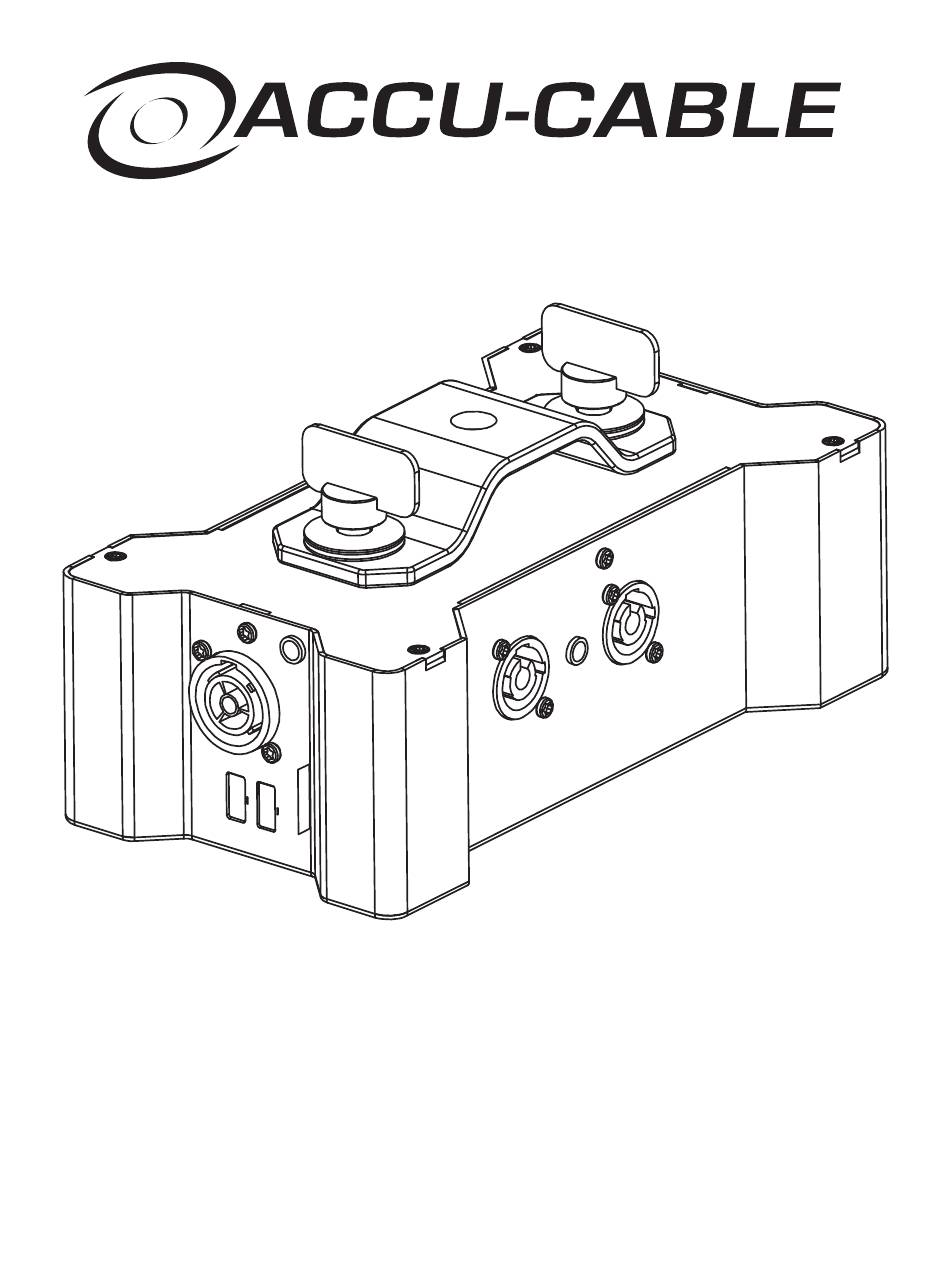

- Page 1 EXTEND YOUR WORLD... POWER BONE T1PC User Manual...
- Page 2 ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S General Information Key Features | Warranty Returns Limited Warranty (USA Only) Safety Guidelines Overview Installation Cleaning & Maintenance Dimensional Drawings Specifications | FCC Statement... -
Page 4: General Information
INCLUDED ITEMS Omega Bracket (x1) Power Cable (x1) CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com... -
Page 5: Key Features | Warranty Returns
K E Y F E A T U R E S • Daisy chain linking capability to get power where you need it • Outdoor power locking input connection to supply main power • Outdoor power locking thru connection to link to other Power Bones •... -
Page 6: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 7: Safety Guidelines
S A F E T Y G U I D E L I N E S For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Be sure to save the packing carton in the unlikely event the device has to be returned for service. •... - Page 8 This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not respon- sible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
-
Page 9: Overview
O V E R V I E W Omega Bracket Mounting Points Power Indicator Power Indicator Power Thru AC 110-230V 50/60Hz 16A Max Power Out to Devices AC 110-230V 50/60Hz each Outputs Max 16A each DC 5V 2.1A/Ch Total 3.4A Max Power Indicator Power In... -
Page 10: Installation
I N S T A L L A T I O N FLAMMABLE MATERIAL WARNING! Keep device a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! The unit MUST be installed following all local, national, and country commercial electrical and con- struction codes and regulations. - Page 11 I N S T A L L A T I O N OMEGA BRACKET INSTALLATION Insert the Omega Bracket into the matching holes on the top of the device. Secure the Omega Bracket to the device by turning each quick-lock fastener ¼ turn clockwise. Always check to make sure that each fastener is completely locked.
- Page 12 I N S T A L L A T I O N CONNECTIONS • Up to four (4) devices may be connected to each Power Bone device using the Seetronic indoor sockets located on either side of the Power Bone device. •...
-
Page 13: Cleaning & Maintenance
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from an authorized ADJ dealer. -
Page 14: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S 8.85in (225mm) Dimensions not to scale... -
Page 15: Specifications | Fcc Statement
S P E C I F I C A T I O N S FEATURES: • Seetronic, IP65 Locking Power input and thru connections • 4x Seetronic, Indoor Locking Power output connections • Output DC 2.5V 2.1A / Ch, Total 3.4A Max •...
