MODEL TFC-200

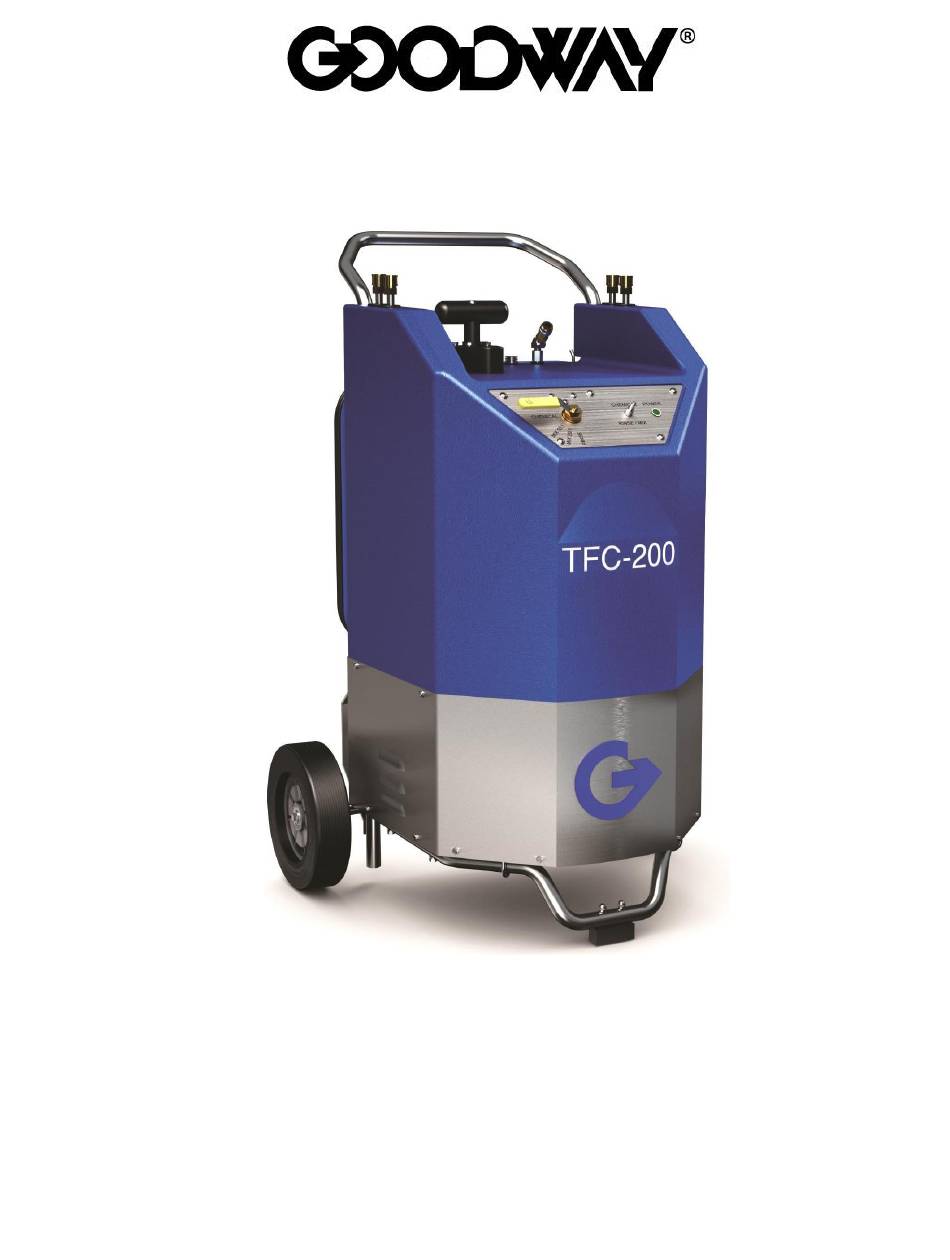

COOLING TOWER SPRAYER
OPERATING AND MAINTENANCE
INSTRUCTIONS
Copyright 2015 Goodway Technologies Corp., Stamford, CT, U.S.A.
Effective Date: June 1, 2015
Goodway is a registered trademark of Crossford Int'l LLC
Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
Advertisement
Table of Contents
Related Manuals for Goodway TFC-200
Summary of Contents for Goodway TFC-200
- Page 1 OPERATING AND MAINTENANCE INSTRUCTIONS Copyright 2015 Goodway Technologies Corp., Stamford, CT, U.S.A. Effective Date: June 1, 2015 Goodway is a registered trademark of Crossford Int’l LLC Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
- Page 2 Thank you for purchasing Goodway's TFC-200 Cooling Tower Sprayer. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.
-
Page 3: Table Of Contents
Diluted Chemical Spraying ...........................10 Shutting Down .............................11 General Maintenance and Storage .......................11 Troubleshooting .............................12 Wiring Diagram .............................12 Plumbing Diagram ............................13 Plumbing Spare Parts ............................14 Pump Spare Parts ............................15 Spare Parts ..............................16 Accessories ..............................16 Specifications ..............................17 TFC-200 Manual 06/2015 Page 3... -
Page 4: Important Safety Instructions
Protect yourself from direct skin contact with the chemicals and debris found in the HVAC environment. Do not use any cleaner that contains sodium hydroxide or potassium hydroxide!! Call Goodway to check compatibility before using any chemical in the Tower Fill Cleaner. -
Page 5: Electrical Safety
DO NOT ADJUST BYPASS PRESSURE: The bypass pressure is factory set – adjustments may damage unit! CAUTION! IF YOU ARE UNSURE ABOUT CHEMICAL COMPATABILITY CALL GOODWAY AT ONCE!! USING A NON-COMPATABLE CHEMICAL MAY DAMAGE THE UNIT AND VOID THE WARRANTY! Electrical Safety ... -
Page 6: Overview
The cooling tower fill should be cleaned to return the tower to optimal operational condition. The TFC-200 is capable of applying Scalebreak®-GEL that clings to the vertical surfaces of the tower fill. After a sufficient dwell time, the Scalebreak®-GEL breaks down the scale. This allows the mechanical action of the oscillating turbo nozzle to rinse the tower fill clean. - Page 7 Quick Connect Attachments Chemical Container 25’ Chemical Hose/ Strap 20’ Power Cord Turbo Nozzle Attachment Spray Gun (1) Acid resistant spray gun (P/N GS-030) (2) 36” Stainless Steel Extension Wand (P/N 9657SS) TFC-200 Manual 06/2015 Page 7...
- Page 8 (1) 40° chemical spray nozzle (P/N QDN-4002W) and (1) 15° Mixing nozzle (P/N QDN-1512-Y) (1) Foaming Nozzle for foaming applications (P/N QDN-FN-2530) (1) Quick connect 45° attachment for the extension wands (QDN-45) TFC-200 Manual 06/2015 Page 8...
-
Page 9: Operating Instructions
Squeeze the spray gun trigger and thoroughly apply the Scalebreak®-GEL to the tower fill. Once Scalebreak®-GEL is thoroughly applied, flip toggle switch to middle position to turn unit off. Allow the Scalebreak®-GEL to dwell on the tower fill for a minimum of one hour. TFC-200 Manual 06/2015 Page 9... -
Page 10: Rinsing
WARNING: Keep turbo nozzle at a distance from fill to prevent damage to substrate. Repeat Pre-Rinse -> Gel Spraying -> Rinsing procedure for a better cleaning (if necessary) WARNING: Add one 25 pound pail of Goodway Scalebreak® Neutralizer, P/N SCLBRK-NEUT-25, per each 5 gallon container of Scalebreak®-GEL utilized to the water in the basin to achieve a neutral... -
Page 11: Shutting Down
To protect the unit from damage, the hose should be drained before the unit is placed in long term storage. Point the spray gun in a safe direction, flip the toggle switch to CHEMICAL, and squeeze the trigger. TFC-200 Manual 06/2015 Page 11... -
Page 12: Troubleshooting
Inadequate water supply 3.0 GPM minimum Motor stops abruptly Motor Thermal breaker tripped Turn off, let unit cool Motor buzzes but fails to start Inadequate Power Supply Check for 115VAC/15A min Wiring Diagram TFC-200 Manual 06/2015 Page 12... -
Page 13: Plumbing Diagram
Plumbing Diagram TFC-200 Manual 06/2015 Page 13... -
Page 14: Plumbing Spare Parts
Plumbing Spare Parts TFC-200 Manual 06/2015 Page 14... -
Page 15: Pump Spare Parts
Pump Spare Parts TFC-200 Manual 06/2015 Page 15... -
Page 16: Spare Parts
Chemical Nozzle, 40° QDN-4002W QDN-FN-2530 Foaming Nozzle 45° Quick Disconnect Adapter QDN-45 ScaleBreak-Gel Descaling Solution, 5 Gallons SCLBRK-GEL-05 TowerShine High Foaming Fill Cleaner, 5 Gallons TOWERSHINE-05 ScaleBreak Neutralizer, 25 pounds SCLBK-NEUT-25 pH Test Paper PH-TEST-PAPER TFC-200 Manual 06/2015 Page 16... -
Page 17: Specifications
100 PSI (7 BAR) Maximum Outlet Water Pressure 300 PSI (21 BAR) Maximum Inlet Water Temperature 125°F (52°C) Maximum Ambient Operational Temperature 104°F (40°C) Dimensions 45” H x 27” W x 27” L Weight 130 lbs. net dry TFC-200 Manual 06/2015 Page 17... - Page 18 Systems, Vacuums, Floor Machines, High-Pressure Washers And Other Maintenance Related Equipment. GOODWAY TECHNOLOGIES CORPORATION 420 WEST AVENUE, STAMFORD, CT 06902, USA Tel: 203-359-4708 · Toll-Free Tel: 800-243-7932 Fax: 203-359-9601 · Toll-Free Fax: 800-359-9625 E-Mail: goodway@goodway.com Web: www.goodway.com TFC-200 Manual 06/2015 Page 18...
