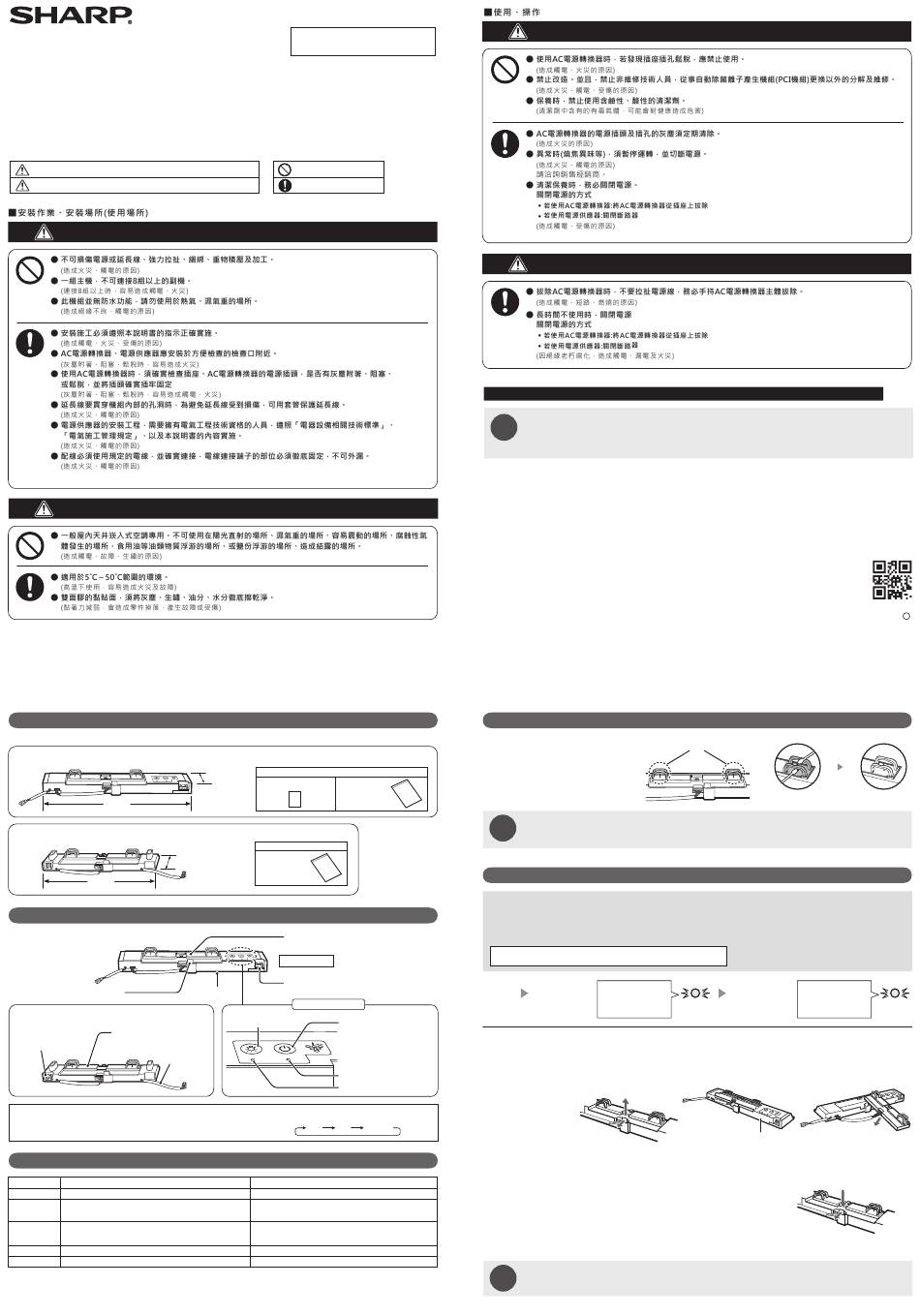

施工方法 連接安裝方法 在空調出風口處,開一個貫穿延長線的孔 貫穿部位需φ16mm以上。 若使用電源供應器連接 請用套管等物品保護,避免貫穿孔損傷延長線。延長線穿過孔之後,請將孔洞的縫隙填滿。 使用電源供應器連接時,同時需要準備3芯電線(市售品),與電源供應器用延長線(另售)。 請依照安裝的位置和條件準備適當長度的延長線。 在安裝的部位做標記 使用螺絲起子,將電源供應器AC輸入端的蓋子、DC輸入端的蓋子拆下 ・請將主機、副機、連接線、燈側,安裝於風向的出風口處。 (注意事項) ・請注意電源與端子台的極性。(若接線錯誤,會產生故障) ・自動除菌離子產生機中,最重要的自動除菌離子機組部位呈針狀,施工安裝時,請勿觸碰該處。 ・要拆下電線時,務必先關閉電源之後,用力按下按鈕的同時拔除電線。 自動除菌離子產生機部位(針狀) 風的流向 連接AC輸入端 ・務必由擁有電氣施工資格的技術人員進行施工。 ・施工前,務必關閉電源。 ・請連接通過斷路器後的單相100V~240V,50-60Hz的電源。 出風口 ① 請將3芯電線(市售品)的外衣剪掉,讓電源線、地線分別露出約30mm 連接線、燈側 ② 將電源線、地線的外層包覆,分別剝去規定的長度(15mm) (適合的電線為Φ1.6或2.0的單線) ① 撕下固定自動除菌離子機組的膠帶 ③ 利用平頭螺絲起子等工具用力壓下按鈕,同時如下圖般,確實從端子台的插入面,將電線垂直插入內部 (撕下膠帶後,請確認自動除菌離子機組是否安裝確實) (拉扯一下確認連接狀況) ② 將剝離紙撕下,並將主機及副機︐ 與 剝去15mm 標記的位置對齊,貼在空調出風口處的下面 ①...
Page 3
If the problem is not solved after checking, please contact to a constructor or the store where you * The main unit (IG-002DCT) has a breaker interlocking function. The sub unit (IG-002DDT) operates together with the main unit. purchased the product.
Page 4
Installation method How-to install the units Make a hole in a duct for an extension cable to pass through Please make an opening with more than ɸ16mm. In case of connecting the power adapter (Note) Cover the opening with bush, etc. not to damage extension cable. To connect with the power adapter, both of the triplex cable (a commercialized product) and the extension cable for the power adapter (optional) After passing the extension cable through the hole, fill a gap.
