Offices To Go OTGMA2 Assembly Instructions Manual

Hide thumbs

Advertisement

Table of Contents

OTGMA2
ASSEMBLY INSTRUCTIONS
LOADING CAPACITY 2.2 - 17.6 lbs per monitor
SCREEN SIZE 17'' - 29''

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OTGMA2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Offices To Go OTGMA2

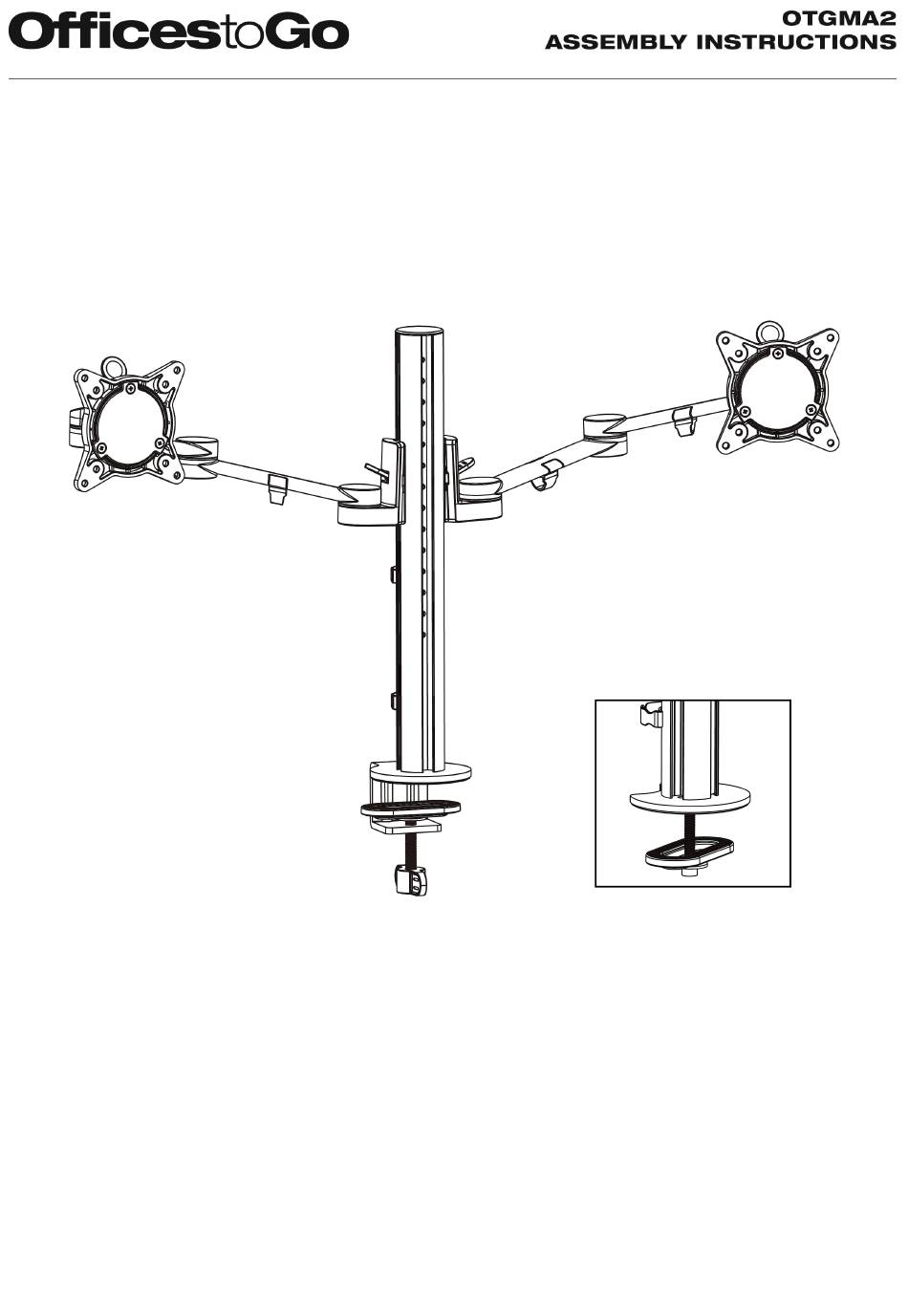

  • Page 1 OTGMA2 ASSEMBLY INSTRUCTIONS LOADING CAPACITY 2.2 - 17.6 lbs per monitor SCREEN SIZE 17’’ - 29’’...

  • Page 3: Parts List

    Parts List Components 1. Base & Pole (X1) 2. Arm (X2) 3. VESA Plate (X2) Parts in the Regular Screw Bag A. M4X9 Screw (X8) B. M4X12 Screw (X8) C. 4mm Allen Key (X1) D. 5mm Allen Key (X1) E. Top Cap (X1) Parts in the Grommet Installation Parts Bag (Used for grommet installation) F.
  • Page 4 EXPLODED VIEW...
  • Page 5 STEP 1 - Select a Base Installation Option Option 1a - Clamp Method Thickness of worksurface: .5” – 1.25” Option 1b - Grommet Method 1b-1 Loosen the screws to remove the clamp base.
  • Page 6 1b-2 Connect the grommet base plate to the pole. 1b-3 Center and tighten the long screw through desk as below displays. Fits all OTG grommets and round grommets up to 3.5’’...

  • Page 7: Step 2 - Arm Installation

    STEP 2 - Arm Installation Press and hold down the lever while sliding into the pole Release the lever when desired Place top cap on the top of the height is reached. pole and push down to secure. NOTE: Please ensure the arm is firmly locked into the hole on the pole.
  • Page 8 STEP 3 - VESA Plate Installation Tighten screws into VESA plate on VESA compliant monitor. A or B Part A is the default VESA screw size for most monitors and is designed to be hand-tightened. Part B is provided to accommodate monitors requiring longer VESA screws.

  • Page 9: Step 4 - Monitor Installation

    STEP 4 - Monitor Installation Slide in and lock-in. NOTE NOTE NOTE: Before removing the monitor, Press down lever on the VESA plate and ensure the UP arrow towards upward. carefully lift the monitor upwards.

  • Page 10: Step 5 - Cable Management

    NOTE Tilt adjustment to hold heavier monitor. STEP 5 - Cable Management Insert the cable into the wire clip, then Take off the wire clip on the arm. put it back to arm.
  • Page 11 NOTE For better adjustment, please hold the monitor during the up/down adjustment process.
