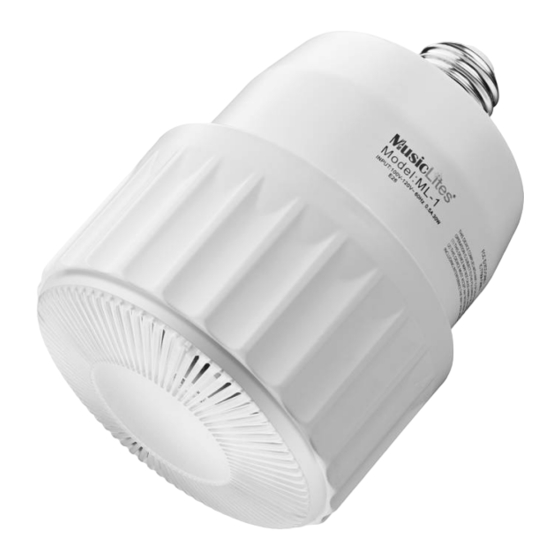

MusicLites ML-1 Owner's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Owner's Manual

MusicLites ML-1 and Accessories

Table of Contents

Need help?

Do you have a question about the ML-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for MusicLites ML-1

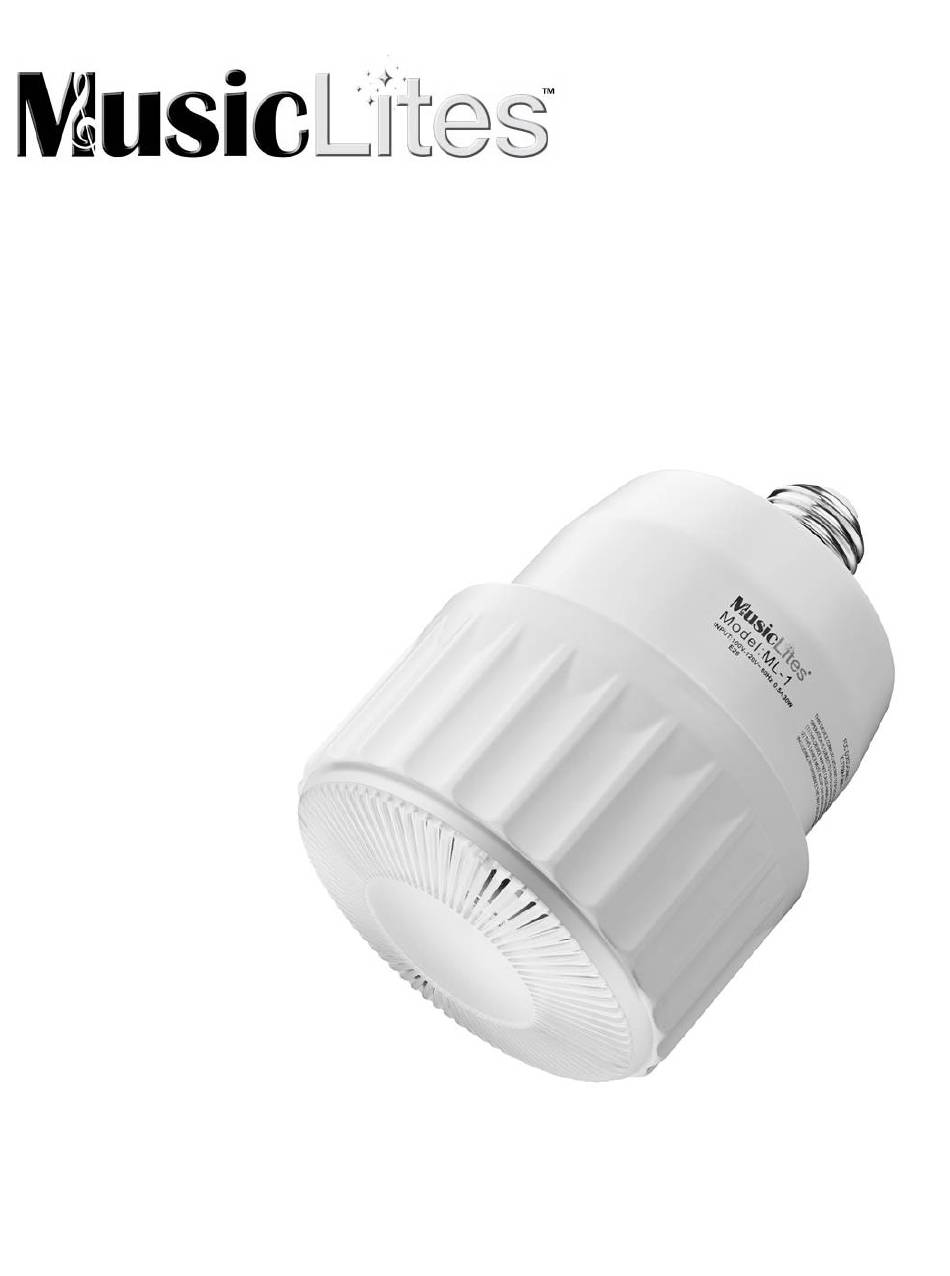

Page 1 Owner’s Manual MusicLites ML-1 and Accessories...
Page 2 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
Page 3 MPE Reminding 1. The installed antennas must not be located in a manner that allows exposure of the general population at a distance of less than 20cm. 2. Mount the antennas in a manner that prevents any personnel from entering the area within 20cm from the central position of the antenna.
Page 4 OSRAM SYLVANIA, North America’s number one lighting company, and ARTISON, a leading innovator of high end audio technology, have partnered to bring to market MusicLites®, a first of its kind wireless light and speaker combination. This ground breaking new product fits most existing lighting fixtures and provides some of the most cutting edge lighting and high fidelity audio available today.
Page 5 Please take a few moments to learn how to properly install and operate your new MusicLites; set-up channels, zones and sources to make the most of your environment. Discover all that MusicLites can do for your space. Be sure to keep this guide for your future reference. For additional information, including sales policies, please visit www.musiclites.com.
Page 6: Table Of Contents
Table of Contents Page House Codes Zone Programming Audio Mode Set-Up Setting Up the Sources Understanding Wireless Networks Using the Remote Range MusicLites Module USB Transmitter Transmitter for iPod®/iPhone®/iTouch® Universal Transmitter Other Accessories Specifications...
Page 7: House Codes
What are they and why do we need them? House codes are used to set up a proprietary network for MusicLites in your home, apartment or office to prevent other MusicLites transmitters and remotes operated by your neighbors from affecting your ML’s operation or from yours affecting others.
Page 8: Zone Programming
What if I want more than 5 zones? You can set up a second house code and repeat up to 5 new zones with each new house code. How many MusicLites can be installed in 1 zone? You can have up to 12 in each zone.
Page 9: Audio Mode Set-Up
For each room (or zone) that you choose to place MLs, you should determine the speaker settings prior to screwing in the MLs. If, after listening to the MusicLites, you choose to relocate or change the settings, turn off power to the ML, unscrew it and change the audio settings.
Page 10: Setting Up The Sources
A/V receivers, televisions, radios, computers and MP3 players. In order for a source to play through the MusicLites speakers, you will need a transmitter plugged into the device. There are 3 transmitters (sources) available for MusicLites: •...
Page 11: Understanding Wireless Networks
Understanding Wireless Networks MusicLites operate in the 2.4 GHz RF (Radio Frequency) bandwidth. This is the same range as other wireless devices like wireless internet routers, cordless telephones and Bluetooth devices. There is limited bandwidth available and this could affect the operation of MusicLites.
Page 12: Using The Remote
Select the desired zone by pressing Z1-Z5 or AZ for all zones. Then, to adjust audio press +, - or mute. For lighting press +, - or on/off (see FIGURE 7). NOTE: You must set the House Code dial prior to first use to match the MusicLites and transmitters (see FIGURE 7).
Page 13: Range
How can I improve the range of my Transmitter? Transmitter range can be improved by minimizing the obstructions between the transmitter and the MusicLites. If you are using the MusicLites transmitter for iPod/iPhone/iPad be sure that the included rechargeable battery was recently charged.
Page 14: Musiclites Module
What does the MusicLites module do? The MusicLites modules combine light and audio into an experience that must be seen and heard to be believed. In order to use, you will need to purchase one of the 3 transmitters available.
Page 15 You should be able to control the light levels and the audio volume through the remote control. If you are operating on a wall dimmer, the MusicLites will not dim from the dimmer. It will dim from the remote control.
Page 16: Usb Transmitter
This will give you full audio range. For instance, turning your computer vol- ume to 100% will allow the MusicLites remote to control volume for the full capability of the MLs and your...
Page 17: Transmitter For Ipod®/Iphone®/Itouch
Transmitter for iPod/iPhone/iPad (Part number 72469) What comes with the transmitter? • Transmitter for iPod/iPhone/iPad with rechargeable battery included • AC adapter with cord and DC Output • Remote control • Easy Installation Guide What does the Transmitter for iPod/iPhone/iPad do? By plugging the Transmitter for iPod/iPhone/iPad into the 30-pin connector slot on your Apple device, you can play audio from that device and have it output to the MLs.
Page 18: Universal Transmitter
Universal Transmitter (Part number 72287) What comes with the transmitter? • Universal Transmitter • AC adapter with cord and DC Output • Cable with 3.5mm mini-jacks on each end • Remote control • Easy Installation Guide What does the Universal Transmitter do? The Universal transmitter is a versatile device that has two audio inputs: a.
Page 19 This will give you full audio range. For instance, turning your computer volume to full will allow the MusicLites remote to control volume for the full capability of the MLs and your computer.
Page 20: Other Accessories
(2) Buy a socket extender at a DIY for roughly $3 (3) Adjust the socket in the recessed can up or down. If you lose your remote control, contact MusicLites at our website or 888-757-5001. More accessories will be available throughout 2011. Stay tuned to...
Page 21: Specifications
Attribute Specification Mechanical Weight 1.25 lbs Recessed Can Applications 4”, 5”, 6” Dimensions 3.8” diameter x 5.2” height Lamp Socket Connection E26/24 Medium Screw Base Audio Power 12 W @ 6 ohm at < ½% frequency response Specifications Driver Complement 70 mm full range high fidelity speaker Frequency Response 100Hz - 20kHz ±...
Page 22 CAN/CSA Standard C22.2 no. 60095 FCC Rules – part 15J RoHS compliant Product Life and Working Life 25,000 hours Warranty Warranty 1 year from original date of purchase For Troubleshooting, go to www.musiclites.com/troubleshooting. Manual Part Number: DQ4-144-398 Rev. A 04/12/2011...
