Summary of Contents for PurePower PP12500T

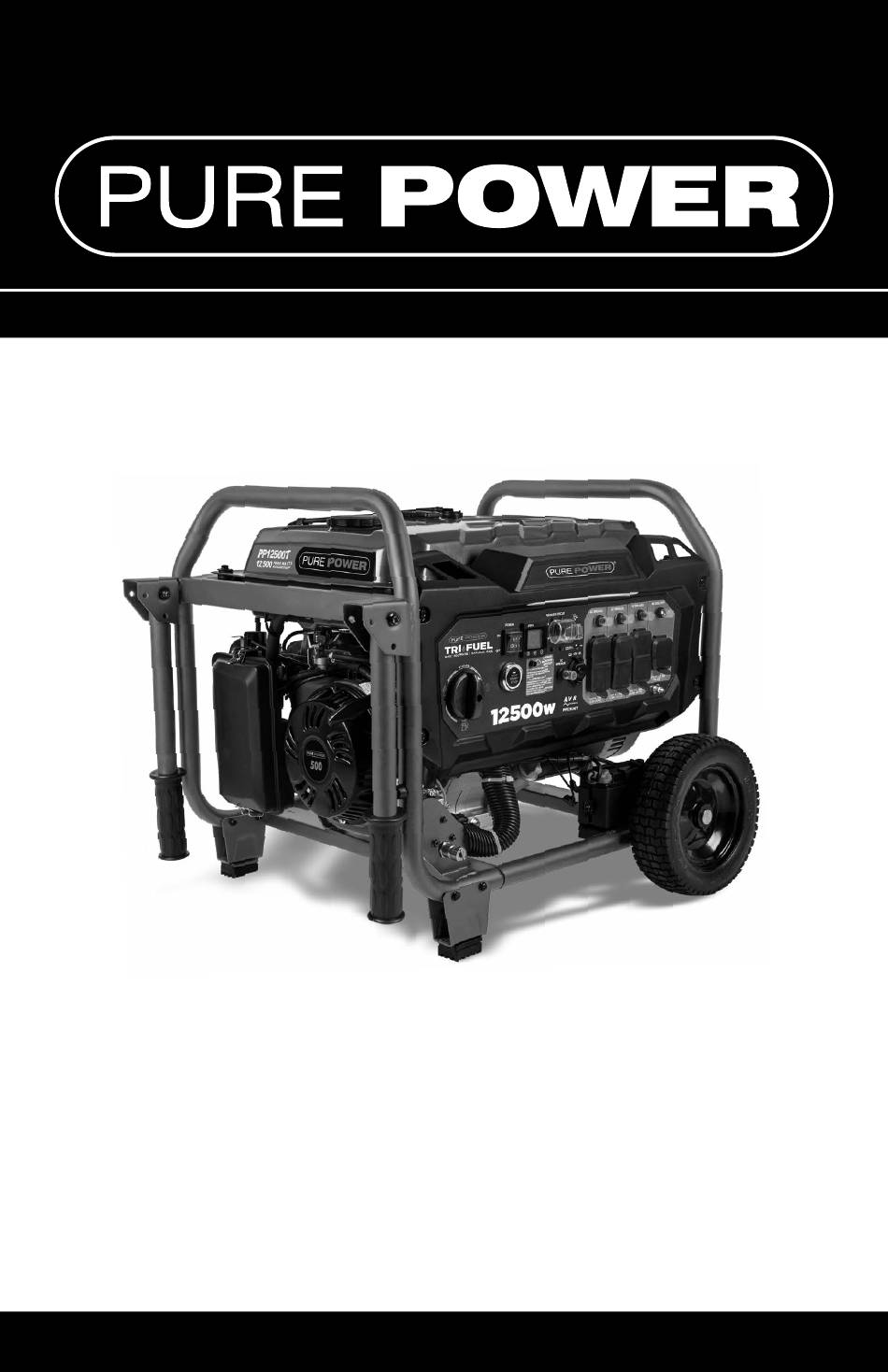

  • Page 1 PP12500T OPERATOR’S MANUAL...

  • Page 2: Table Of Contents

    table of contents INTRODUCTION Using the Operators Manual SAFETY Safety Warnings + Information GENERATOR COMPONENTS Component Chart 10 Assembly 11 Control Panel PRE-OPERATION SAFETY 12 Refueling 12 Oil QUICK START-UP AND SHUTDOWN 13 Process CONTROL FUNCTION 14 Fuel Type 14 Oil Warning Light 15 AC Breaker 15 Ground Terminal OPERATION...
  • Page 3 table of contents MAINTENANCE 24 Daily Inspection 24 Periodic Maintenance 24 Changing Engine Oil 25 Carburetor Adjustment 26 Air Filter Cleaning 26 Fuel Filter Cleaning 27 Battery Charging 28 Maintenance Chart 29 Transporting 29 Storage SPECIFICATIONS 30  Specifications TROUBLESHOOTING 31 Troubleshooting Chart WARRANTY 33 Warranty Statement...
  • Page 4 introduction Congratulations on your purchase of a Pure Power Equipment generator. You can be confident that this generator is constructed and tested with optimum performance and quality in mind. Reading this manual will help get you the best results for set-up, operation, maintenance and avoid personal injury or damage to your machine.
  • Page 5 safety SAVE THESE INSTRUCTIONS - SAFETY RULES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and a safety message to alert you to hazards.
  • Page 6 safety • NEVER operate the generator in an explosive atmosphere, near combustible materials or where ventilation is not sufficient to carry away  exhaust fumes. Exhaust fumes can cause serious injury or death. • If you start to feel sick, dizzy, or weak while using a generator, get to fresh air RIGHT AWAY. DO NOT DELAY. The carbon monoxide from generators can rapidly lead to full incapacitation and death.
  • Page 7 safety This product has been designed with internal grounding or floating bonded  neutral. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER - Improper grounding can result in a risk of electrocution. Check with a qualified electrician for your local requirements if you are in doubt as to  whether the unit is properly grounded. •...
  • Page 8 safety • Do not operate in rain, in wet or damp conditions, or with wet hands. The operator may suffer severe electric shock if the generator is wet due to  rain or snow. If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it with water. •...

  • Page 9: Generator Components

    generator components Control panel Frame Fuel tank Air cleaner Fuel gauge Wheel kit Oil drain plug 10. Oil dipstick Recoil starter 11. Handles Fuel tank cap 12. Support Foot...

  • Page 10: Assembly

    assembly SUPPORT FOOT INSTALLATION 1. Align the two holes on the support foot with the two holes on the bottom of the frame. Place two bolts through the support foot hole and the frame hole. 2. Fasten the nut to the bolt, tighten with a wrench.

  • Page 11: Control Panel

    control panel 1: Light Switch - Press once to turn the LED light on. Press again to turn the light off. 2: Engine Switch - Press ON to start the engine, press OFF to turn the engine off. 3: Low Oil Indicator - If this light glows red, it means the engine is low on oil. 4: Carbon Monoxide Alarm - A flashing red light indicates a dangerous build up of carbon monoxide gas has been detected in the area the generator is located.

  • Page 12: Pre-Operation Safety

    PRE-OPERATION SAFETY & INSPECTION PROCEDURES REFUELING: DANGER - GASOLINE IS HIGHLY FLAMMABLE AND TOXIC. DO NOT OVERFILL THE FUEL TANK. TIGHTEN FUEL CAP ONCE YOU HAVE REFILLED THE MACHINE. Remove the fuel tank cap and add at least 87 octane gasoline. ATTENTION - IF YOU SPILL FUEL WHILE REFILLING THE UNIT, BE SURE TO WIPE UP AND EXCESS FUEL THAT MAY HAVE SPILLED.

  • Page 13: Fuel Type

    START-UP AND SHUTDOWN PROCEDURE START-UP PROCEDURE CHOOSE YOUR DESIRED FUEL TYPE FILL UNIT WITH OIL OR CONNECT THE CHECK OIL LEVELS AS BATTERY BY NEEDED. ATTACHING THE CLIPS. FILL GAS TANK WITH 87 FLIP THE POWER PULL THE RECOIL OCTANE FUEL OR CONNECT SWITCH TO THE “ON”...

  • Page 14: Oil Warning Light

    control function 2.Fuel Selector Switch 2.Fuel Selector Switch Turn the Fuel Selector Switch on the Control FUEL TYPE Panel to the desired fuel setting Turn the Fuel Selector Switch on the Control Panel to the desired fuel Turn the Fuel Selector Switch on the Control The Engine is equipped with a safety solenoid setting.

  • Page 15: Ac Breaker

    control function AC BREAKER (EXACT LAYOUT MAY VARY BETWEEN MODELS) The AC breakers (2) pop out to “OFF” automatically when the electric device being connected to the generator is operating at a current above the rated flows. To use the generator again, unplug all  equipment, then turn on AC protector by pressing its button to “ON”. If multiple breakers trip simultaneously, due to an overload on multiple sockets at once, the main AC Breaker (3) will trip.
  • Page 16 control function GROUNDING INSTRUCTIONS DANGER Improper connection of the equipment grounding conductor can result in a risk of electrocution. Check with a qualified electrician if you are in doubt as to whether  the unit is properly grounded for your local regulations. The ground terminal on the frame can be used to connect the generator to a suitable ground source.

  • Page 17: Operation

    operation ENGINE OIL Before checking or refilling oil, be sure generator is located on stable  and level surface with engine stopped. This generator uses SAE 10W30 oil. 1. Remove oil dipstick and check the engine oil level. 2. If oil level is below the lower level line, refill with suitable oil to upper  level line. Do not screw in the oil dipstick when checking oil level. 3.

  • Page 18: Gasoline Fuel Type

    operation WARNING DO NOT overfill the tank, leave room for the fuel to  expand. 1. If fuel level is low, refill with unleaded automotive gasoline. 2. Check fuel gauge while filling.  GENERAL RECOMMENDATIONS • Purchase gasoline in small quantities and store in clean, approved containers. • To minimize gum deposits in your fuel system and to insure easy starting, do not use gasoline left over from the previous season. •...

  • Page 19: Generator Wiring

    operation OPTIMAL ENVIRONMENT AMBIENT TEMPERATURE -20ºC to 40ºC OPTIMAL HUMIDITY Below 95% Below 1,500m (At regions above 1,000m the unit OPTIMAL ALTITUDE will generate less power) In certain environments, total output power can be affected. • Every 5ºC increase in ambient temperature above optimal will reduce your units output by ~2%. •...

  • Page 20: Recoil Start

    operation WARNING Keep area clear of flammables or other hazardous  materials. • Keep generator at least 3ft (1m) away from buildings or other structures. • Only operate generators in a dry, well ventilated area. • Keep exhaust pipe clear of foreign objects. • Keep generator away from open flame. No Smoking! • Keep generator on a stable and level surface. •...

  • Page 21: Ac Application

    operation CAUTION Do not connect appliances with defective power cords and/or plugs. Be sure appliances are not connected to generator when starting up. Starting the generator with an appliance connected could result in damage to the generator and/or appliances and personal injury. 4.

  • Page 22: Carbon Monoxide Shutoff

    operation CARBON MONOXIDE SHUTOFF DO NOT USE THE GENERATOR INDOORS OR IN ANY ENCLOSED SPACE OR IN ANY OTHER AREA OR SITUATION THAT WILL ALLOW CARBON MONOXIDE TO ACCUMULATE • RED LIGHT FLASHING: Dangerous levels of carbon monoxide gas have built up. leave immediately until the area has aired out, Move the generator to well-ventilated area before operation.

  • Page 23: Wattage Information

    operation WATTAGE INFORMATION Some appliances need a “surge” of energy when starting. This means that the amount of electrical power needed to start the appliance may exceed the amount needed to maintain its use. Electrical appliances and tools normally come with a label indicating voltage, cycles / Hz, amperage (amps) and electrical power needed to run the appliance or tool.

  • Page 24: Maintenance

    maintenance DAILY INSPECTION Before running the generator, check the following service items: • Safe surroundings. • Leakage of gasoline and engine oil. • Clean engine oil. • AC receptacle and DC terminal for damage. • Enough gasoline. • Excessive vibration, noise. •...

  • Page 25: Carburetor Adjustment

    maintenance CARBURETOR ADJUSTMENT The carburetor is an important component of the engine. If the carburetor needs to be serviced, contact your service center to have a professional ensure that necessary adjustments are done correctly. OIL REPLACEMENT WARNING: DO NOT DRAIN OIL IMMEDIATELY AFTER OPERATING YOUR UNIT.

  • Page 26: Air Filter Cleaning

    maintenance AIR FILTER CLEANING The air filter can get dirty after prolonged use and needs to be cleaned or  replaced regularly. If frequently operating in dusty environments, maintenance must be done more often. 1. Open the air filter cover. 2. Clean foam filter element with cleaning solvent and allow it to air dry. Place  a few drops of oil on the filter. attention: the air filter is delicate. do not forcibly twist the filter to prevent  damage. 3. Put the foam air filter back into place. tip: make sure that the surface of the filter is in close contact with the  intake. make sure there are no gaps do not start the engine without the air filter in place. Reinstall the cover for the air cleaner. FUEL FILTER CLEANING 1. Remove the fuel tank cap and fuel filter screen.

  • Page 27: Battery Charging

    maintenance BATTERY CHARGING The lifespan of a battery in storage is about 6 months. If your generator isn’t used for a long time, the battery will lose charge. If the battery loses charge, you can attempt to recharge it. If charging the battery does not work, you must replace the battery.
  • Page 28 maintenance Following the maintenance schedule is the best way to ensure safe, economical, and zero-failure operation. In order to maintain good condition, you must inspect your unit regularly. MAINTENANCE EVERY 3 EACH MONTH EACH YEAR EACH MONTHS CYCLE 20 HOURS 100 HOURS ITEM 50 HOURS...

  • Page 29: Transporting

    transporting TRANSPORTING When transporting the generator, make sure that the fuel (gasoline) is drained from the tank. WARNING To prevent fuel spillage due to the vibration and impact, never transport the generator with fuel (gasoline) in the tank. Secure the tank cap. To avoid the risk of the gasoline flammability, never ...

  • Page 30: Specifications

    ITEM PP12500T Rated Power (W) 8,300(gas) / 7,500(lpg) / 6,600 (ng) Max Power (W) 12,500(gas) / 8,300(lpg) / 7,400(ng) Engine Type 4-stroke Displacement (Cc) Gas Distribution Mode Cooling Mode Air Cooled Starting Method Recoil Start / Electric Start Fuel Tank Volume (L) Fuel Type And Grade Use unleaded gasoline (87 octane or higher)

  • Page 31: Troubleshooting

    troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION FUEL RELATED: FUEL RELATED: 1. No fuel in tank or fuel valve closed. 1. Fill fuel tank with fresh 87+ octane gasoline and open the fuel valve. Do not use gasoline with more than 10% ethanol (E15,E20,E85 etc.) 2.
  • Page 32 troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION 1. Spark plug cap is loose. 1. Check cap and wire connections 2. Incorrect spark plug gap or damaged 2. Re-gap or replace spark plug. spark plug. 3. Defective spark plug cap. 3. Replace spark plug cap. engine 4.
  • Page 33 warranty COMBINED EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The United States Environmental Protection Agency and Chongqing Rato Technology Co., Ltd. (Rato) are pleased to explain the emission control system warranty on your 2019/2020 model year small off-road  engine/equipment. In the United States, new small off-road engine/  equipments must be designed, built and equipped to meet stringent anti smog standards.
  • Page 34 warranty If you have any questions regarding your warranty rights and responsibilities, you should contact BE POWER EQUIPMENT at 1-800-663-8331 or info@bepressure.com. EPA WARRANTY DEFECTS WARRANTY REQUIREMENTS: A. The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. B.
  • Page 35 notes...
  • Page 36 If you need assistance with the assembly or operation of your Inverter Generator please email info@purepowerequipment.ca WWW.PUREPOWEREQUIPMENT.COM 01.2024...
