AMG AMG2923AM Instruction Sheet

AMG2923AM Standalone Single Channel Video and RS422/485 Fibre Optic Transceiver
for use on two Multimode Optical Fibres

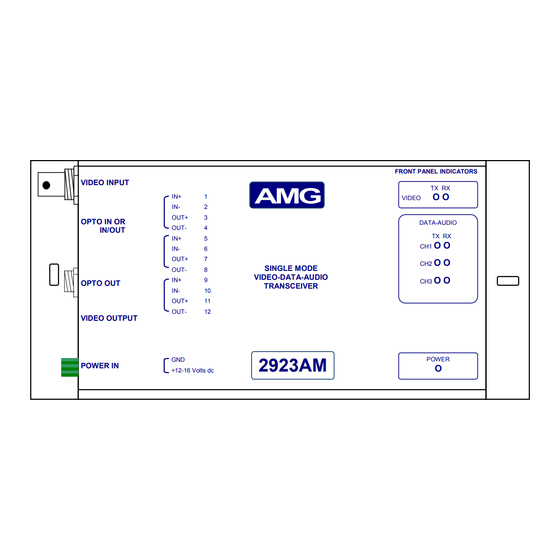

VIDEO INPUT
OPTO IN OR
OPTO OUT
VIDEO OUTPUT
POWER IN
The AMG2923AM transmits a single video signal and transmits and receives one bi-directional
RS422/485 data signal over two multi-mode fibres. It is designed to operate with an
AMG2924AM or an AMG2924ARM Video Receiver.
Video Input Connection
Connectors ........................... 75 ohm BNC Socket.
Input Impedance................... 75 ohm terminated.
Input Level ........................... 1 volt p-p nominal (+3dB overload).
Frequency Response............. 10Hz to 5.75MHz min.
Optical Connection
Opto Output
Connector ............................. ST Style
Launch Power....................... -10dBm
Wavelength........................... 1310nm nominal.
Opto Input
Connector ............................. ST Style
Optical Sensitivity ................ -30dBm
Wavelength........................... 1310nm nominal.
AMG Systems Ltd. reserve the right to make changes to this document without notice. The
information herein is believed to be accurate. No responsibility is assumed by AMG for its
use.
IN+ 1
IN- 2
OUT+ 3
OUT- 4
IN/OUT
IN+ 5
IN- 6
OUT+ 7
OUT- 8
IN+ 9
IN- 10
OUT+ 11
OUT- 12
GND
+12-16 Volts dc

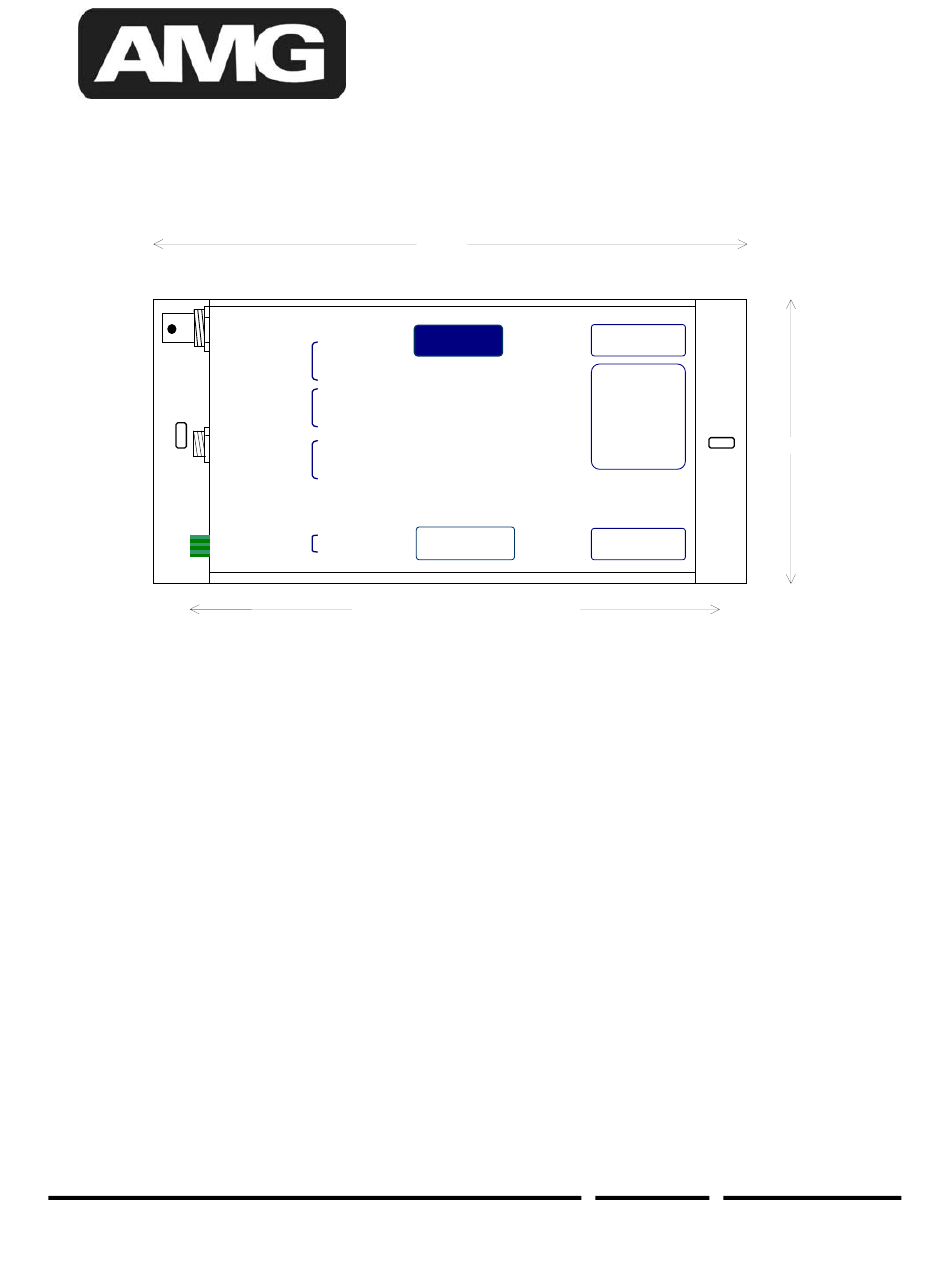

193mm between mounting slot centres
AMG2923AM
Instruction Sheet
218mm
FRONT PANEL INDICATORS
AMG
VIDEO
SINGLE MODE
VIDEO-DATA-AUDIO
TRANSCEIVER
2923AM
Page 1 of 5
TX RX
O O
DATA-AUDIO
TX RX
O O
CH1
O O
CH2
O O
109mm
CH3
POWER
O
AMG2923AM
Instruction Sheet
D14838-00
