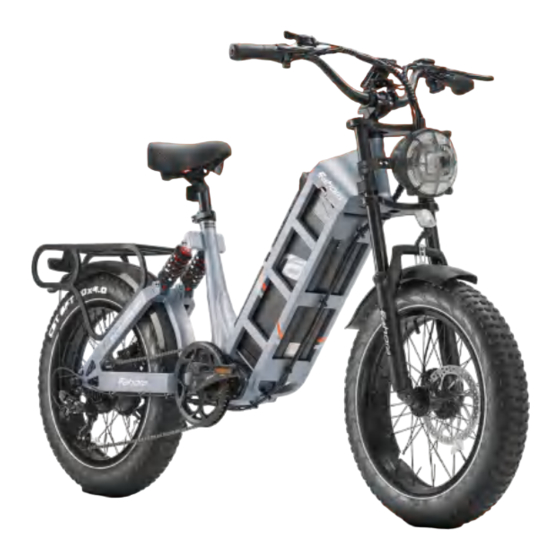

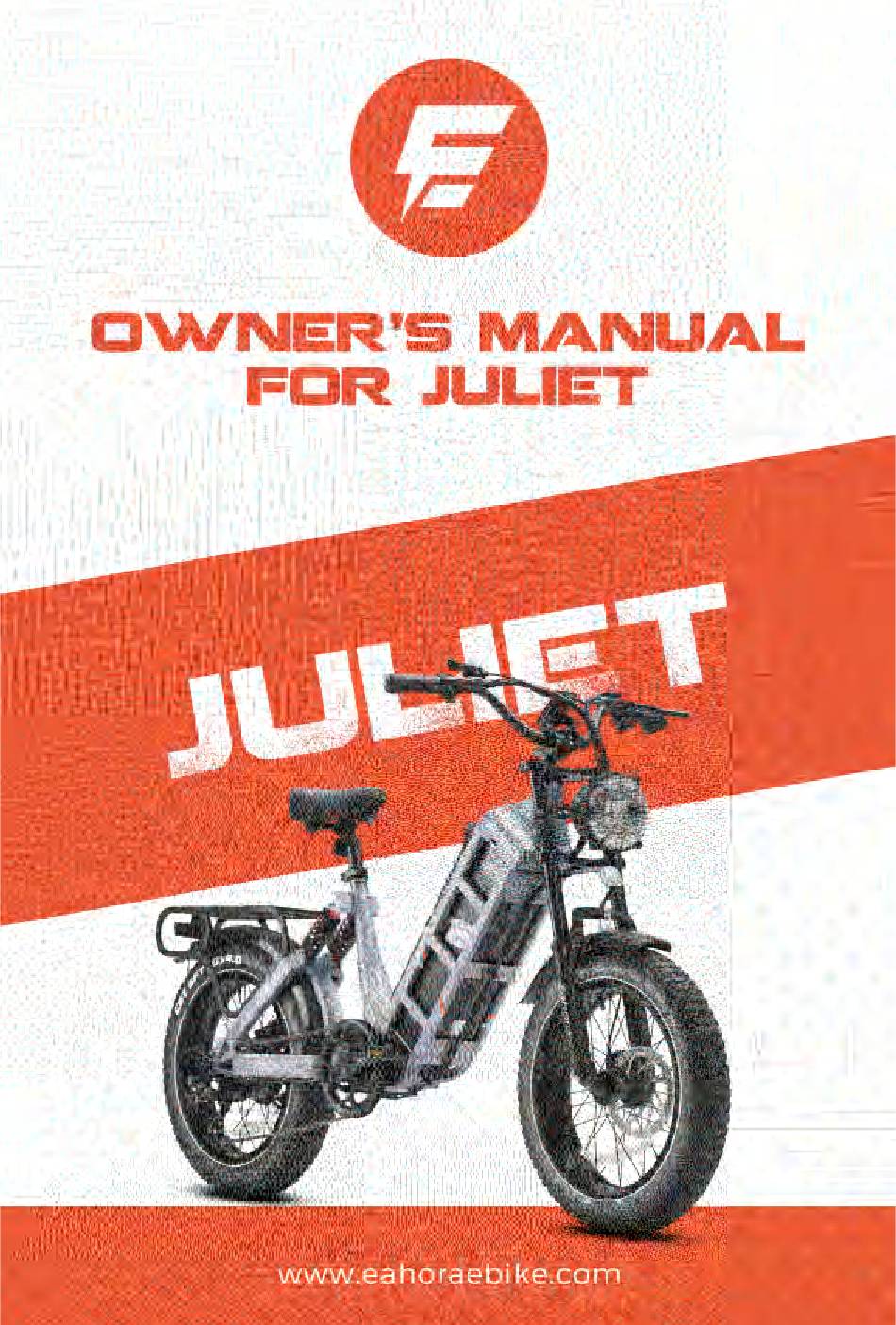

Summary of Contents for Eahora JULIET
- Page 2 Dear customer: Thank you for choosing eAhora! We hope you thoroughly enjoy eAhora JULIET, our longest-lasting ebike. If you need any assistance, do not hesitate to contact us. We are always here to help! Contact Information service@eahoraebike.com (for all customers) amazon@eahoraebike.com (for Amazon customers)
- Page 3 IMPORTANT TO READ BEFORE THE FIRST RIDE 1. Please read the manual throughout before assembling or using your new e-bike. 2. Before the first ride, please make sure the e-bike is working normally. If you find any abnormality or defective parts, please contact us for a repair or a replacement.
- Page 4 Contents Specification & Package List & Parts Intrudction Performance Accessories List 6-15 16-18 Components Instruction & Assembly Instruction Display Intrudction Maintenanc 20-21 22-23 E-bike Safety Warranty Maintenance Return Policy...
- Page 5 SPECIFICATION...
- Page 6 Specification eAhora JULIET 20*17.5" Strong Carbon Steel Frame CST 20"*4.0" Seat Height: 800-1020mm Handlebar Height: 1100mm Recommended Height: 5'4"-6'2" Recommended Load: 300lbs Shimano 7 Speed Dual Hydraulic Brakes Throttle: Twist Throttle Light: Front, brake and turning light Bell: Integrated electric horn...
- Page 7 Performance Max Speed: 27-31mph Max Range: 100-200 miles NOTE: The maximum speed and range will be affected by the load, road conditions, riding style,battery power and weather, etc. Accessories list Note: Please check the accessories after you received the e-bike. If there are any missing parts, please contact us within 48 hours after receiving the item.
- Page 8 Parts Intrudction 2 keys are provided with each Juliet, please take good care of them! Keys only lock the battery, please prepare one extra lock for anti-theft.
- Page 9 Display Intrudction Battery level Light ON/OFF Error code KM/H Current speed Walk boost Cruise Trip odometer PAS level Odometer Average speed Max speed Bluetooth Value and unit...
- Page 10 Assembly Instruction Part I:lnstall the handlebar 1.Place the handlebar in the groove. 2.Place the locking cap in the middle of handlebar...
- Page 11 Part I:lnstall the handlebar 3.Tighten the handlebar with 4 screws and locking cap.
- Page 12 Part II:Install the front wheel 1.Take off the nut and 2 gasket 2. Align the end of the front fork with the center of the brake disc.
- Page 13 Part II:Install the front wheel 3.Install the gasket and nut by order and tighten...
- Page 14 Part III:lnstall the fender 1.Place the fender above the front wheel 2.Through the screw across the bayonet and nut -10-...
- Page 15 Part III:lnstall the fender 3.Screw up and tighten -11-...
- Page 16 Part IV:Install the frontlight 1.Take the headlight 2.Install the headlight to 2 sides of the frontfork -12-...
- Page 17 Part IV:Install the frontlight 3.Screw on both sides and tighten -13-...
- Page 18 Part V:Install the pedal 1.Find the "R" mark pedal, install to the right crank. 2.Install the other pedal to the left pedal and screw up -14-...
- Page 19 Part V:Install the pedal Note: please pay attention to tighten and distinguish between left and right, or it will possibly strip off. -15-...
- Page 20 To lock the battery, insert the key into the lock on the side face of the battery slide. Do not charge the battery with chargers other than the charger provided by eAhora. Only charge the battery indoors in dry spaces which are not excessively hot or cold.
- Page 21 Lithium-Ion batteries can be dangerous. Take care when using and charging your battery. Failure to follow the above guidelines could result in damage to property and/or serious injury. Contact eAhora immediately if you have any questions regarding battery safety. Motor The motor is the drive system of the e-bike.
- Page 22 Display eAhora JULIET comes with a color display. It’s the control board of the e-bike. The electr onic system will only work after the display is switched on. It can show the mileage of riding and indicate e-bike fault. Also, you could modify the settings to make the e-bike more pleasant to ride.
- Page 23 e-bike Maintenance 1. Store your e-bike in a clean dry place to avoid rust. 2. The e-bike is not waterproof. It is recommended to store and ride the e-bike in a dry environment. Furthermore, water damage is not covered under warranty. 3.
- Page 24 Safety Helmets and Local Laws Always wear a helmet when riding your e-bike. Ensure that the helmet fits your head and is securely tightened down. Before riding, read local laws and comply with all rules relating to e-bike cycling in your area. If you attach a seat for children to the e-bike they must also be wearing a properly fitted helmet at all times.
- Page 25 Riding in Wet Conditions This electric bicycle can withstand light rain and small splashes but is not designed to be subjected to inclement weather, heavy showers, or submersion in water. Use caution when riding in wet conditions as it will take longer to use the brakes to slow down, and also when turning as the tires may slip.
- Page 26 Terms Of Warranty 1. This warranty is only applied to the original owner of eAhora e-bike. 2. One of the following conditions does NOT qualify for warranty: The e-bike is damaged due to improper assembly or improper use, includ ing operator error, water damage, extreme riding, stunt riding, or improper follow-up maintenance.
- Page 27 Warranty Coverage Part Warranty Period Warranty Scope quality fault/break down/ Motor 12 Months performance failure quality fault/power capacity Battery 12 Months is tested lower than 50% of the rated capacity. Controller 6 Months performance failure Charger performance failure 3Months Display/Dashboard 3 Months performance failure desoldering/material...
- Page 28 5. The customer should return the original package with the returned label provided by Eahora. Or Eahora will NOT be responsible for any missing items or damages during the shipment. 6. The customers can return the items by themselves or get a return label via emails from Eahora after being authorized.
- Page 29 www.eahoraebike.com...
Need help?
Do you have a question about the JULIET and is the answer not in the manual?
Questions and answers
The bike is somehow stuck in rear motor only, I have not changed any settings.
The Eahora JULIET bike may be stuck in rear motor only mode due to a damaged motor connector wire. If the wire is rubbing against the tire and becomes worn down to the internal wires, it can cause loss of functionality or errors, leading to limited motor operation.
This answer is automatically generated
