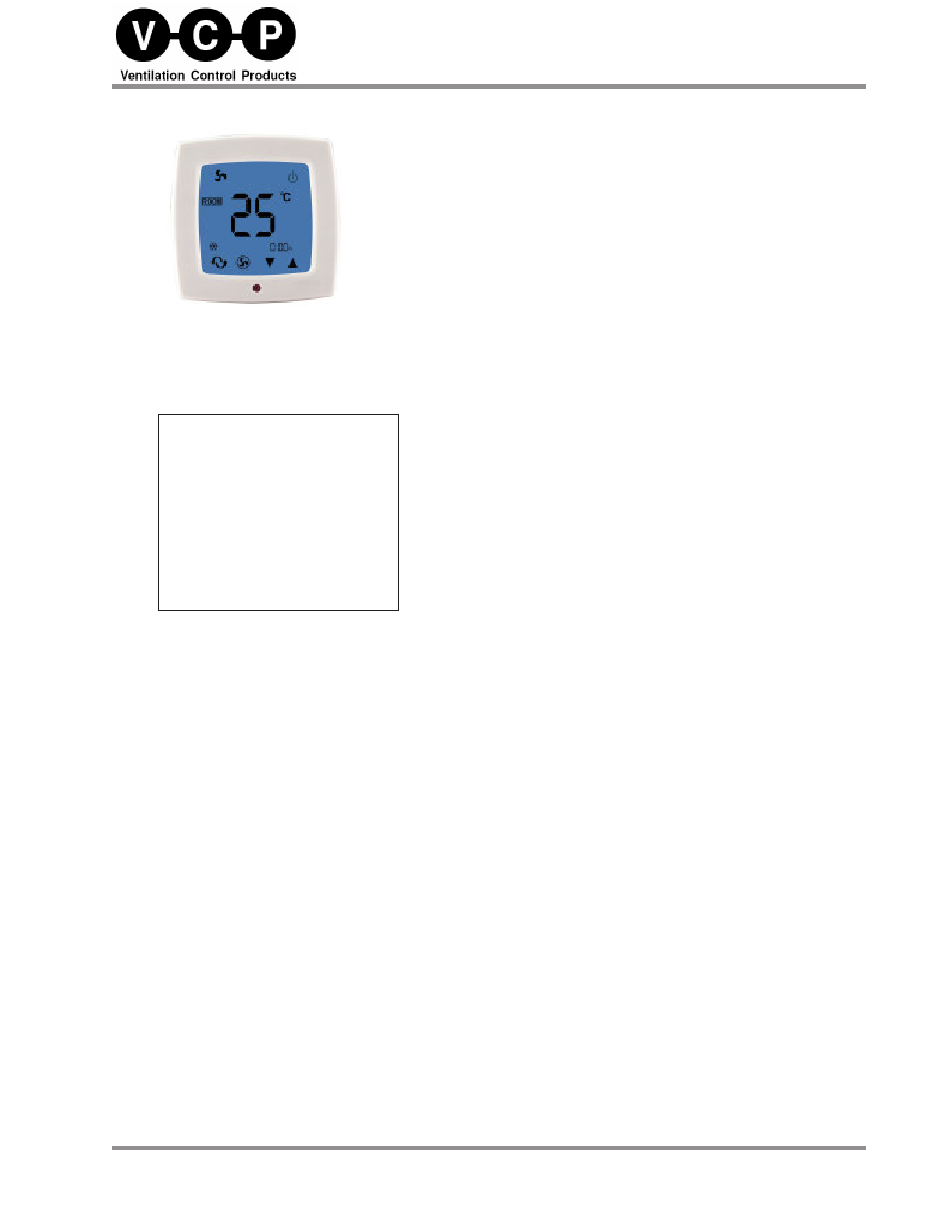

VCP TST 8 Series Quick Start Manual

Touch screen thermostats
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
TST 8A
Available for:
- Fan coil unit
- Two-line Motorized Valve
- Three-line Motorized Valve
- Solenoid Valve
- Heating Equipment
- Three-speed angle fan valve
Ventilation Control Products
Sweden
Touch Screen Thermostats
Features
• Bright back-lit display with interactive touch screen
• Adjustable manual 3-speed or
automatic fan speed control,
High, Medium and Low
• Setting point range +10 to +30°C
• Accuracy +/-1 ° C
• NTC thermistor sensing element
• Power supply 220 Vac
• Consumption < 1.5 W
• Timing error < 1%
• Load current 1A (0.6A)
• Ouput comsumption < 200 W
• Setting Turn on/off within 24 hours
• Attractive modern styling and smart outlooking
(12 mm only for surface board)
Ordering
_______________________________________________________
Type no.
Description
_______________________________________________________
Touch Screen Thermostat, Heating Cooling
TST 8A
2-pipe system, controls fan coil and
2-wire motorized valve with 3 Fan Speed
TST 8B
Controls on/off (open/close) valve
TST 8C
2-pipe system, controls fan coil and
3-wire motorized valve with 3 Fan Speed
TST 8D
Controls on/off
(0 to 30°C, 0 to 60°C 0 to 90 °C) damper
TST 8E
Four-pipe systems, controls fan coil and
2-wire or 3-wire motorized valve with
3 Fan Speed.
TST 8M
Modulating 0-10 Vdc / 4-20 mA with 3 Fan Speed.
Phone: +46-(0)31-811666
Fax:
+46-(0)31-812766
TST 8-
series
Jan.13
E-mail:
info@vcp.se
Web:
www.vcp.se
