INSTRUCTIONS
INSTALLATION / OPERATION / CARE / MAINTENANCE /
SAFETY ADVICE
BARS SAFETY COVER
WOOD SECURIT PLUS
NF P 90-308
compliant manufacturing
Read carefully and keep for future reference
FLUIDRA INDUSTRY FRANCE
Series number
105 Rue Henry Potez
66000 Perpignan - FRANCE
Tel : 04.68.61.75.30
Revision index : D-08-2021
Advertisement
Table of Contents
Summary of Contents for fluidra WOOD SECURIT PLUS

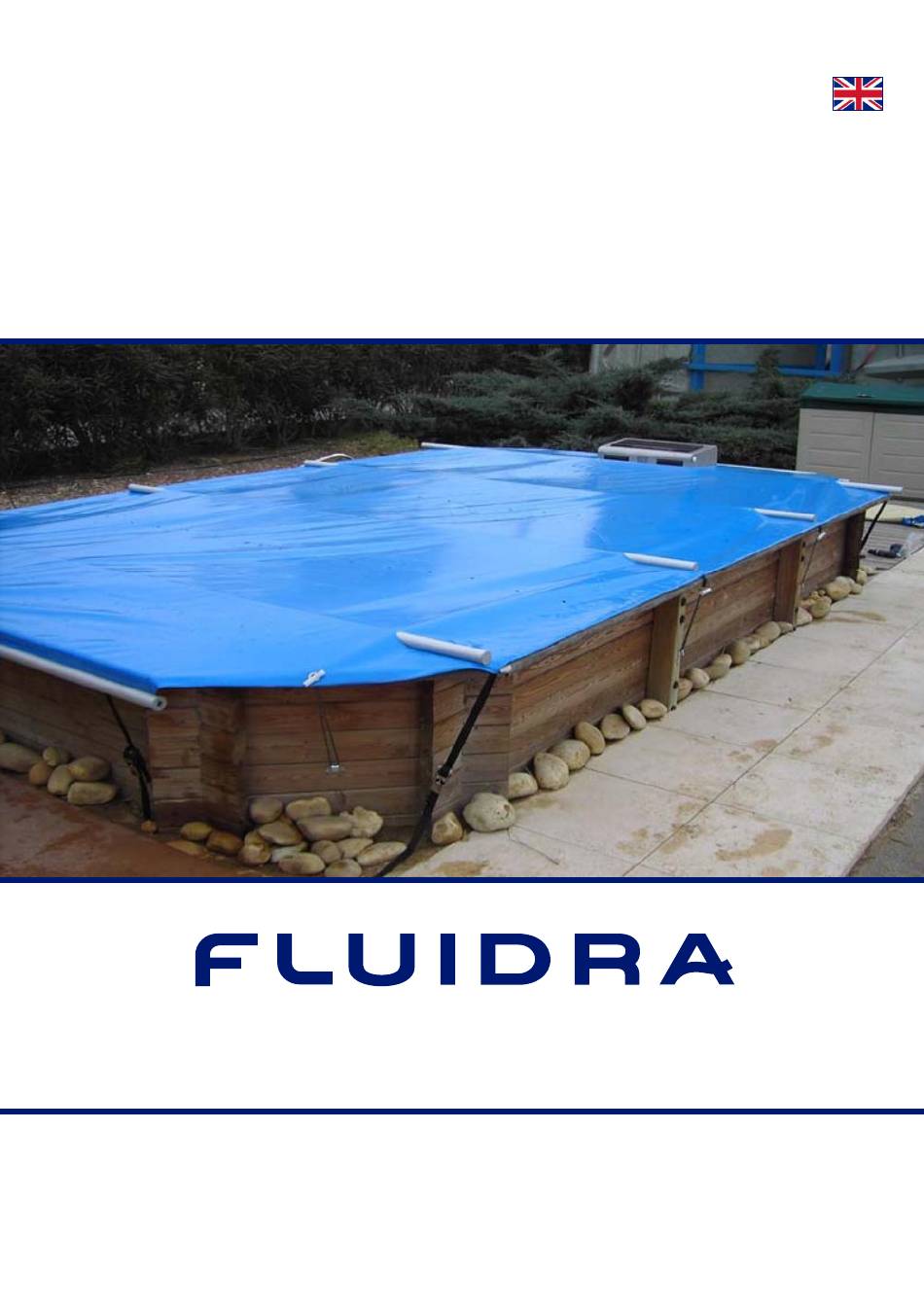

- Page 1 INSTRUCTIONS INSTALLATION / OPERATION / CARE / MAINTENANCE / SAFETY ADVICE BARS SAFETY COVER WOOD SECURIT PLUS NF P 90-308 compliant manufacturing Read carefully and keep for future reference FLUIDRA INDUSTRY FRANCE Series number 105 Rue Henry Potez 66000 Perpignan - FRANCE Tel : 04.68.61.75.30...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INFORMATION ................... DELIVERY/UNLOADING................NECESSARY TOOLS ................... ITEMS RECEIVED..................INSTALLATION................... OPERATION..................... WARRANTY ....................SAFETY ..................... USE AND MAINTENANCE................CERTIFICATE OF COMPLIANCE..............SAFETY ADVICE..................*All of the photos may differ from the actual product Revision index : D-08-2021 Photos for illustrative purposes only... -
Page 3: Information
Average opening and Opening time(8m x 4m pool) : 5 to 10 minutes • This cover has been manufactured following accurate measurements taken and included on the purchase order delivered by Fluidra to the installer or retailer. • It is the responsibility of the installer or retailer: •... -
Page 4: Necessary Tools
NECESSARY TOOLS Ø 12 10 m ITEMS RECEIVED No. 2 Allen key 1 winding wheel (or 2 winding wheels for pools larger than 4 x 9m) Ratchet tighteners Bungees and stainless steel hooks 1 Cover Installation / use instructions Revision index : D-08-2021 Photos for illustrative purposes only... -
Page 5: Installation
INSTALLATION Center the still rolled cover on the opposite width of the block or ladder cutout if existing. Unwind the cover with the help of the pull rope. Once the blanket is fully unrolled, position the block in the cutout. Revision index : D-08-2021 Photos for illustrative purposes only... - Page 6 INSTALLATION Screw the hooks (40 cm under the coping) in the alignment of the straps of the two widths, then hook the ratchets and make a pre-tension of the straps. On the block side, tighten the ratchets so that the cover is in contact with the block. Adjust the tension of the cover with the ratchets on the opposite side of the block.
- Page 7 INSTALLATION Fasten the hooks as low as possible, and tension the side straps of the cover. Place the stainless steel hooks in front of the eyelets at 40 cm under the coping. Put the bungee cords in the eyelets and fix them to the hooks. IMPORTANT : It is not necessary to use the bungee cords lengthwise, the tension of the side straps is enough to guarantee the safety of your pool.
-
Page 8: Operation
OPERATION ROLLING Loosen all of the straps by pulling on the trigger of the ratchets and fully unblocking them. Make sure that the unwinding strap is in line with the cover. For pools larger than 4 x 9 m, use the 2 winding wheels provided. Revision index : D-08-2021 Photos for illustrative purposes only... - Page 9 OPERATION UNROLLING Unroll the cover using the pull rope. ALWAYS KEEP THE POOL IN SIGHT DURING OPENING AND CLOSING OPERATIONS Revision index : D-08-2021 Photos for illustrative purposes only...
-
Page 10: Warranty
• The warranty will not be enforceable in the event of malfunctions and/or deterioration due to an issue not related to FLUIDRA INDUSTRY FRANCE, such as, by way of example only, not following instructions on water specifications or levels. This warranty will likewise not cover defects in the event of a repair or service work by third parties on the products, or in the case of a misjudgment by the purchaser on requirements should modifications be made to the products. -
Page 11: Safety
The mandatory conditions that must be followed so that the cover is compliant with safety standards are as follows: WOOD SECURIT PLUS covers are made to fit the outer measurements of the coping. The pool must be at least 50 cm above the ground. -
Page 12: Use And Maintenance
• The shock cord assembly must also undergo an inspection every time the cover is placed on the pool. • Any components that undergo undue wear and tear may only be replaced by materials supplied by Fluidra France. Revision index : D-08-2021 Photos for illustrative purposes only... -
Page 13: Certificate Of Compliance
CERTIFICATE OF COMPLIANCE Revision index : D-08-2021 Photos for illustrative purposes only... - Page 14 Revision index : D-08-2021 Photos for illustrative purposes only...
- Page 15 Revision index : D-08-2021 Photos for illustrative purposes only...
-
Page 16: Safety Advice
SAFETY ADVICE GENERAL SAFETY ADVICE WARNING: The pool may expose your children to significant risk. Drowning can occur very rapidly. Children near the pool require your constant vigilance and must be supervised at all times, even if they know how to swim. Learn what you can do to save lives.
