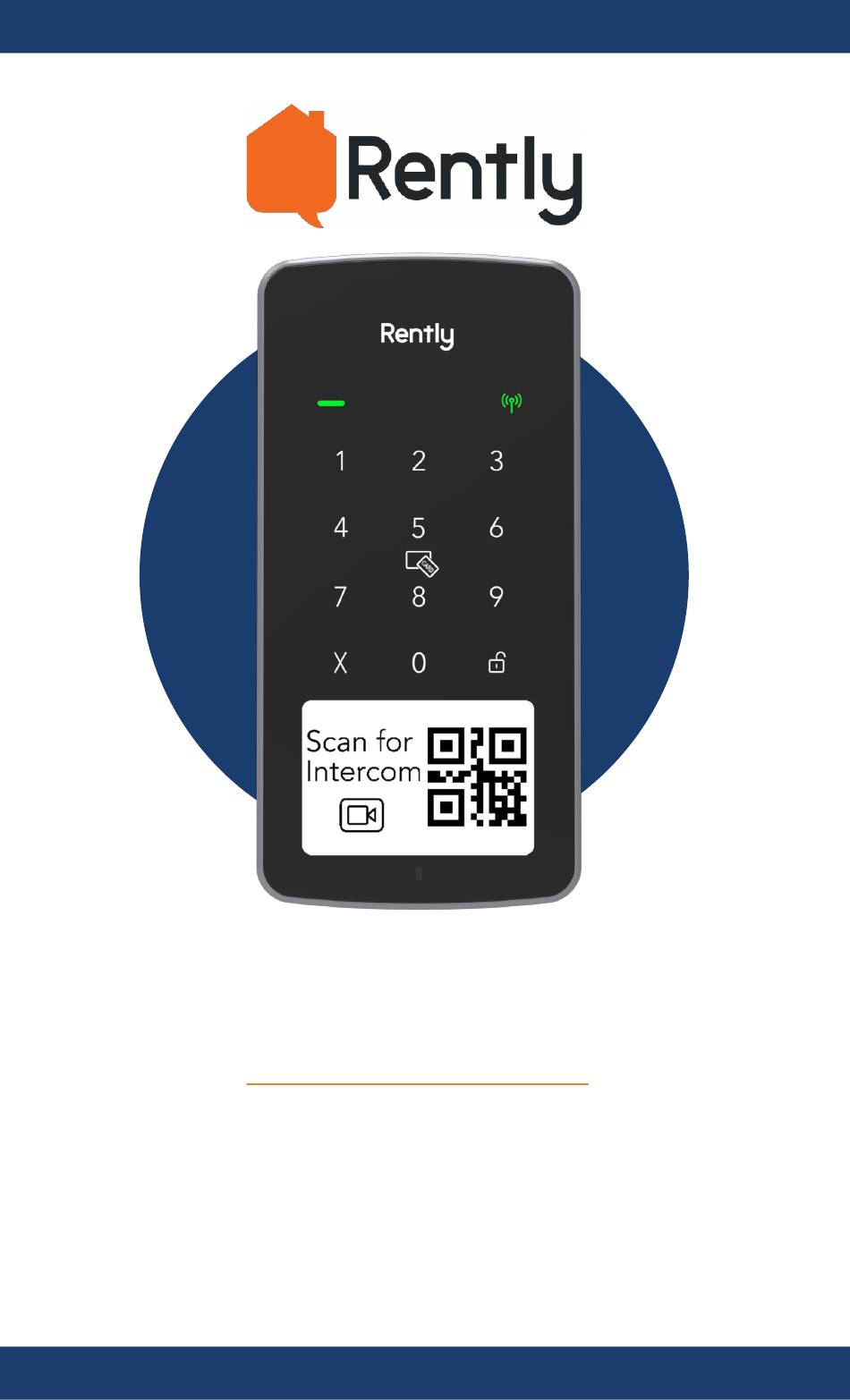

  • Page 1 Access Panel with Intercom User Manual Version: V1.8 (updated 05/14/2024)
  • Page 2: Table Of Contents

    Index INTRODUCTION ..............................3 .................... 3 ENTLY CCESS ANEL WITH INTERCOM VERVIEW ............................4 ONNECTORS DEFINITION ’ ............................5 S IN THE PACKAGE : ..............................5 OOLS REQUIRED ................................6 IMENSIONS ..............................6 PECIFICATIONS ..............................7 EADER EYPAD ................................7 REDENTIALS ............................
  • Page 3: Introduction

    FOB cards and door code credentials. The Rently Access Panel with intercom can be used to control any access device that is operated by a normally open or normally closed signal if the voltage requirements are met. NOTE: this system only supports Mifare FOB cards and does not integrate with HID FOB cards.
  • Page 4: Connectors Definition

    Connectors definition Wiegand input/Output REX Inputs Power input Relay output Ethernet Co-ax antenna Connector Mark Function DC12V IN Power Input Dry contact Relay output Relay output Gated Operator, Door Strikes, Maglocks (for control-only power to be provided by external power supply) Door contact sensor (NC) Input Ground REX Inputs...
  • Page 5: What's In The Package

    What’s in the package A x 8 B x 8 Access Panel Mounting Plate 6ft Adhesive antenna Anchor and Screw Wire connectors Manual 4in Adhesive antenna Door contact sensor Tools required: • Hammer • Drill/Driver • Philips and small flathead screwdrivers •...
  • Page 6: Dimensions

    Dimensions Specifications Product name Rently Access Panel with Intercom Module number PANEL420 Weight 845.5g (1.86lb) 12-24VDC, 24W min. Power Input (Should be powered by UL 294 Listed Class 2, power limited power supply) One Request-to-Exit (REX) Input, e.g., push-to-exit button, motion sensor, etc.
  • Page 7: Reader/Keypad

    Rently credentials is MIFARE DESFire EV1 (32-bit Smart Fob card), Frequency: 13.56MHz. • Server credentials Tap in-app allows you to unlock doors from within the Rently Smart Home app. The tap sends the unlock request directly to the cloud server, then to the controller, which fires the relay opening the door.
  • Page 8: Internet Connection

    Download and register for the Rently Smart home App and follow the prompts to connect the controller to Wi-Fi. The wireless connection distance between the Antenna and the router is: 65ft direct line of sight without interference.
  • Page 9: Installation Instructions

    NOTE: You may need to have a certified electrician run power to the install location. • ADA considerations: The Exit Button and the Rently Access Panel with Intercom should be installed in accordance with your local ADA requirements. Recommended height does NOT guarantee ADA compliance.
  • Page 10: Typical Installation

    Typical Installation...
  • Page 11: Mount Rently Access Panel With Intercom

    Mount Rently Access Panel with Intercom Run the Power and control wires to the Drill holes for the wall anchors according to location where the Rently Access Panel with the dimensions in the diagram below, then Intercom will be mounted.
  • Page 12: Connect Power

    If there is not enough space inside the mounting surface to Tips accommodate the wires, you can install a cable storage box to help store the wires. 1. Run the power and control wires through the 2. Press the cable storage box and cable storage box and mounting plate.
  • Page 13: Access Control Wiring Instructions

    Connect 14-18 AWG wire to the stripped secondary DC output wires on the power supply controller. Black is negative and red is positive. 2. Connect the power supply wires to the Power INPUT terminal of the Access Panel. 3. Plug the power supply controller into a 120 Vac outlet after all connections have been made. •...
  • Page 14: Fail-Secure Electric Strike (Dry Contact)

    Fail-Secure Electric Strike (Dry contact) Set the Electric strike to Fail-Secure mode according to the manufacturer’s documentation before installation. More wiring scenarios please refer to the Wiring Guide.
  • Page 15: Installation Test

    To ensure that the wiring was done correctly, please press the exit button to see if the lock releases for a few seconds. If the test fails, please reexamine the installation and wiring of the Rently smart access control system.
  • Page 16 RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s). FCC ID: 2AH4J-PANEL420...
