PAW GmbH & Co. KG
Böcklerstraße 11, 31789 Hameln, Germany
Phone: +49-5151-9856-0, Fax: +49-5151-9856-98
E-mail: info@paw.eu, Web: www.paw.eu
Installation and Operation Instructions
HeatBloC® K33 - DN 20
05/2024
9932073x-mub-en - V15
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HeatBloC K33-DN 20 and is the answer not in the manual?

Questions and answers

Summary of Contents for PAW HeatBloC K33-DN 20

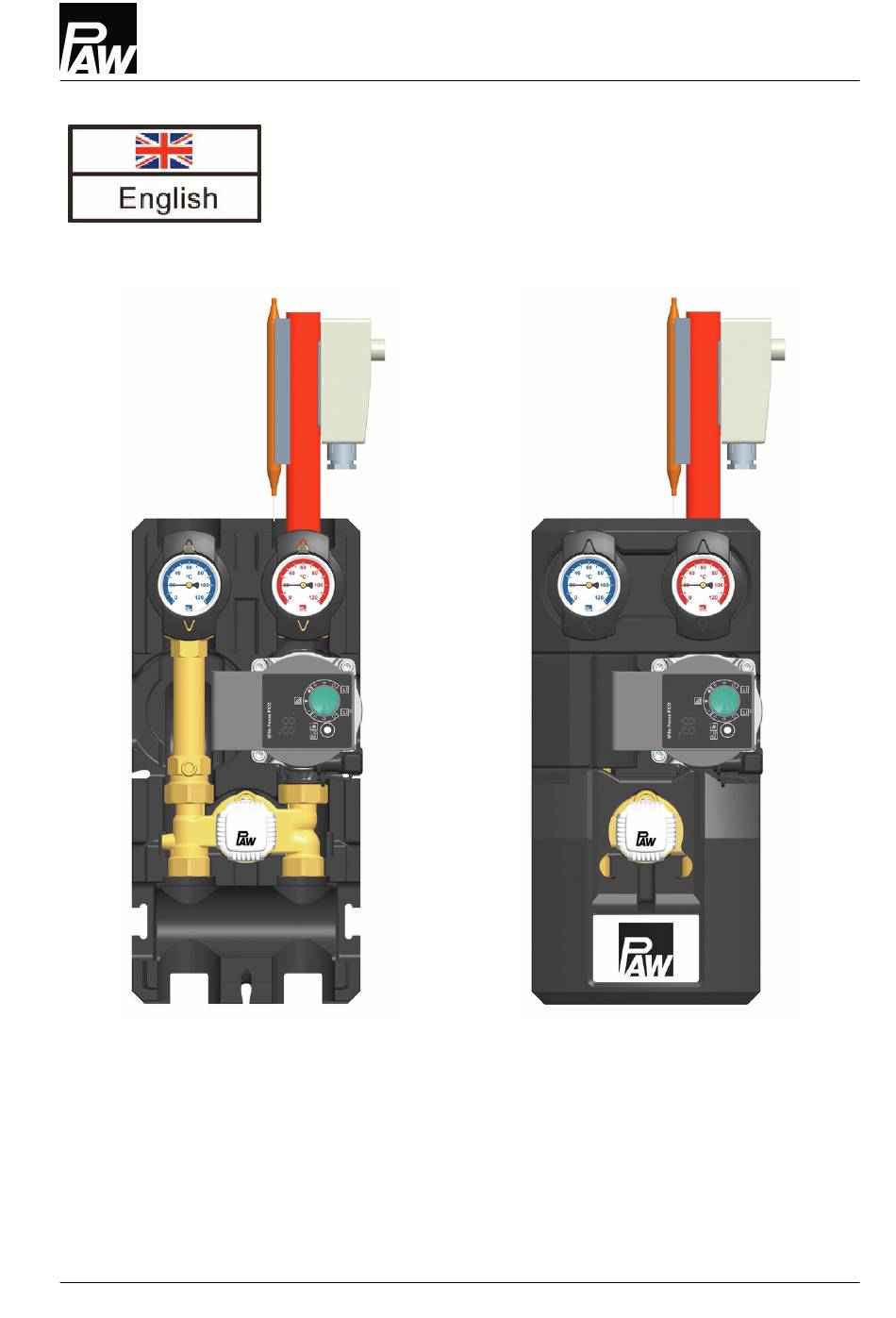

  • Page 1 PAW GmbH & Co. KG Böcklerstraße 11, 31789 Hameln, Germany Phone: +49-5151-9856-0, Fax: +49-5151-9856-98 E-mail: info@paw.eu, Web: www.paw.eu Installation and Operation Instructions HeatBloC® K33 - DN 20 05/2024 9932073x-mub-en - V15...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents General Information....................3 Scope of these instructions..................3 Designated use......................3 Safety instructions......................4 Product description....................5 Equipment........................5 Function........................6 3.2.1 3-way mixing valve with bypass [specialist]............7 3.2.2 Check valve......................... 10 Mounting and installation [specialist]..............11 Installation of the modular distribution manifold / of the wall bracket with mounting plate......................
  • Page 3: General Information

    Improper usage excludes any liability claims. This product complies with the relevant directives and is therefore labelled with the CE mark. The Declaration of Conformity is available upon request, please contact the manufacturer. Only use PAW accessories with the product. 05/2024 9932073x-mub-en - V15...
  • Page 4: Safety Instructions

    Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist].
  • Page 5: Product Description

    The PAW HeatBloC® is directly mounted onto a PAW distribution manifold or a mounting plate. With transition connections, PAW HeatBloC®s can also be mounted on PAW modular distribution manifolds of other dimensions.
  • Page 6: Function

    Product description 3.2 Function Controlled circuit with constant value 20-50 °C with 3‑way mixing valve and bypass 0-50% The flow temperature of the heating circuit is controlled by the integrated mixing valve. Hot water from the boiler and cold return water are mixed to obtain the desired flow temperature of the heating circuit.
  • Page 7: 3-Way Mixing Valve With Bypass [Specialist]

    Product description 3.2.1 3-way mixing valve with bypass [specialist] The 3-way mixing valve is a constant-value mixing valve for radiant panel heating systems (radiant floor heating, wall heating etc.) which are operated with a constant flow temperature and thus guarantee a basic heat supply. The desired flow temperature can be adjusted at the thermostatic head.
  • Page 8 Product description If the slot of the bypass screw is in a horizontal position, the bypass is completely open. A maximum flow rate from the return to the flow line is thus enabled. This adjustment may be necessary for radiant floor heating systems which require a very high water flow volume.
  • Page 9 A retrofitting without conversion kit leads to a malfunction of the mixing valve. Please specify the following information when ordering the conversion kit: Nominal diameter of the group of fittings (see designation of the pump) ● PAW item number or PAW designation ● Change from/to: ●...
  • Page 10: Check Valve

    Product description 3.2.2 Check valve The product is equipped with a check valve in the return pipe. The check valve can be opened. Operation During operation, the marking must be directed to "Z". The check valve is closed. ● Flow only in the direction of the arrow. ●...
  • Page 11: Mounting And Installation [Specialist]

    Mounting and installation [specialist] 4 Mounting and installation [specialist] The HeatBloC® can be mounted on a distribution manifold or on a wall bracket with mounting plate. The distribution manifold, the wall bracket and the mounting plate are not included in the scope of delivery.
  • Page 12: Installation And Commissioning Of The Heatbloc

    Mounting and installation [specialist] 4.2 Installation and commissioning of the HeatBloC® The HeatBloC® can be mounted Option 1: Option 2: on a PAW modular distribution manifold. on a mounting plate with transition thread connections. consumer circuit consumer circuit return flow...
  • Page 13 2. Unscrew the nuts on the lower connections of the HeatBloC® and take out the sealing rings. If a PAW modular distribution manifold or transition connection is used: Put the two nuts over the flanges. Insert the sealing rings into the nuts.
  • Page 14: Accessories: Cutting-Ring Compression Fitting (Not Included In The Scope Of Delivery)

    Mounting and installation [specialist] 4.3 Accessories: Cutting-ring compression fitting (not included in the scope of delivery) The connection to the heating installation can be carried out fast, pressure-proof and without soldering if you use the optionally available compression fittings. 1. Push the union nut ② and the cutting ring ③ onto the copper pipe ①.
  • Page 15: Scope Of Delivery [Specialist]

    Scope of delivery [specialist] 5 Scope of delivery [specialist] NOTICE Serial number Complaints and requests/orders of spare parts will only be processed with information on the serial number! The serial number is placed on the return pipe of the product. 05/2024 9932073x-mub-en - V15...
  • Page 16 Scope of delivery [specialist] Position Spare part Item number Thermometer ball valve DN 20, F ½" x ¾" int. thread N00202 Thermometer handle for thermometer ball valve 1" N00248 Dial thermometer, red scale, d = 50 mm, 0-120 °C N00242 Dial thermometer, blue scale, d = 50 mm, 0-120 °C N00243 Union nut G 1"...
  • Page 17: Technical Data

    Technical data 6 Technical data HeatBloC® K33 DN 20 (¾") Dimensions Centre distance (1) 90 mm Width insulation (2) 180 mm Height insulation (3) 385 mm Installation length (4) 255 mm Connections Outlet (A-1, F-1) ¾" internal thread Inlet (C-1, C-2) 1"...
  • Page 18: Pressure Drop And Pump Characteristic Curves

    Technical data HeatBloC® K33 DN 20 (¾") Materials Valves and fittings Brass Seals EPDM Insulation 6.1 Pressure drop and pump characteristic curves 9932073x-mub-en - V15 05/2024...
  • Page 19: Disposal

    Disposal 7 Disposal NOTICE Electrical and electronic devices must not be disposed of in the household waste. For your return, there are free collection points for electrical appliances and, if necessary, additional points of acceptance for the reuse of the devices in your area. The addresses can be obtained from your city or communal administration.
  • Page 20 Böcklerstraße 11 31789 Hameln, Germany Translation of the original instructions www.paw.eu We reserve the right to make technical changes without notice! Phone: +49-5151-9856-0 Printed in Germany – Copyright by PAW GmbH & Co. KG Fax: +49-5151-9856-98 05/2024 9932073x-mub-en - V15...
