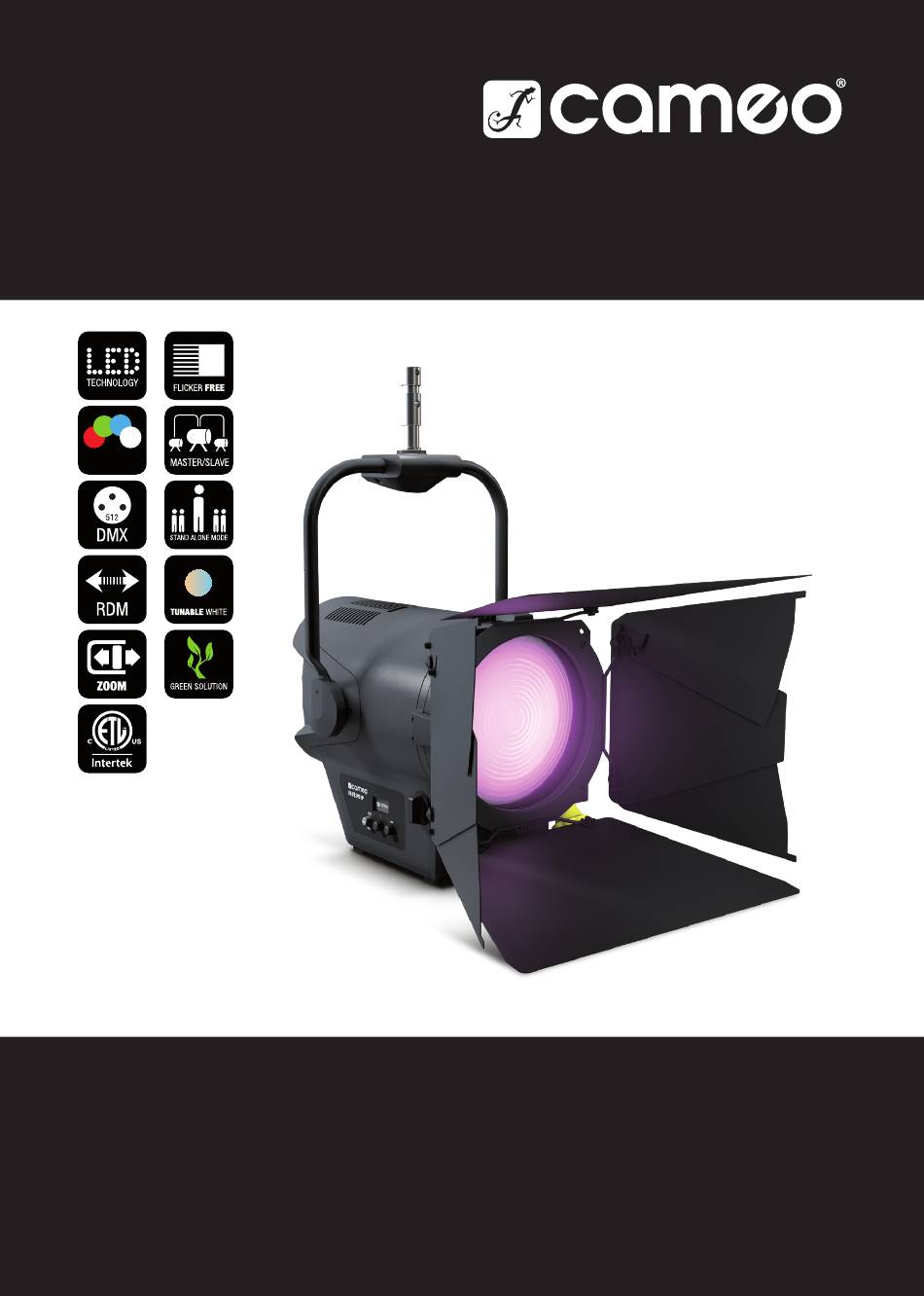

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D´UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D´USO RGB W V1.40 F4 FC PO IP65 POLE-OPERATED OUTDOOR FRESNEL SPOTLIGHT WITH RGBW LED CLF4FCPOIP...
- Page 2 CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH ESPAÑOL SAFETY INFORMATION MEDIDAS DE SEGURIDAD INTRODUCTION INTRODUCCIÓN CONNECTIONS, CONTROL AND DISPLAY ELEMENTS CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS OPERATION DE VISUALIZACIÓN USING THE OPERATING POLE FOR SETUP, INSTALLATION, AND FUNCIONAMIENTO CONFIGURATION COLOCACIÓN, MONTAJE Y AJUSTE MEDIANTE BARRA...
- Page 3 We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM.
- Page 4 33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction. 34. Please keep a distance of at least 0.5 m to any combustible materials. 35.
- Page 5 Always blanked with the corresponding rubber blanking cap if not used. POWER OUT TRUE1-compatible output socket to supply power to additional CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value. Always blanked with the corre- sponding rubber blanking cap if not used.
- Page 6 NOTE • As soon as the spotlight is correctly connected to the power mains, “Welcome to Cameo”, the model designation, and then the software version are displayed in sequence on the display as part of the startup process. Once the process is complete, the spotlight is ready for use and resumes whichever mode was most recently activated.
- Page 7 SETTING THE DMX MODE (DMX Mode) Starting from the main display, press on the right push button rotary encoder to move to the main menu. Rotate the left encoder (SELECT) to select the "DMX Mode" menu item (as indicated by selector arrow on left) and confirm by pressing the left encoder (ENTER). You can now select the desired DMX mode by rotating the left encoder.
- Page 8 STAND-ALONE MODE DIRECT LED (RGBW color mix) Starting from the main display, press on the left push button rotary encoder to move to the mode selection menu. Rotate the left encoder (SELECT) to select "Direct LED" mode (as indicated by selector arrow on left) and confirm by pressing the left encoder (ENTER). The total brightness and intensity levels for R, G, B and W can now be configured using the three push button rotary encoders (see illustration).
- Page 9 STAND-ALONE MODE USER COLOR (Individual color presets 1 - 8) Starting from the main display, press on the left push button rotary encoder to move to the mode selection menu. Rotate the left encoder (SELECT) to select "User Color" mode (as indicated by selector arrow on left) and confirm by pressing the left encoder (ENTER). Now select one of the 8 preset but customizable user colors by rotating the left encoder.
- Page 10 You should now set the desired color as described in the instructions for the respective stand-alone mode and then confirm by pressing on the left encoder (ENTER/Save). STAND-ALONE MODE PLAY LOOP (8-step color sequences 1 - 8) Starting from the main display, press on the left push button rotary encoder to move to the mode selection menu. Rotate the left encoder (SELECT) to select "Play Loop"...
- Page 11 SLAVE MODE Starting from the main display, press on the left push button rotary encoder to move to the mode selection menu. Rotate the left encoder to select the “Slave” menu item (as indicated by selector arrow on left) and confirm by pressing the encoder (ENTER). Slave mode is now activated and the main display is automatically shown again.
- Page 12 Linear Light intensity increases linearly with DMX value Light intensity can be finely adjusted at lower DMX Exponential values and broadly adjusted at higher DMX values Light intensity can be broadly adjusted at lower Dimmer Curve Dimmer curve Logarithmic DMX values and finely adjusted at higher DMX values Light intensity can be finely adjusted at lower and S-Curve...
- Page 13 DIMMER CURVES linear exponential logarithmic S-curve DMX value DMX value DMX value DMX value SYSTEM INFORMATION (System Info) Starting from the main display, press on the right push button rotary encoder to move to the main menu. Rotate the left encoder (SELECT) to select "System Info"...
- Page 14 USING THE OPERATING POLE FOR SETUP, INSTALLATION, AND CONFIGURATION Thanks to its four plastic feet, the spotlight can be placed in a suitable location on a flat surface. Install on a crossbeam using the integrated 28 mm TV spigot (A) and a suitable crossbeam clamp (not supplied). Make sure that the spotlight is firmly attached and secure it using a suitable safety cable on the designated location on the top of the spotlight (B).
- Page 15 DMX TECHNOLOGY DMX-512 DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN"...
- Page 16 TECHNICAL SPECIFICATIONS Article number: CLF4FCPOIP Product type: Outdoor LED spotlight Type: Pole-operated Fresnel spotlight with zoom function Color spectrum: RGBW (CCT 1600 K – 6500 K) CRI: Number of LEDs: 1 LED array (Rx30, Gx30, Bx24, Wx68) LED type: 570 W LED PWM frequency: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25 kHz (adjustable) Beam angle:...
- Page 17 MANUFACTURER´S DECLARATIONS MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTU- RERS-DECLARATIONS_CAMEO.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: Info@adamhall.com / +49 (0)6081 / 9419-0. CORRECT DISPOSAL OF THIS PRODUCT (valid in the European Union and other European countries with a differentiated waste collection system) This symbol on the product, or on its documents indicates that the device may not be treated as household waste.
- Page 18 DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STE- ROWANIE DMX / CONTROLLO DMX 1CH DIM 2CH DIM 16 Bit Function Values User Color 1 User Color 1 Dimmer 0% to 100% Dimmer fine 0% to 100% 4Ch CCT 2CH CCT Function...
- Page 19 Halogen white (3200K) 3200K -> 4000K Neutral white (4000K) 4000K -> 5600K Color Temperature Studio white (5600K) (affects RGB and HSI) 5600K -> 6500K Daylight white (6500K) 6500K -> Cold daylight Cold daylight Magenta -> neutral Tint (Affects Color Temperature) Neutral Neutral ->...
- Page 20 Warm white Warm white -> 2700K Bulb white (2700K) 2700K -> 3200K Color Tempe- Halogen white (3200K) rature 3200K -> 4000K (affects Neutral white (4000K) RGBW and 4000K -> 5600K HSI) Studio white (5600K) 5600K -> 6500K Daylight white (6500K) 6500K ->...
- Page 21 323 Jade 354 Special Steel Blue 116 Medium Blue-Green 183 Moonlight Blue 132 Medium Blue 119 Dark Blue 716 Mikkel Blue 71 Tokyo Blue 181 Congo Blue 799 Special KH Lavender 707 Ultimate Violet 343 Special Medium Lavender 798 Chrysalis Pink Color Presets 701 Provence (overrides...
- Page 22 LED Frequency 2000Hz (hold 3s) LED Frequency 4000Hz (hold 3s) LED Frequency 6000Hz (hold 3s) LED Frequency 25kHz (hold 3s) RAW (hold 3s) Calibrated (hold 3s) User Calibrated (hold 3s) Smart Calibration (hold 3s) Display on (hold 3s) Display off (hold 3s) Device Device No function...
- Page 24 CAMEOLIGHT.COM Adam Hall GmbH Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | United Kingdom REV: 05...
