Summary of Contents for EOS SBM-GLT-MOD

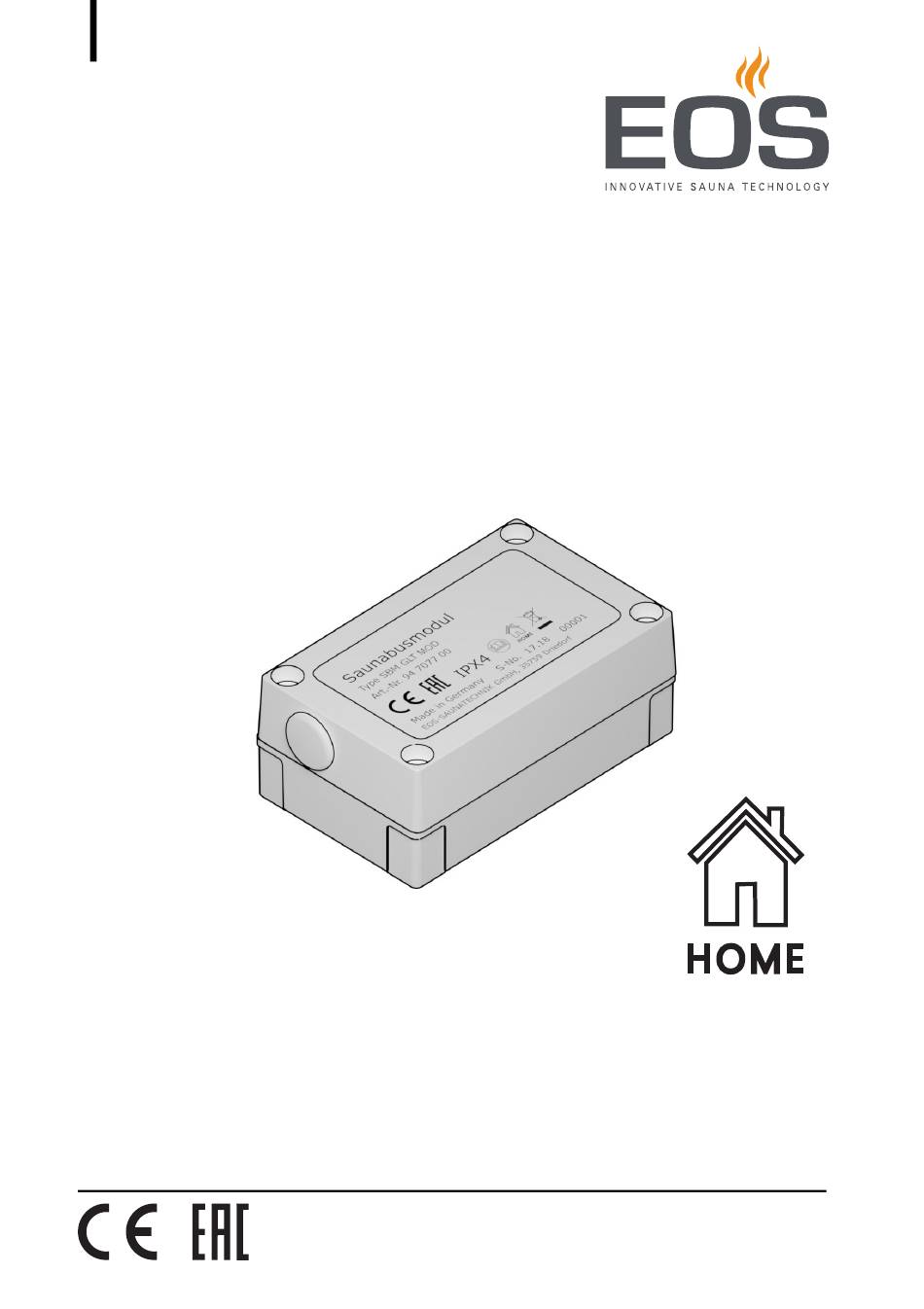

- Page 1 SBM-GLT-MOD Modbus Home module for building management systems Installation and Operating Instructions Made in Germany Druck-Nr.: 2902 5022 Stand: 16/2019...
-
Page 2: Documentation
Result of a step Table title Title of figure Revision history Date Version Description 6 May 2019 01.10 Programming of the cabin address has changed 1 Feb. 2019 01.00 First version Installation and Operating Instructions - SBM-GLT-MOD... -
Page 3: Table Of Contents
Parameters and values ................23 Emotec, EmoStyle, EmoStyle i, Emotec IR, InfraStyle, InfraStyle i data communication................... 23 EmoTouch 3 data communication............27 5 General terms and conditions of service ..........28 6 Disposal ........................31 SBM-GLT-MOD - Installation and Operating Instructions... -
Page 4: General Safety Instructions
CAUTION Caution Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Notice Indicates a hazardous situation which, if not avoided, will result in damage to the unit. Installation and Operating Instructions - SBM-GLT-MOD... -
Page 5: Mounting And Electrical Installation
Refer also to the installation instructions for the units to which you connect the SBM-GLT-MOD. See also: 2.2 Intended use, 10 Risk to life and limb and risk of fire Risk to life and limb from electric shock and fire in the event of im- proper or faulty electrical connection. -
Page 6: Operator Instruction
Spending time in a sauna cabin, infrared cabin or steam room can lead to serious health risks or even death for persons with health impairments. Persons with health impairments must consult a doctor before using a sauna cabin, infrared cabin or steam room. Installation and Operating Instructions - SBM-GLT-MOD... - Page 7 Children and persons who have not received proper instruction must not clean or service the system. SBM-GLT-MOD - Installation and Operating Instructions...
-
Page 8: Standards And Regulations
Electromagnetic compatibility – Requirements for household appliances, electric tools and similar appa- ratus – Part 1: Emission DIN EN 55014-2 Electromagnetic compatibility – Requirements for household appliances, electric tools and similar appa- ratus – Part 2: Immunity Installation and Operating Instructions - SBM-GLT-MOD... -
Page 9: Identification
Identification Identification The Modbus sauna bus module for building management systems (SBM- GLT-MOD – also referred to as the SBM-GLT-MOD) is used to connect sauna cabins, infrared cabins and steam rooms to a building management system. Unit specifications Nameplate The nameplate is attached to the front of the upper part of the housing. -
Page 10: Intended Use
Check the software version of your control panel. Perform an update if nec- essary. Intended use The SBM-GLT-MOD is intended to be connected to a building management system. In conjunction with a suitable control unit, it serves to remotely control selected functions in sauna cabins, infrared cabins and steam rooms. -
Page 11: Description Of The Unit
This enables monitoring of individual cabins or a complete multi-cabin installation. In a multi-cabin installation, a SBM-GLT-MOD is connected for each cabin. The SBM-GLT-MOD transfers data between the sauna bus and the Modbus in both directions. Its use is configured using the building management system. -
Page 12: Housing
Modbus communication is based on the master/slave architecture. This is an open protocol and is considered an industry standard. The Modbus-RTU operating mode is supported during data transfer from the SBM-GLT-MOD. Each unit in the network must have its own address but all units must have the same serial parameters for baud rate, stop bits and parity. -
Page 13: Function Codes
Light Current sauna light setting in 0 to 100 Tempera- Current temperature in °C 30 to 115 ture Humidity Current humidity in % 0 to 100 6 to 99 Reserve These parameters are read-only. SBM-GLT-MOD - Installation and Operating Instructions... - Page 14 Cabin lighting setpoint in % 0 to 100 point Tempera- Temperature setpoint in °C 30 to 115 ture set- point Humidity Humidity setpoint in % 0 to 100 setpoint These parameters offer read and write access. Installation and Operating Instructions - SBM-GLT-MOD...
-
Page 15: Installation Examples
100nF/50V 100nF/50V 1uF/50V ADUM1250 SMBJ33A ACPL214 KIMAIP A Building C PLC (programmable logic E HMI (human management controller) machine interface) system D Circuit board/SBM-GLT- B Modbus gateway Installation with monitoring and switch functions SBM-GLT-MOD - Installation and Operating Instructions... -
Page 16: Circuit Boards
D S-Bus connection connection E LEDs for S-Bus status display B Terminals for Modbus bus F Programming button for S-Bus cabin C Lower circuit board for S-Bus address connection Circuit boards in the SBM-GLT-MOD Installation and Operating Instructions - SBM-GLT-MOD... -
Page 17: Mounting And Electrical Installation
Mounting on a fixed wall: Screws 4 x 25 mm and suitable anchors The SBM-GLT-MOD is mounted on the outer wall of the cabin or in the util- ity room. The maximum cable length between the relay box and the SBM- GLT-MOD is 10 m. - Page 18 Mounting and electrical installation Attach the bottom piece to the mounting location using the screws pro- vided. Bottom piece of SBM-GLT-MOD housing Wiring the connections Feed the connection cable through the opening on the top piece of the housing.
-
Page 19: Connecting The Modbus Home-Modul With The S-Bus
On the circuit board of the relay box or add-on module, you will find 2 connection jacks for the S-Bus lines. Four connection jacks are provided with the SteamRock Premium. Sample installations: In a standard installation, the control panel and the SBM-GLT-MOD are plugged into the relay box. S-Bus S-Bus... -
Page 20: Connecting The S-Bus Cable To The Relay Box Or Module20
In the case of a multi-cabin installation with the EmoTouch 3 control panel, the SBM-GLT-MOD must be installed in the same S-Bus segment as the relay box that is to be controlled. It may also be necessary to use an S-Bus plug-in module. -
Page 21: Configuring Addresses For Multi-Cabin Installations
You only need to configure S-Bus addresses in a multi-cabin installation with an EmoTouch 3 control panel. The S-Bus address of the cabin you want to control must be configured in the SBM-GLT-MOD for this purpose. The Emotec, EmoStyle, EmoStyle i, Emotec IR, InfraStyle and InfraStyle i always require the cabin address 1. - Page 22 To ensure that the address has been configured successfully, search for the M.- HOME entry in the Firmware version menu of the EmoTouch 3 control panel. If the M.-HOME entry exists, the SBM-GLT-MOD was detected successfully. If the M.-HOME entry is not displayed, repeat the programming step.
-
Page 23: Parameters And Values
Emotec, EmoStyle, EmoStyle i, Emotec IR, InfraStyle, InfraStyle i data communication When the building management system and the SBM-GLT-MOD are con- nected, you must define the transfer protocol. Familiarity with the general operating functions of the individual connected control panel is assumed. - Page 24 InfraStyle, InfraStyle i: Press and hold the Enter icon. Setting °C 09:01 Enter code 5349 and confirm. Code Setting Code 5349 09:11 Increase or decrease the individual numbers and confirm. Confirmed numbers appear green. Installation and Operating Instructions - SBM-GLT-MOD...
- Page 25 Mounting and electrical installation : Select and confirm. Home °C 11:51 : Select and confirm. Home Modbus 11:51 Confirm your entry with Home activate 11:51 SBM-GLT-MOD - Installation and Operating Instructions...
- Page 26 19200 08:21 08:21 Modbus Modbus Setting Setting Parity Stop bits NONE 08:21 08:21 After you confirm the final value, all set values are applied. The selection HOME is shown again on the display. Installation and Operating Instructions - SBM-GLT-MOD...
-
Page 27: Emotouch 3 Data Communication
Mounting and electrical installation EmoTouch 3 data communication When the building management system and the SBM-GLT-MOD are con- nected, you must define the transfer protocol. Familiarity with the general operating functions is assumed. Configuring the transfer protocol Select the cabin. -
Page 28: General Terms And Conditions Of Service
The customer shall provide assistance free of charge to the manufacturer in rendering services. In the case of a warranty claim, the manufacturer shall provide replace- ment parts necessary for servicing free of charge. Installation and Operating Instructions - SBM-GLT-MOD... - Page 29 This warranty shall cover defective equipment parts, with the exception of normal wear parts. Wear parts shall include, for example, light sources, glass elements, tubular heating elements and sauna heater stones. SBM-GLT-MOD - Installation and Operating Instructions...
- Page 30 The manufacturer’s General Terms and Conditions of Business, in the ver- sion available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service. Installation and Operating Instructions - SBM-GLT-MOD...
-
Page 31: Disposal
Do not dispose of the unit with household waste. Packaging The packaging of the SBM-GLT-MOD can be completely separated for dis- posal and recycled. The following materials are used in the packaging: Used paper/cardboard ... - Page 32 Store this address with the Installation and Operating Instructions in a safe place. Please always provide us with nameplate data, such as model, item num- ber and serial number so we can provide fast and efficient support. Date of sale Stamp/retailer signature: © EOS Saunatechnik GmbH - All rights reserved.
