DVR16 = DVR16M – DIGITAL MULTIPLEX RECORDER
1. Introduction
Thank you for choosing the DVR16M. It converts analogue NTSC or PAL video to digital images and records them
on a removable hard disk drive. Digitally recorded video has several advantages over analogue video recorded on
tape. There is no need to adjust tracking. Digital video can be indexed by time schedule or events and you can
instantly view video after selecting the time or event. You can freeze frames, fast-forward, fast-reverse, slow-forward
and slow-reverse without image streaking or tearing. It can be used as a replacement for both a time-lapse VCR and
a multiplexer in a security installation. Read the manual carefully before bringing this device into service.
a) Safety Prescriptions
• Handle this device with care.
• Do not expose this device to direct sunlight.
• Do not use this device near water and protect it against any possible contact with water.
• Do not unplug the power connector before you've correctly switched the device off.
• Use this device solely with the included power adapter.
• Unauthorised attempts to repair may result in fire, electroshock or other hazards.
• This device should be installed and serviced by a qualified person and conform to all local codes.
• Do not switch the power ON and immediately (± 3 sec.) OFF again.
• Use a type of power source as indicated on the manufacturer's label.
b) Features
• Thanks to the wavelet compression format, this device replaces both a time-lapse VCR + a multiplexer.
• 4 audio inputs ; 1 audio output (left-right).
• OSD (on-screen display) and RTC (real-time clock) functions

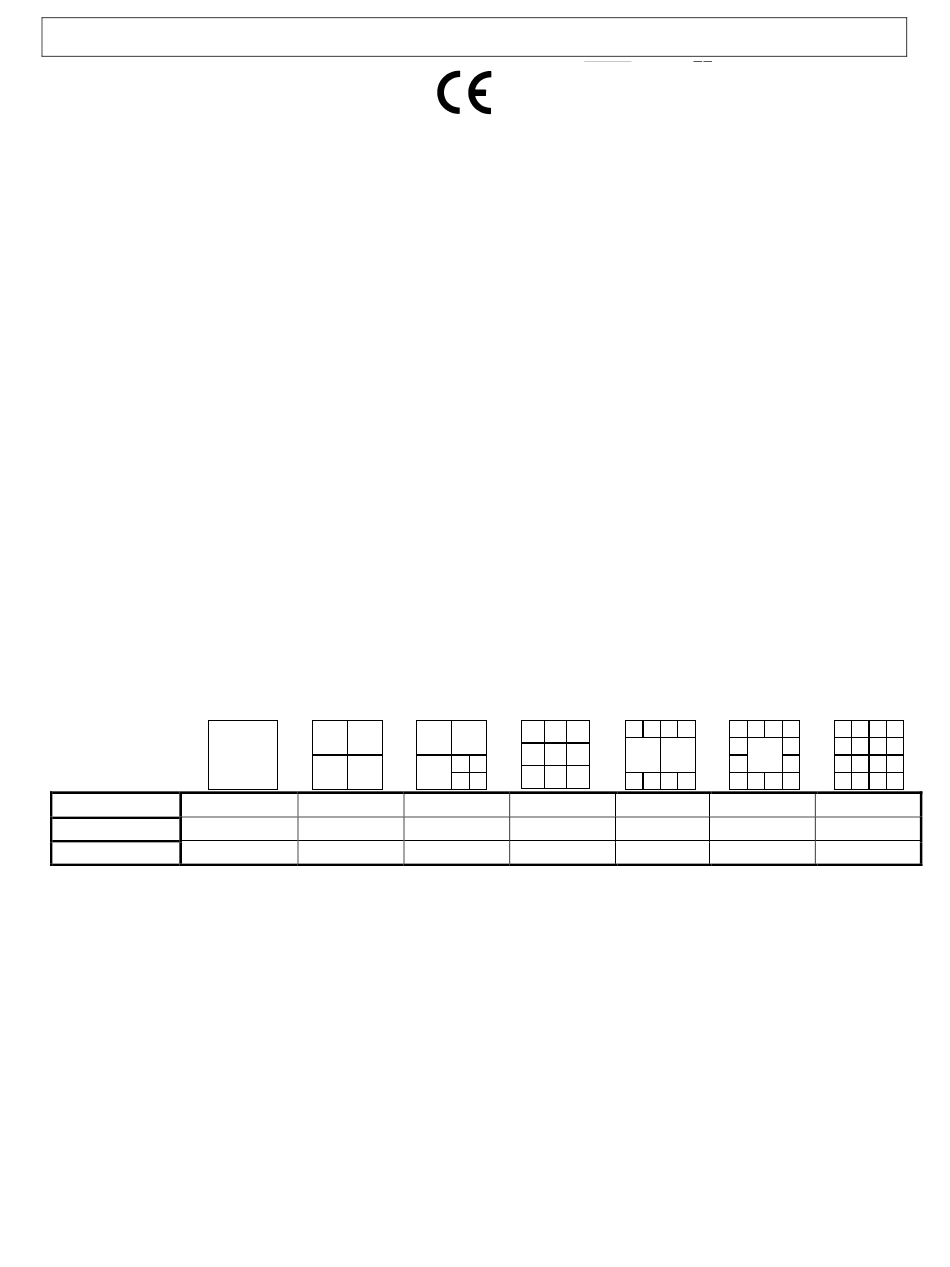

• Multi screen display mode (available during both surveillance and recording/playback):
full screen
Mode
NTSC resolution 704x468 (HxV) 352x234 (HxV)
PAL resolution
704x564 (HxV) 352x282 (HxV)
• Independent main and call monitor outputs allow for simultaneous multi-camera and full screen viewing.
• Picture-in-Picture (PIP) and 2x2 zoom available in both live & playback mode.
• 16 channels ; each channel has its own name (max. 6 characters).
• Video quality adjustable on each channel.
• 16 channels alarm input, ALARM display & 1 alarm output.
• Power loss memory function: set-up will be memorized in case of power failure.
• Supports 2 removable HDD, IDE type
• Timer for scheduled recording
• Display refresh rate up to 72 IPS NTSC / 60 IPS PAL ; record refresh rate up to 15 IPS NTSC / 12 IPS PAL.
• Quick-search mode: search a fragment by time, event or alarm list.
• Fast forward or reverse from 2X up to 32X and slow forward or reverse from 1/2X to 1/32X.
• Password protectionRS232 and RS485 communication protocol.
DVR16M
quad
7CH
1
9CH
10CH
224x156 (HxV)
224x188 (HxV)
13CH
16CH
176x117 (HxV)
176x141 (HxV)
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR16 and is the answer not in the manual?

Questions and answers

Summary of Contents for AV Tech DVR16

  • Page 1 DVR16 = DVR16M – DIGITAL MULTIPLEX RECORDER 1. Introduction Thank you for choosing the DVR16M. It converts analogue NTSC or PAL video to digital images and records them on a removable hard disk drive. Digitally recorded video has several advantages over analogue video recorded on tape.

  • Page 2: Specifications

    c) Specifications Video Format NTSC/EIA or PAL/CCIR HDD Storage IDE type, UDMA 66 or above, 2 removable HDDs supported Record Mode manual / alarm / timer Search Function Date & time / event / alarm searching Camera Input Signal Composite video signal 1Vp-p/75Ω BNC, 16 channels Camera Loop Back Composite video signal 1Vp-p/75Ω...
  • Page 3 b) Connection with cameras c) Rack Mount Installation The device can be mounted in a rack with the optional mounting equipment. Fix the smallest side of the mounting plates (with the small holes) to the device (screw holes are provided at the sides) and then fix the device to the rack. d) RS232 Remote Protocol You can use the PC keyboard to simulate the DMR keypad.
  • Page 4 3. Configuration a) Installing HDD 1) HDD Description 1. Handle of the HDD tray 2. Tray lock: In position A (cf. drawing on the right), the tray is locked and cannot be removed. In position B, the tray is unlocked and can be removed. The key lock must be in position A before you switch on the device, if not the hard disk drive cannot be used in a regular way.
  • Page 5 PAL SYSTEM rec. Best 48hr 100hr 202hr 406hr 608hr 1216hr quality High 60hr 126hr 254hr 506hr 760hr 1520hr Normal 98hr 202hr 406hr 810hr 1216hr 2440hr Basic 162hr 336hr 676hr 1350hr 2026hr 4050hr HDD type 240GB b) Control Panel Description 1. HDD trays: behind the plastic door are the 2 HDD trays.
  • Page 6 c) Back Panel Description 1. LOOP connectors: bring the channel input signal out again to connect to an additional VCR, monitor etc. 2. VIDEO IN: to connect a video source such as a camera. 3. 75/HI switches: set these switches to the right position for the destination device when using the loop function. 4.

  • Page 7: System Setup

    PIN 5: ALARM INPUT 2: By connecting ALARM INPUT 2 (pin 5) to GND (pin 1), the DVR16M will start recording and the buzzer will be on. Triggering depends on the set level (high/low) under Menu/Camera/Alarm. PIN 6: ALARM INPUT 16: By connecting ALARM INPUT 16 (pin 6) to GND (pin 1), the DVR16M will start recording and the buzzer will be on.

  • Page 8: Audio Input Set-Up

    b) System Menu (MENU) SEARCH Press the MENU button on the front of the device, enter the TIMER password and confirm it by pressing ENTER (cf. "4a: Open Main RECORD Menu" on p.7) CAMERA ► SYSTEM EVENT Press"or!until 'SYSTEM' is selected (cf. figure on the right). (System) ►...
  • Page 9 5) DWELL TIME Set-Up 1. Press"or!to choose DWELL TIME and the ENTER button to open the menu. 2. Press"or!to set the dwell time (period each channel is sequentially shown on the monitor): 01~10 SEC. 3. Press MENU to confirm the current set-up and return to the previous menu. 4.

  • Page 10: Remote Mode Set-Up

    12) SYSTEM RESET Set-Up 1. Press"or!to choose SYSTEM RESET and the ENTER button. 2. Press"or!to choose SYSTEM RESET: YES/NO. Yes: to reset the system (Time & Password set-up will not be changed). not to reset the system. 3. Press MENU to confirm the current set-up and return to the previous menu. 4.
  • Page 11 1) Last Recording Press "or!to select 'LAST RECORD' and press ENTER to play the last recording. 2) Full list of recordings Press "or!to select 'FULL LIST'. Press ENTER to obtain the ► M 2002-JAN-01 01:02:03 M-HDD full list and a screen as shown on the right will be displayed. M 2002-JAN-01 01:02:03 M-HDD Press #or$ to switch pages (8 events per page) and select the A 2002-JAN-01 01:02:03 M-HDD...
  • Page 12 d) Timer Programming (Menu) 1) Enter "Timer" Menu SEARCH ► TIMER RECORD Press the MENU button on the front of the device, enter the CAMERA password and confirm it by pressing ENTER (cf. "4a: Open Main SYSTEM Menu" on p. 7) EVENT Press"or!until 'TIMER' is selected (cf.
  • Page 13 e) Recording Mode Set-Up 1) Enter "RECORD" menu (MENU) Press the MENU button on the front of the device, enter the SEARCH password and confirm it by pressing ENTER (cf. "4a: Open Main TIMER ► RECORD Menu" on p. 7) CAMERA SYSTEM EVENT...

  • Page 14: Camera Setup

    f) CAMERA Set-up 1) Enter CAMERA Menu (MENU) SEARCH TIMER Press the MENU button on the front of the device, enter the RECORD password and confirm it by pressing ENTER (cf. "4a: Open Main ► CAMERA SYSTEM Menu" on p. 7) EVENT Press"or!until 'CAMERA' is selected (cf.
  • Page 15 5) Alarm Polarity Set-Up 1. Press#or$ to select the alarm polarity setting. 2. Press"or!to set the alarm polarity LOW / OFF / HIGH. 3. Press MENU to confirm the current set-up and return to the previous menu. 4. Press MENU again to exit and close the alarm menu. 6) Alarm Recording Mode Set-Up 1.
  • Page 16 Pressing 'ZOOM' will turn all targets in the current row ON of OFF (see below - ex: row 6) Pressing the PIP button ( ) will turn all targets on the screen ON or OFF (see below). 3) Set Sensitivity Press the "SLOW"...

  • Page 17: Event List

    h) Event List (MENU) SEARCH TIMER Press the MENU button on the front of the device, enter the RECORD password and confirm it by pressing ENTER (cf. "4a: Open Main CAMERA Menu" on p. 7) SYSTEM ► EVENT Press"or!until 'EVENT' is selected (cf. figure on the right). Press ENTER to see the entire 'list of events'.
  • Page 18 1) Alarm Recording When the DVR16M receives an alarm input, it will start to record immediately. The recording speed & quality will be as set in the alarm recording mode set-up. 2002 - JAN - 01 01:02:03 The screen will be as displayed on the right. A ●...
  • Page 19 e) Picture-in-Picture (PIP) 1. Press to select the PIP screen: a full screen 'background' channel with a 1/16 size screen insert. 2. Press one of the channel selection buttons to select the desired channel for the insert screen. 3. Press the SELECT button and then #or $ to move the insert screen. 4.

  • Page 20: Troubleshooting

    6. Troubleshooting What may appear to be a malfunction of the device may not be that serious at all and can be easily corrected. Check the table below before contacting your DVR16M dealer. PROBLEM SOLUTION HDD not found Make sure a HDD is inserted and connected and that the HDD tray is locked.
