ALLLED AiQ/DALI/0/1-10V SMART-DALI Installation Manual

Returns & Faulty Items
• If any problem is encountered during or after installation, please call the ALL LED technical
department to get the problem resolved as soon as possible.
• Please do not just return the item to the outlet you purchased it from, as you are only entitled to
a replacement or refund after the unit has undergone testing and the unit has been confirmed as
having a manufacturing defect/fault. Your statutory rights are not affected.
• The manufacturer will not be deemed liable or held responsible for any damages caused by faults
or manufacturing defects that may be present in any of its products or the misuse or incorrect
installation of this device. Please refer to our troubleshooting guide for further information.
• All goods are supplied under the terms and conditions of ALL LED LTD, a copy of which may be
obtained upon written request.
General Information
• Interference may occur with other products on the same frequency of 2.4Ghz
• Product may differ in colour from image on box
• Range signal can be reduced when using within materials such as concrete & metal

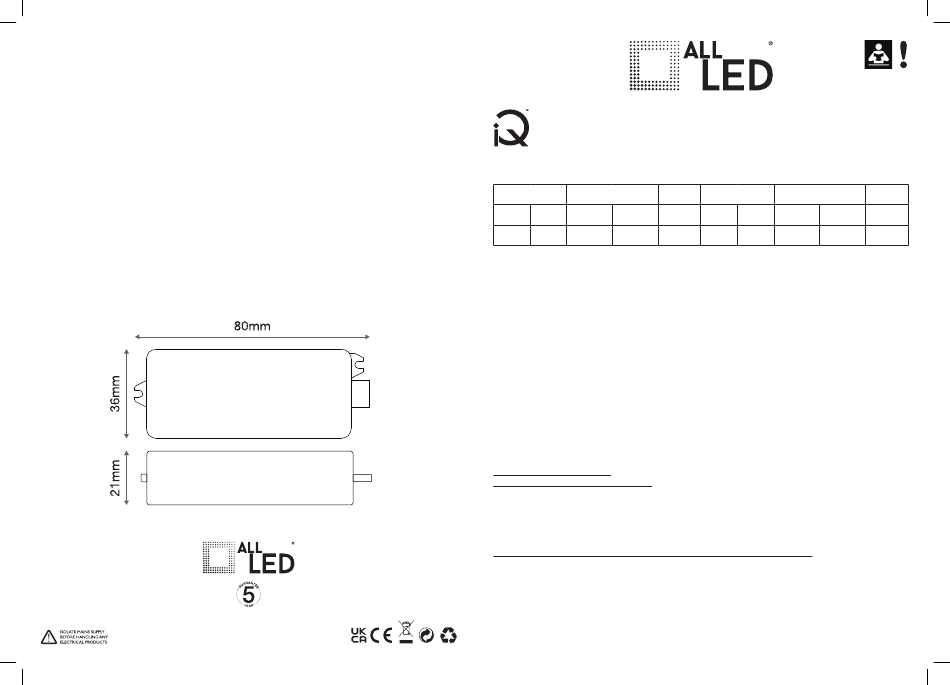

Dimensions
Environmental Protection
Waste electrical products should
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your
Local Authority or retailer for
recycling advice
The manufacturer will not be deemed liable or held responsible for any damages
caused by faults or manufacturing defects that may be present in any of its products
or the misuse or incorrect installation of this device
Your statutory rights are not affected.
Technical Specifications
Input
Transmission
Power
Frequency
110-240 Zigbee
VAC 2.4GHz
• DALI signal or 1-10V signal output selectable by DIP switch
• Built-in DALI bus power supply, no extra DALI bus PS required
• With max. 50mA DALI bus power current output
• To supply control current to up to 25 DALI control gears
• DALI DT6 or DT8 device type selectable by DIP switch under
DALI mode
• Colour control according to DALI specifications of Device Type 8
• Colour type: Tc, XY coordinates, RGBW selectable by DIP
switches
• DALI address control mode or group control mode selectable by
DIP switch
• Can directly pair to a compatible ZigBee remote via Touchlink
• Compatible with universal ZigBee remotes
Pairing Instructions
Initial programming of an entire system can be done as simply as: Fusebox Lighting Breaker OFF
(5 Seconds), then ON.
Say "Alexa, add a device" or search on relevant app.
After the device has been added to a network successfully, a 3 minute window will open for find and
bind (for remotes)
Network Mode: 60 Seconds
Find and Bind (for remotes): 3 Minutes
If the 1 minute window elapses, simply switch the module on and off. It will enter network pairing
mode again.
Network Pairing Mode:
ALL LED LTD
Network mode automatically happens when the product is fi rst switched on.
42 Sedgwick Road,
Luton, LU4 9DT
This mode enables the user to connect the smart module to a network hub/gateway. This mode
www.allledgroup.com
sales@allledgroup.com
will last 1 minute or until a connection has been established. If successful, the lights will flash. Once
Tel: +44 (0)208 841 9000
the time limit has elapsed, the module will go into a normal state, with a 3 minute window to pair
any remotes. Once added to a network, the module must be factory reset if the network must be
changed.
INSTALLATION GUIDE
AiQ/DALI/0/1-10V
SMART-DALI
Output,
Output, DALI Output, Relay
0/1-10V
DALI PS DALI Current Switching
Current Current
Current Consumption Voltage
110-
Max. 50mA Max 4mA Max. 20mA Max. 5A
240VAC
• Supports self-forming ZigBee network without coordinator
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 ZigBee
green power remotes
• Enables to select the DALI address (00-63) to be controlled by
DIP switches
• Enables to select the DALI group (0-15) to be controlled by DIP
switches
• Enable to control 1 DALI Group of devices or 1 DALI Address on
DALI line
• Enable to control all devices on DALI line via broadcast
• Waterproof grade: IP20
PLEASE READ
BEFORE USE!
Environment Other
Operating Relative
Dimensions
Temperature Humidity
-20°C~ 80 x 36 x
8% to 80%
+50°C 20.5 mm
