Summary of Contents for JONARD TOOLS AMM-600

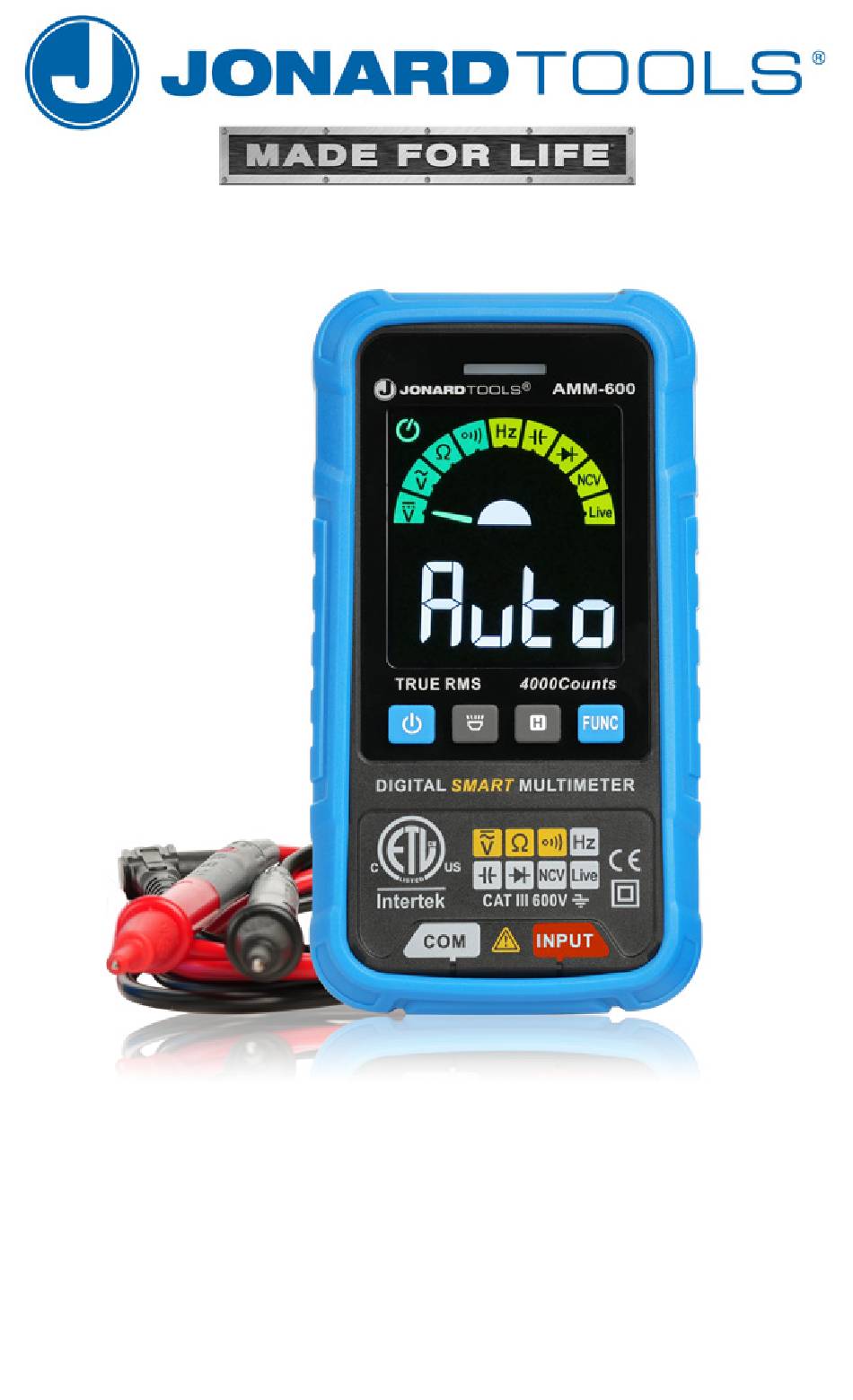

  • Page 1 AMM-600 600A AUTOMATIC INTELLIGENT DIGITAL MULTIMETER METER INSTRUCTION MANUAL...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Statement ..........1 Safety Instructions ..........1 Safety Specifications ..........1 Overview ............... 4 Operating Instructions .......... 5 Power On/Off ............5 Mode Selection ............5 Data Hold ..............5 Flashlight..............5 Backlight ..............5 Auto Power Off ............6 Measurement Operations ........
  • Page 3 Frequency Measurement .......... 9 Capacitance Measurement ........9 Diode Test ............... 9 Non-Contact AC Voltage Detection ......10 Live Wire Detecting ..........11 General Specifications ........11 Accuracy Specifications ........12 DC Voltage ............13 AC Voltage ............13 Diode/Continuity ............ 13 Resistance .............
  • Page 4: Safety Statement

    SAFETY STATEMENT CAUTION: Operation that may cause damage to meter or equipment. WARNING: Operation that may cause danger to users. SAFETY INSTRUCTIONS The meter conforms to IEC61010-1 CAT. III 600V overvoltage safety standard and pollution level 2. SAFETY SPECIFICATIONS WARNING To avoid possible electric shock or personal injury, please observe the following specifications: 1.
  • Page 5 AMM-600 Instruction Manual 3. Take special care when measuring values that exceed 60VDC, 30vac RMS, or 42V. This kind of voltage has the danger of electric shock. 4. Do not measure voltage higher than the rated value between terminals or between terminals and ground.
  • Page 6 10. When the “a” symbol is displayed on the meter, please replace the battery in time to prevent measurement error. 11. Do not use the meter in the environment with explosive gas or steam or humid environment. 12. When using the probe, please hold your fingers behind the probe finger guard.
  • Page 7: Overview

    AMM-600 Instruction Manual OVERVIEW This meter is an intelligent true RMS Digital Multimeter with mode display and analog bar display. Warning indicator Display Input jack Flashlight NCV Sensor area...
  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS POWER ON/OFF Press and hold the “ ” key for about 2 seconds to turn the power on or off. MODE SELECTION Press the “FUNC” key to manual mode; then press to shift position; press and hold the “FUNC” key for about 2 seconds to return to the intelligent (AUTO) measurement mode.
  • Page 9: Auto Power Off

    AMM-600 Instruction Manual AUTO POWER OFF After power on, auto power off will be on by default and “ ” symbol will be displayed. Without any key operation in about 15 minutes, the meter will automatically shut down to save battery energy.
  • Page 10: Professional Measurement

    can be measured, and the meter can automatically identify the measurement signal. 1. Press key to power on, display and enter the intelligent measurement mode. 2. Insert the red probe into “INPUT” jack and the black probe into the “COM” jack. 3.
  • Page 11: Resistance Measurement

    AMM-600 Instruction Manual Resistance measurement 1. Press key to power on, display and enter the intelligent measurement mode. 2. Press “FUNC” key to select “ ”. 3. Insert the red probe into “INPUT” jack and the black probe into the “COM” jack.
  • Page 12: Frequency Measurement

    Frequency measurement 1. Press key to power on, display and enter the intelligent measurement mode. 2. Press “FUNC” key to select “Hz”. 3. Insert the red probe into “INPUT” jack and the black probe into the “COM” jack. 4. Contact the probe to both ends of the measured power supply 5.
  • Page 13: Non-Contact Ac Voltage Detection

    AMM-600 Instruction Manual 2. Press “FUNC” key to select “ ”. 3. Insert the red probe into “INPUT” jack and the black probe into the “COM” jack. 4. The red probe contacts the anode of the diode and the black probe contacts the cathode of the diode.
  • Page 14: Live Wire Detecting

    Live wire detecting 1. Press key to power on, display and enter the intelligent measurement mode. 2. Press “FUNC” key to select “Live”. 3. Insert the red probe into “INPUT” jack and remove the black probe. 4. Use the red probe contact the conductor. 5.
  • Page 15: Accuracy Specifications

    AMM-600 Instruction Manual • Temperature coefficient: 0.1x accuracy/°C (<18°C or >28°C). • MAX.voltage between terminals and earth ground 600V • Sampling rate: approx. 3 times/second. • Display: 4000 counts • Over range indication: “OL”. • Low battery indication: “ ” will be displayed.
  • Page 16: Dc Voltage

    DC VOLTAGE Range Resolution Accuracy 400mV 0.1mV 0.001V ±(0.5% +3) 0.01V Impedance: Approx. 10MΩ 400V 0.1V 600V AC VOLTAGE Range Resolution Accuracy 0.001V ±(0.8%+3) Impedance: 0.01V Approx. 10MΩ 400V 0.1V Frequency Response: 40Hz~1kHz; TRMS 600V DIODE/CONTINUITY Display diode voltage drop Approx.
  • Page 17: Resistance

    AMM-600 Instruction Manual RESISTANCE Range Resolution Accuracy 400Ω 0.1Ω 4KΩ 0.001KΩ 40KΩ 0.01KΩ ±(1.0%+5) 400KΩ 0.1KΩ 4MΩ 0.001MΩ 40MΩ 0.01MΩ ±(1.5%+10) Overload protection: 250V CAPACITANCE Range Resolution Accuracy 0.001nF 40nF 0.01nF 400nF 0.1nF 4µF 0.001µF ±(4.0%+5) 40µF 0.01µF 400µF 0.1µF 0.001mF...
  • Page 18: Frequency

    FREQUENCY Range Resolution Accuracy 0.001Hz 40Hz 0.01Hz 400Hz 0.1Hz 4kHz 0.001kHz ±(1.0%+3) 40kHz 0.01kHz 400kHz 0.1kHz 4MHz 0.001MHz Overload protection: 250V MAINTENANCE CLEANING When cleaning the meter, please follow the following steps: 1. Turn off the meter power and remove the probes. 2.
  • Page 19: Battery Replacement

    AMM-600 Instruction Manual WARNING Always keep the inside of the meter clean and dry to prevent electric shock or damage to the meter. BATTERY REPLACEMENT 1. Turn off the meter power and remove the probes. 2. Remove the screw fixing the battery cover and remove the battery cover.
