T9 / T9 Apex
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T9 and is the answer not in the manual?

Questions and answers

Candace Koch
June 19, 2025

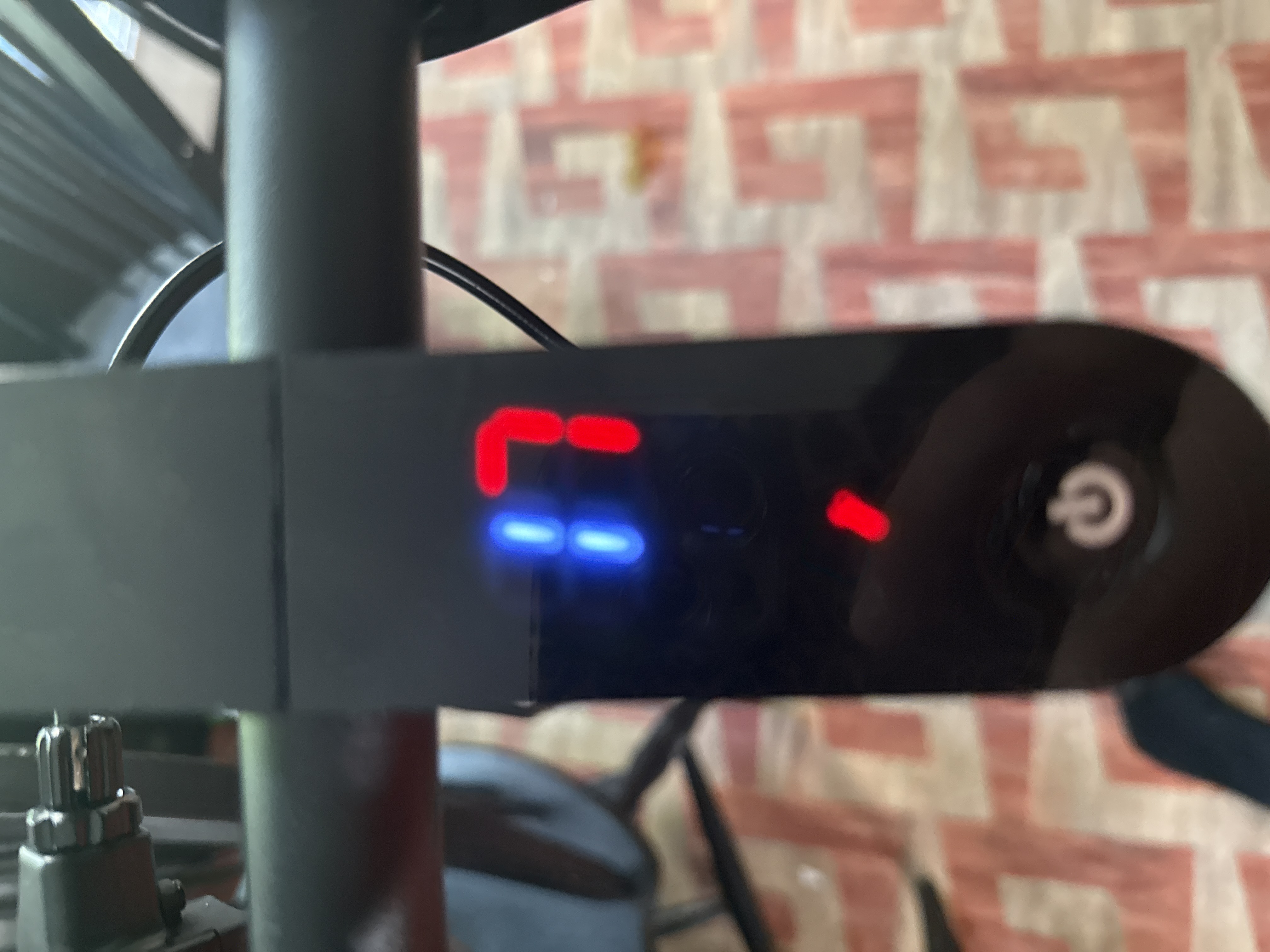

My scooter will not move when I’m pressing the accelerator but it will move when I manually move it

User image 6854951126462
0

Subscribe to Our Youtube Channel

Related Manuals for SmooSat T9

Summary of Contents for SmooSat T9

  • Page 1 T9 / T9 Apex OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Thank you for purchasing Thank you for purchasing SmooSat Electric Scooter. It is a sports and recreational vehicle with style. Contents 1. Package Contents ----------------------------------------------------------------------------- 02 2. Product Overview ------------------------------------------------------------------------- 03-04 3. Assembly and Set-Up --------------------------------------------------------------------- 05-06 4. Charge Your Scooter ------------------------------------------------------------------------- 07 5.

  • Page 3: Package Contents

    1 Package Contents Pre-Assembled Electric Scooter Owner’s Manual Quick Start Guide Accessories Charger 5mm Allen Wrench Carefully check package contents, if anything is missing or damaged, please contact support@ismoosat.com for help.

  • Page 4: Product Overview

    2 Product Overview Throttle Power Cut-off Hand Brake Charger Port Rear-Fender Brake Hub Motor Kick Stand Rubber Wheel Ambient Light (for T9 Apex only) Folding Mechanism Blutooth Speaker (for T9 Apex only)
  • Page 5 Throttle Instruction E(Economical): Max Speed - 7.5 mph Battery Level Display N(Normal): Max Speed - 10 mph S(Sport): Max Speed - 12.5 mph Ambient Light Icon Speed Ambient Light Button ON/OFF Button Press and hold for 2 seconds to ON/OFF. Press and hold for 2 seconds to turn on/off the light.

  • Page 6: Assembly And Set-Up

    3 Assembly and Set-Up 1. To release the folding mechanism, 2. Using the 5 mm Allen Wrench loosen place the scooter on the ground, push the the handlebar clamp. release lever down to unfold the scooter. 3. Insert the handlebar with the throttle 4.
  • Page 7 5. To adjust the height of the handlebar, 6.The tension of the quick-release lever open the quick-release lever and slide can be adjusted by manually tightening the T-bar to the desired position and or loosening the Allen bolt. Be careful resecure the quick-release lever to lock not to overtighten.

  • Page 8: Charge Your Scooter

    4 Charge Your Scooter NOTE: Plug the charger plug into wall outlet,the light on the charger should be green. The light on the charger should turn red during charging. When the charging is completed the light will turn green again. The battery will be fully charged after 3.5 hours.

  • Page 9: Pairing Your Bluetooth Device

    To pair with a Bluetooth device Follow these steps: 1. Make sure both the Bluetooth® function in your device and the scooter are turned on. 2. On your device, locate the Bluetooth® device list. Select “SmooSat T9 Apex” from the list . Speaker...

  • Page 10: How To Ride And Stop

    6 How to Ride and Stop Always wear proper protective equipment, such as an approved safety helmet (with chin strap securely buckled), elbow pads, and kneepads. A helmet may be legally required by local law or regulation in your area. A long-sleeved shirt, and long pants are recommended.
  • Page 11 2. Step on the deck with one foot, and 3. When the scooter starts to coast, put slowly kick off the other on the ground. both feet on the deck and push down the accelerator. NOTE: Do not push down the accelerator before the scooter reach the speed 3 mph, the scooter must be traveling at least 3 mph before motor will engage.

  • Page 12: Safety Instructions

    7 Safety Instructions Watch out for safety risks Do not ride in the rain. Keep your speed between 3.1-6.2 mph when you ride through speed bumps, elevator door sills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.
  • Page 13 Do not press the accelerator when Always steer clear of obstacles. you're walking alongside the scooter. Do not hang bags or other heavy Keep both feet on the deck all time. stuff on the handlebar.
  • Page 14 Do not try following dangerous actions Do not ride in traffic lanes or Do not turn the handlebar violently residential areas where vehicles and during high-speed riding. pedestrians are both allowed. Do not ride in a ponding that is Do not ride with anyone else, higher than 0.78 inch.
  • Page 15 Do not keep your feet on the rear Do not touch the rear fender brake fender brake. immediately after riding. Do not keep your hands away from Do not try riding up or down stairs, handlebar. and jumping over obstacles.
  • Page 16 Closely follow the safety instructions in the manual in the countries that lack relevant laws and regulations regarding electric scooters. SmooSat shall not be liable for any financial losses, physical injuries, accidents, legal disputes and other interest conflicts resulted from actions that violate user instructions.

  • Page 17: Folding And Carrying

    8 Folding and Carrying Fold Make sure that the scooter's turned off. Push the release lever and lower the handlebar stem to fold. Carry Hold the handlebar stem with either one hand or both hands to carry.

  • Page 18: Daily Care And Maintenance

    When the temperature rises, the riding range restores. Note: Fully charged SmooSat T9 / T9 Apex Electric Scooter will takes around 4 hours. The built-in intelligent chip will keep a log of its charging and discharging records. The damage caused by prolonged no charge is irreversible and is beyond limited warranty.

  • Page 19: Specifications

    10 Specifications Performance Index Items Specifications L × W × H [1] (inch) 36.0×15.5×40.8 Dimensions After folding: L × W × H (inch) 31.0×15.5×14.6 Weight Item weight (lb) Approx. 17.3 Load range (lb) 66~154 Riding Requirements Body height (inch) 55–67 Max.

  • Page 20: Troubleshooting Guide

    11 Troubleshooting Guide *Product(s) should be turned OFF and fully charged prior to doing any Troubleshooting. NOTE: All troubleshooting steps should be performed by an adult only. Problem Possible Cause Solution Does not work out Unit must be traveling at least 3mph Kick start to at least 3 mph while engaging the throttle to engage of the box before motor engage...

  • Page 21: Trademark And Legal Statement

    12 Trademark and Legal statement is a registered trademark owned by Shenzhen Ruiyundi Tech. Co. Ltd.. It reserves all rights to the trademark © 2021 Shenzhen Ruiyundi Tech. Co. Ltd. all rights reserved. This manual included all functions and instructions when it is printed. But actual product may vary due to improved functions and design.

  • Page 22: Warranty

    Warranty services are provided by SmooSat. If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, SmooSat will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;...
  • Page 23 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 24 Customer Support www.facebook.com/smoosatscooter or scan above QR code Shenzhen Ruiyundi Tech. Co. Ltd. Website: www.smoosat.com Facebook: www.facebook.com/smoosatscooter Email: support@ismoosat.com Tel: +1 929 693 6066 Mon-Fri 9:00 AM - 5:00 PM Pacific Time Add: 2208-E3, Block A, Lianhe Plaza, No. 5022, Binhe Avenue, Fushan Community, Futian District, Shenzhen, Guangdong, China.

This manual is also suitable for:

T9 apex
