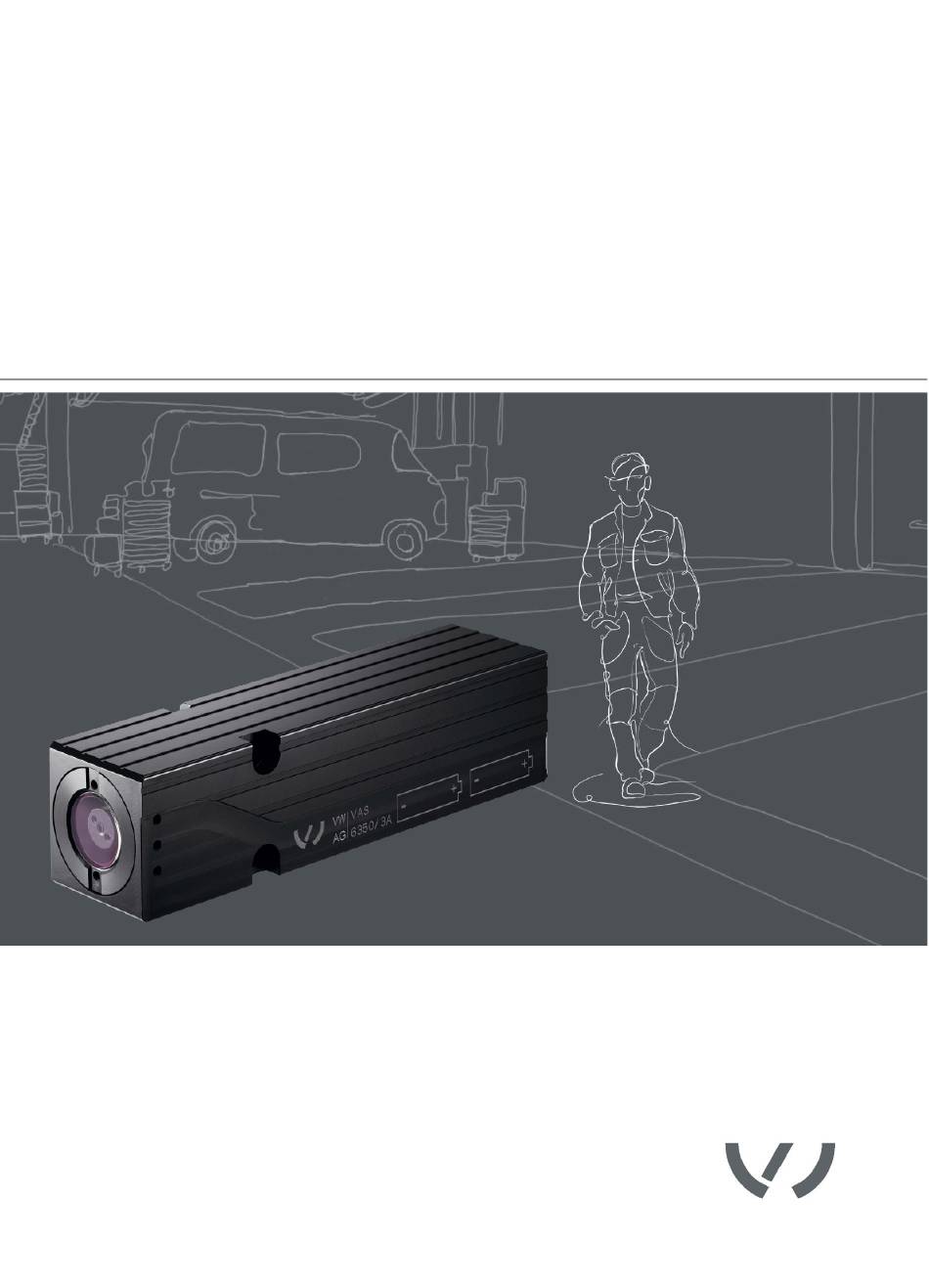

  • Page 1 Betriebsanleitung Operations manual VOLKSWAGEN AKTI NG ES  LLSC HAFT Liielaser VAS 6350/3A Lie laser VAS 6350/3A...
  • Page 3: Fcc-Hinweis (Gültig In Usa) / Ic-Hinweis (Gültig In Kanada)

    FCC-Hinweis (gültig in USA) / IC-Hinweis (gültig in Kanada) Dieses Gerät hat in Tests die Grenzwerte eingehalten, die in Abschnitt 15 der FCC-Bestimmungen für digitale Geräte der Klasse A festgeschrieben sind. Diese Grenzwerte sollen einen angemessenen Schutz gegen elektromagnetische Störungen beim Betrieb in gewerblich genutzten Gebieten gewähr- leisten.
  • Page 4 Instructions for use and other useful information Dealing with recyclable materials Do not dispose of electric equipment and batteries as household waste 1.2.3 Symbols in illustrations The following symbols are used in illustrations: These numbers refer to the illustrations at the beginning of these operating instructions. The numbering reflects the sequence of operations shown in the illustrations and may deviate from the steps described in the text.
  • Page 5 Safety General safety instructions, measuring tools WARNING! Read all safety precautions and other instructions. Measuring tools can present hazards if handled incorrectly. Failure to observe the safety instructions and other instructions can result in damage to the measuring tool and/or serious injury. Keep all safety precautions and instructions for future reference.
  • Page 6 Additional safety instructions for laser measuring tools ▶ Laser radiation in excess of Class 2 can be emitted if the product is opened without correct procedure being followed. Have the product repaired only by Hilti Service. ▶ Secure the area in which you will be taking measurements. While setting up the product, make sure that you do not direct the laser beam toward yourself or others.
  • Page 7: Technical Data

    (target plates, etc.). The line laser module is intended exclusively for use in combination with the VAS 6350/3 unit from VOLKSWAGEN AG. Items supplied Line laser module, target eyeglasses, 2x AA batteries (not in all markets), operating instructions Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group...
  • Page 8: Operation

    Materials Screw M5 x 35 mm Holding fixture VAS 6350/3 unit from VOLKSWAGEN AG Switching on and off 1. Press the on/off button to switch the product on. 2. Press the on/off button again to switch the product off. The product switches off automatically after 8 minutes. Press the on/off button and hold it down for longer than 5 seconds to deactivate automatic switch-off.
  • Page 9: Transport And Storage

    Care of the product • Carefully remove stubborn dirt. • Carefully clean the air vents, if present, with a dry, soft brush. • Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as these can attack the plastic parts.
  • Page 10: Originele Handleiding

    ▶ Do not dispose of power tools, electronic equipment or batteries as household waste! Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. FCC statement (applicable in US) / IC statement (applicable in Canada) This device has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules.
  • Page 11 *2407374* 2407374 Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20230808...
