Summary of Contents for Viking Stage Lighting VK 250 Poki

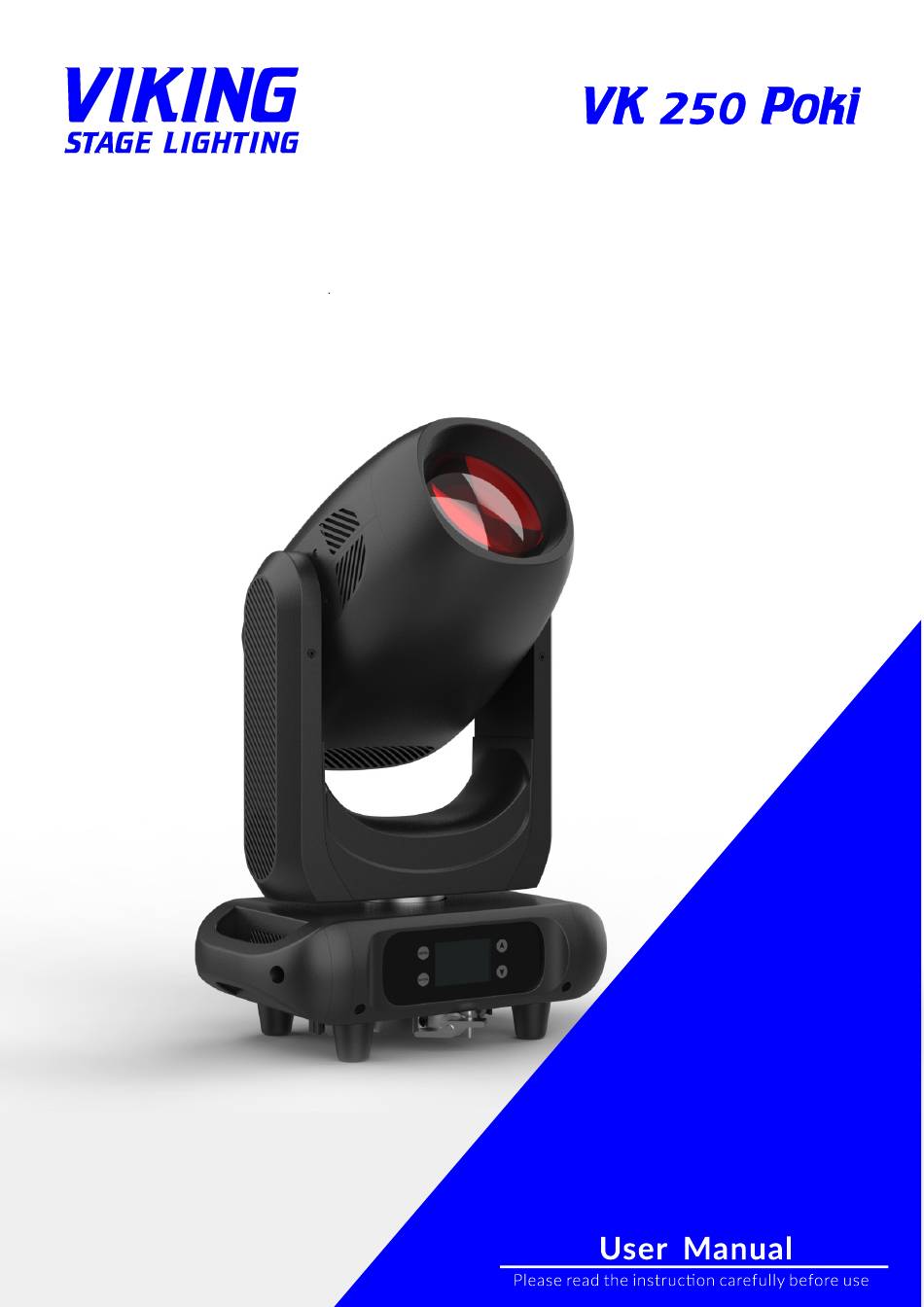

Page 1 USER MANUAL...
Page 2: Table Of Contents
SUMMARY Introduction Technical parameter Dimension Photometric Display DMX 512 connection Error messages Cleaning and maintenance...
Page 3: Introduction
INTRODUCTION Thank you for selecting the 250W LED hybrid fixture WARNING ! This product is not suitable for household use. You now own a professional lighting unit that offers endless possibilities. Before installing, make sure that no damage was done to your luminaire during transport. For your own safety and that of others, please read this instruction manual carefully before installing the unit.
Page 4 Installation and connection to an electrical source must be performed by an authorized installer. Our factory declines all responsibility should this fixture be installed by an unqualified person. Never disconnect your fixture by pulling on the power cable! First unlock the connector lock ring on the power cable until it is fully disengaged, and then gently pull on the connector to disconnect the cable.
Page 5 Choosing the appropriate place to install the fixture is essential. The following points should be observed: • Do not expose it to a heat source. • Do not install it near flammable materials. • Be sure that dust or miscellaneous debris cannot clump around the body of the luminaire as this may interfere with its optimal cooling and proper operation.
Page 6 Never dispose of the in a rubbish bin. Ensure that it is recycled. Please consult the current legislation in your country on recycling electronic equipment. PRESENTATION AND FEATURES 250W LED hybrid fixture is a non-waterproof moving head wash light (IP20 protection rating) using the latest generation of high-performance of LED-type lamps.
Page 7: Technical Parameter
TECHNICAL PARAMETER POWER Voltage:AC100~240v,50/60Hz Source: 250W white LED Power consumption:320W CT:7200K Life: ＞20,000H MOVEMENT Pan movement: 540° optional (16 bit) Tilt movement: 270° (16 bit ) Advanced motion system: auto repositioning, fast, quiet and smooth COLORS 1 color wheels with 8 color + white Interchangable ,indexable ,bidirectional rainbow effect GOBOS 1 Rotating gobo wheels:...
Page 8 FEATURES DMX channels: 19/25CH Prism: 5 facet prism, prism can be positioned Motorized Focus Zoom: 2.7°- 45° linear zoom various strobe Heavy Frost Dimming: 0-100% linear dimming DISPLAY 2.8 inch LCD display with English/Chinese menu Auto lock and display flip Pan/ Tilt reverse SOFTWARE Remote reset DMX address, fixture reset...
Page 9: Dimension
Dimension 368.3 388.2 253.9 User manual _9...
Page 10: Photometric
Photometric Beam Angle Distance(m) 2.7° °Lux 105000 23300 8720 Diameter(m) 0.24 0.47 0.73 Beam Angle Distance(m) ° 45°Lux 1050 Diameter(m) User manual _10...
Page 11: Display
Display: To show the various menus and the selected function. Button: Enter To perform the desired functions DOWN To go to move down in the menu MENU To enter into move backward or leave the menu To go backward or move up in the menu ETHERNET: Transfers fixture’s information to a main controller.
Page 12 ....Address Signal Select ArtNet 19CH DMX Mode 25CH Slave Auto Speed 000---255 Auto 000---255 Sensitivity Sound 000---255 000---255 Pan fine 000---255 Tilt 000---255 MODE Tilt fine Pan/Tilt 000---255 speed 000---255 Strobe 000---255 Dimmer 000---255 Zoom 000---255 Focus Manual 000---255 Auto Focus Contrlol Auto Focus...
Page 13 Display reverse Display Keylock Celsius Temp Unit Fahrenheit Hold DMX Fail Blackout Square Law Inv SQ Law Dimmer Curve Linear S Curve 800HZ 1200HZ 3600HZ MENU 5000HZ Dimmer Curve 10KHZ 15KHZ 20KHZ 25KHZ Standard Stage Dimmer Mode Architecture Theatre User manual _13...
Page 14 Pan Reverse Tilt Reverse Encoders Tilt Auto Color Wheel Rot Color High Fan Set Wheel Gobo Rot Silent Fix Color Password/8 Calibrate Wheel Zoom Focus Pan/Tilt Prism Color Motor Reset Prism Rot Gobo Frost Other Reset Default Chinese Language English Password User time 000.000.000.000...
Page 15: Dmx512 Connection
DMX512 CONNECTION Connect the DMX input (XLR connector) cable of the luminaire to the DMX output (female XLR connector) of your controller. You can connect multiple fixtures to this same DMX line in a daisy chain. The DMX cable must be a shielded twisted pair that is equipped with male and female XLR connectors.
Page 16 DMX 512 Configuration Please refer to below configurations to control the fixtures Attentions: 1. The unit will maintain the last condition until reset if you cut-o ffthe DMX signal. 2. For the channel Function, keep the value for about 5 seconds, then the corresponding function will take into effect.
Page 17 Zoom: 0-255 Zoom adjustment from small to big Zoom Fine: 0-255 Zoom adjustment Fine Focus: 0-255 Continuous adjustment from near to far Focus Fine: 0-255 Continuous adjustment Fine Auto Focus: 0-51 Auto Focus Off 52-102 103-153 7.5m 154-204 205-255 Auto Focus Fine: 0-255 Continuous adjustment Fine Color Wheel:...
Page 18 68-73 Color4/Color5 74-79 Color5 80-85 Color5/Color6 86-91 Color6 92-97 Color6/Color7 98-103 Color7 104-109 Color7/Color8 110-115 Color8 116-121 Color8/Open 122-127 Open 128-189 Forwards rainbow effect from fast to slow 190-193 No rotation 194-255 Backwards rainbow effect from slow to fast Color Wheel Fine: 0-255 Color Wheel colour change to any position Fine Rotating gobos,cont.rotation 1:...
Page 19 99-111 Gobo 1 shake slow to fast 112-124 Gobo 2 shake slow to fast 125-137 Gobo 3 shake slow to fast 138-150 Gobo 4 shake slow to fast 151-163 Gobo 5 shake slow to fast 164-176 Gobo 6 shake slow to fast 177-189 Gobo 7 shake slow to fast 190-221...
Page 20 68-73 Gobo 10 74-79 Gobo 11 80-89 Gobo 1 shake slow to fast 90-99 Gobo 2 shake slow to fast 100-109 Gobo 3 shake slow to fast 110-119 Gobo 4 shake slow to fast 120-129 Gobo 5 shake slow to fast 130-139 Gobo 6 shake slow to fast 140-149...
Page 21 unused 10-19 Display Off 20-29 Display On 30-39 Display Invert Off 40-49 Display Invert On 50-59 Auto fan control mode 60-69 High fan control mode 70-79 Silent fan control mode 80-82 Square Law 83-85 Inv SQ Law 86-88 Linear 89-91 S Curve 92-94 800Hz Refresh rate...
Page 22 150-159 All motor reset 160-169 Scan motor reset 170-179 Colors motor reset 180-189 Gobo motor reset 190-199 Other motor reset 200-255 unused User manual _22...
Page 23: Error Messages
ERROR MESSAGES When you turn on the 250W LED hybrid fixture, it will first perform an automatic reset. The display may show “Err channel is XX” indicating there is a problem with one or more of the channels. “XX”represents channel 1, 2, 3, 4, 5 or 6, which contain the testing sensor for positioning. For example, the message, “Err channel is Pan movement”, indicates an error in channel 1.
Page 24 Rot_Gobo wheel Er (Rot_Gobo1wheel - error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the steppermotor is defective (or its driving IC on the main PCB).The Rot_Gobo1 - movement is not located in the default position after the reset.
Page 25: Cleaning And Maintenance
CLEANING AND MAINTENANCE The following points have to be considered during inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations to the housing , lenses, rigging and installation points (ceiling, suspension, trussing).
