Zeta SMART CONNECT MULTI-LOOP SCM-RM Instruction Manual

Multi relay output module
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

MULTI RELAY OUTPUT MODULE
DOC: GLT-295-7-13
ISS: 001
DATE: 09.02.2021
www.acornfiresecurity.com
INSTRUCTION MANUAL
SCM-RM
www.acornfiresecurity.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART CONNECT MULTI-LOOP SCM-RM and is the answer not in the manual?

Questions and answers

Summary of Contents for Zeta SMART CONNECT MULTI-LOOP SCM-RM

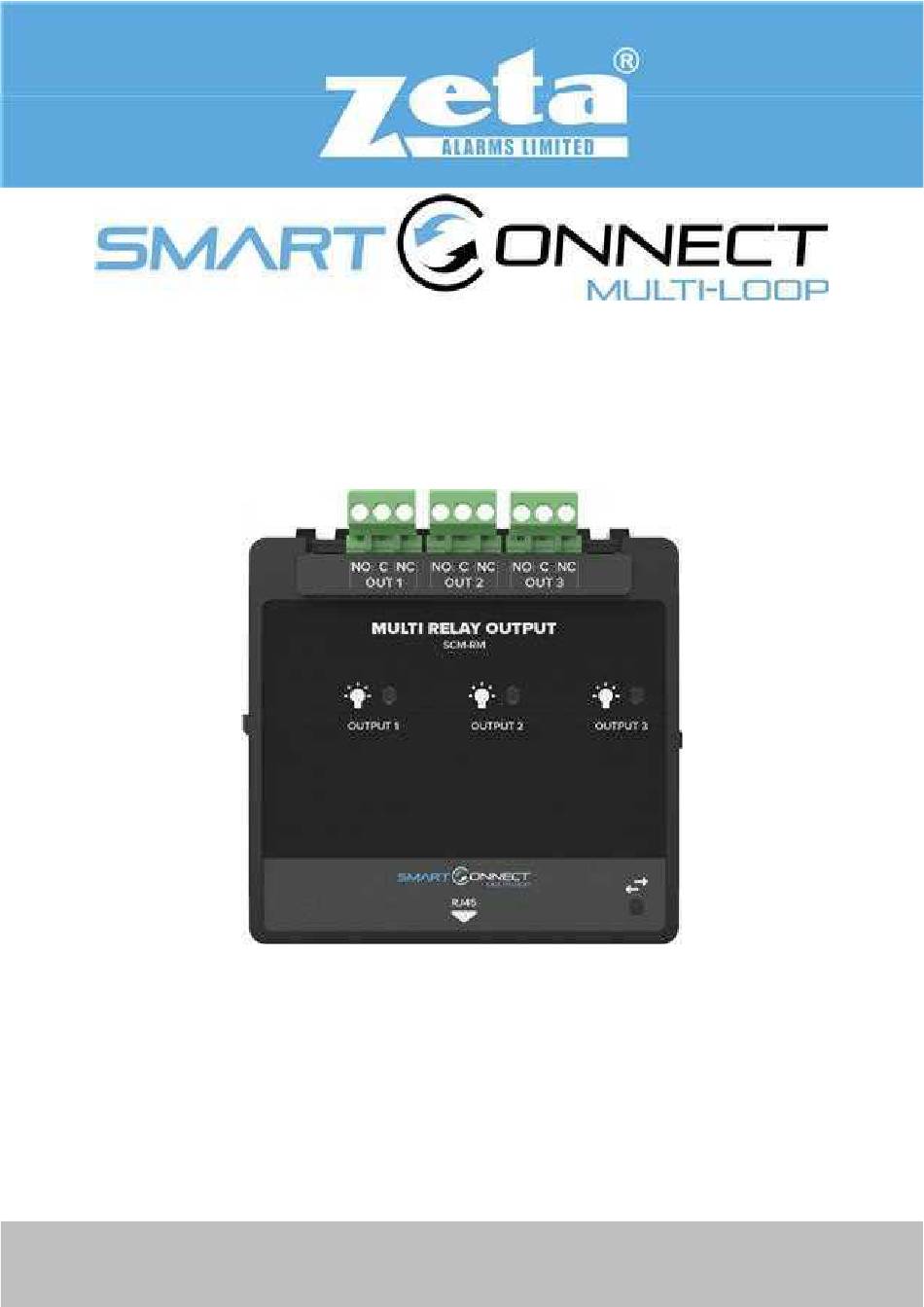

  • Page 1 www.acornfiresecurity.com MULTI RELAY OUTPUT MODULE INSTRUCTION MANUAL SCM-RM DOC: GLT-295-7-13 ISS: 001 www.acornfiresecurity.com DATE: 09.02.2021...

  • Page 2: Installation

    www.acornfiresecurity.com MULTI RELAY OUTPUT MODULE INSTRUCTION MANUAL General The SCM-RM is a relay module that is designed to be DIN mounted inside of a Smart Connect Multi-loop control panel. It’s powered and is interfaced to the panel via a RJ45 connection. The module has three form C relays which can be typically used to control lift operation during an alarm, start fire pumps or stop ventilation fans etc.
  • Page 3 www.acornfiresecurity.com MULTI RELAY OUTPUT MODULE INSTRUCTION MANUAL TRM RJ45 Port Address Designation Each RJ45 port on the Smart Connect Multi-loop termination has its own unique port address. This port address is important to keep note of as it is displayed on Alarm/Fault messages and is used when configuring or setting up cause and effects on the panel (See SCM operation manual GLT-261-7-10).

  • Page 4: Power-On Procedure

    www.acornfiresecurity.com MULTI RELAY OUTPUT MODULE INSTRUCTION MANUAL Power on Procedure 1. After the above has been completed, turn the panel on (Via AC Only). The panel will follow the same power up sequence described in initial power up section above 2.

  • Page 5: Field Wiring

    www.acornfiresecurity.com MULTI RELAY OUTPUT MODULE INSTRUCTION MANUAL Check that the module configuration is as expected using the to navigate the through the port     numbers. Press the icon to confirm the changes. The new module is now configured into the panel and is ready for use. Since the batteries are not connected, the panel will report them as removed, lighting the yellow “Fault”...

  • Page 6: Specifications

    www.acornfiresecurity.com MULTI RELAY OUTPUT MODULE INSTRUCTION MANUAL Front Unit LED Indications LED Indication Description LED Indication Description Pulses to show communication between On steady when the relay is active. the module and the motherboard. NOTE: When an SCM-RM relay is configured as an alarm output, it will act as a common alarm relay, and cannot be controlled by cause and effect.
