OWNER'S MANUAL
CONTENTS:
Page
1
Specifications
2
Warning Information
3
Setup Instructions, Operating Instructions, Preventative Maintenance, Inspection and Proper Storage
4
Troubleshooting, Owner/User Responsibility
5
Hydraulic Jack Maintenance Guide and Regular Maintenance
6-7
Exploded View Drawing and Replacement Parts
8
Warranty Information
SUM-917079
SPECIFICATIONS
Capacity ................................................................. 3 Tons
Low Height .....................................................................4"
High Height ...............................................................18.5"
Overall Length ........................................................23.85"
Overall Width ..........................................................12.55"
Handle Length ........................................................45.47"
Saddle Diameter .......................................................4.13"
Net Weight ........................................................ 65.25 lbs.
Shipping Weight ............................................... 75.32 lbs.

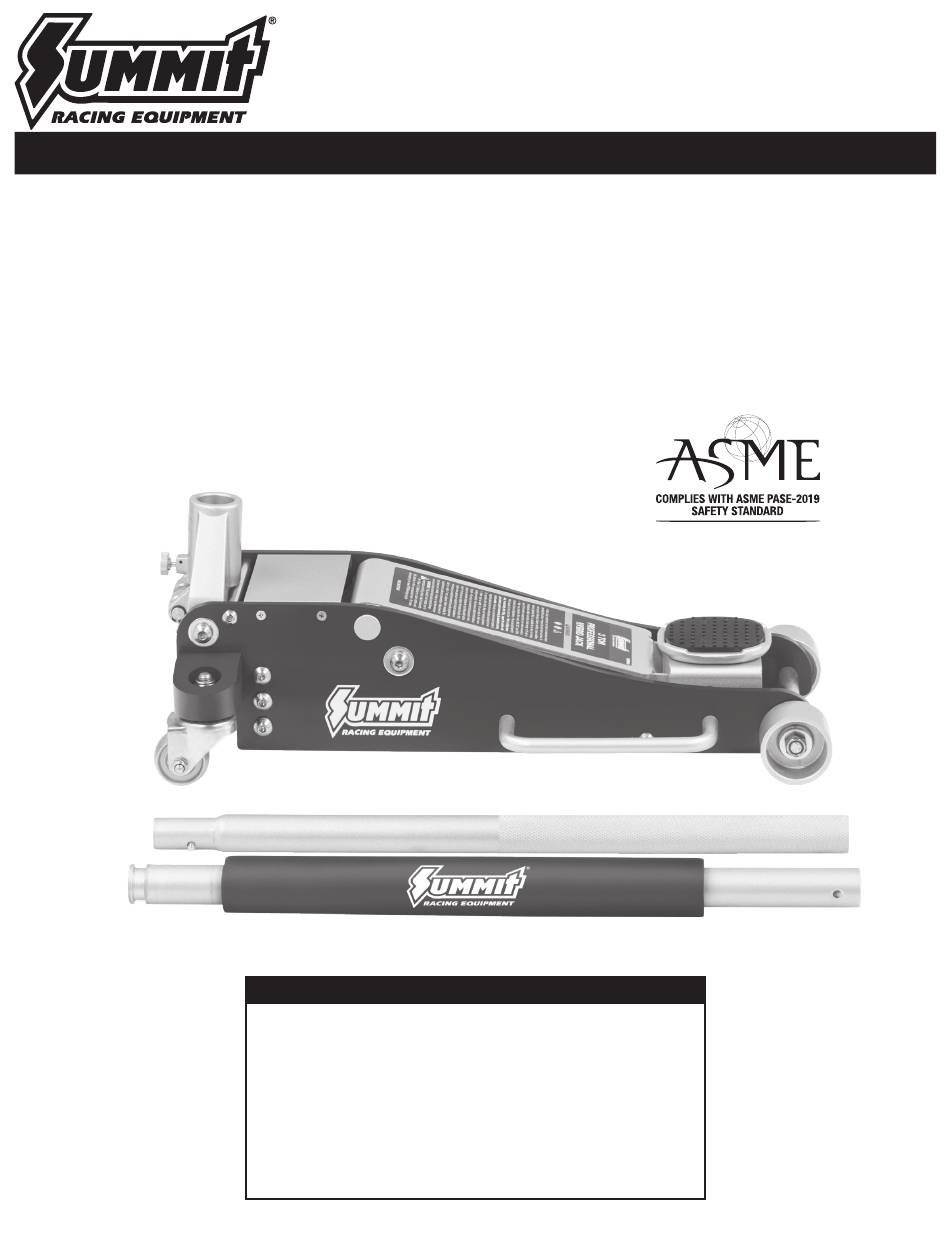

HYBRID FLOOR JACK
1
SUM-917079
CAPACITY: 3 TON
© Copyright 2023, SUMMIT ®
10/17/2023
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Summit SUM-917079
Summary of Contents for Summit SUM-917079
- Page 1 SPECIFICATIONS Capacity ..............3 Tons Low Height ..............4" High Height ...............18.5" Overall Length ............23.85" Overall Width ............12.55" Handle Length ............45.47" Saddle Diameter ............4.13" Net Weight ............65.25 lbs. Shipping Weight ..........75.32 lbs. © Copyright 2023, SUMMIT ® SUM-917079 10/17/2023...
- Page 2 It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsiblity of the device owner to keep this manual intact and in a convenient location for all to see and read. Contact SUMMIT® Professional Tools for a replacement label if your jack's label is not readable.
- Page 3 Install the oil fill screw. Rotate the handle in a clockwise direction until tight and pump the lift arm to maximum height without a load. Repeat steps "A" through "C" until all air is purged from system. Reinstall the cover plate. IMPORTANT: Before attempting to raise any vehicle, check vehicle service manual for recommended lifting surfaces. SUM-917079 10/17/2023...
- Page 4 5. Handle tends to raise up while the unit is under rated load. Pump the handle rapidly several times to push oil past ball valves in power unit. 6. Unit still does not operate. Contact customer service (page 6). SUM-917079 10/17/2023...
-
Page 5: Regular Maintenance
SUM-917079 CAPACITY: 3 TON HYBRID FLOOR JACK HYDRAULIC MAINTENANCE GUIDE IMPORTANT: Service jacks are designed for lifting purposes only; always support raised load with jack stands. REGULAR MAINTENANCE MONTHLY or as necessary (depending on usage) #1 Using a grease gun, add grease to grease fitting in the lift arm pivot shaft. - Page 6 SUM-917079 10/17/2023...
- Page 7 OVERSIZE WASHER M10 FLAT HEAD BOLT M8 SADDLE SCREW GUIDE ARM NUT BUTTON HEAD SCREW M10x1.5 RUBBER SADDLE PAD - 30mm REAR CASTER BRACKET PUSH BUTTON SWIVEL CASTER (EACH) - SILVER RELEASE ASSEMBLY Not Shown PRODUCT LABEL KIT SUM-917079 10/17/2023...
- Page 8 Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. If you have any questions about warranty service, please contact SUMMIT® Professional Tools. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
