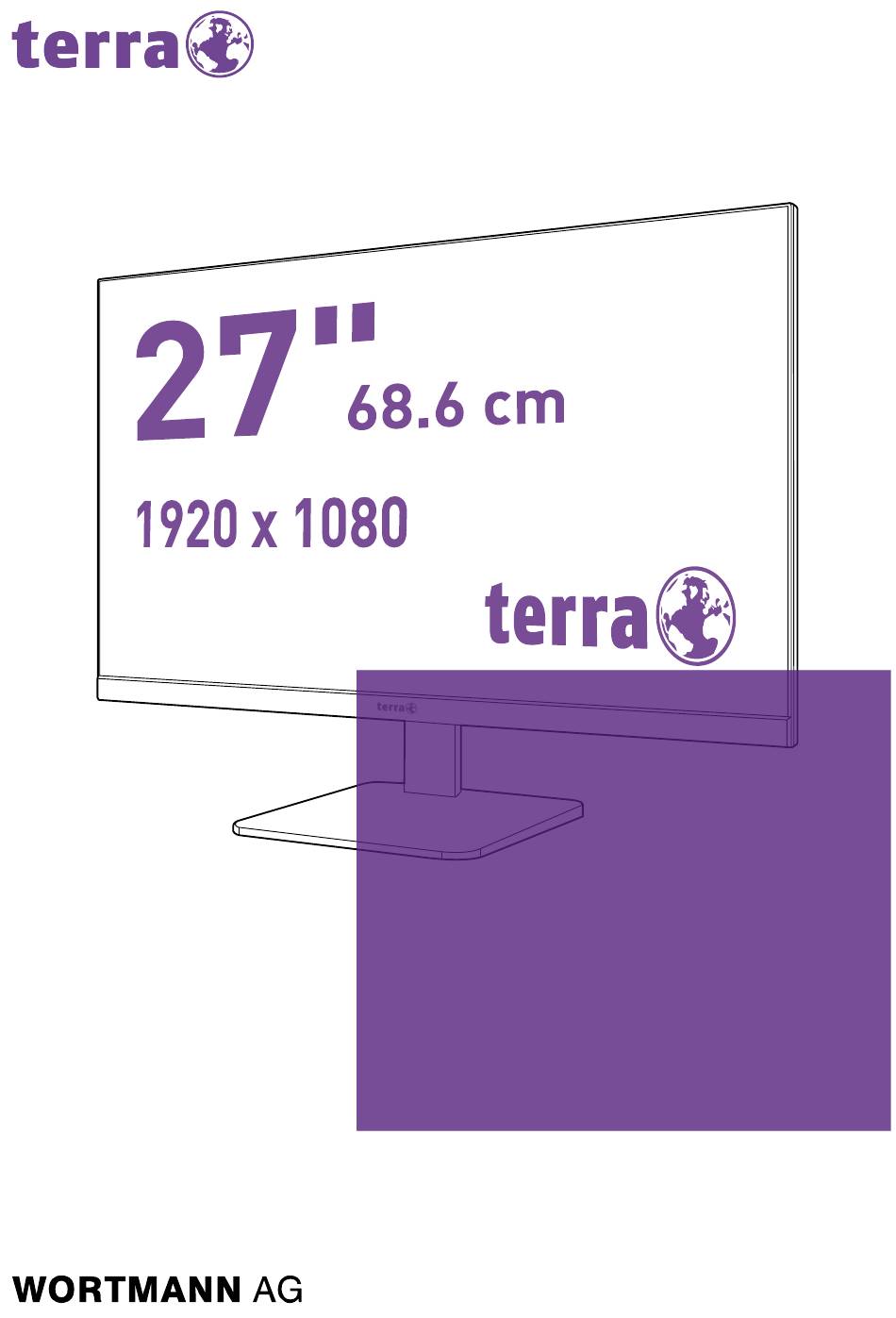

- Page 1 LCD/LED 2727W USER MANUAL + GERMAN + ENGLISH + FRENCH + SPANISH + ITALIAN + RUSSIAN + P O L I S H + C Z E C H...
- Page 2 Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. This monitor has been tested and found compliant with the CE mark. These limits are designed to provide proper protection against harmful interference to a residential installation.
-
Page 3: Table Of Contents
Content Safety Precautions ....................... 1 First Setup ........................... 2 Quick Installation ......................... 3 Installing the LCD Monitor ....................4 Front View of the Product ....................5 Rear View of the Product ..................... 6 Using On Screen Display (OSD) Functions ................. 7 Supporting Timing Modes .................... -
Page 4: Safety Precautions
Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. -
Page 5: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories: AC/DC Power Adapter HDMI cable AC Power cord Quick start guide Warranty card ... -
Page 6: Quick Installation
Quick Installation 1. Connect Video cable (HDMI cable) Make sure both monitor and computer are powered OFF. Connect the HDMI cable from HDMI output of computer to the HDMI input of the monitor. Or connect DisplayPort cable *Optional Connect the DisplayPort cable from DisplayPort output of computer to the DisplayPort input of the monitor. -
Page 7: Installing The Lcd Monitor
Installing the LCD Monitor Installing the Stand Base 1. Place the monitor face down on a soft cloth or cushion on a table. 2. Install the stand base to the monitor. Disconnecting the Stand Base 1. Place the monitor face down on a soft cloth or cushion on a table. 2. -
Page 8: Front View Of The Product
Front View of the Product ❶ ❷❸❹ ❺ ❻ ❶ OSD Menu On/Off ❷ Scroll Down/ Decrease ❸ Scroll Up/ Increase ❹ Confirm Select ❺ Power ON/OFF ❻ LED Indicator... -
Page 9: Rear View Of The Product
Rear View of the Product ❶ ❷❸ ❹ ❶ DisplayPort input USB-C input ❷ Note: USB-C port does not support power charging. ❸ HDMI input ❹ Power input... -
Page 10: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Display main menu/ Exit from OSD menu Press【 1 】key long-term: OSD LOCKED Then press【 1 】key long-term: OSD UNLOCKED Select the desired item when in OSD menu < When not in OSD menu, directly enters the BRIGHTNESS menu Select the desired item when in OSD menu >... - Page 11 OD (Over Drive): Allows the user to change the OD strength. Improve the quality of the motion pictures. Press 2 key to adjust the OD On or Off. ECO: Allows the user to turn the ECO On or Off. BRIGHTNESS, CONTRAST and DCR ...
- Page 12 COLOR TEMP.: To select the color for improving brightness and color saturation in COLOR TEMP. . COLOR TEMP.: To adjust the default picture color. It contains 4 user-selectable presets. NORMAL: Adds red to screen image for warmer white and richer red. COOL: Adds blue to screen image for cooler white.
- Page 13 RESET RESET ：EXIT ：SELECT RESET: To recall factory settings for Video & Audio controls. RESET: Press button 2 to select the Reset menu option. MISC SIGNAL SOURCE HDMI VOLUME 1920 x 1080 100Hz ：EXIT ：SELECT MISC: To manually adjust the SIGNAL SOURCE and VOLUME. SIGNAL SOURCE: When Input Source is pressed, change Input signal to HDMI, ...
-
Page 14: Supporting Timing Modes
Supporting Timing Modes 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA... -
Page 15: Technical Information
Technical Information Technical Specification 68.6 cm (27") (Low Blue Light) LCD Panel VESA DPMS compatible Power Management Off Mode, ≤ 0.3 W Full HD 1920 x 1080 max. Displayable Resolution Vertical Frequency 100Hz max. Pixel Dimension 0.3114 x 0.3114 mm LCD Display Color 16.7M Active Display Area... -
Page 16: Care And Maintenance
Care and Maintenance Care Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. Make certain your monitor is installed in a clean and moisture-free area. ... - Page 17 WEEE Statement Wichtige Recyclinginformation Das Gerät darf nach dem Ende der Nutzungszeit nicht mit dem Restmüll entsorgt werden. Bitte führen umweltgerechten Entsorgung kommunalen Altgeräte-Sammelstellen zu. Für weitere Informationen wenden Sie sich bitte an die unten stehende Adresse. Important Information for Recycling This warning sign of trash bin indicates that the objects are not allowed to be disposed as general refuse.
- Page 18 GENERAL PUBLIC LICENSE (GPL) - VER.2 Lizenzinformation Open Sour ce Softwar e/GPL Sourcecode GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Dieses Produkt enthält Software, die von Dritten stammt, darunter Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA auch Software, die unter der GNU General Public License Version 02110-1301, USA 2 (“GPLv2”) und der GNU Lesser General Public License, Version...
- Page 19 with a work based on the Program) on a volume of a storage or distribution medium does not 10. If you wish to incorporate parts of the Program into other free programs whose distribution bring the other work under the scope of this License. conditions are different, write to the author to ask for permission.
